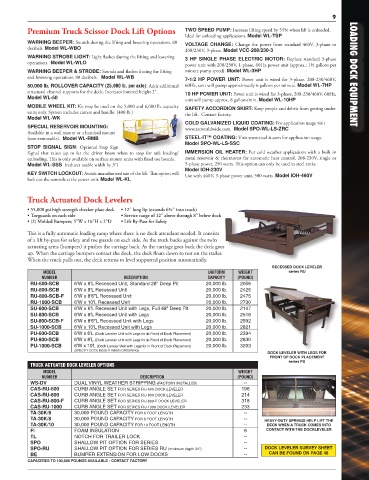

Page 3 - Vestil Catalog 112

9
Premium Truck Scissor Dock Lift Options TWO SPEED PUMP: Increase lifting speed by 55% when lift is unloaded.
Ideal for unloading applications. Model WL-TSP
WARNING BEEPER: Sounds during the lifting and lowering operations. 80 VOLTAGE CHANGE: Change the power from standard 460V. 3-phase to
decibels. Model WL-WBO 208/230V, 3-phase. Model VCC-208/230-3
WARNING STROBE LIGHT: Light flashes during the lifting and lowering 3 HP SINGLE PHASE ELECTRIC MOTOR: Replace standard 3-phase
operations. Model WL-WLO power unit with 208/230V, 1-phase, 60Hz power unit (approx.; 1½ gallons per
WARNING BEEPER & STROBE: Sounds and flashes during the lifting minute pump speed). Model WL-3HP
and lowering operations. 80 decibels. Model WL-WB LOADING DOCK EQUIPMENT
7-1/2 HP POWER UNIT: Power unit is wired for 3-phase. 208-230/460V,
50,000 lb. ROLLOVER CAPACITY (25,000 lb. per axle): Adds additional 60Hz, unit will pump approximately 6 gallons per minute. Model WL-7HP
structural channel supports for the deck. Increases lowered height 2". 10 HP POWER UNIT: Power unit is wired for 3-phase, 208-230/460V, 60Hz,
Model WL-50 unit will pump approx. 8 gallons/min. Model WL-10HP
MOBILE WHEEL KIT: Kit may be used on the 5,000 and 6,000 lb. capacity SAFETY ACCORDION SKIRT: Keep people and debris from getting under
units only. System includes casters and handle. (400 lb.) the lift. Contact factory.
Model WL-WK
COLD GALVANIZED LIQUID COATING: For application usage visit
SPECIAL RESERVOIR MOUNTING: www.zrcworldwide.com. Model SPO-WL-LS-ZRC
Available in a wall mount or a handrail mount
(non-removable). Model WL-RMB STEEL-IT™ COATING: Visit www.steel-it.com for application usage.
Model SPO-WL-LS-SSC
STOP SIGNAL SIGN: Optional Stop Sign
Signal that raises up to let the driver know when to stop for safe loading/ IMMERSION OIL HEATER: For cold weather applications with a built in
unloading. This is only available on surface mount units with fixed toe boards. metal reservoir & thermostat for automatic heat control. 208-230V, single or
Model WL-SSS (reduces usable width by 3") 3-phase power, 250 watts. This option can only be used in steel tanks.
Model IOH-230V
KEY SWITCH LOCKOUT: Avoids unauthorized use of the lift. This option will Use with 460V, 3-phase power unit, 500 watts. Model IOH-460V
lock out the controls at the power unit. Model WL-KL

Truck Actuated Dock Levelers
• 55,000 psi high strength checker plate deck • 12" long lip (extends 6½" into truck)
• Toeguards on each side • Service range of 12" above through 8" below dock
• (2) Molded Bumpers; 5"W x 16"H x 2"D • Lift By-Pass for Safety

This is a fully automatic loading ramp where there is no dock attendant needed. It consists
of a lift by-pass for safety and toe guards on each side. As the truck backs against the twin
actuating arms (bumpers) it pushes the carriage back. As the carriage goes back the deck goes
up. When the carriage bumpers contact the dock, the deck floats down to rest on the trailer.
When the truck pulls out, the deck returns to level supported position automatically.
RECESSED DOCK LEVELER
MODEL UNIFORM WEIGHT series RU
NUMBER DESCRIPTION CAPACITY (POUND)
RU-600-SCB 6'W x 6'L Recessed Unit, Standard 28" Deep Pit 20,000 lb. 2056
RU-800-SCB 6'W x 8'L Recessed Unit 20,000 lb. 2425
RU-800-SCB-F 6'W x 8'6"L Recessed Unit 20,000 lb. 2475
RU-1000-SCB 6'W x 10'L Recessed Unit 20,000 lb. 2730
SU-600-SCB 6'W x 6'L Recessed Unit with Legs, Full 48" Deep Pit 20,000 lb. 2147
SU-800-SCB 6'W x 8'L Recessed Unit with Legs 20,000 lb. 2516
SU-800-SCB-F 6'W x 8'6"L Recessed Unit with Legs 20,000 lb. 2592
SU-1000-SCB 6'W x 10'L Recessed Unit with Legs 20,000 lb. 2821
PU-600-SCB 6'W x 6'L (Dock Leveler Unit with Legs for in Front of Dock Placement) 20,000 lb. 2394
PU-800-SCB 6'W x 8'L (Dock Leveler Unit with Legs for in Front of Dock Placement) 20,000 lb. 2830
PU-1000-SCB 6'W x 10'L (Dock Leveler Unit with Legs for in Front of Dock Placement) 20,000 lb. 3203
(SPECIFY DOCK HEIGHT WHEN ORDERING)
DOCK LEVELER WITH LEGS FOR
FRONT OF DOCK PLACEMENT
series PU
TRUCK ACTUATED DOCK LEVELER OPTIONS
MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
WS-DV DUAL VINYL WEATHER STRIPPING (FACTORY INSTALLED) --
CAS-RU-600 CURB ANGLE SET FOR SERIES RU-600 DOCK LEVELER 196
CAS-RU-800 CURB ANGLE SET FOR SERIES RU-800 DOCK LEVELER 214
CAS-RU-800-F CURB ANGLE SET FOR SERIES RU-800-F DOCK LEVELER 318
CAS-RU-1000 CURB ANGLE SET FOR SERIES RU-1000 DOCK LEVELER 233
TA-30K/6 30,000 POUND CAPACITY FOR 6 FOOT LENGTH --
TA-30K/8 30,000 POUND CAPACITY FOR 8 FOOT LENGTH -- HEAVY-DUTY SPRINGS HELP LIFT THE
TA-30K/10 30,000 POUND CAPACITY FOR 10 FOOT LENGTH -- DECK WHEN A TRUCK COMES INTO
FI FOAM INSULATION 6 CONTACT WITH THE DOCKLEVELER
TL NOTCH FOR TRAILER LOCK --
SPO SHALLOW PIT OPTION FOR SERIES --
SPO-RU SHALLOW PIT OPTION FOR SERIES RU (minimum depth 24") -- DOCK LEVELER SURVEY SHEET
BE BUMPER EXTENSION FOR LOW DOCKS -- CAN BE FOUND ON PAGE 48
CAPACITIES TO 100,000 POUNDS AVAILABLE - CONTACT FACTORY
