Product Family Overview


Electric Powered Rough Terrain Pallet Trucks
SERIES: RT-EPT

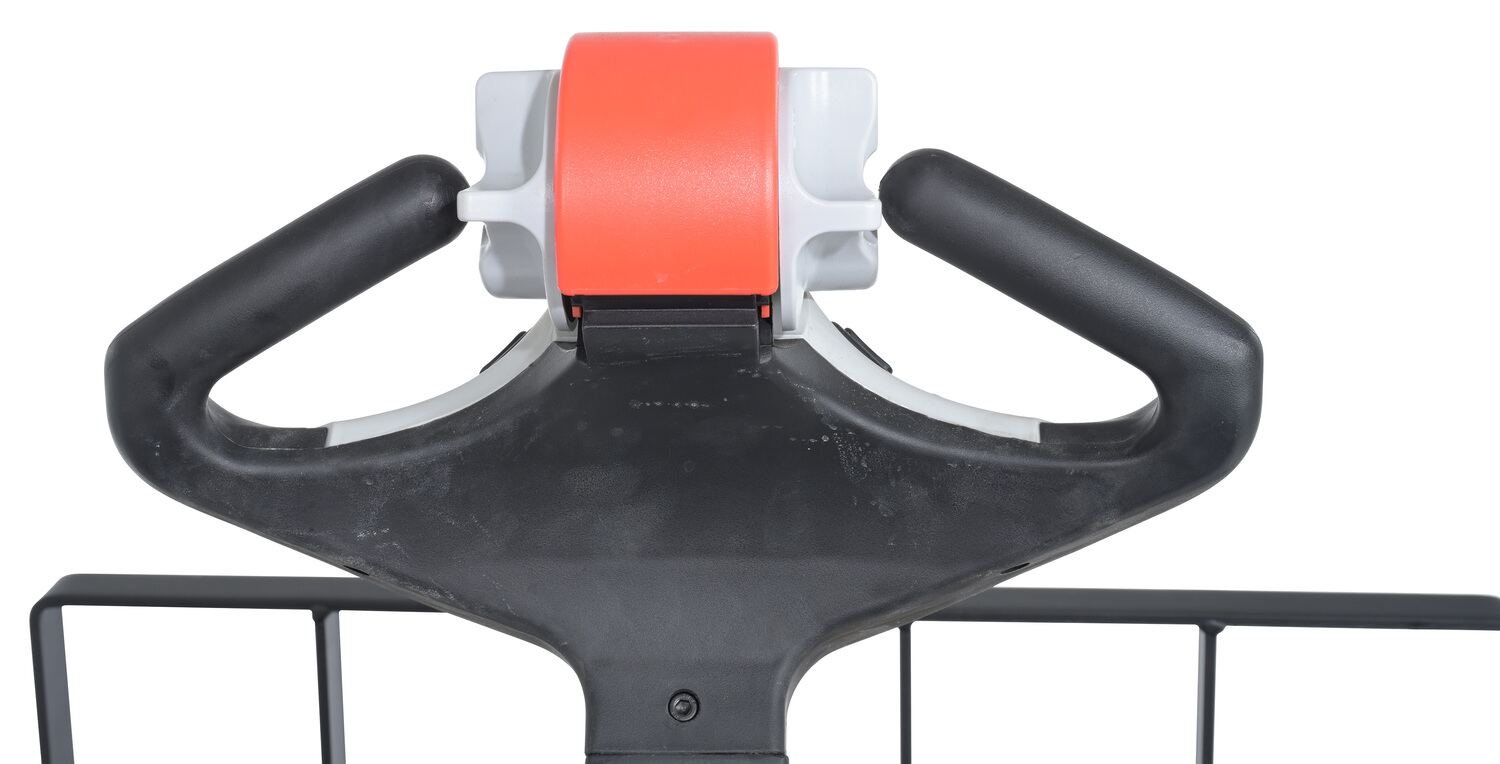

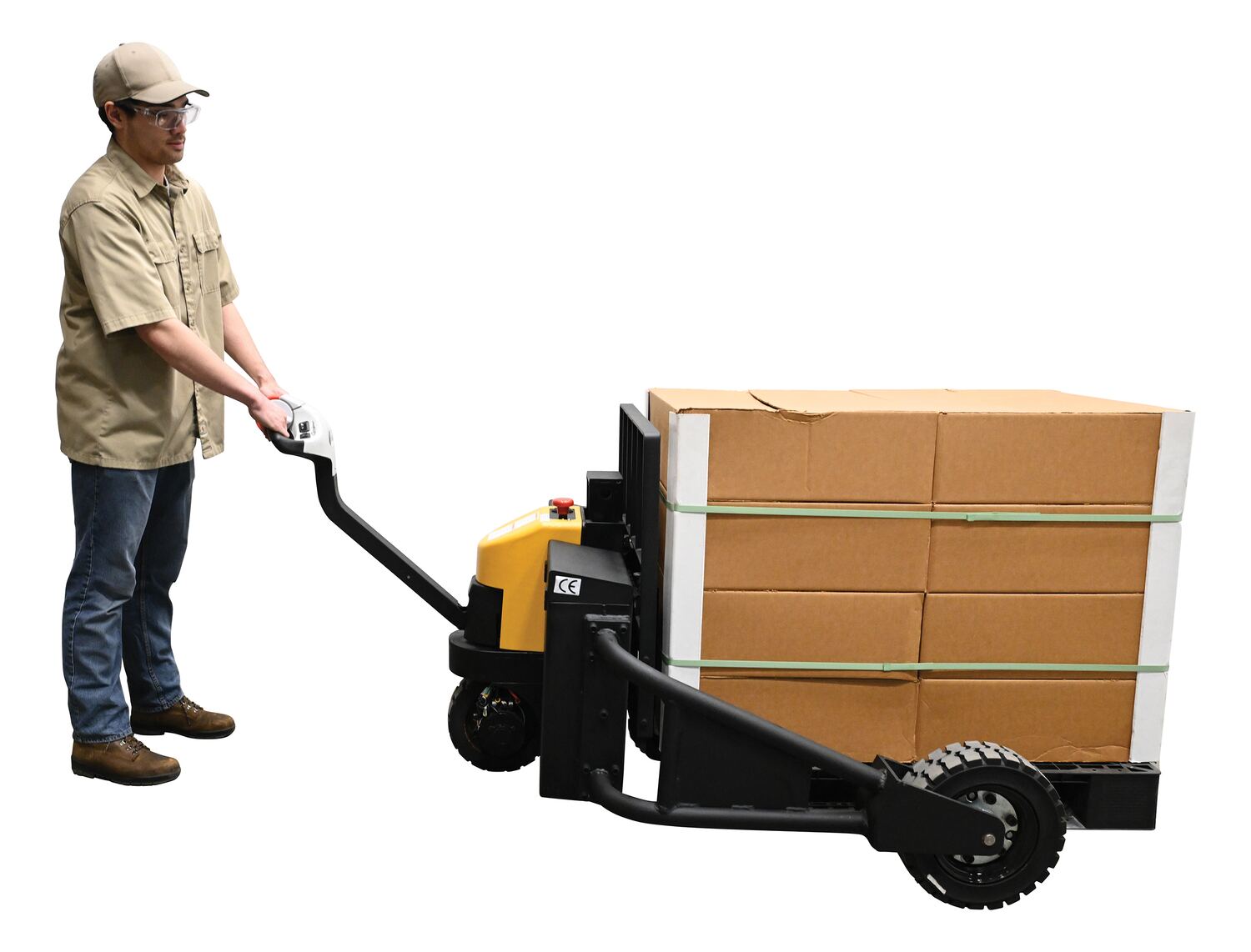

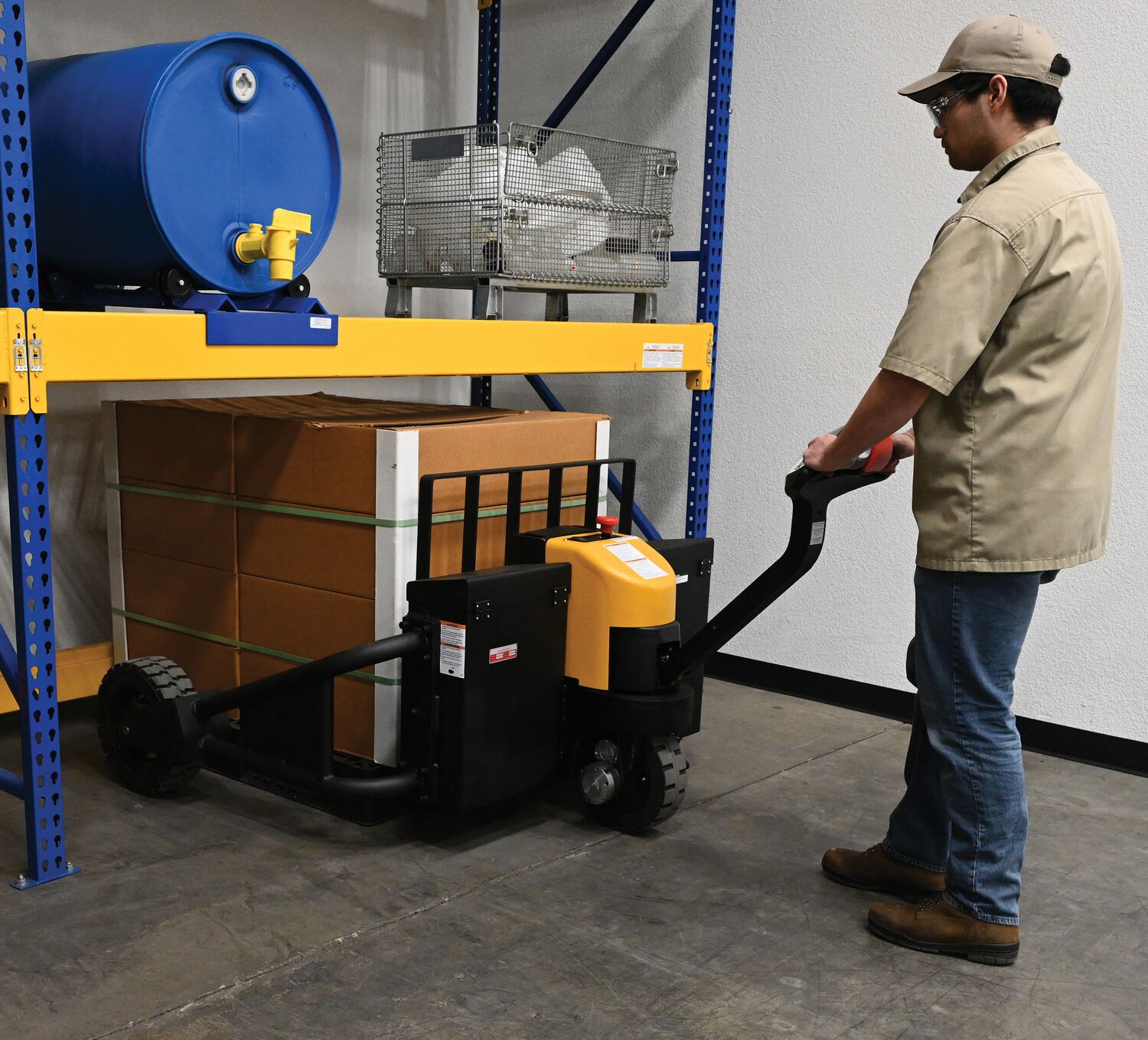

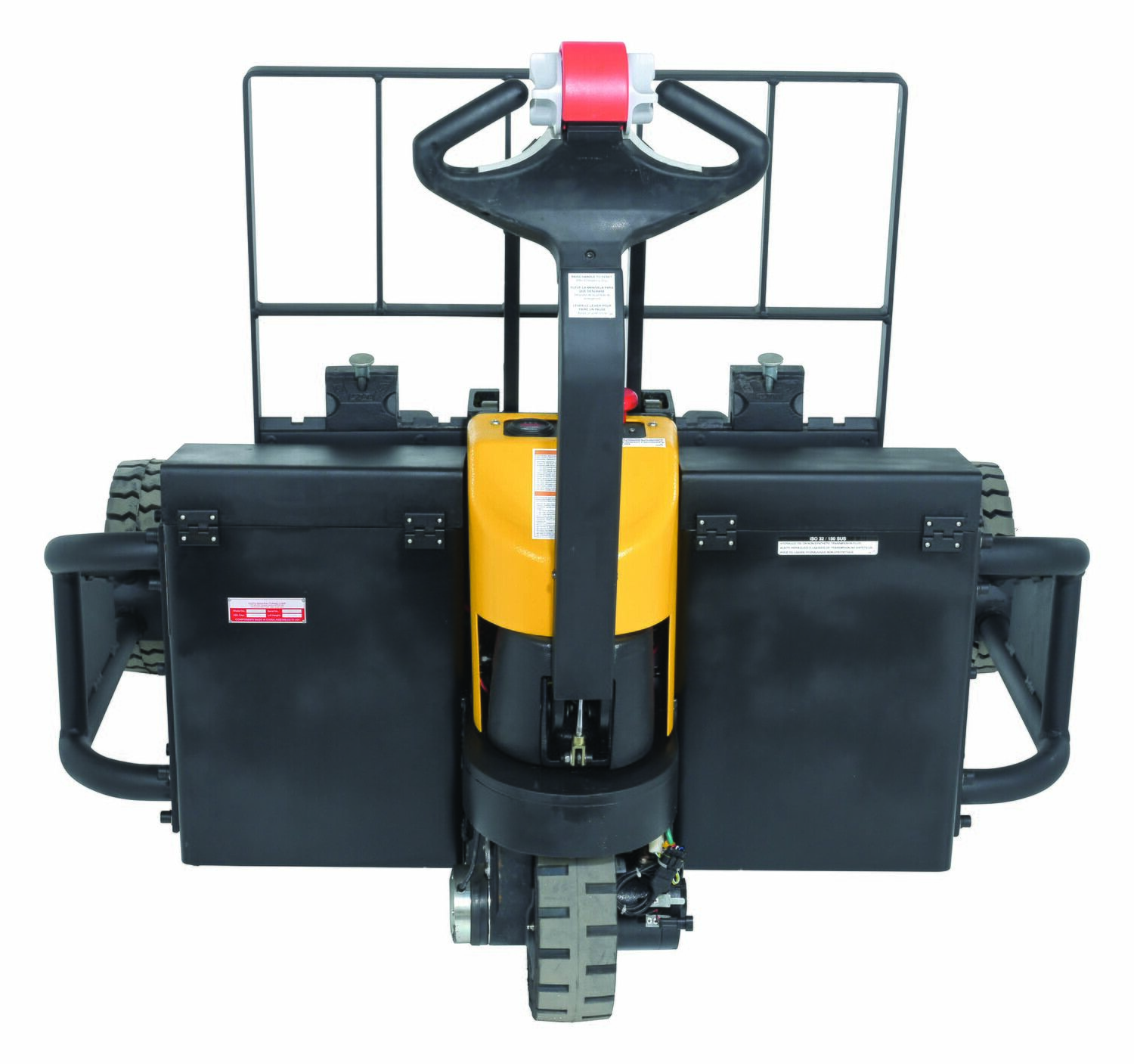

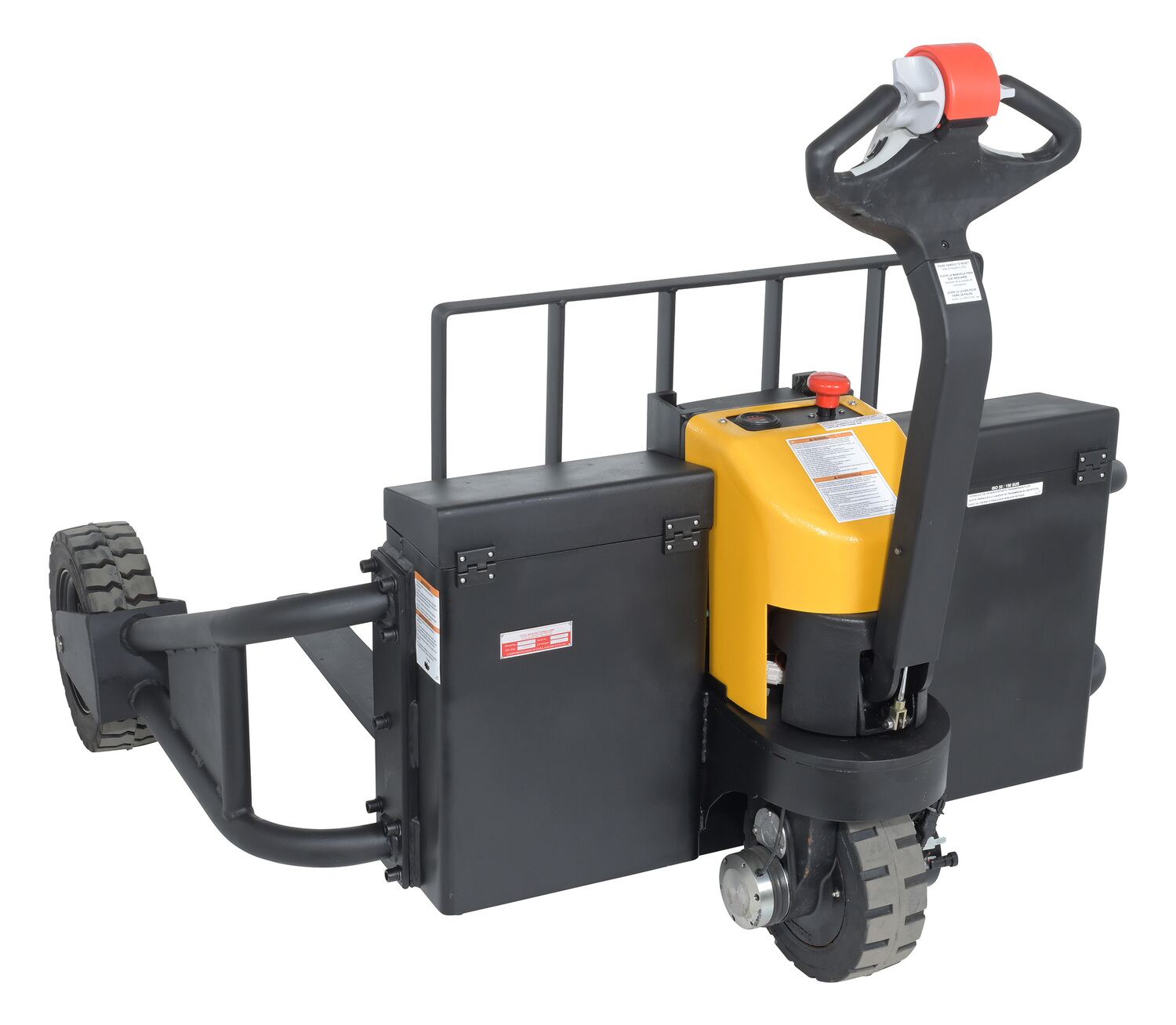

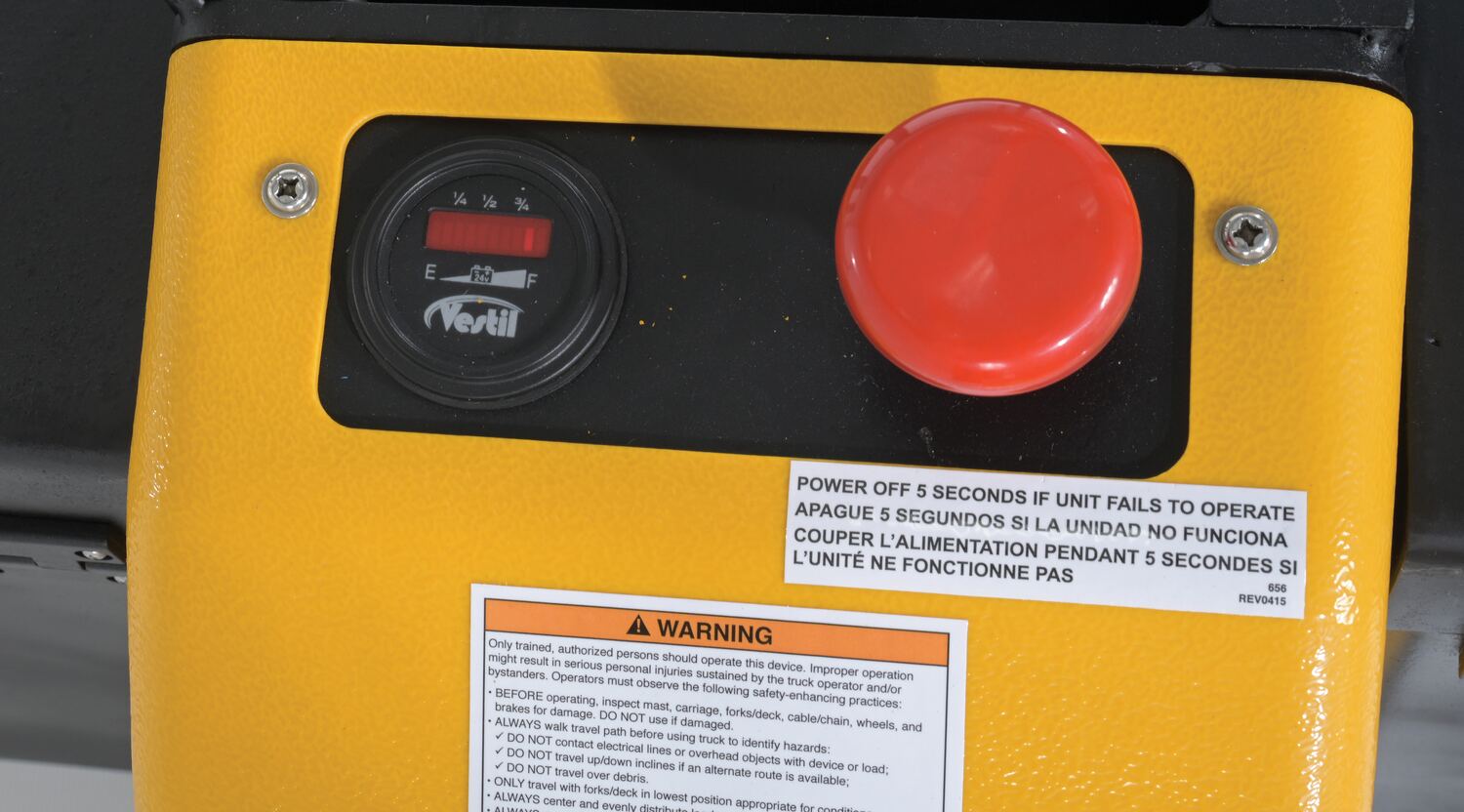

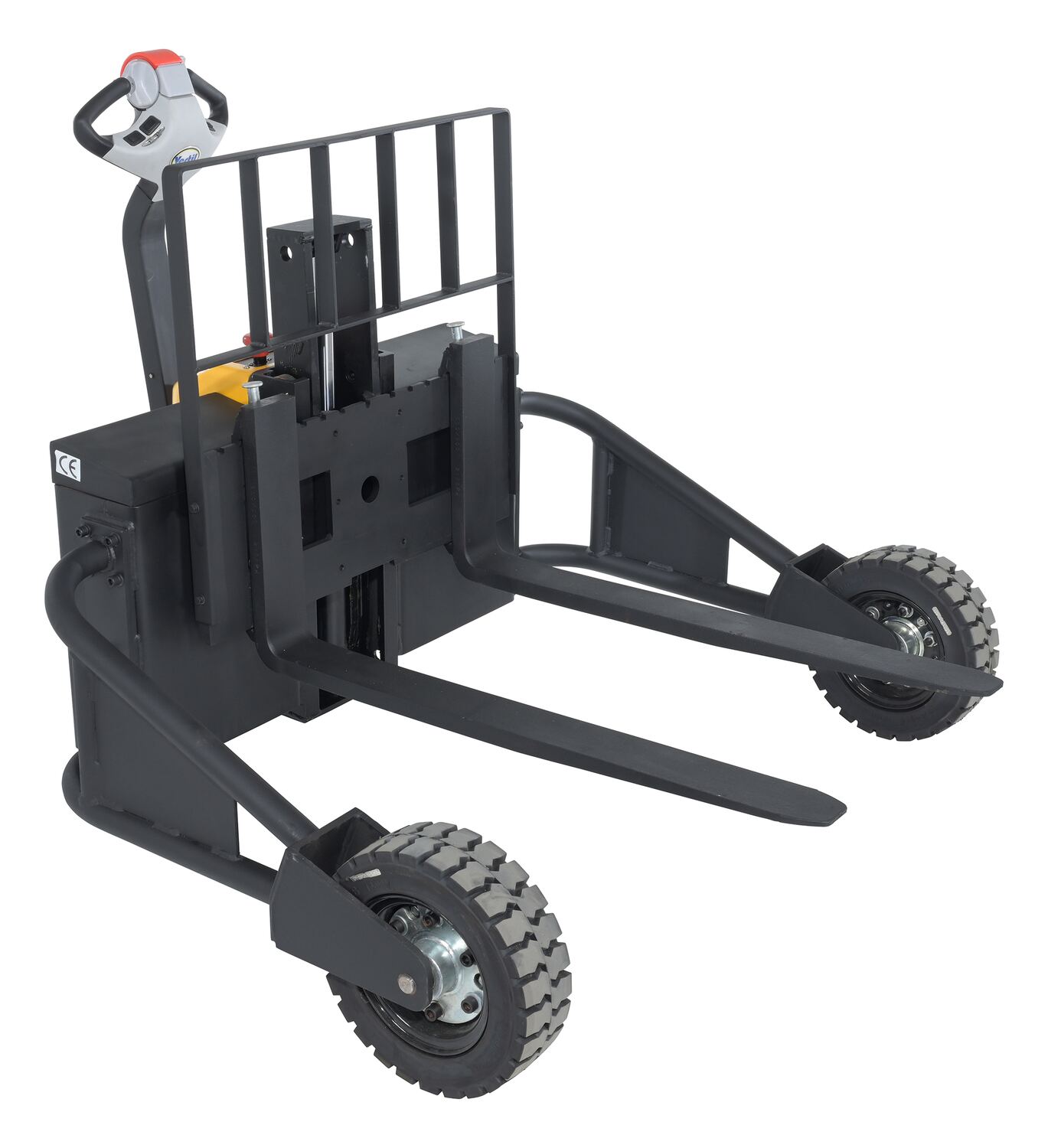

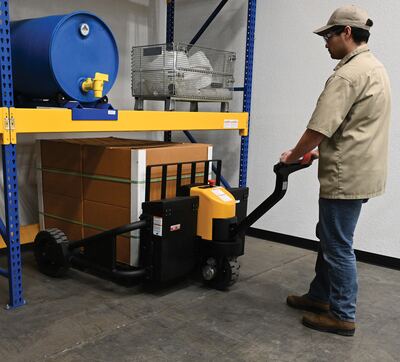

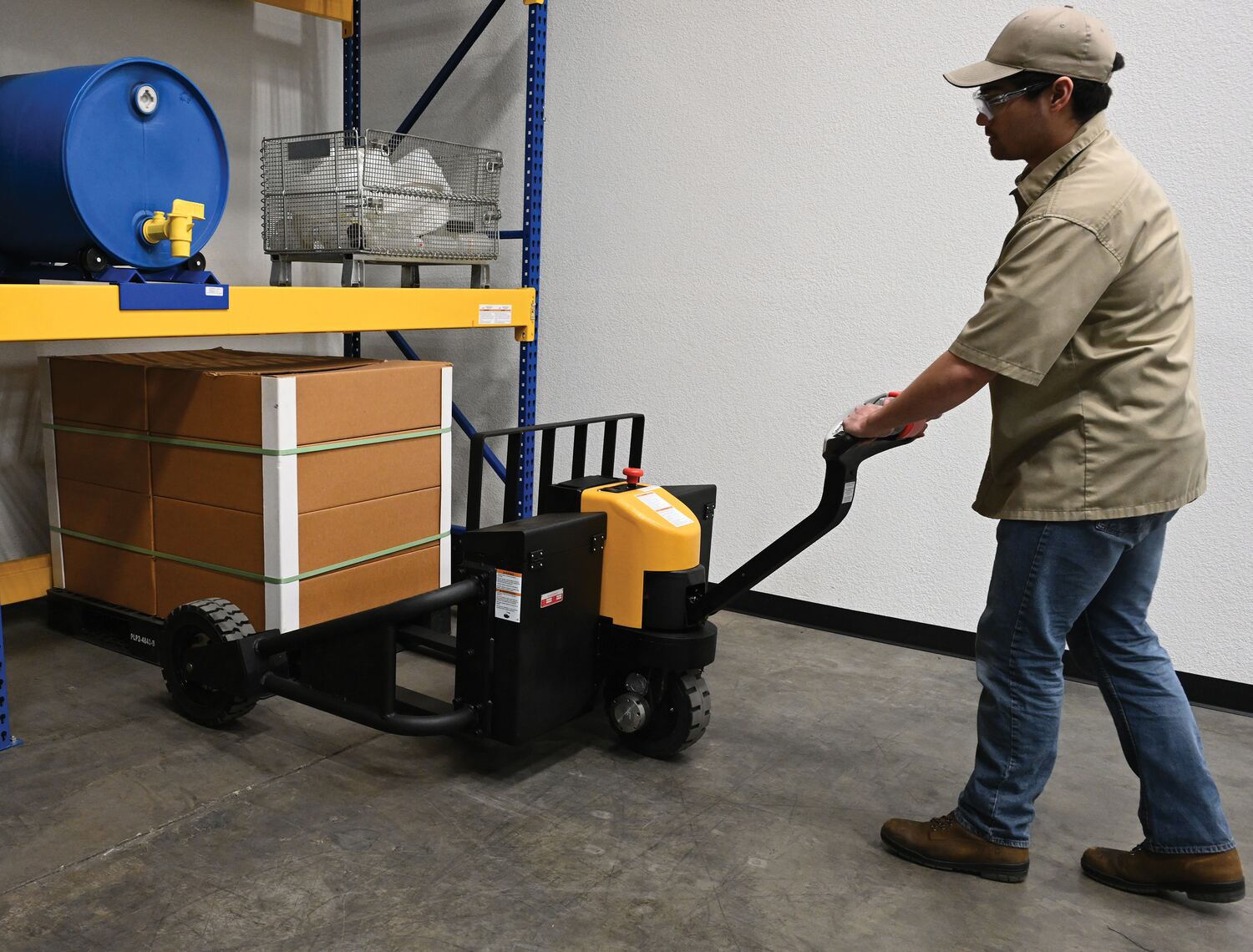

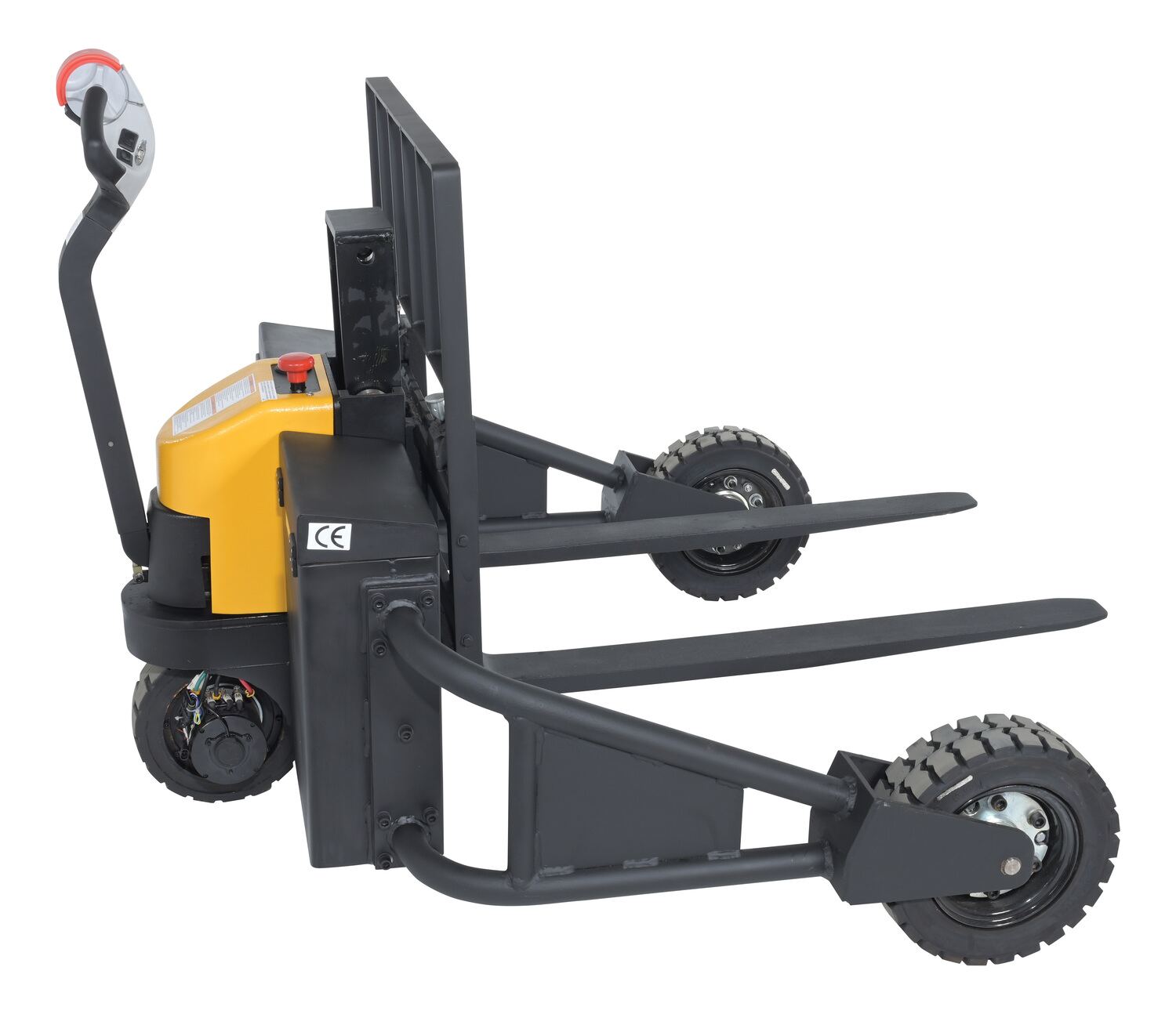

An Electric powered rough terrain pallet truck is perfect for quick operation. Great for moving heavy loads over uneven landscapes. Raise and lower loads with a push of a button. Large wheels allow for movement over most surfaces. Maneuver loads in warehouses, construction sites, gravel pits and nurseries. Ideal for outdoor and indoor use. Truck is designed to work on smooth and gravel surfaces. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, emergency reverse-function and horn. Truck rolls smoothly on Front (16") and Rear (11-13/16") rubber tires. The rough terrain truck operates through DC power, while the drive motor utilizes AC drive technology. The unit comes equipped with 2x12V batteries, integral battery charger, and battery level indicator.

See Our Rough Terrain Stacker!

See Our Rough Terrain Tilting Pallet Truck!

An Electric powered rough terrain pallet truck is perfect for quick operation. Great for moving heavy loads over uneven landscapes. Raise and lower loads with a push of a button. Large wheels allow for movement over most surfaces. Maneuver loads in warehouses, construction sites, gravel pits and nurseries. Ideal for outdoor and indoor use. Truck is designed to work on smooth and gravel surfaces. Ergonomic handle features easy to operate throttle with infinite adjustment of forward and reverse speeds, lift/lower controls, emergency reverse-function and horn. Truck rolls smoothly on Front (16") and Rear (11-13/16") rubber tires. The rough terrain truck operates through DC power, while the drive motor utilizes AC drive technology. The unit comes equipped with 2x12V batteries, integral battery charger, and battery level indicator.

See Our Rough Terrain Stacker!

See Our Rough Terrain Tilting Pallet Truck!

Additional Models In This Family

Rough Terrain Electric Pallet Truck Attachments:

RT-EPT-DBH

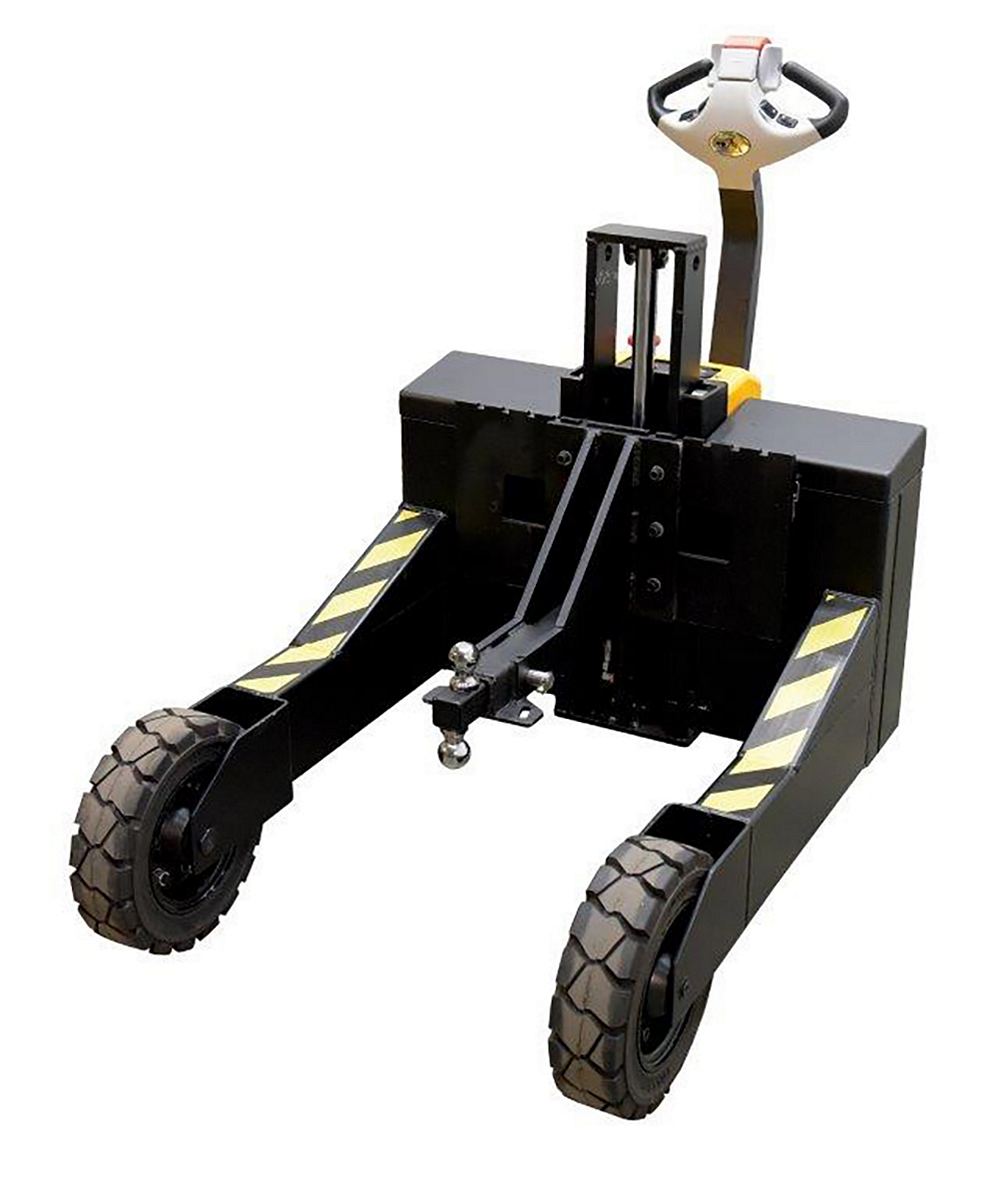

RT-EPT-DBH_A.jpgThe Double Ball Hitch can easily be attached to an electric pallet truck and used in a wide variety of applications. This attachment features a two ball hitch on one unit for user convenience. Steel construction with powder coat black finish for baked in added toughness.


RT-EPT-MLH

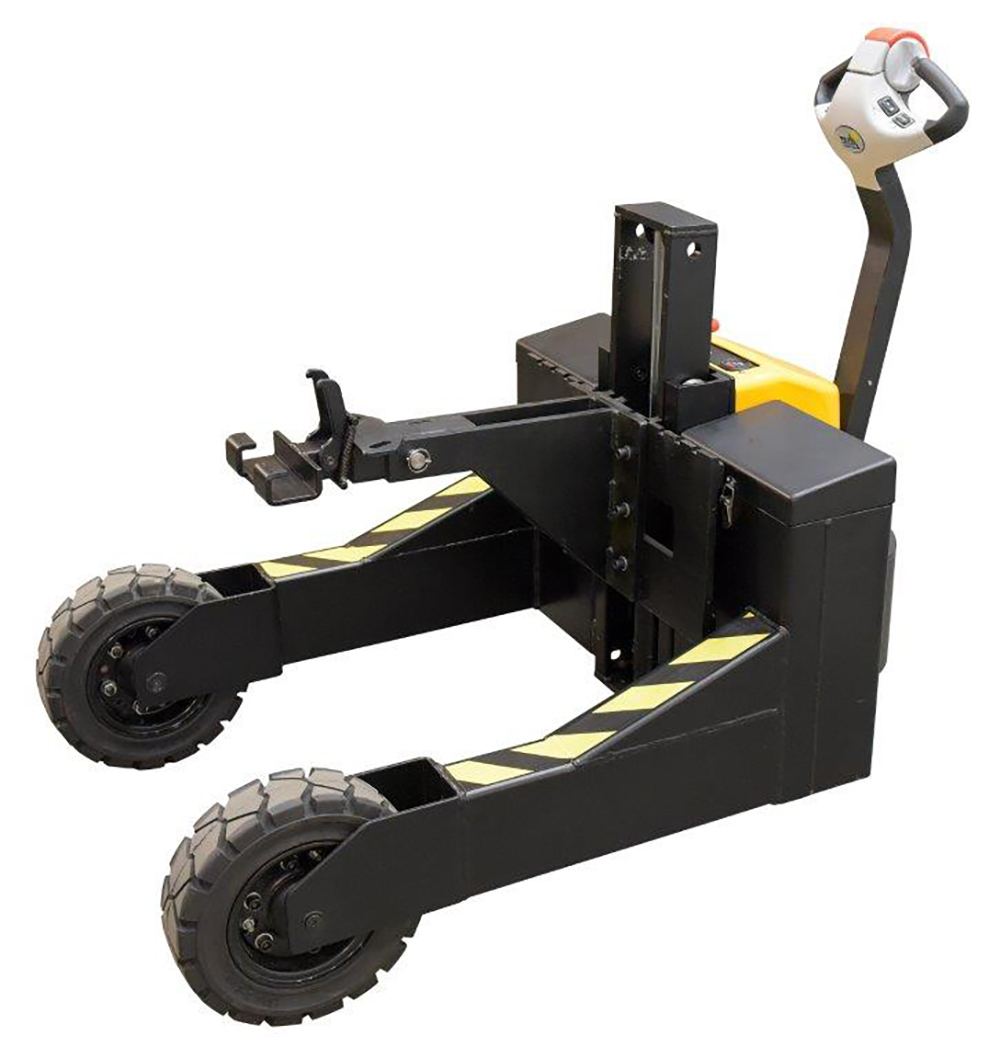

RT-EPT-MLH_A.jpgThe manual lock Hitch is the perfect accessory to an electric pallet truck. With a simple attachment the hitch can be in place and ready to use, quickly. The design allows the user to secure the lock in place for the utmost confidence. Steel construction with powder coat black finish for baked in added toughness.


RT-EPT-SDG

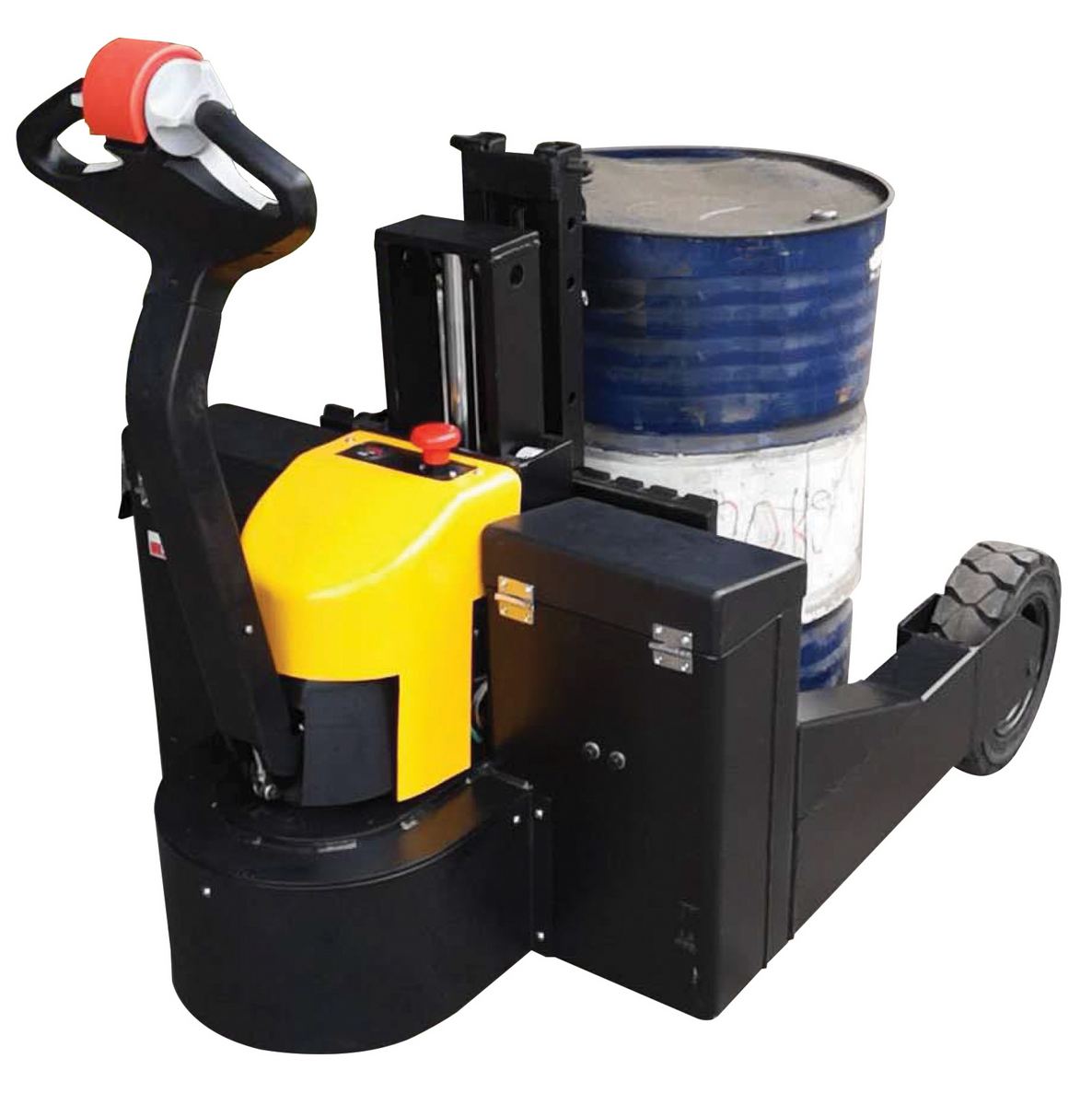

RT-EPT-SDG_A.jpgThe single Drum Gripper Hitch is a great addition to an electric pallet truck. The drum gripper can be in place and ready to use, quickly. The design allows the user to secure drums in place and easily transfer from area to area. This unit minimizes manual labor associated with maneuvering heavy drums. Steel construction with powder coat black finish for baked in added toughness.

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)

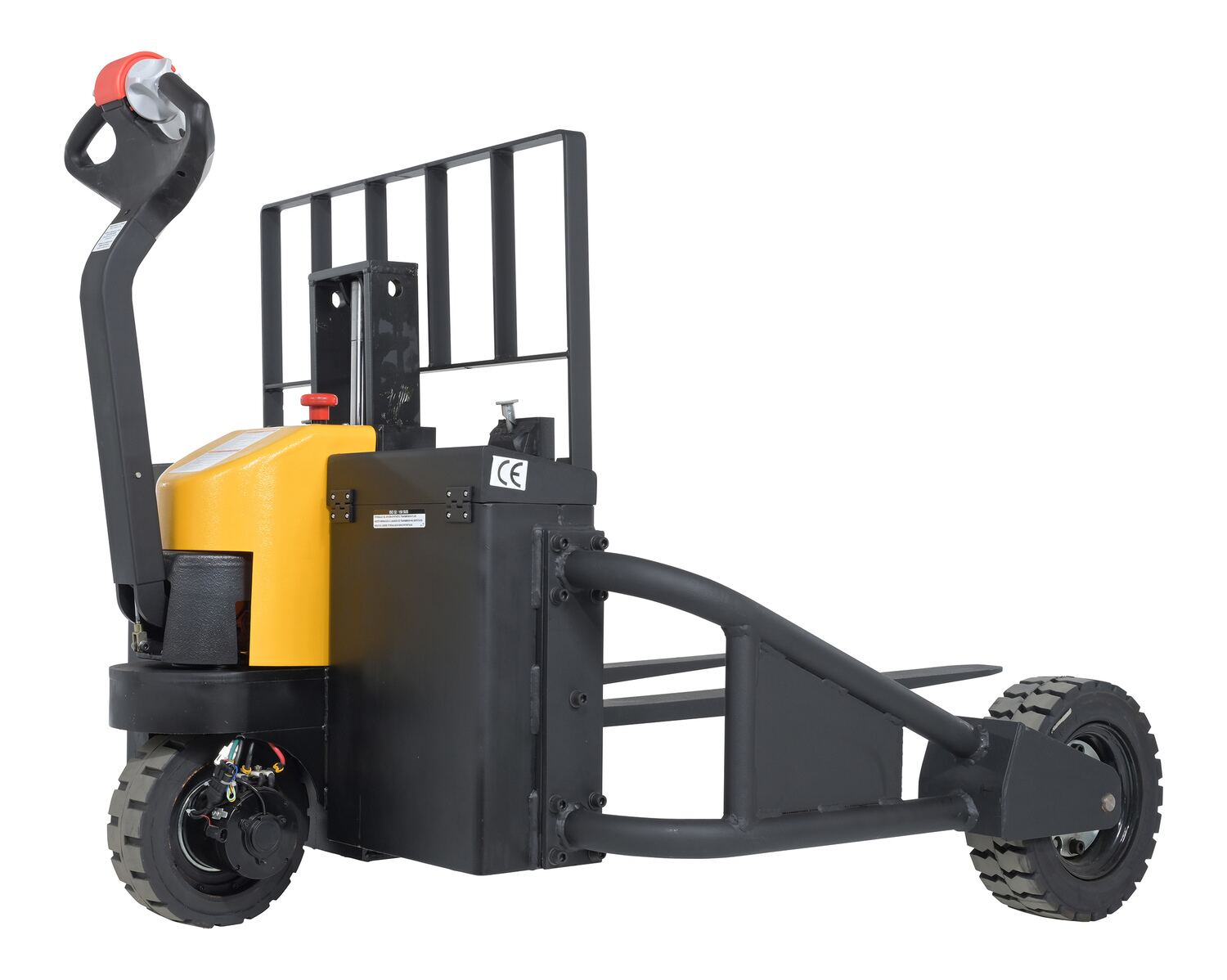

RT-EPT-2-48 NEW RT-EPT-2-481 Year Limited WarrantySteel Rough Terrain Electric Pallet Truck DC Powered AC Drive Motor 48 In. Inside Width 2000 Lb. Capacity Black / YellowUniform Capacity (lb.): 2000
Usable Width (in.): 48
1188

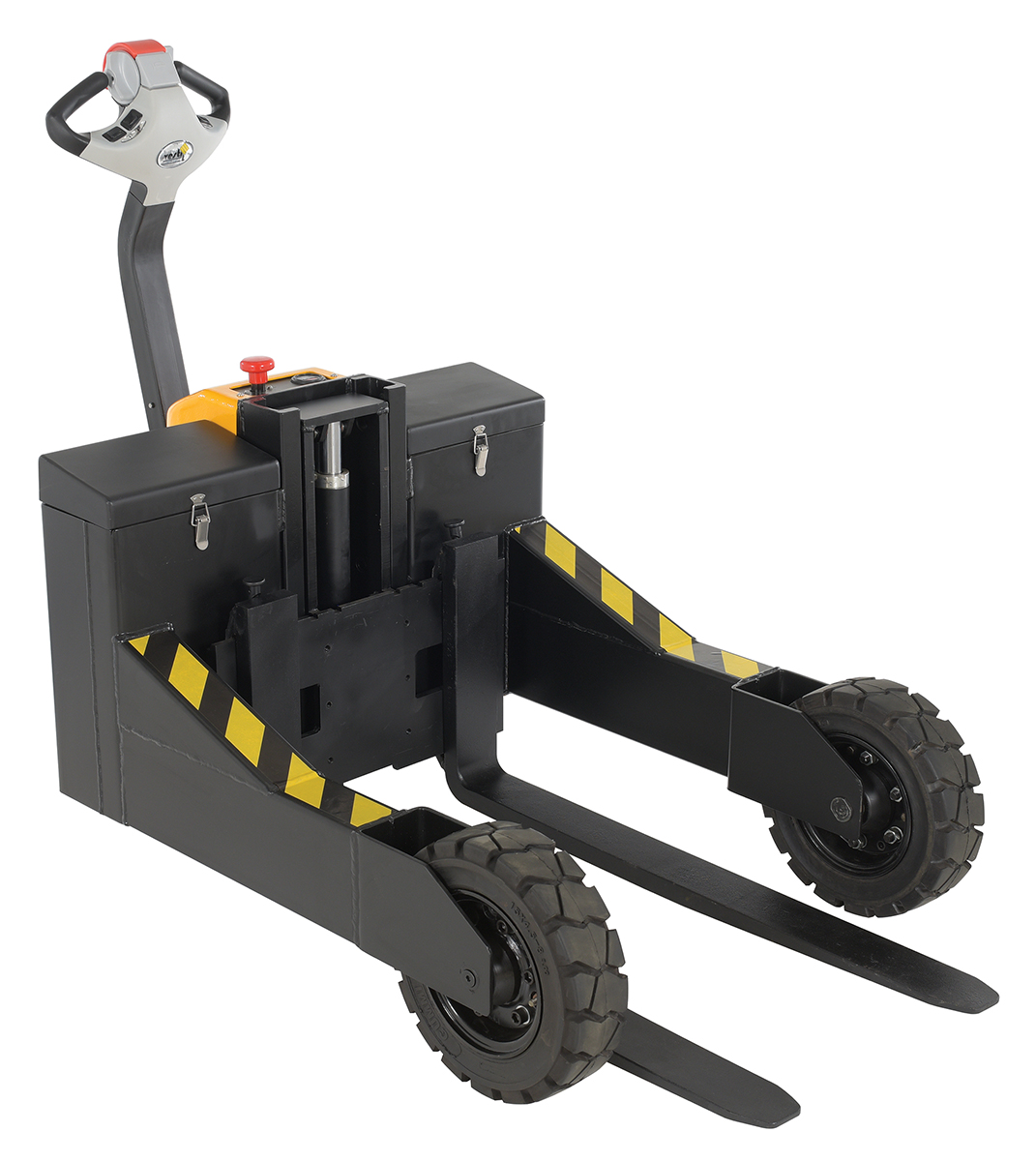

RT-EPT-3-24
RT-EPT-3-241 Year Limited WarrantySteel Rough Terrain Electric Pallet Truck DC Powered AC Drive Motor 24 In. Inside Width 3000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3000
Usable Width (in.): 24
1130

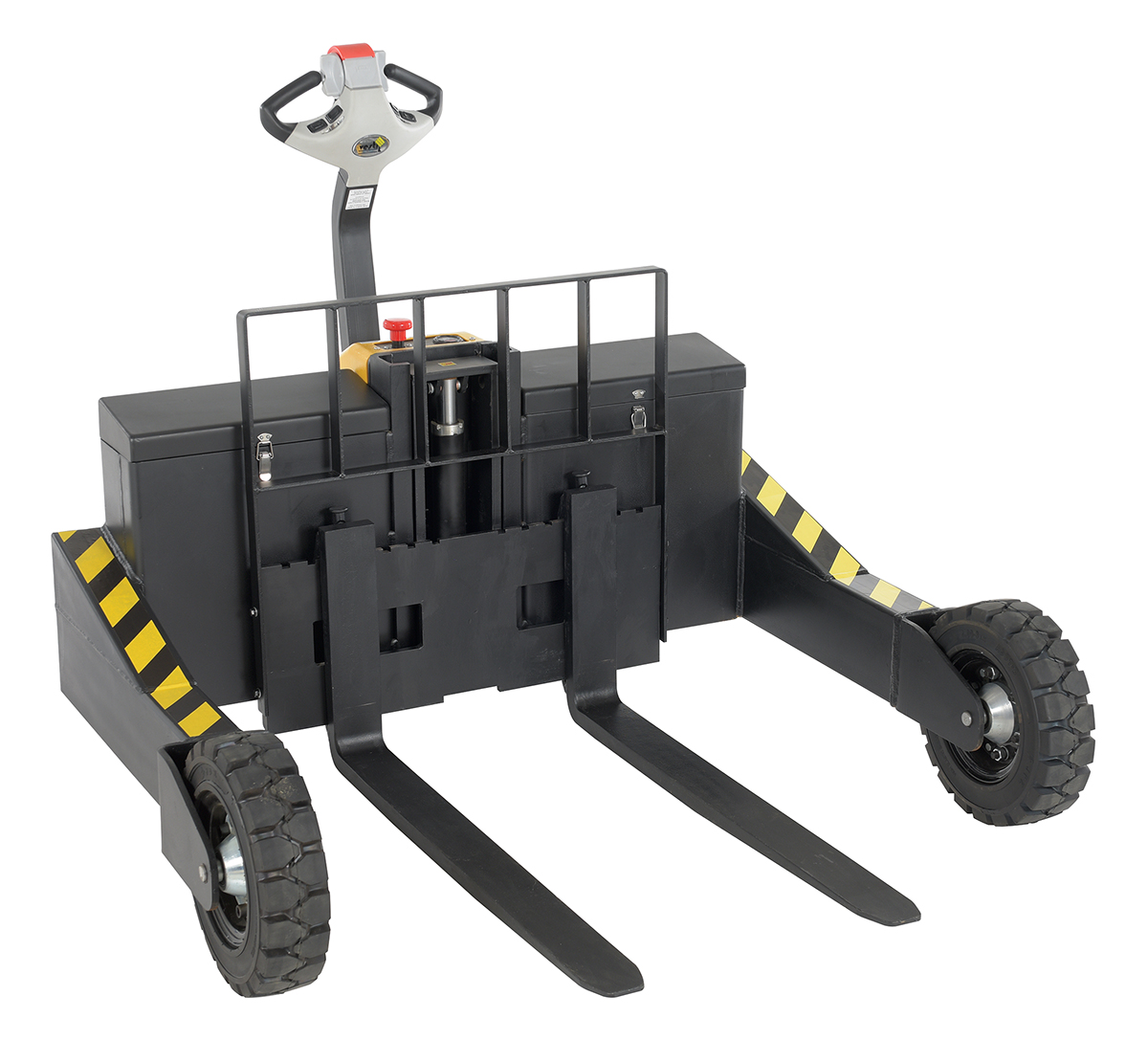

RT-EPT-3-48
RT-EPT-3-481 Year Limited WarrantySteel Rough Terrain Electric Pallet Truck DC Powered AC Drive Motor 48 In. Inside Width 3000 Lb. Capacity Black / YellowUniform Capacity (lb.): 3000
Usable Width (in.): 48
1314

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

RT-EPT-3-24
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Usable Width (in.): 24
Uniform Capacity (lb.): 3000
Usable Width (in.): 24

RT-EPT-3-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Usable Width (in.): 48
Uniform Capacity (lb.): 3000
Usable Width (in.): 48

RT-EPT-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Usable Width (in.): 48
Uniform Capacity (lb.): 2000
Usable Width (in.): 48
For More Details of the Option Click the Red Model Button
RT-EPT-DBH RT-EPT-DBH90 Days Limited WarrantySteel Rough Terrain Electric Pallet Truck Double Ball Hitch Attachment BlackVehicle Category: All Terrain Vehicle
Hitch Class: Not Applicable
38
RT-EPT-MLH RT-EPT-MLH90 Days Limited WarrantySteel Rough Terrain Electric Pallet Truck Manual Locking Hitch Attachment BlackVehicle Category: All Terrain Vehicle
Hitch Class: Not Applicable
41
RT-EPT-SDG RT-EPT-SDG90 Days Limited WarrantySteel Rough Terrain Electric Pallet Truck Single Drum Gripper Attachment 55 Gallon Drum Capacity BlackCompatible Drum Size: 55 Gallon
Compatible Drum Material: Steel, Plastic & Fiber
102
Model Image Description
RT-EPT-RR-FK Reel/Roll transport forks
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Electric Powered Rough Terrain Pallet Trucks PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

Testing Certificates


RT-EPT-2-48

RT-EPT-3-24

RT-EPT-3-48

RT-EPT-DBH

RT-EPT-MLH

RT-EPT-SDG

SDS Sheets

Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: RT-EPT-3-24
Hydraulic Oil SDS Sheet for: RT-EPT-3-24
Midwest Battery - Lead/Acid Battery, Wet, Filled with Acid SDS Sheet for: RT-EPT-3-48
Hydraulic Oil SDS Sheet for: RT-EPT-3-48
Hydraulic Oil SDS Sheet for: RT-EPT-2-48
Acid Battery SDS Sheet for: RT-EPT-2-48

Other PDF's


Directory Links Of Available PDF's For All Products


Q: What is the incline degree that these units will climb?

A: These units will climb 6 degrees without load, 3 degrees with load.


Q: What is the IP rating for operation outdoors?

A: The IP rating is IP50.


Q: What is the clearance height of the frame to the floor for RT-EPT-3-48?

A: The clearance height of the frame to the floor is 5-1/2"






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date
