Product Family Overview

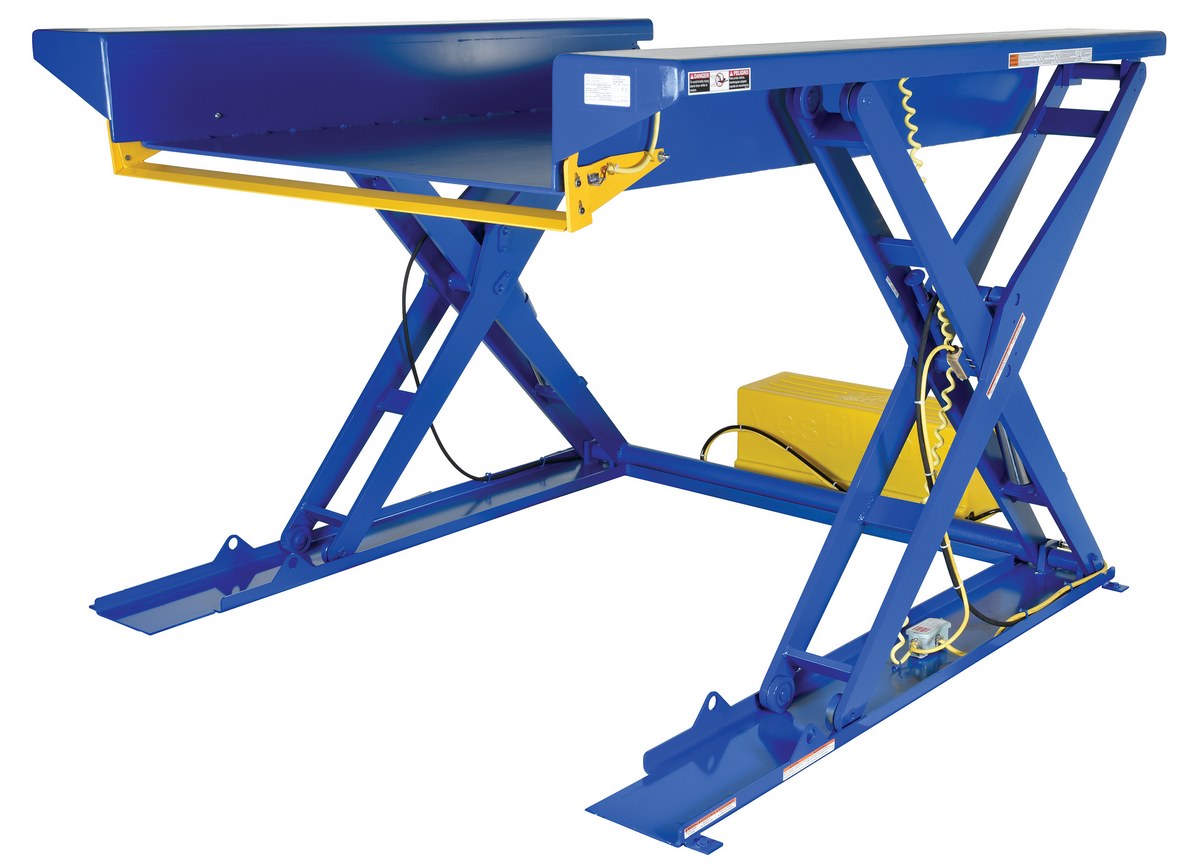

Ground Lift Scissor Tables
SERIES: EHLTG

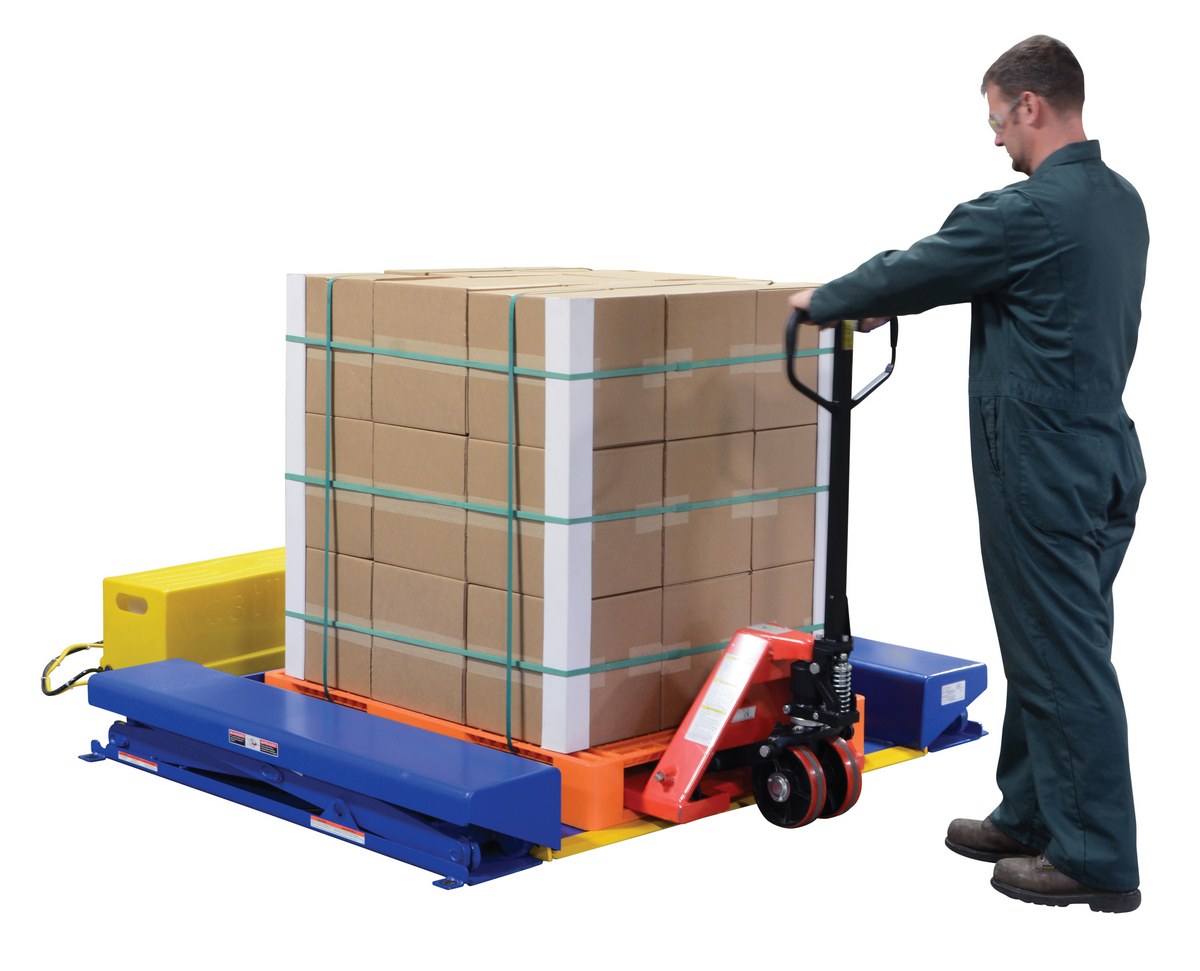

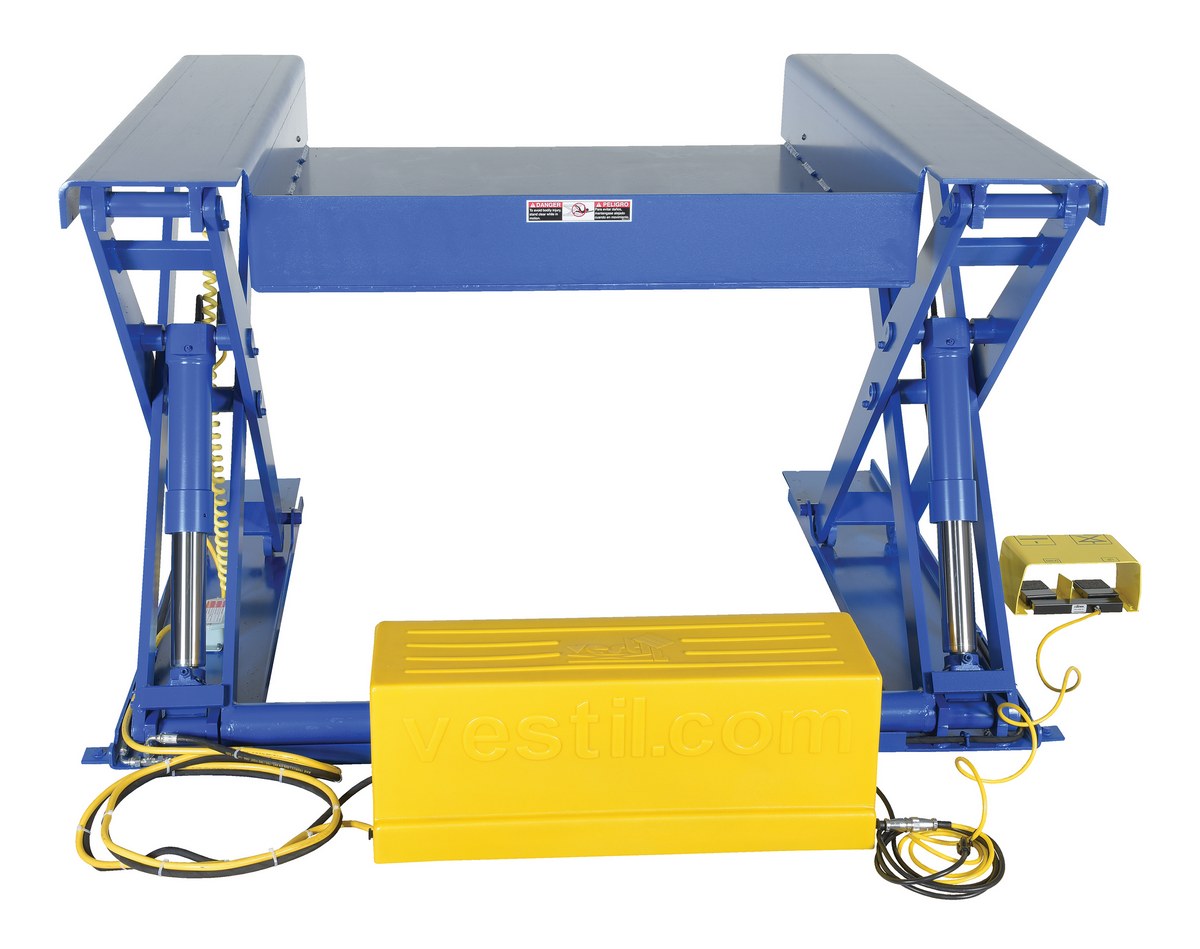

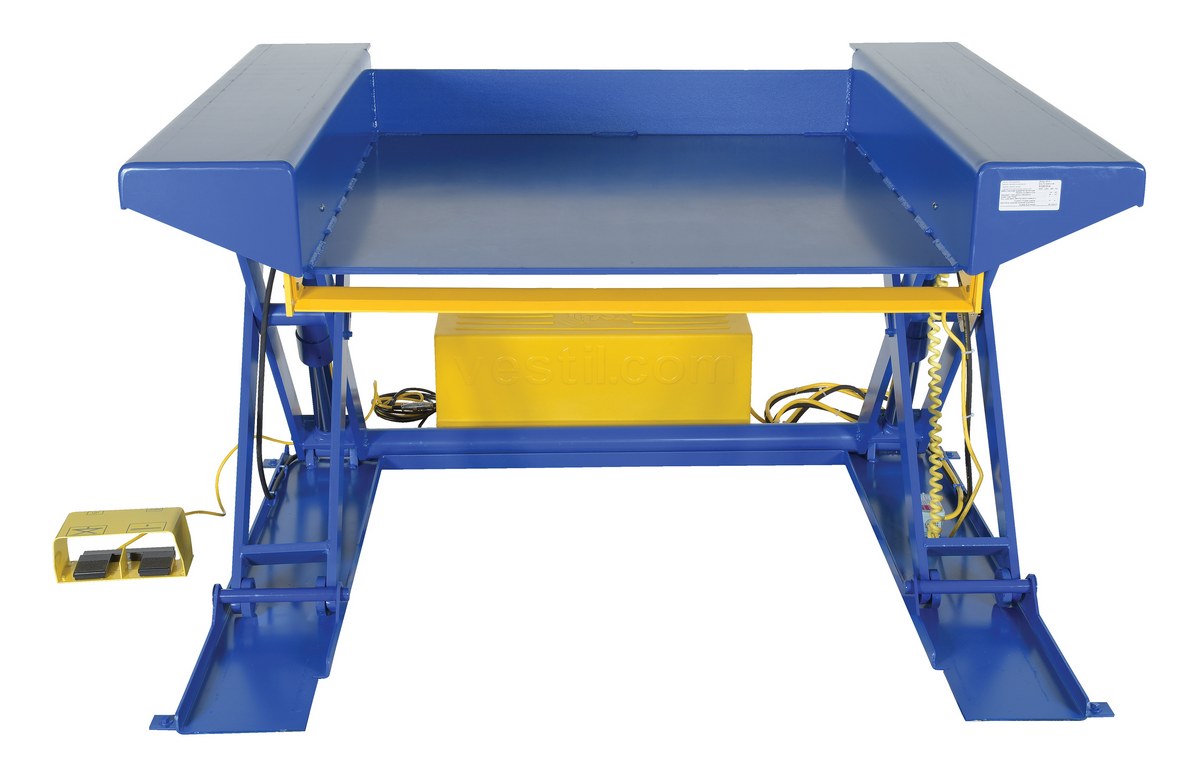

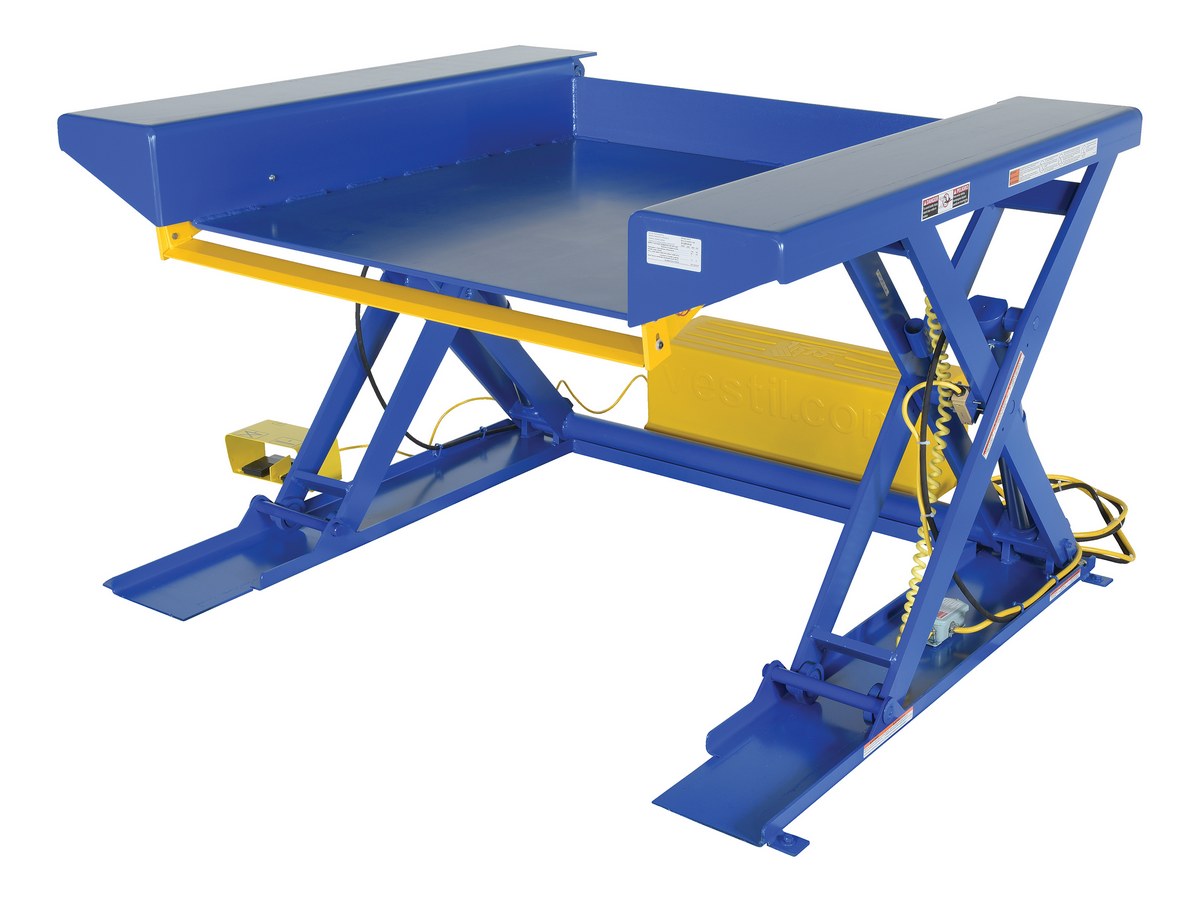

EHLTG in useA Ground Lift Scissor Table is a perfect addition to any material handling operation. Products and material can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. An entry-side electric toe guard protects pinch points during lowering of the table. A safety velocity fuse is included to maintain platform height in the event of a hose or fitting failure. The motor is totally enclosed and the partially stainless steel construction provides great protection. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting and a variety of voltages are available.

  • Perfect for ergonomic alignment

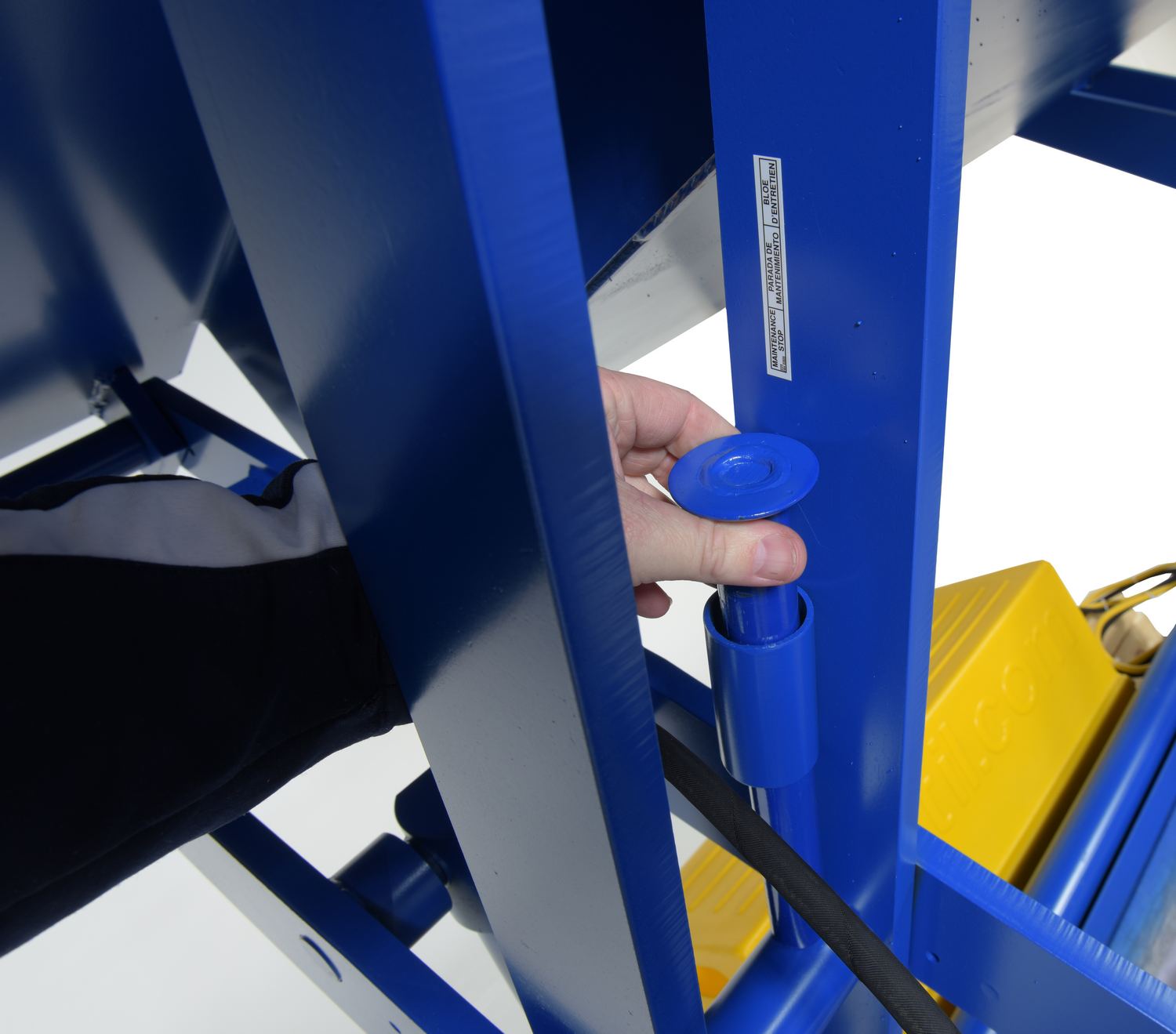

  • Built-in safety features to minimize vulnerability
  • Integral system to maintain platform height
  • Remote power for use away from table

Check Out Our Ground Lift Scissor Tables W/ Handrails

Check Out Our Ground Lift & Tilt Tables

EHLTG in useA Ground Lift Scissor Table is a perfect addition to any material handling operation. Products and material can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. An entry-side electric toe guard protects pinch points during lowering of the table. A safety velocity fuse is included to maintain platform height in the event of a hose or fitting failure. The motor is totally enclosed and the partially stainless steel construction provides great protection. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting and a variety of voltages are available.

  • Perfect for ergonomic alignment
  • Built-in safety features to minimize vulnerability
  • Integral system to maintain platform height
  • Remote power for use away from table

Check Out Our Ground Lift Scissor Tables W/ Handrails

Check Out Our Ground Lift & Tilt Tables

Additional Models In This Family

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
EHLTG-3850-2-36
EHLTG-3850-2-361 Year Limited WarrantySteel Ground Lift Scissor Table 38 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Usable Platform Width (in.): 38
1530
EHLTG-3850-2-36-PSS

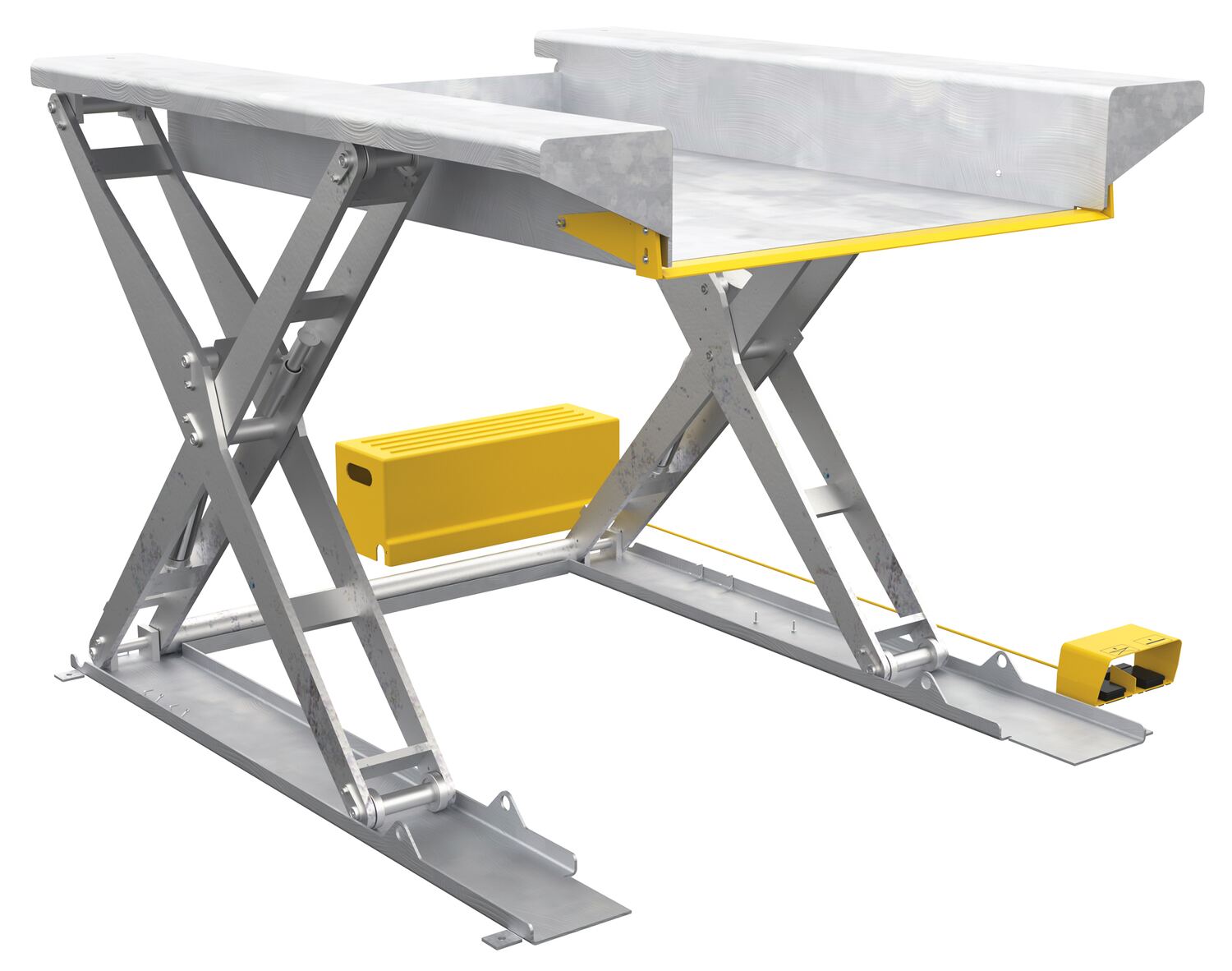

EHLTG-3850-2-36-PSS1 Year Limited WarrantyPartially Stainless Steel Ground Lift Scissor Table 38 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 36
1525
EHLTG-3850-4-36
EHLTG-3850-4-361 Year Limited WarrantySteel Ground Lift Scissor Table 38 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Usable Platform Width (in.): 38
1671
EHLTG-3850-4-36-PSS
EHLTG-3850-4-36-PSS1 Year Limited WarrantyPartially Stainless Steel Ground Lift Scissor Table 38 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 36
1659

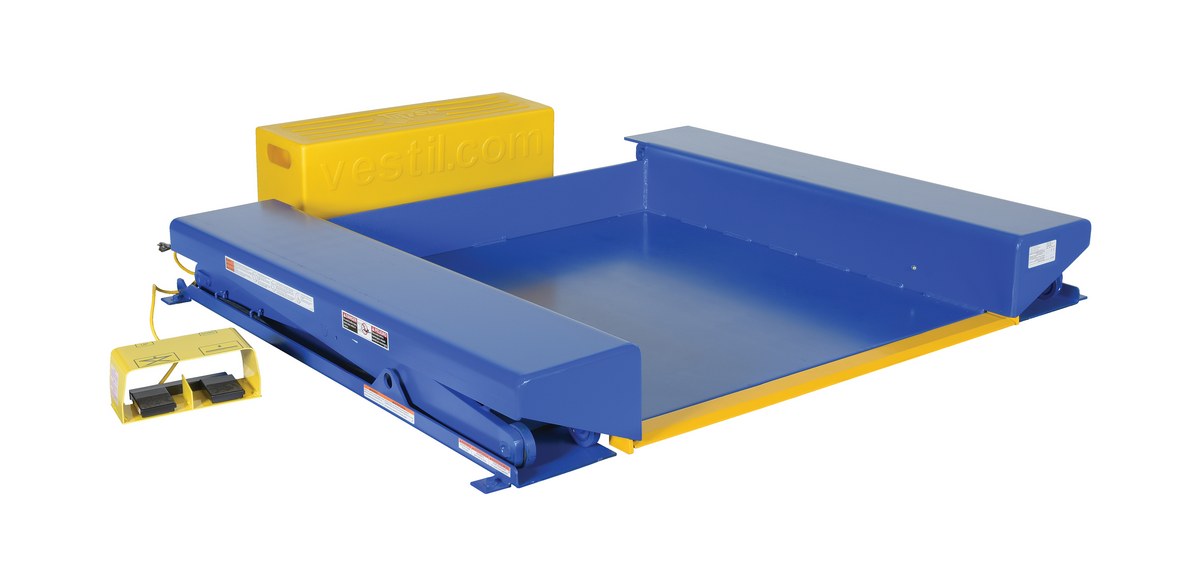

EHLTG-4450-2-36
EHLTG-4450-2-361 Year Limited WarrantySteel Ground Lift Scissor Table 44 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 44
1573
EHLTG-4450-2-36-PSS
EHLTG-4450-2-36-PSS1 Year Limited WarrantyPartially Stainless Steel Ground Lift Scissor Table 44 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Usable Platform Width (in.): 44
1586

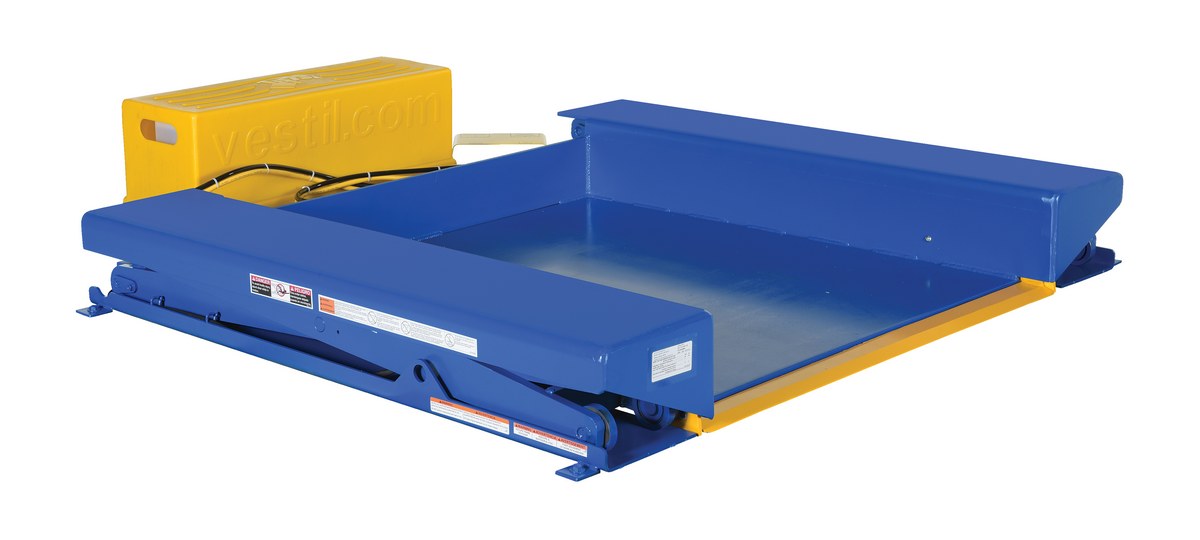

EHLTG-4450-4-36
EHLTG-4450-4-361 Year Limited WarrantySteel Ground Lift Scissor Table 44 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 44
1707

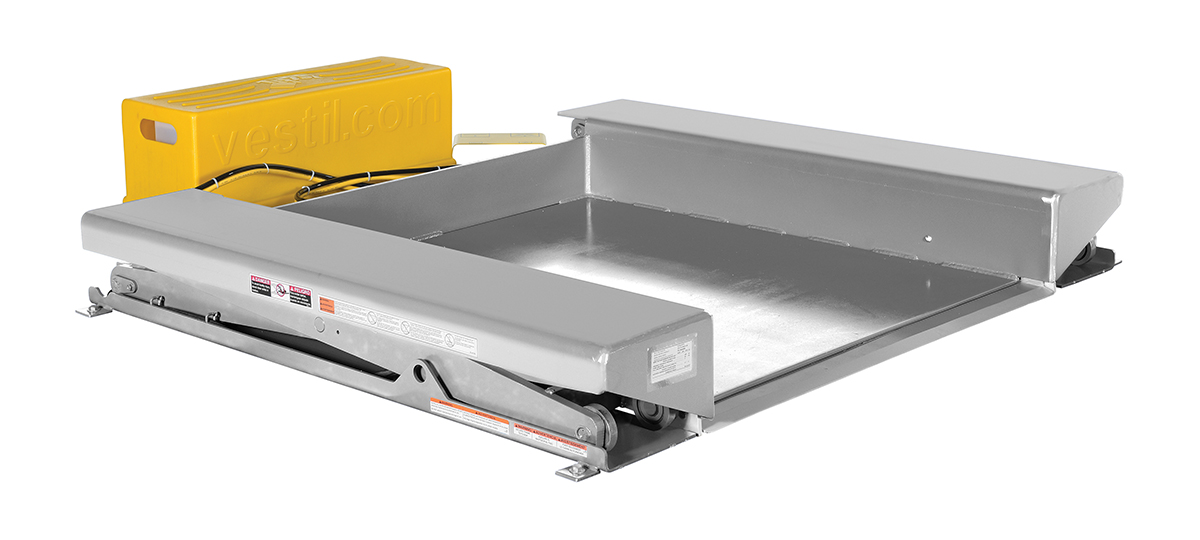

EHLTG-4450-4-36-PSS
EHLTG-4450-4-36-PSS1 Year Limited WarrantyPartially Stainless Steel Ground Lift Scissor Table 44 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 44
1722
EHLTG-4470-2-48
EHLTG-4470-2-481 Year Limited WarrantySteel Ground Lift Scissor Table 44 In. x 70 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 44
2216

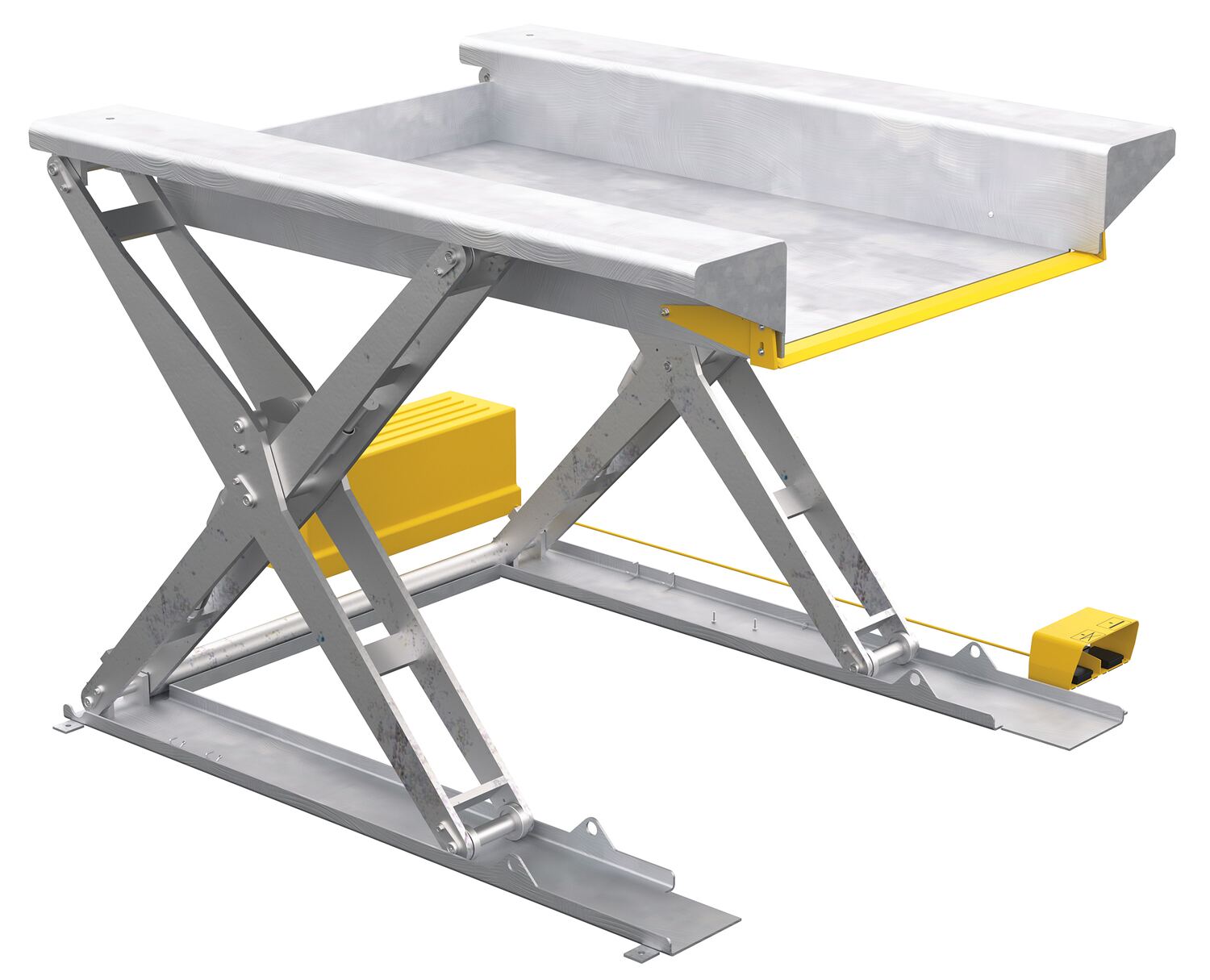

EHLTG-4470-2-48-PSS
EHLTG-4470-2-48-PSS1 Year Limited WarrantyPartially Stainless Steel Ground Lift Scissor Table 44 In. x 70 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 44
2231
EHLTG-4470-4-48
EHLTG-4470-4-481 Year Limited WarrantySteel Ground Lift Scissor Table 44 In. x 70 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 44
2242
EHLTG-4470-4-48-PSS
EHLTG-4470-4-48-PSS1 Year Limited WarrantyPartially Stainless Steel Ground Lift Scissor Table 44 In. x 70 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 44
2257

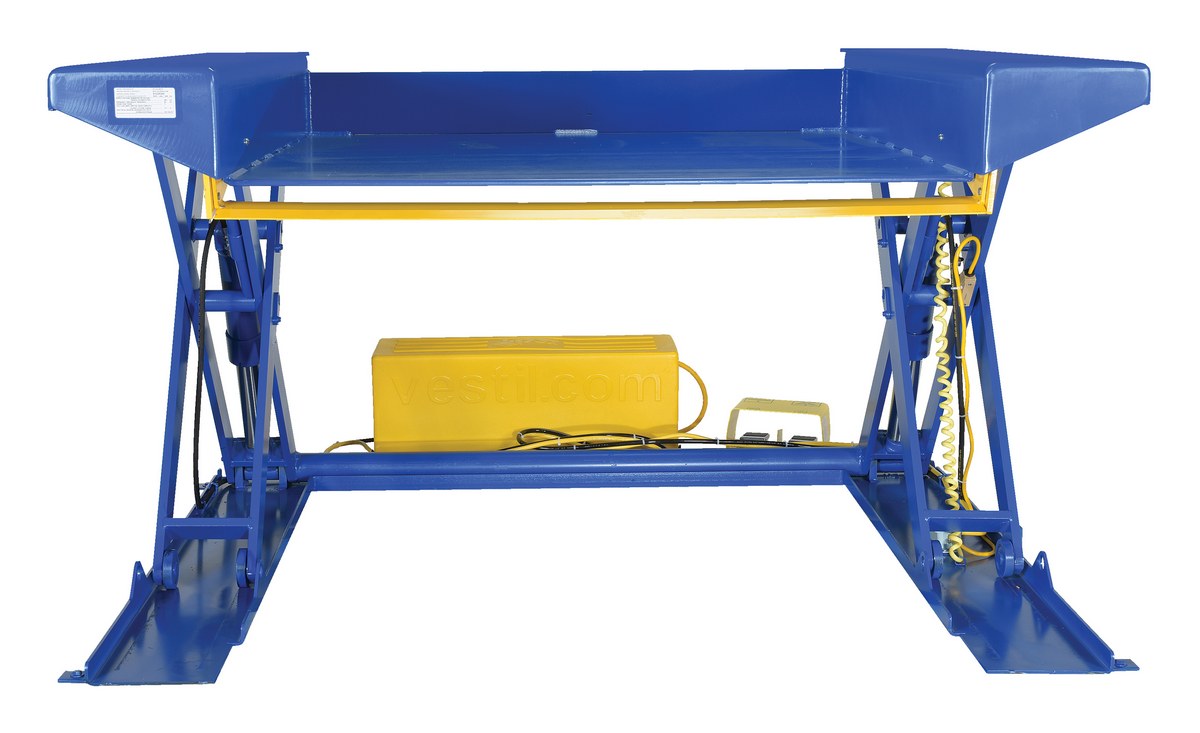

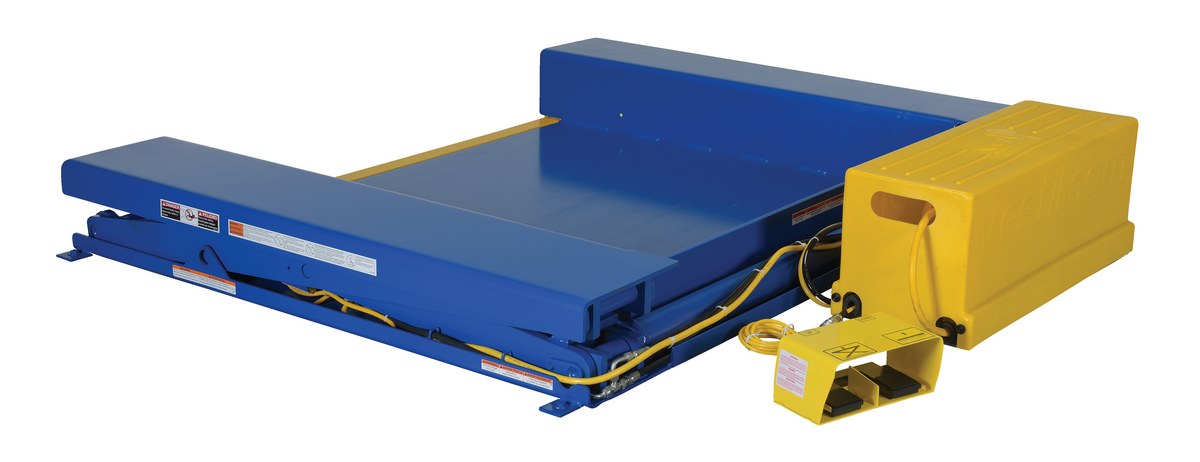

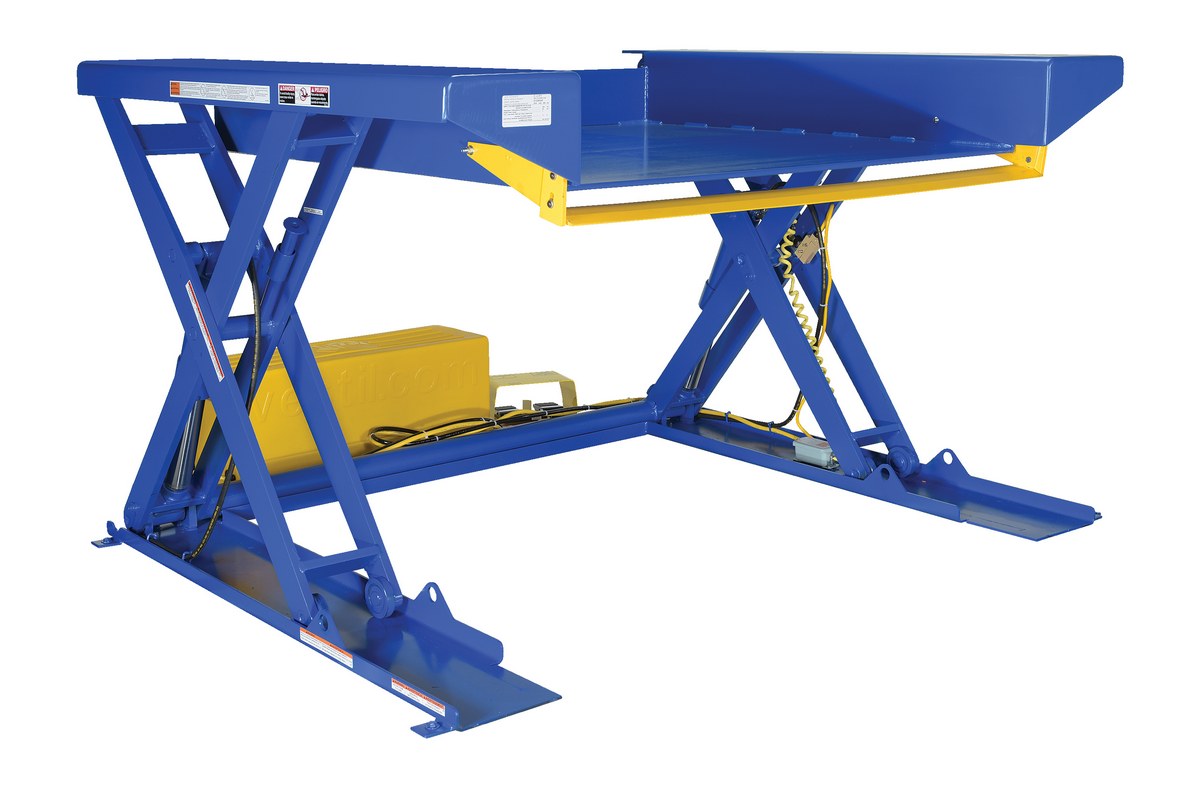

EHLTG-5250-2-36
EHLTG-5250-2-361 Year Limited WarrantySteel Ground Lift Scissor Table 52 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Usable Platform Width (in.): 52
1717
EHLTG-5250-2-36-PSS
EHLTG-5250-2-36-PSS1 Year Limited WarrantyPartially Stainless Steel Ground Lift Scissor Table 52 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 52
1732

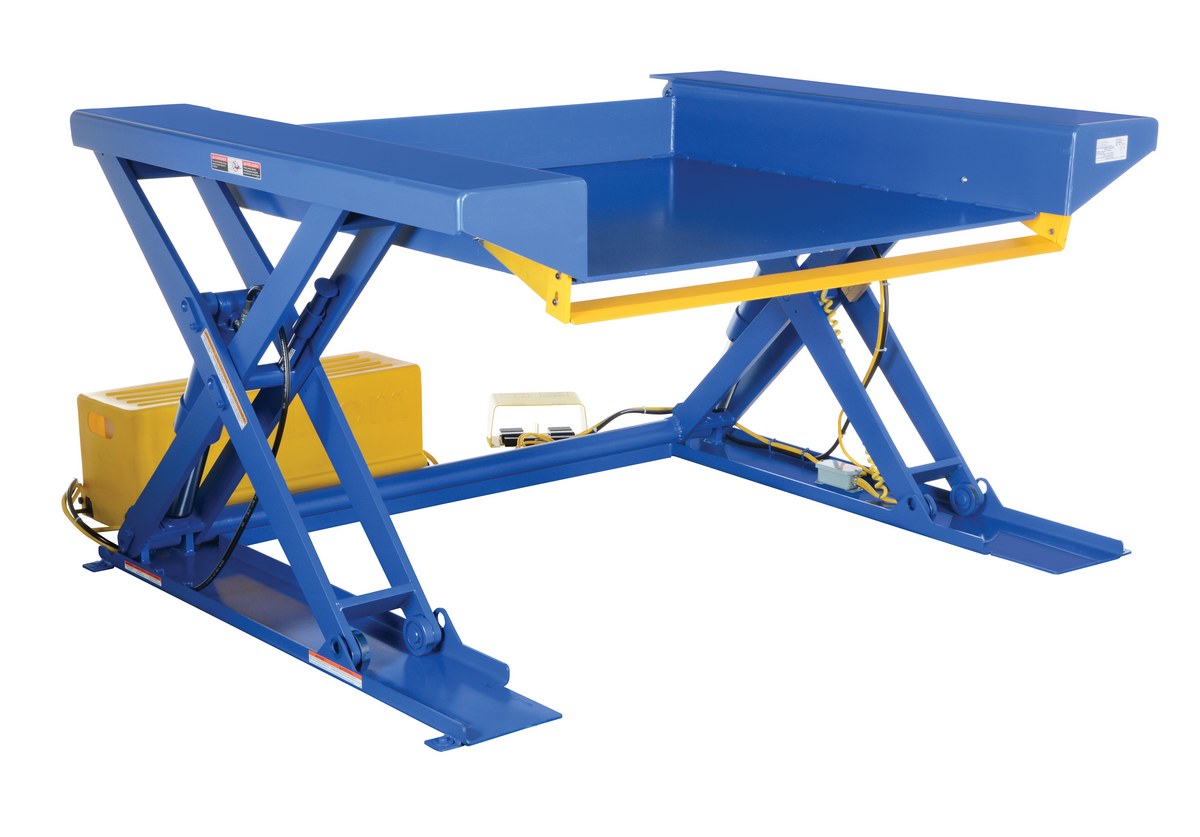

EHLTG-5250-4-36
EHLTG-5250-4-361 Year Limited WarrantySteel Ground Lift Scissor Table 52 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Usable Platform Width (in.): 52
1729
EHLTG-5250-4-36-PSS
EHLTG-5250-4-36-PSS1 Year Limited WarrantyPartially Stainless Steel Ground Lift Scissor Table 52 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 52
1744

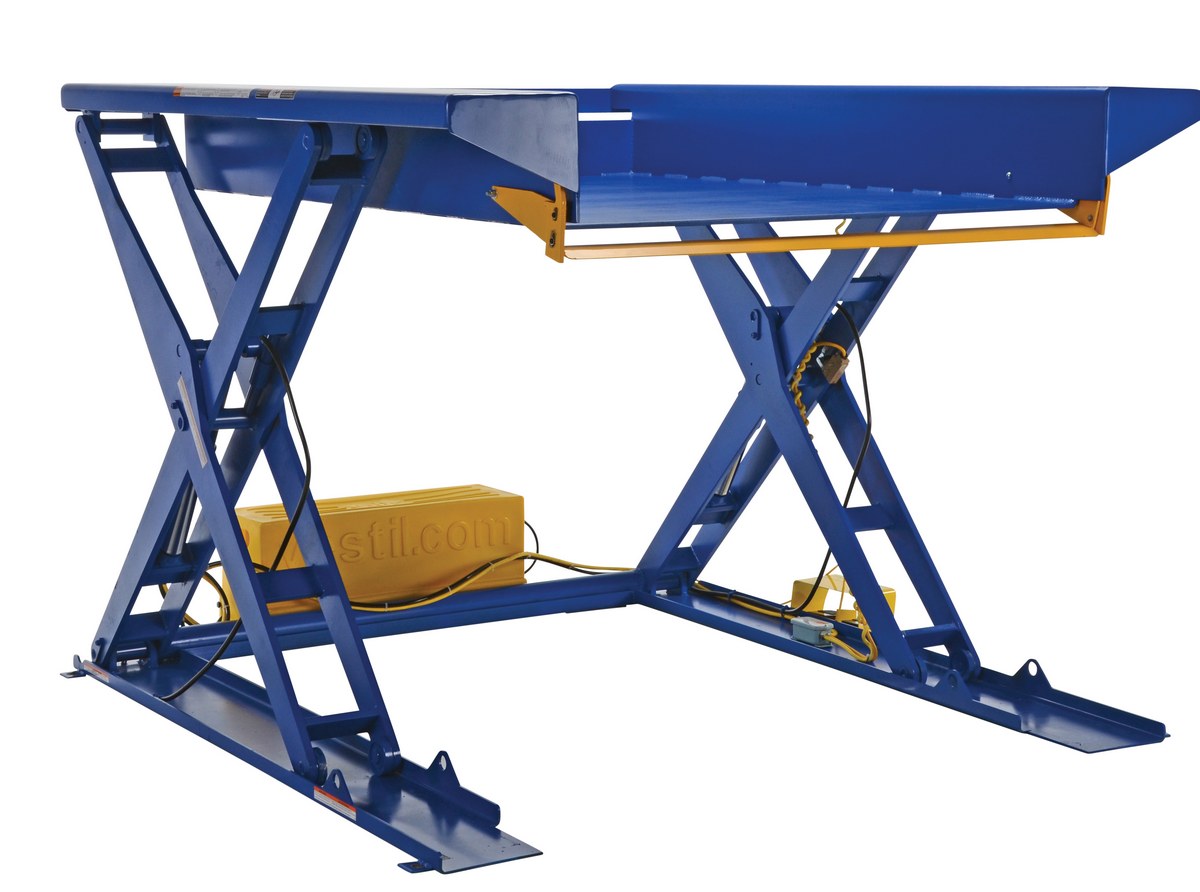

EHLTG-5270-2-48
EHLTG-5270-2-481 Year Limited WarrantySteel Ground Lift Scissor Table 52 In. x 70 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Usable Platform Width (in.): 52
2322
EHLTG-5270-2-48-PSS

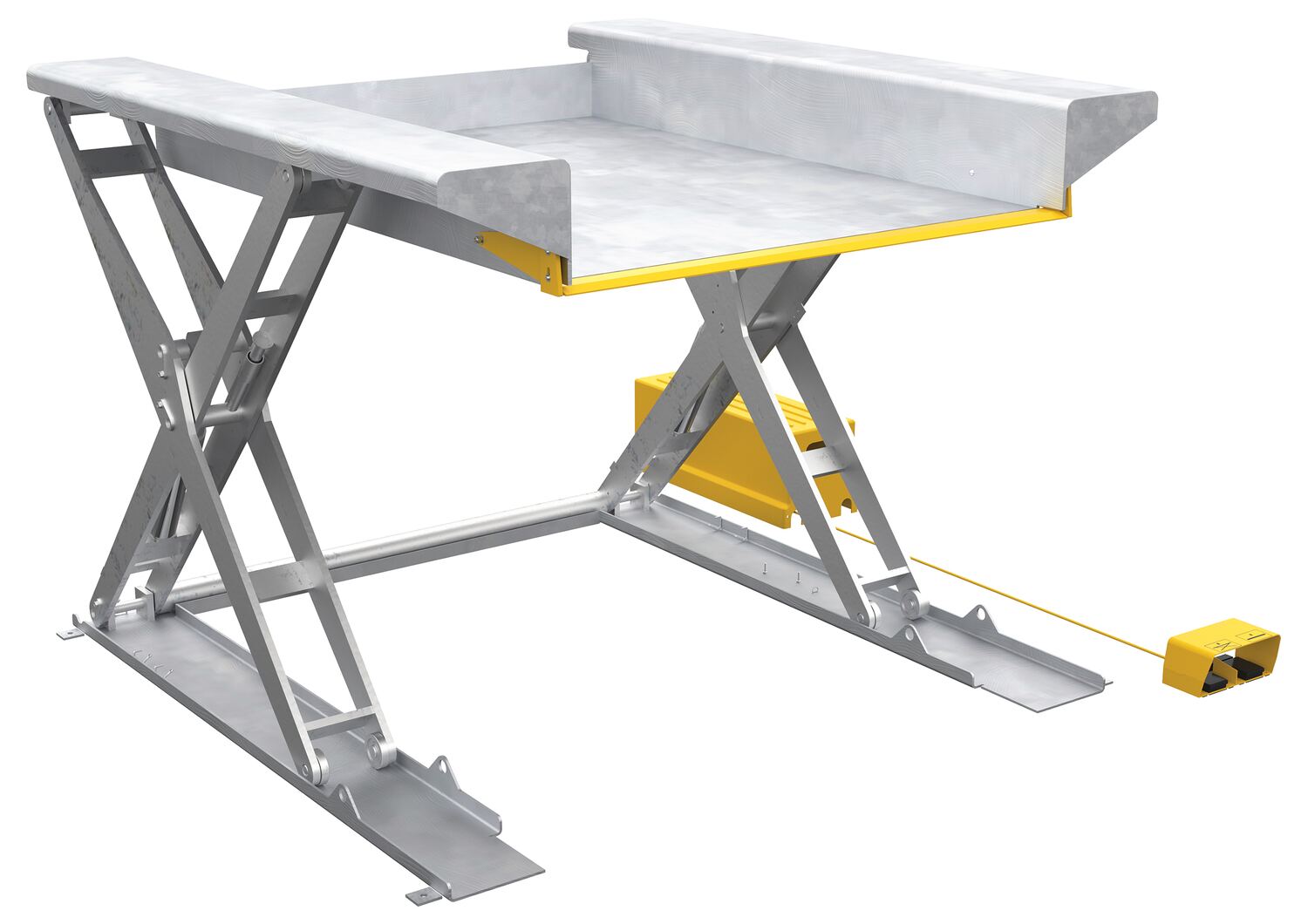

EHLTG-5270-2-48-PSS1 Year Limited WarrantyPartially Stainless Steel Ground Lift Scissor Table 52 In. x 70 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 52
2337
EHLTG-5270-4-48

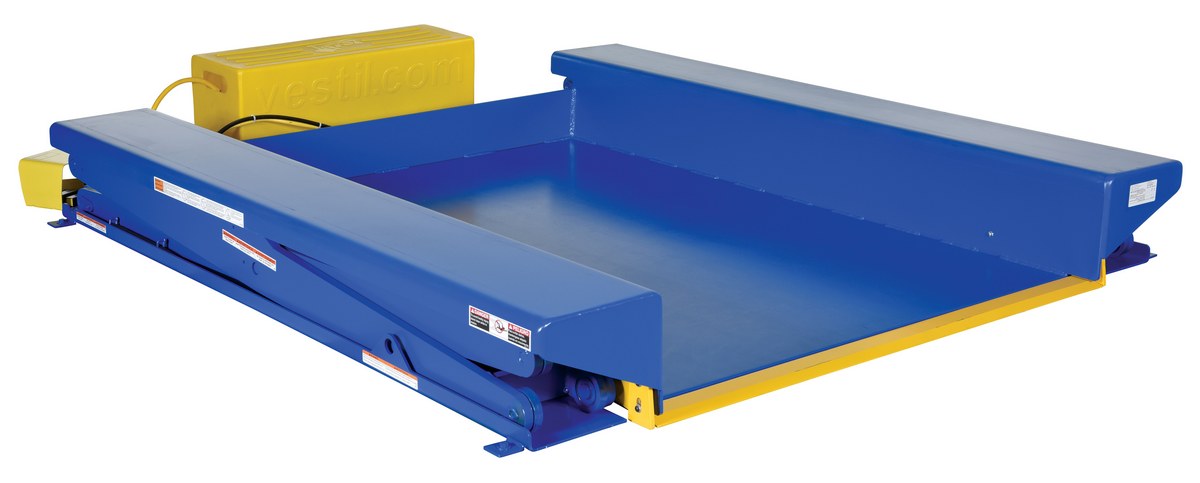

EHLTG-5270-4-481 Year Limited WarrantySteel Ground Lift Scissor Table 52 In. x 70 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Usable Platform Width (in.): 52
2348

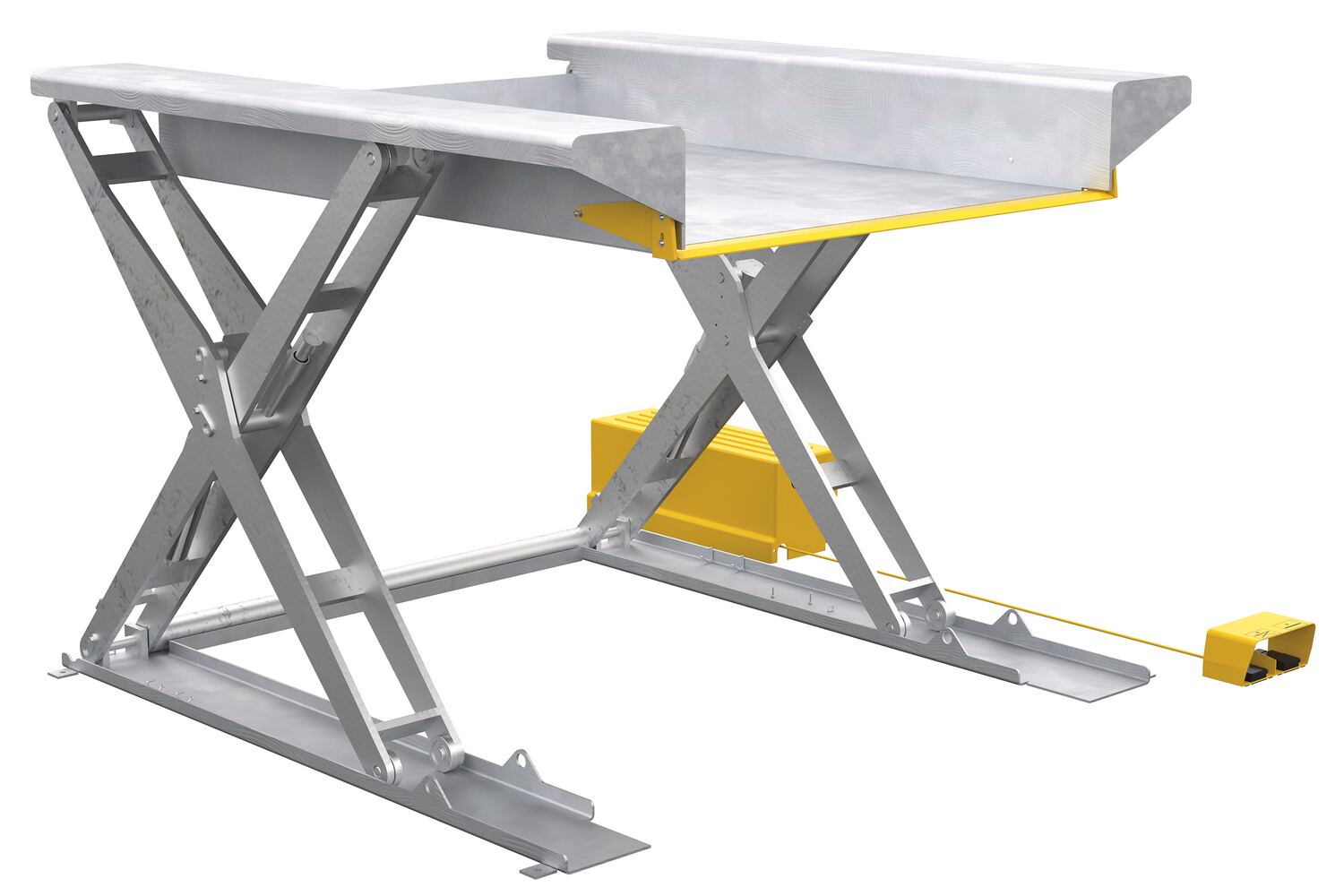

EHLTG-5270-4-48-PSS
EHLTG-5270-4-48-PSS1 Year Limited WarrantyPartially Stainless Steel Ground Lift Scissor Table 52 In. x 70 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 52
2363

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

EHLTG-3850-2-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Usable Platform Width (in.): 38
Uniform Capacity (lb.): 2000
Usable Platform Width (in.): 38

EHLTG-3850-2-36-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 36
Uniform Capacity (lb.): 2000
Platform Width (in.): 36

EHLTG-3850-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Usable Platform Width (in.): 38
Uniform Capacity (lb.): 4000
Usable Platform Width (in.): 38

EHLTG-3850-4-36-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 36
Uniform Capacity (lb.): 4000
Platform Width (in.): 36

EHLTG-4450-2-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 44
Uniform Capacity (lb.): 2000
Platform Width (in.): 44

EHLTG-4450-2-36-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Usable Platform Width (in.): 44
Uniform Capacity (lb.): 2000
Usable Platform Width (in.): 44

EHLTG-4450-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 44
Uniform Capacity (lb.): 4000
Platform Width (in.): 44

EHLTG-4450-4-36-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 44
Uniform Capacity (lb.): 4000
Platform Width (in.): 44

EHLTG-4470-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 44
Uniform Capacity (lb.): 2000
Platform Width (in.): 44

EHLTG-4470-2-48-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 44
Uniform Capacity (lb.): 2000
Platform Width (in.): 44

EHLTG-4470-4-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 44
Uniform Capacity (lb.): 4000
Platform Width (in.): 44

EHLTG-4470-4-48-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 44
Uniform Capacity (lb.): 4000
Platform Width (in.): 44

EHLTG-5250-2-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Usable Platform Width (in.): 52
Uniform Capacity (lb.): 2000
Usable Platform Width (in.): 52

EHLTG-5250-2-36-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 52
Uniform Capacity (lb.): 2000
Platform Width (in.): 52

EHLTG-5250-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Usable Platform Width (in.): 52
Uniform Capacity (lb.): 4000
Usable Platform Width (in.): 52

EHLTG-5250-4-36-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 52
Uniform Capacity (lb.): 4000
Platform Width (in.): 52

EHLTG-5270-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Usable Platform Width (in.): 52
Uniform Capacity (lb.): 2000
Usable Platform Width (in.): 52

EHLTG-5270-2-48-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Platform Width (in.): 52
Uniform Capacity (lb.): 2000
Platform Width (in.): 52

EHLTG-5270-4-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Usable Platform Width (in.): 52
Uniform Capacity (lb.): 4000
Usable Platform Width (in.): 52

EHLTG-5270-4-48-PSS
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Platform Width (in.): 52
Uniform Capacity (lb.): 4000
Platform Width (in.): 52
For More Details of the Option Click the Red Model Button

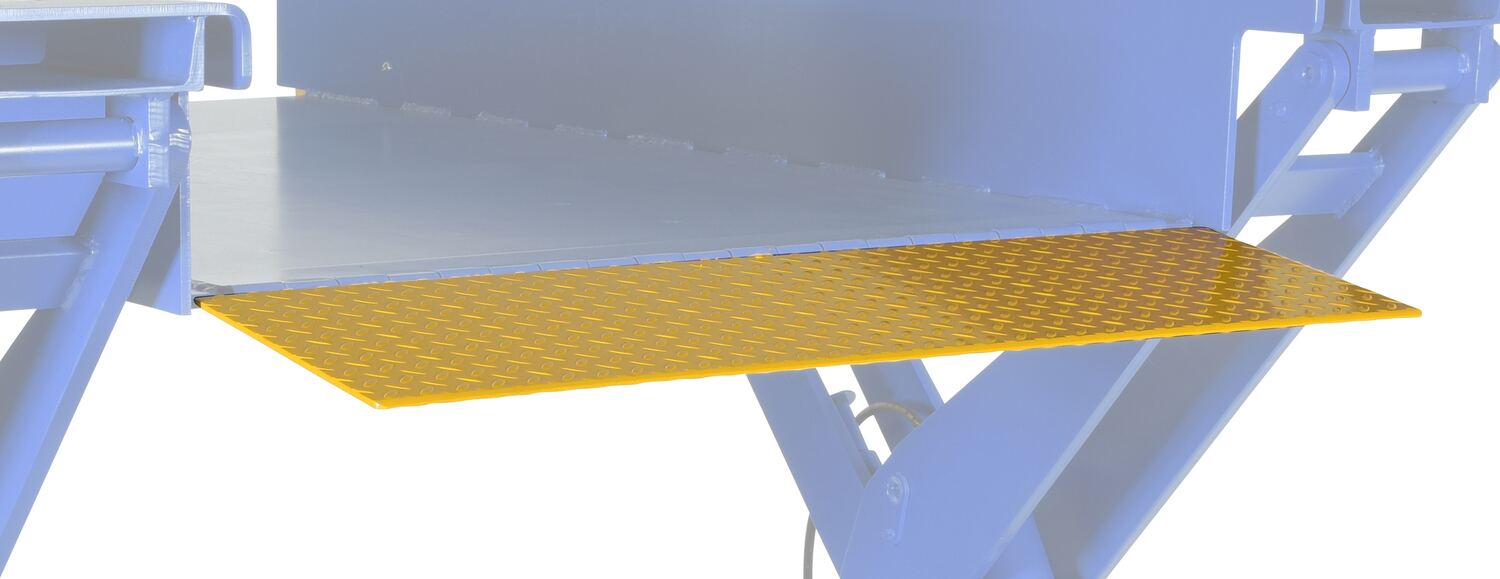

EHLTG-44-SB EHLTG-44-SB1 Year Limited WarrantyFactory Installed Steel Rollover Bridge 44 In. x 12 In. 3000 Lb. Capacity For EHLTG ModelsUniform Capacity (lb.): 3000
38

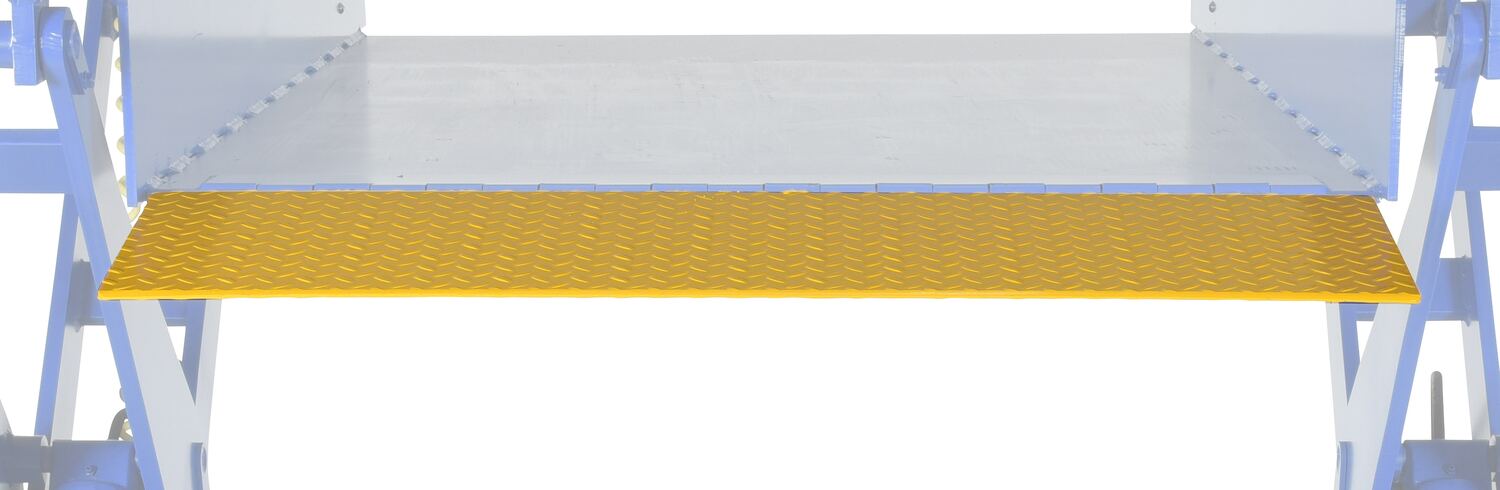

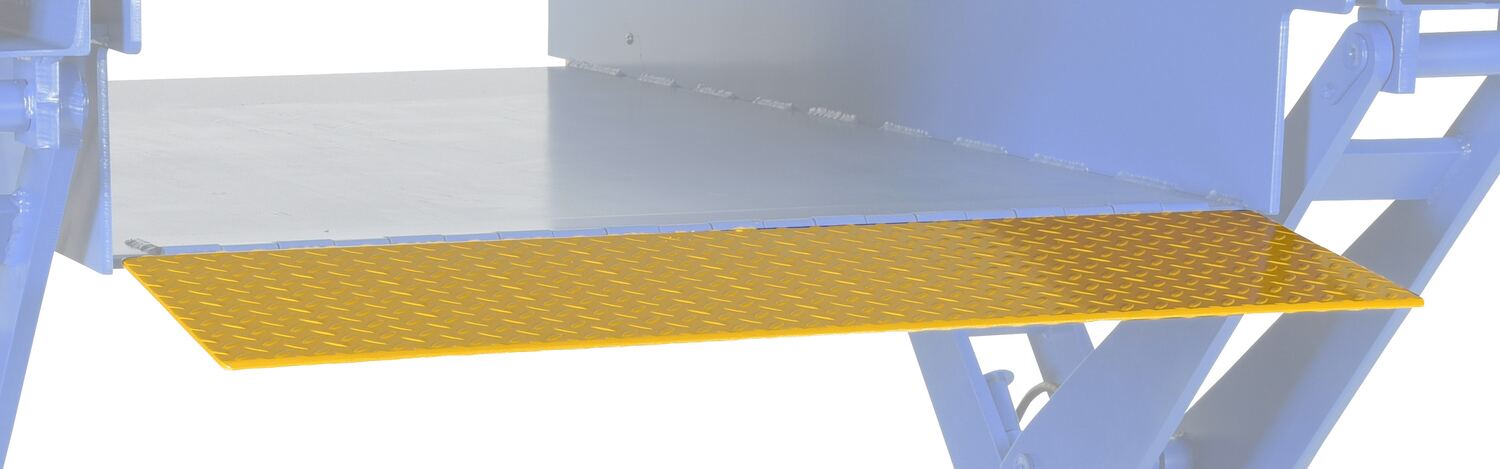

EHLTG-52-SB EHLTG-52-SB1 Year Limited WarrantyFactory Installed Steel Rollover Bridge 52 In. x 12 In. 3000 Lb. Capacity For EHLTG ModelsUniform Capacity (lb.): 3000
42

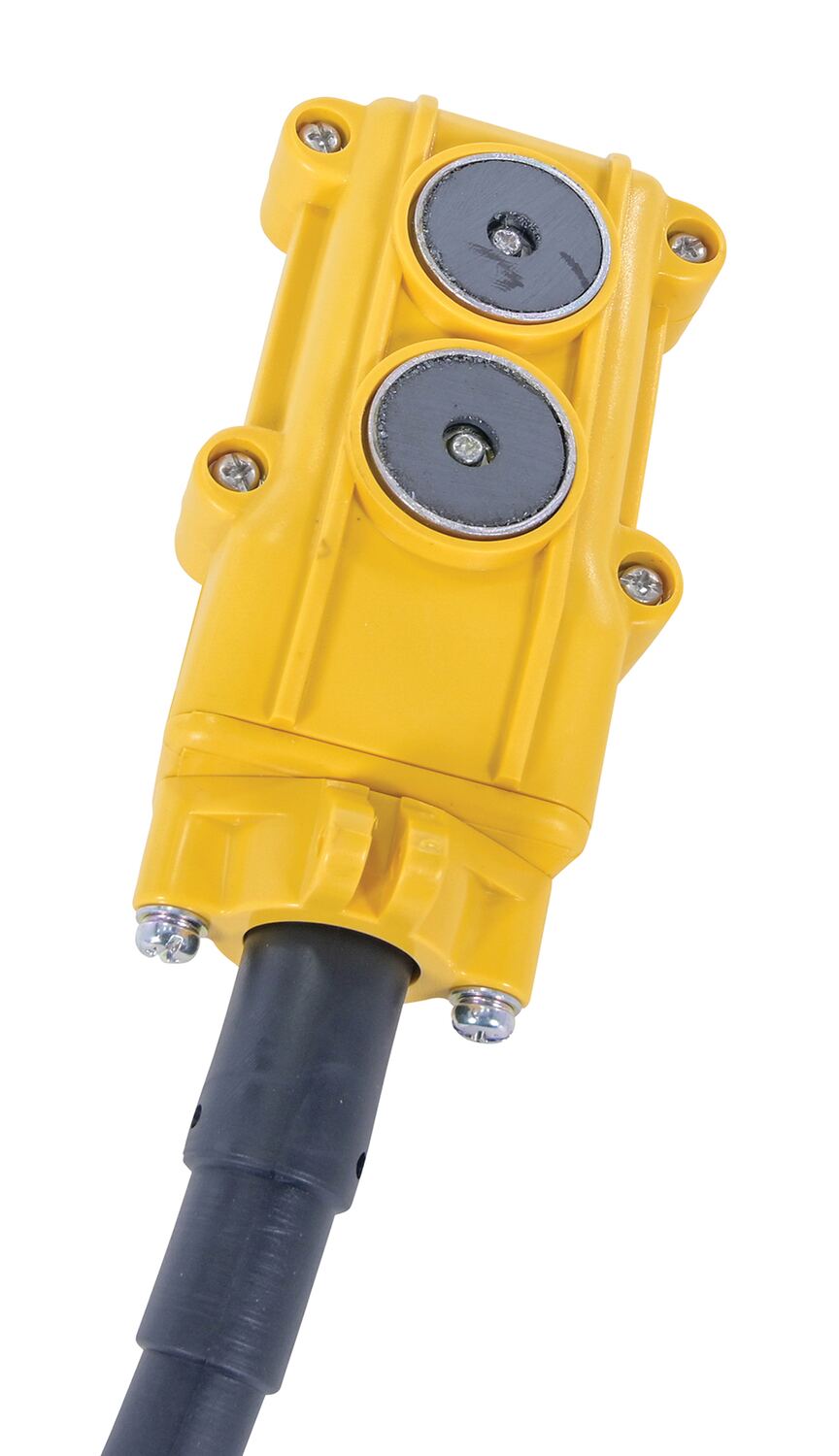

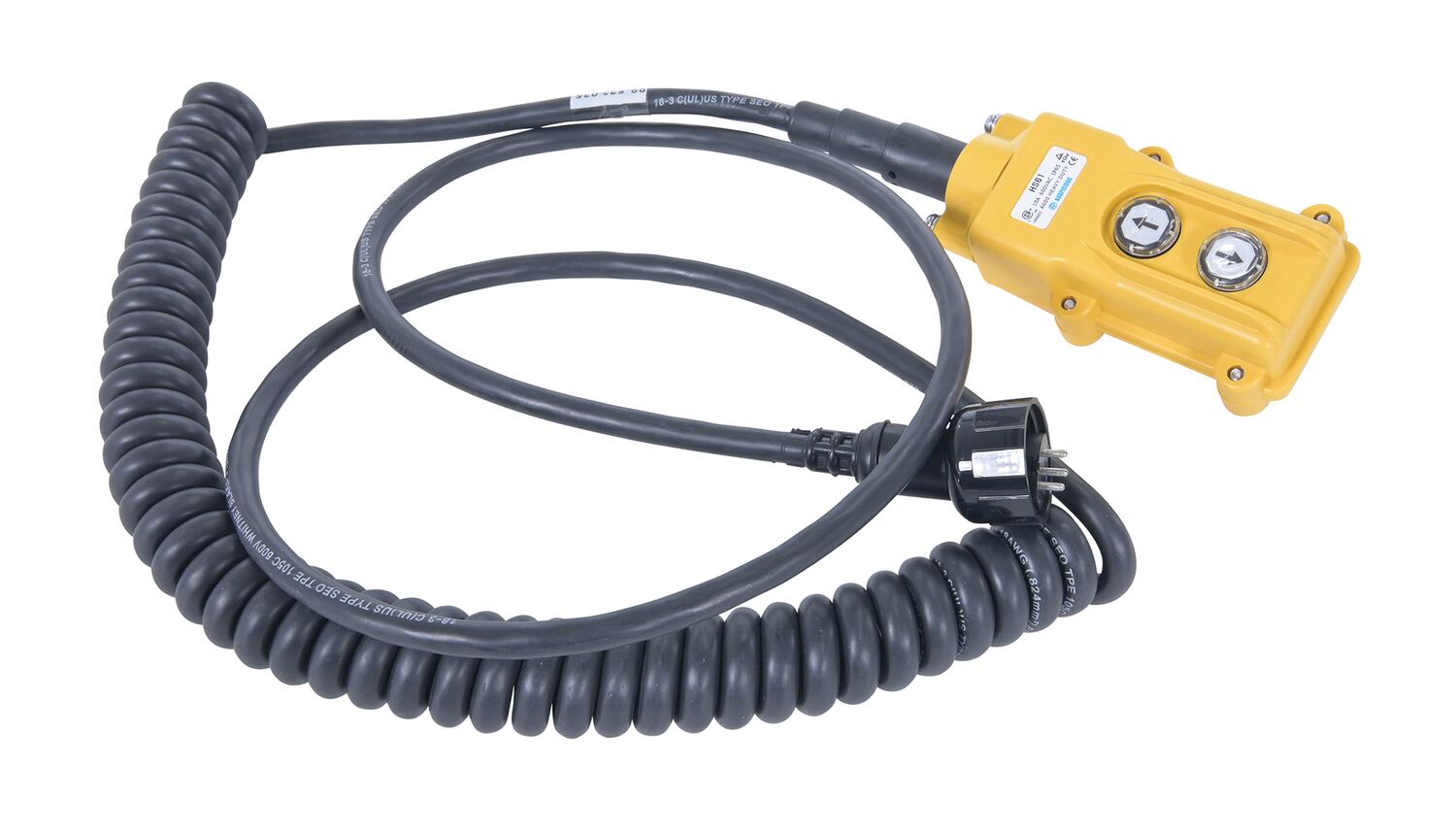

HH2PB-8-FC2 30 Days Limited WarrantyHand Control with 8 Ft. Cord For EHLTG ModelsCord Length (in.): 96
2
Model Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Ground Lift Scissor Tables PDF's will open in a new window when clicked.

Manuals


Survey Sheets


Approval Drawings

Testing Certificates


EHLTG-3850-2-36

EHLTG-3850-2-36-PSS

EHLTG-3850-4-36

EHLTG-3850-4-36-PSS

EHLTG-44-SB

EHLTG-4450-2-36

EHLTG-4450-2-36-PSS

EHLTG-4450-4-36

EHLTG-4450-4-36-PSS

EHLTG-4470-2-48

EHLTG-4470-2-48-PSS

EHLTG-4470-4-48

EHLTG-4470-4-48-PSS

EHLTG-52-SB

EHLTG-5250-2-36

EHLTG-5250-2-36-PSS

EHLTG-5250-4-36

EHLTG-5250-4-36-PSS

EHLTG-5270-2-48

EHLTG-5270-2-48-PSS

EHLTG-5270-4-48

EHLTG-5270-4-48-PSS

SDS Sheets

Hydraulic Oil SDS Sheet for: EHLTG-3850-2-36
Hydraulic Oil SDS Sheet for: EHLTG-3850-4-36
Hydraulic Oil SDS Sheet for: EHLTG-4450-2-36
Hydraulic Oil SDS Sheet for: EHLTG-4450-4-36
Hydraulic Oil SDS Sheet for: EHLTG-4470-2-48
Hydraulic Oil SDS Sheet for: EHLTG-4470-4-48
Hydraulic Oil SDS Sheet for: EHLTG-4484-3-54
Hydraulic Oil SDS Sheet for: EHLTG-5250-2-36
Hydraulic Oil SDS Sheet for: EHLTG-5250-4-36
Hydraulic Oil SDS Sheet for: EHLTG-5270-2-48
Hydraulic Oil SDS Sheet for: EHLTG-5270-4-48
Hydraulic Oil SDS Sheet for: EHLTG-5284-3-54

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: What is the thickness of the steel on the EHLTG-4450-2-26?

A: The steel is 1/2" thick on the EHLTG tables.


Q: What is the HP for these tables and how long does it take to raise and lower the table?

A: The 2HP table raises to 54" in 32 seconds and lowers in 18 seconds.


Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.


Q: What is the bolt size for the anchor points?

A: The hole diameter is 9/16"


Q: I see this table comes with a foot control. Can I switch to a hand control?

A: Yes the part number to switch to a hand control would be HH2PB-8-FC-2


Q: Do you have a Div1 Class1 motor for the stainless steel lift table?

A: No we do not have motors for Div1 Class1.


Q: What is the usable height of the side walls on the deck of an EHLTG?

A: 9-15/16"






Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Ground Lift Scissor Tables




EHLTG in useA Ground Lift Scissor Table is a perfect addition to any material handling operation. Products and material can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. An entry-side electric toe guard protects pinch points during lowering of the table. A safety velocity fuse is included to maintain platform height in the event of a hose or fitting failure. The motor is totally enclosed and the partially stainless steel construction provides great protection. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting and a variety of voltages are available.

  • Perfect for ergonomic alignment
  • Built-in safety features to minimize vulnerability
  • Integral system to maintain platform height
  • Remote power for use away from table

Check Out Our Ground Lift Scissor Tables W/ Handrails

Check Out Our Ground Lift & Tilt Tables



Model # Description Attributes Net Wt.
(lbs)
EHLTG-3850-2-36 EHLTG-3850-2-36Steel Ground Lift Scissor Table 38 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Usable Platform Width (in.): 38
1530
EHLTG-3850-2-36-PSS EHLTG-3850-2-36-PSSPartially Stainless Steel Ground Lift Scissor Table 38 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 36
1525
EHLTG-3850-4-36 EHLTG-3850-4-36Steel Ground Lift Scissor Table 38 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Usable Platform Width (in.): 38
1671
EHLTG-3850-4-36-PSS EHLTG-3850-4-36-PSSPartially Stainless Steel Ground Lift Scissor Table 38 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 36
1659
EHLTG-4450-2-36 EHLTG-4450-2-36Steel Ground Lift Scissor Table 44 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 44
1573
EHLTG-4450-2-36-PSS EHLTG-4450-2-36-PSSPartially Stainless Steel Ground Lift Scissor Table 44 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Usable Platform Width (in.): 44
1586
EHLTG-4450-4-36 EHLTG-4450-4-36Steel Ground Lift Scissor Table 44 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 44
1707
EHLTG-4450-4-36-PSS EHLTG-4450-4-36-PSSPartially Stainless Steel Ground Lift Scissor Table 44 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 44
1722
EHLTG-4470-2-48 EHLTG-4470-2-48Steel Ground Lift Scissor Table 44 In. x 70 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 44
2216
EHLTG-4470-2-48-PSS EHLTG-4470-2-48-PSSPartially Stainless Steel Ground Lift Scissor Table 44 In. x 70 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 44
2231
EHLTG-4470-4-48 EHLTG-4470-4-48Steel Ground Lift Scissor Table 44 In. x 70 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 44
2242
EHLTG-4470-4-48-PSS EHLTG-4470-4-48-PSSPartially Stainless Steel Ground Lift Scissor Table 44 In. x 70 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 44
2257
EHLTG-5250-2-36 EHLTG-5250-2-36Steel Ground Lift Scissor Table 52 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Usable Platform Width (in.): 52
1717
EHLTG-5250-2-36-PSS EHLTG-5250-2-36-PSSPartially Stainless Steel Ground Lift Scissor Table 52 In. x 50 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 52
1732
EHLTG-5250-4-36 EHLTG-5250-4-36Steel Ground Lift Scissor Table 52 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Usable Platform Width (in.): 52
1729
EHLTG-5250-4-36-PSS EHLTG-5250-4-36-PSSPartially Stainless Steel Ground Lift Scissor Table 52 In. x 50 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 52
1744
EHLTG-5270-2-48 EHLTG-5270-2-48Steel Ground Lift Scissor Table 52 In. x 70 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Usable Platform Width (in.): 52
2322
EHLTG-5270-2-48-PSS EHLTG-5270-2-48-PSSPartially Stainless Steel Ground Lift Scissor Table 52 In. x 70 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Platform Width (in.): 52
2337
EHLTG-5270-4-48 EHLTG-5270-4-48Steel Ground Lift Scissor Table 52 In. x 70 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Usable Platform Width (in.): 52
2348
EHLTG-5270-4-48-PSS EHLTG-5270-4-48-PSSPartially Stainless Steel Ground Lift Scissor Table 52 In. x 70 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Platform Width (in.): 52
2363

Options


Model Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
