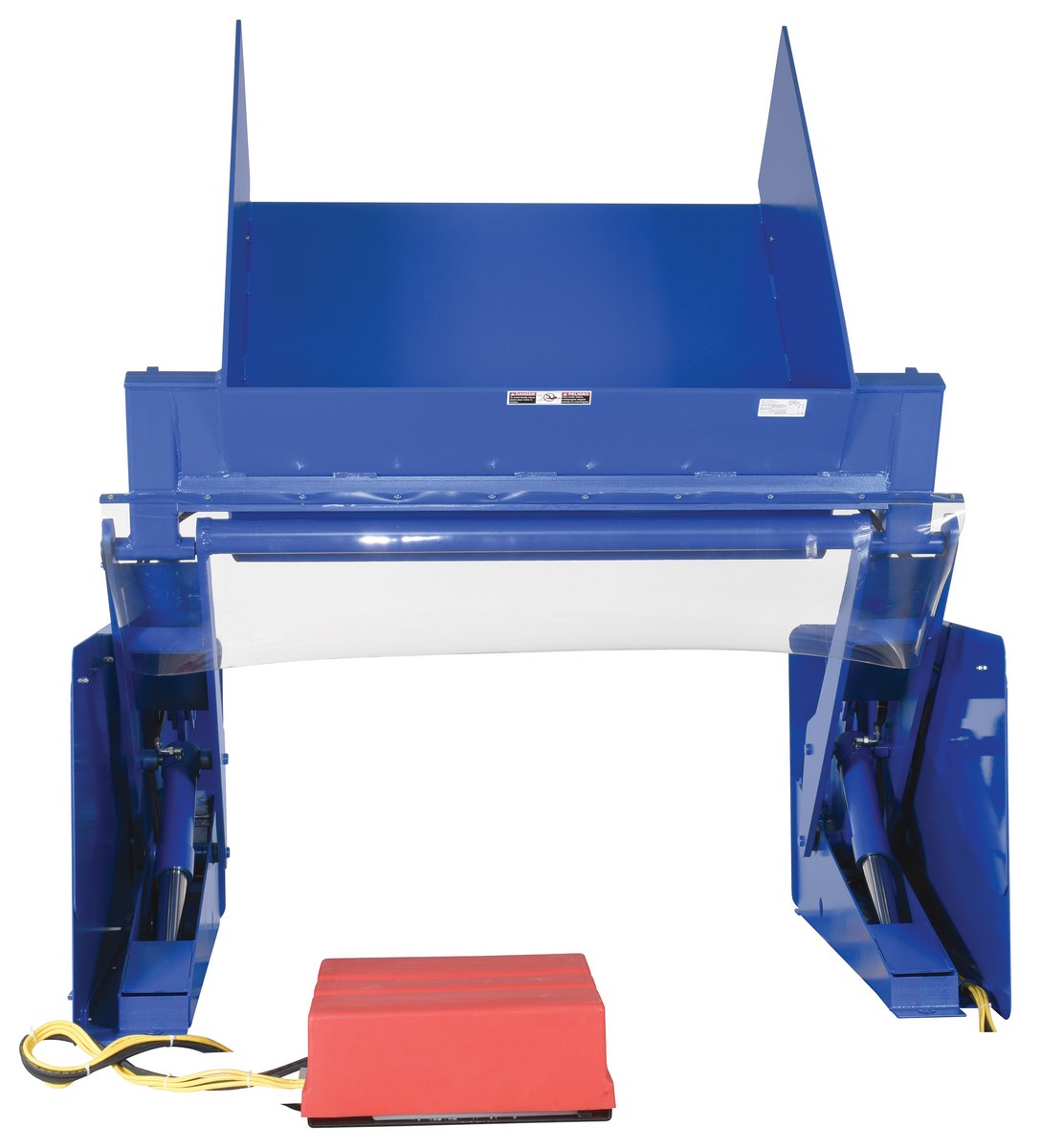

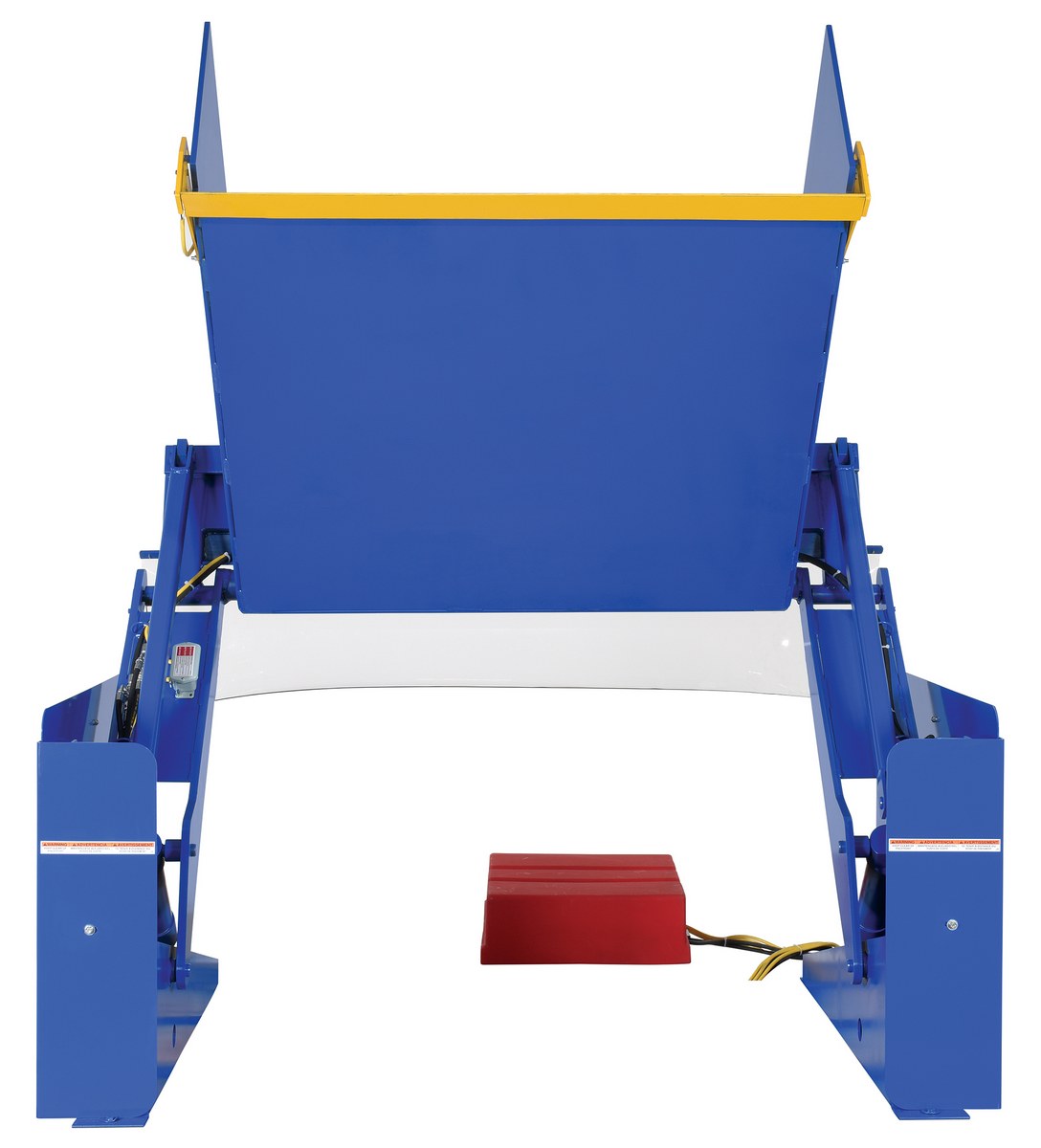

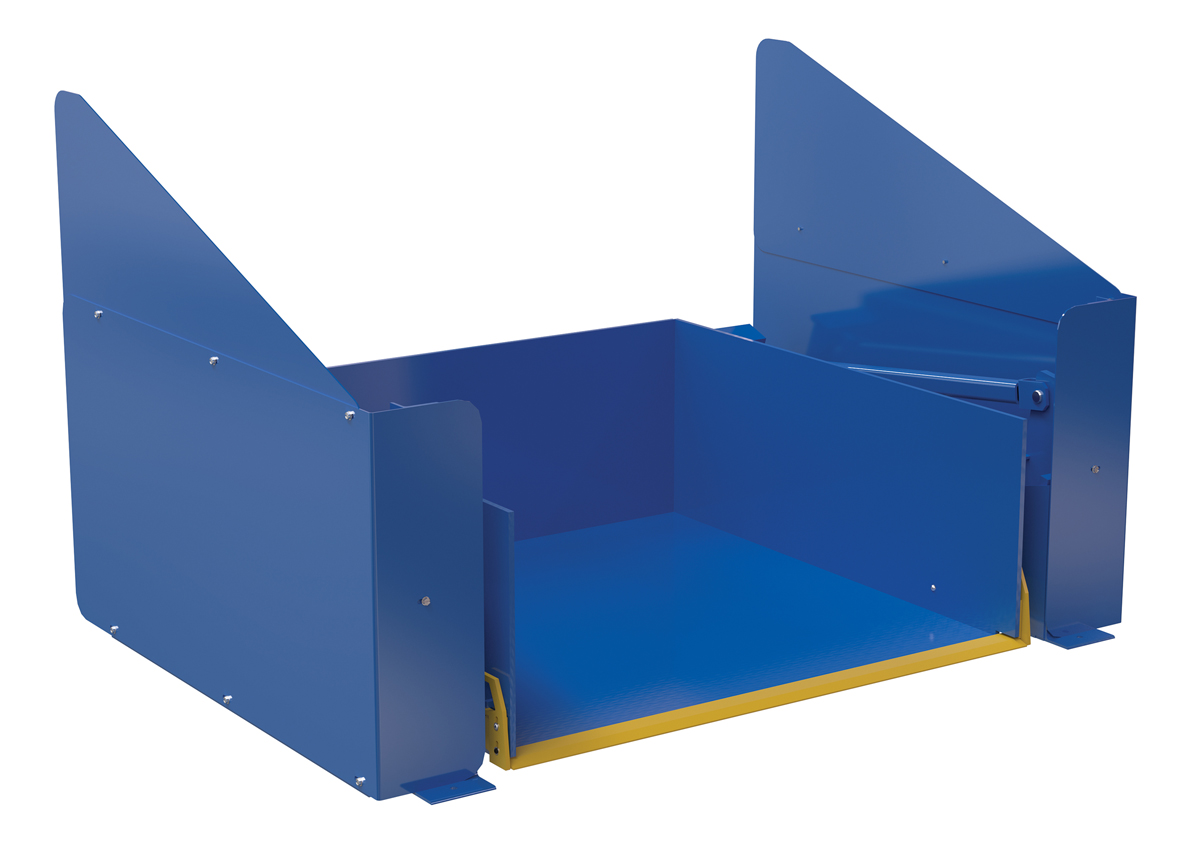

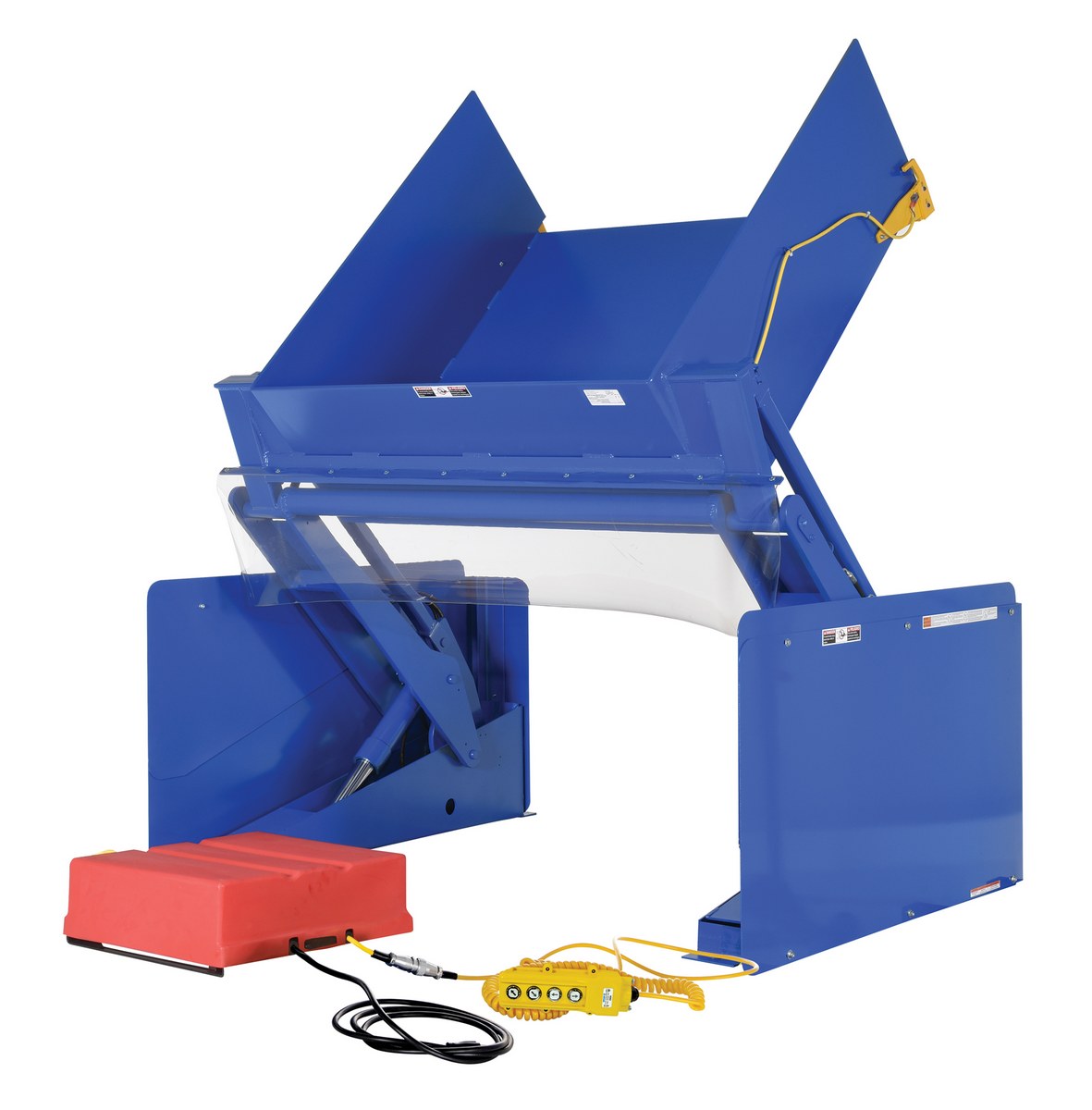

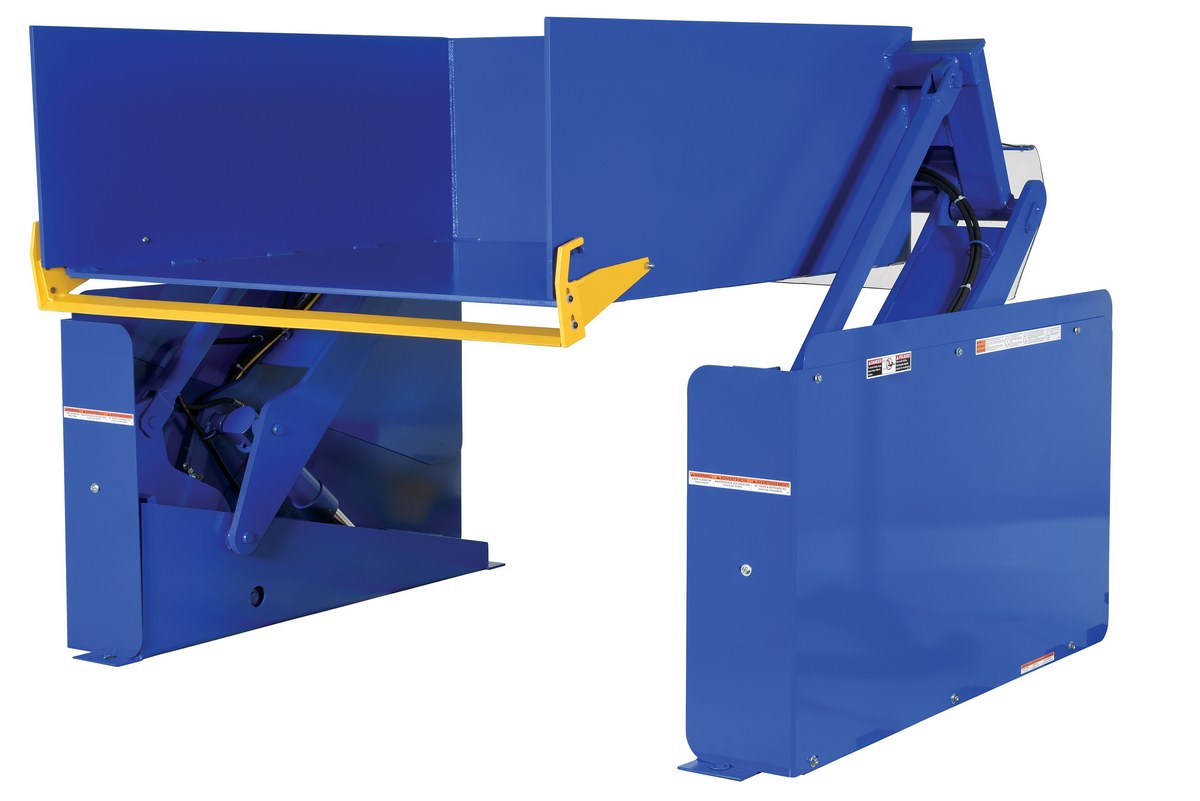

ZLTT-5252-2-36_A.jpg ZLTT-5252-2-36_B.jpg ZLTT-5252-2-36_C.jpg ZLTT-5252-2-36_D.jpg
Zero Lift & Tilt Tables

model: ZLTT-5252-2-36



Featured Ergonomic Solutions


Portable Uni-Tilts
Electric/Hydraulic Corner Tilters
Pallet Inverters
Pallet Trucks with P-CADDY
Manual & Electric Stackers (Pramac)
Hydraulic Elevating Carts
Partially Stainless Steel Hydraulic Elevating Carts
Cold Room Hand Pallet Truck
Manual Pallet Trucks
model chart

Product Family Overview

Print Friendly
Zero Lift & Tilt Tables
SERIES: ZLTT

ZLTTThe zero lift & tilt table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Maximum tilt angle is 45 degrees. Lift and tilt is controlled separately. Remote power unit with hand-held control is standard.

  • 45 Degrees maximum tilt angle positions loads to optimum ergonomic positions
  • Lift and tilt options are controlled separately allowing a precise working angle for the employee
  • No pit mounting required makes installation quick and easy
  • Products may be loaded and unloaded by a standard hand pallet truck when fork trucks aren't available

ZLTTThe zero lift & tilt table is designed to lift or tilt products to an ergonomic working position, reducing operator bending. Products may be loaded and unloaded with the use of a standard hand pallet truck. There is no pit mounting required. Maximum tilt angle is 45 degrees. Lift and tilt is controlled separately. Remote power unit with hand-held control is standard.

  • 45 Degrees maximum tilt angle positions loads to optimum ergonomic positions
  • Lift and tilt options are controlled separately allowing a precise working angle for the employee
  • No pit mounting required makes installation quick and easy
  • Products may be loaded and unloaded by a standard hand pallet truck when fork trucks aren't available

Other Lift & Tilt Tables

 Air Bag Scissor Lift Tables Electric Linear Actuated Table Top Scissor Lift Table Zero Lift & Tilt Tables Integral Scale for Scissor Tables

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ZLTT-4452-2-36
ZLTT-4452-2-361 Year Limited WarrantySteel Zero Lift & Tilt Table 44 In. x 52 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 36		2121
ZLTT-4452-4-36
ZLTT-4452-4-361 Year Limited WarrantySteel Zero Lift & Tilt Table 44 In. x 52 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 36		2230

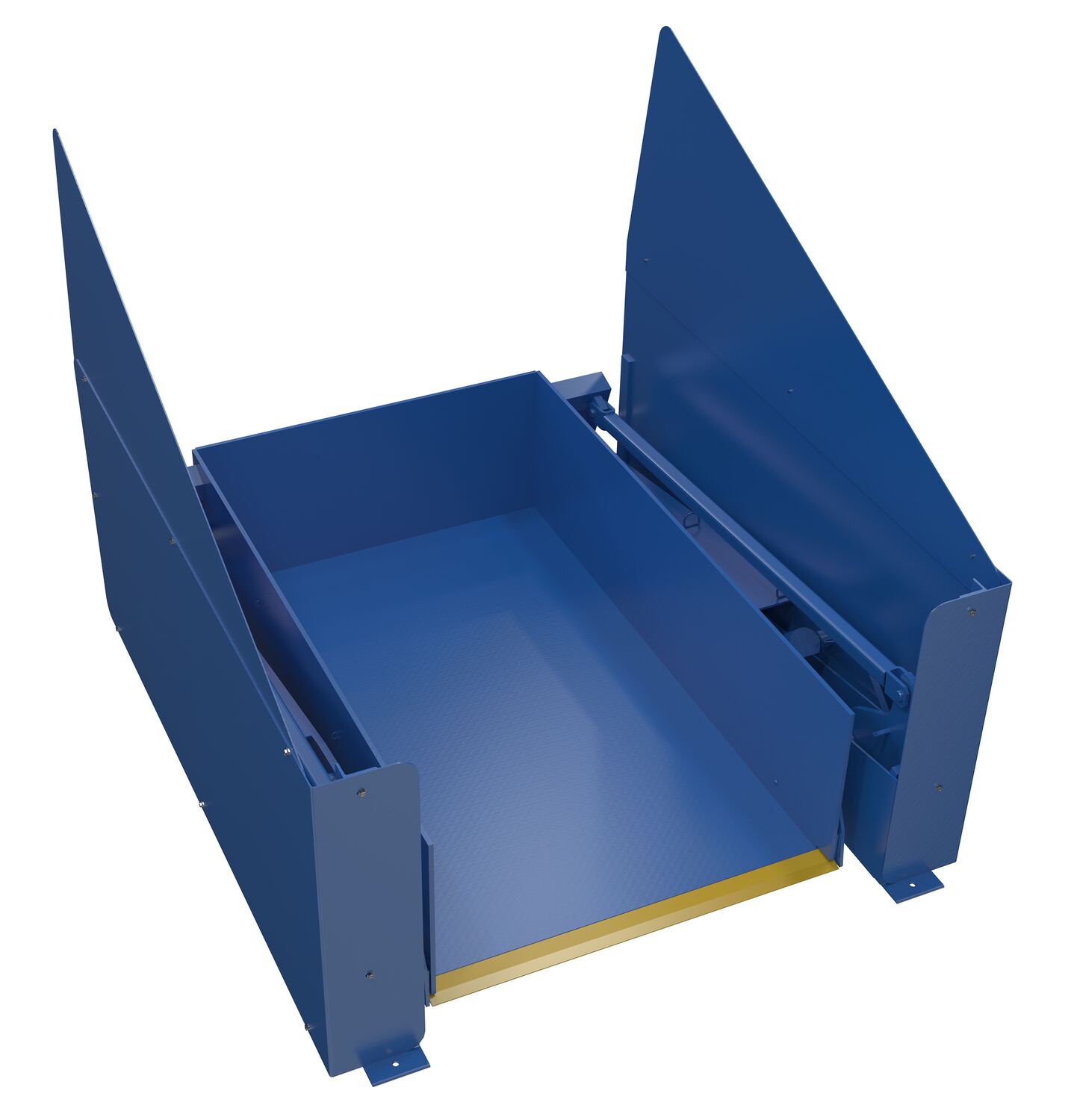

ZLTT-4472-2-48
ZLTT-4472-2-481 Year Limited WarrantySteel Zero Lift & Tilt Table 44 In. x 72 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 48		2950

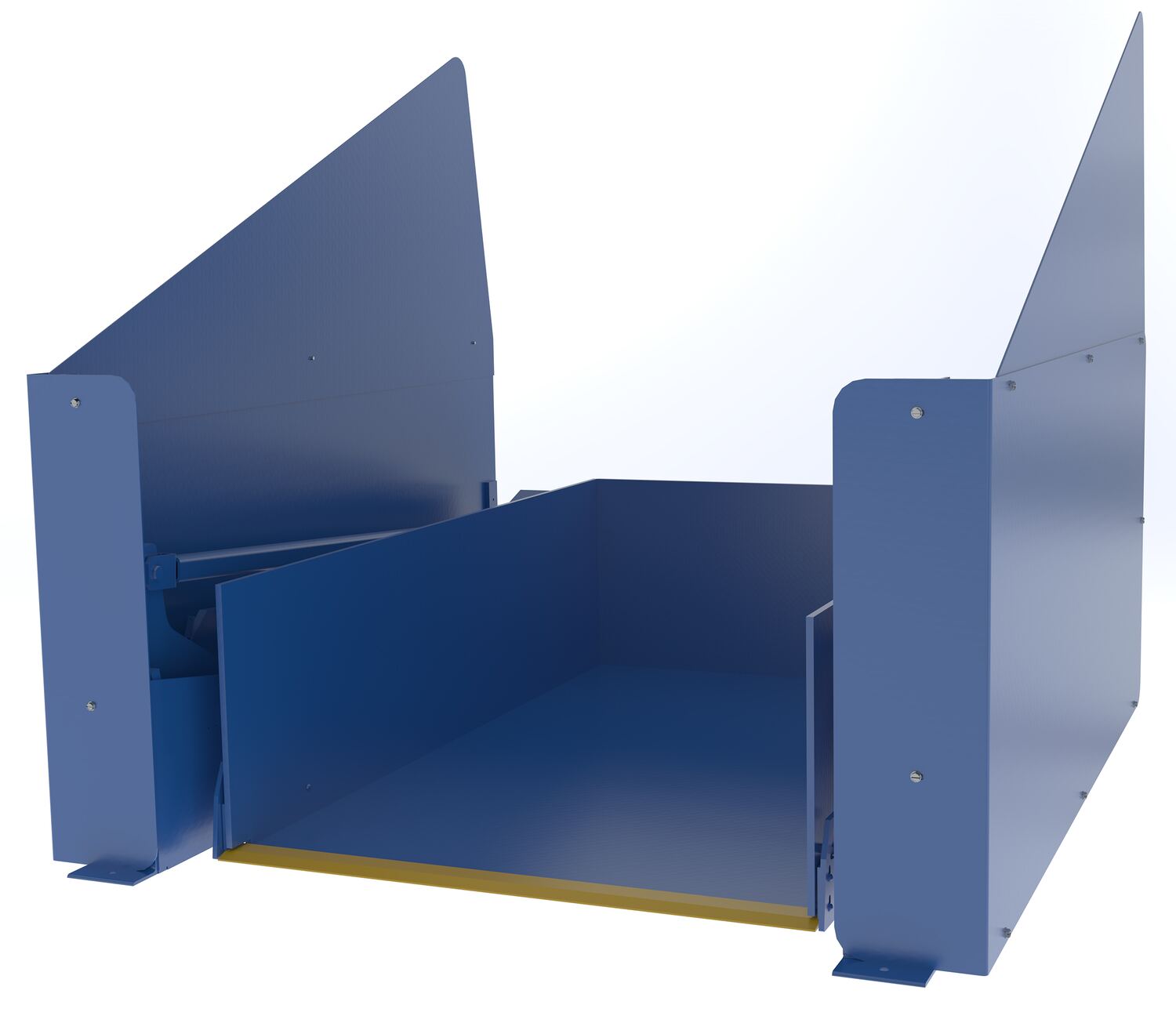

ZLTT-4472-4-48
ZLTT-4472-4-481 Year Limited WarrantySteel Zero Lift & Tilt Table 44 In. x 72 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 48		3013
ZLTT-5252-2-36
ZLTT-5252-2-361 Year Limited WarrantySteel Zero Lift & Tilt Table 52 In. x 52 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 36		2337

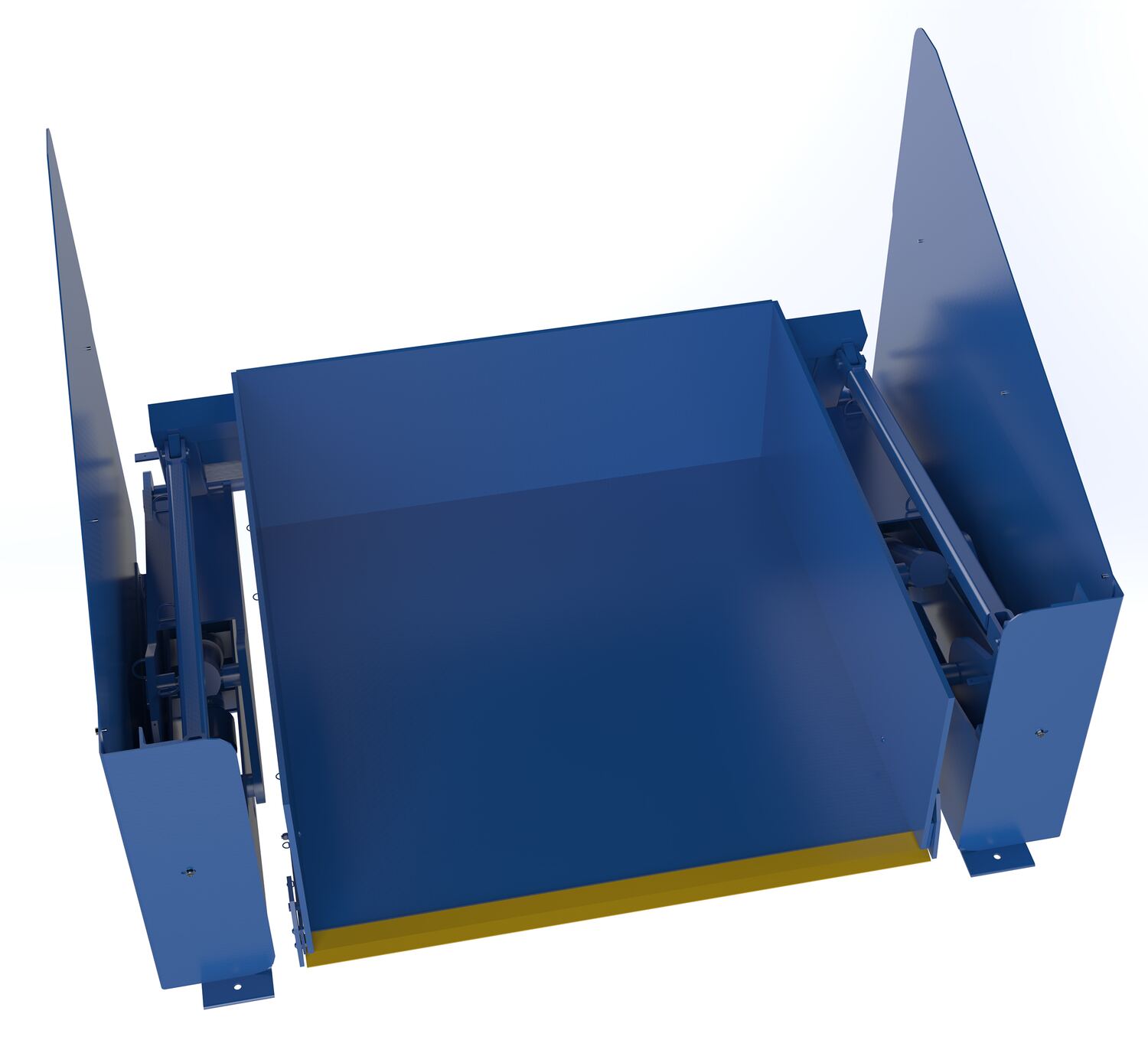

ZLTT-5252-4-36
ZLTT-5252-4-361 Year Limited WarrantySteel Zero Lift & Tilt Table 52 In. x 52 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 36		2322

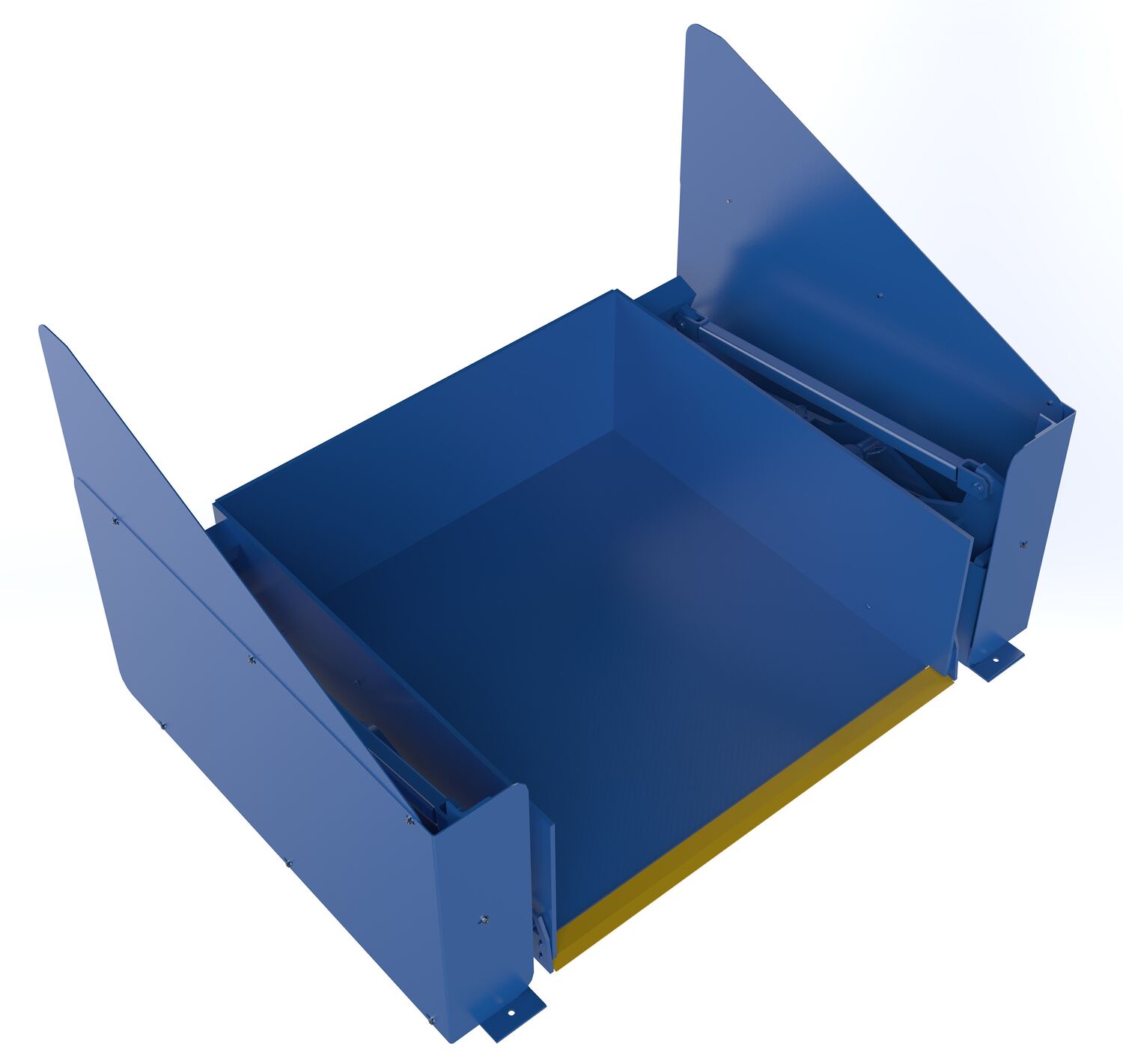

ZLTT-5272-2-48
ZLTT-5272-2-481 Year Limited WarrantySteel Zero Lift & Tilt Table 52 In. x 72 In. AC Powered 460 Volt 3 Phase 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 48		3095

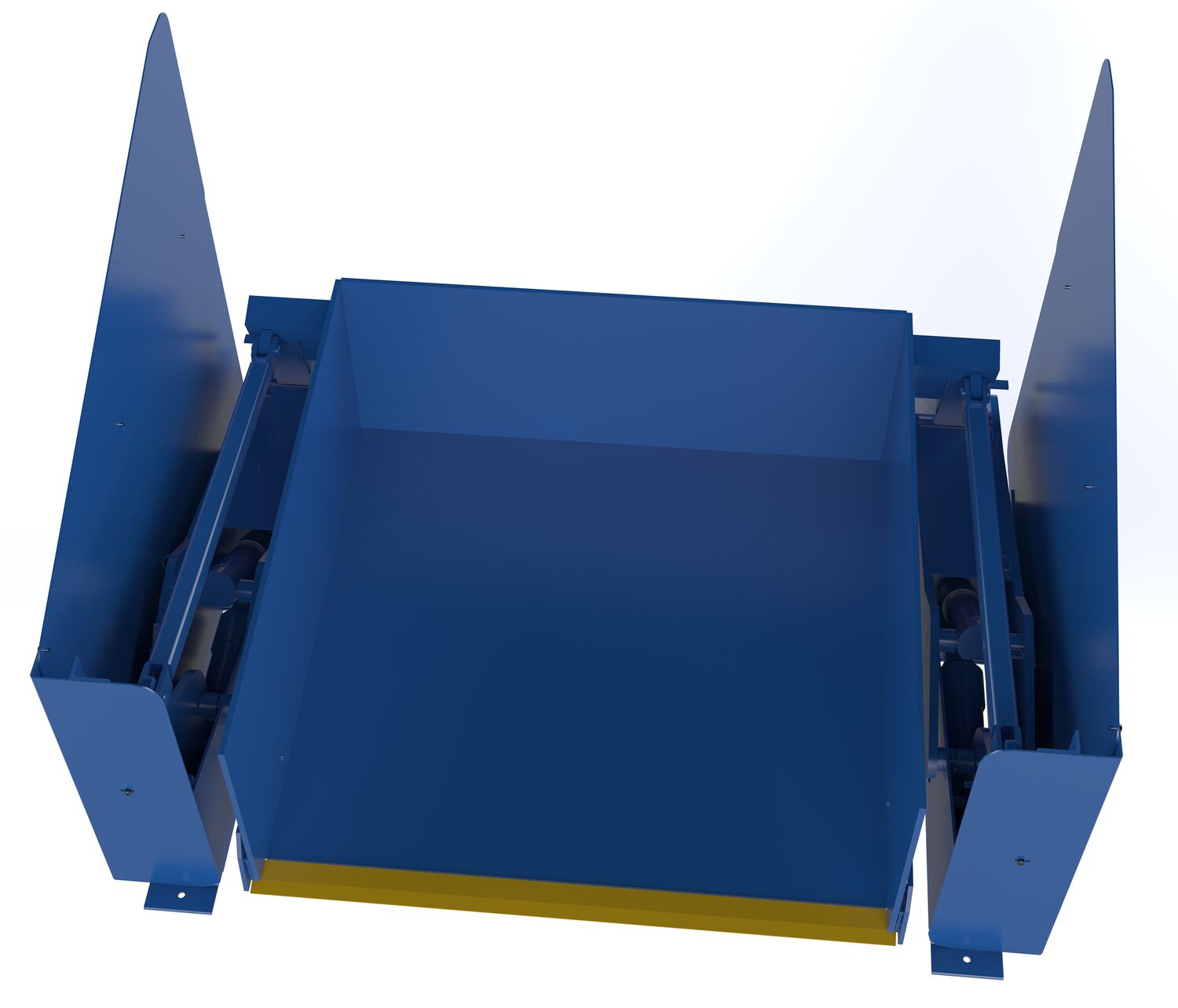

ZLTT-5272-4-48
ZLTT-5272-4-481 Year Limited WarrantySteel Zero Lift & Tilt Table 52 In. x 72 In. AC Powered 460 Volt 3 Phase 4,000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 48		3074

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

ZLTT-4452-2-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 36
Uniform Capacity (lb.): 2000
Raised Height (in.): 36

ZLTT-4452-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 36
Uniform Capacity (lb.): 4000
Raised Height (in.): 36

ZLTT-4472-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 48
Uniform Capacity (lb.): 2000
Raised Height (in.): 48

ZLTT-4472-4-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 48
Uniform Capacity (lb.): 4000
Raised Height (in.): 48

ZLTT-5252-2-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 36
Uniform Capacity (lb.): 2000
Raised Height (in.): 36

ZLTT-5252-4-36
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 36
Uniform Capacity (lb.): 4000
Raised Height (in.): 36

ZLTT-5272-2-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 48
Uniform Capacity (lb.): 2000
Raised Height (in.): 48

ZLTT-5272-4-48
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 48
Uniform Capacity (lb.): 4000
Raised Height (in.): 48
For More Details of the Option Click the Red Model Button
Model Description Wt.
(lbs)
HCP-2642 HCP-2642 Optional Hand Control Pedestal
RRC-4PB Radio Remote Control 4-Button System (Lift and Tilt Circuit) 1
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Zero Lift & Tilt Tables PDF's will open in a new window when clicked.

Manuals


ZLTT
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


ZLTT-4452-2-36

ZLTT-4452-4-36

ZLTT-4472-2-48

ZLTT-4472-4-48

ZLTT-5252-2-36

ZLTT-5252-4-36

ZLTT-5272-2-48

ZLTT-5272-4-48

Testing Certificates


ZLTT-4452-2-36

ZLTT-4452-4-36

ZLTT-4472-2-48

ZLTT-4472-4-48

ZLTT-5252-2-36

ZLTT-5252-4-36

ZLTT-5272-2-48

ZLTT-5272-4-48

SDS Sheets

Hydraulic Oil SDS Sheet for: ZLTT-4452-2-36
Hydraulic Oil SDS Sheet for: ZLTT-4452-4-36
Hydraulic Oil SDS Sheet for: ZLTT-4472-2-48
Hydraulic Oil SDS Sheet for: ZLTT-4472-4-48
Hydraulic Oil SDS Sheet for: ZLTT-5252-2-36
Hydraulic Oil SDS Sheet for: ZLTT-5252-4-36
Hydraulic Oil SDS Sheet for: ZLTT-5272-2-48
Hydraulic Oil SDS Sheet for: ZLTT-5272-4-48

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.
