Ground Lift Scissor Tables with Handrails

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

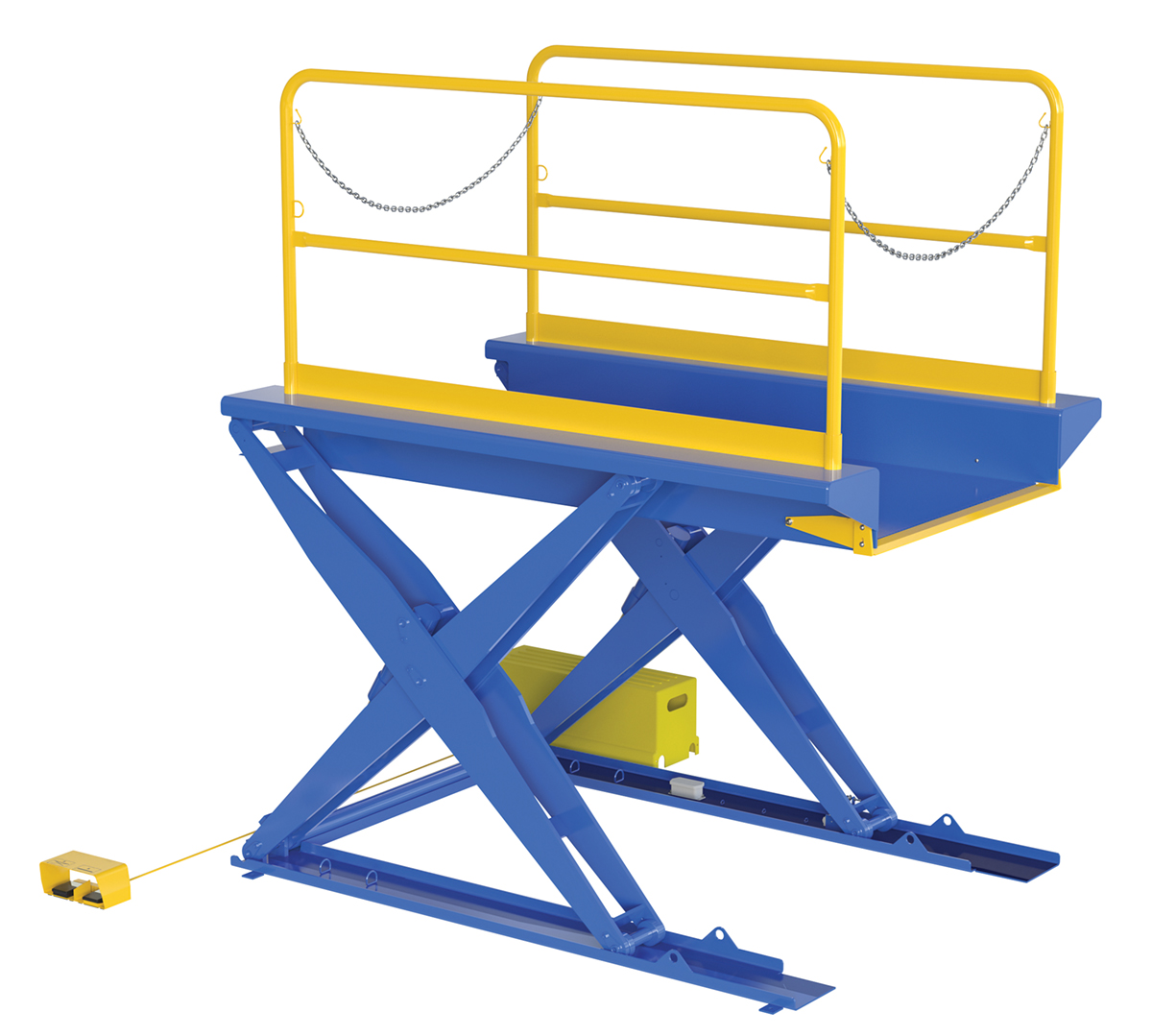

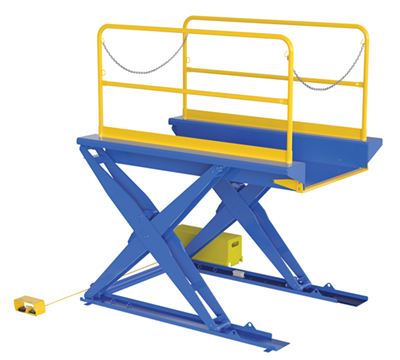

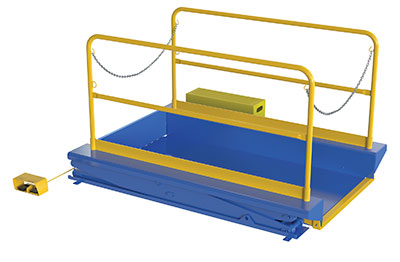

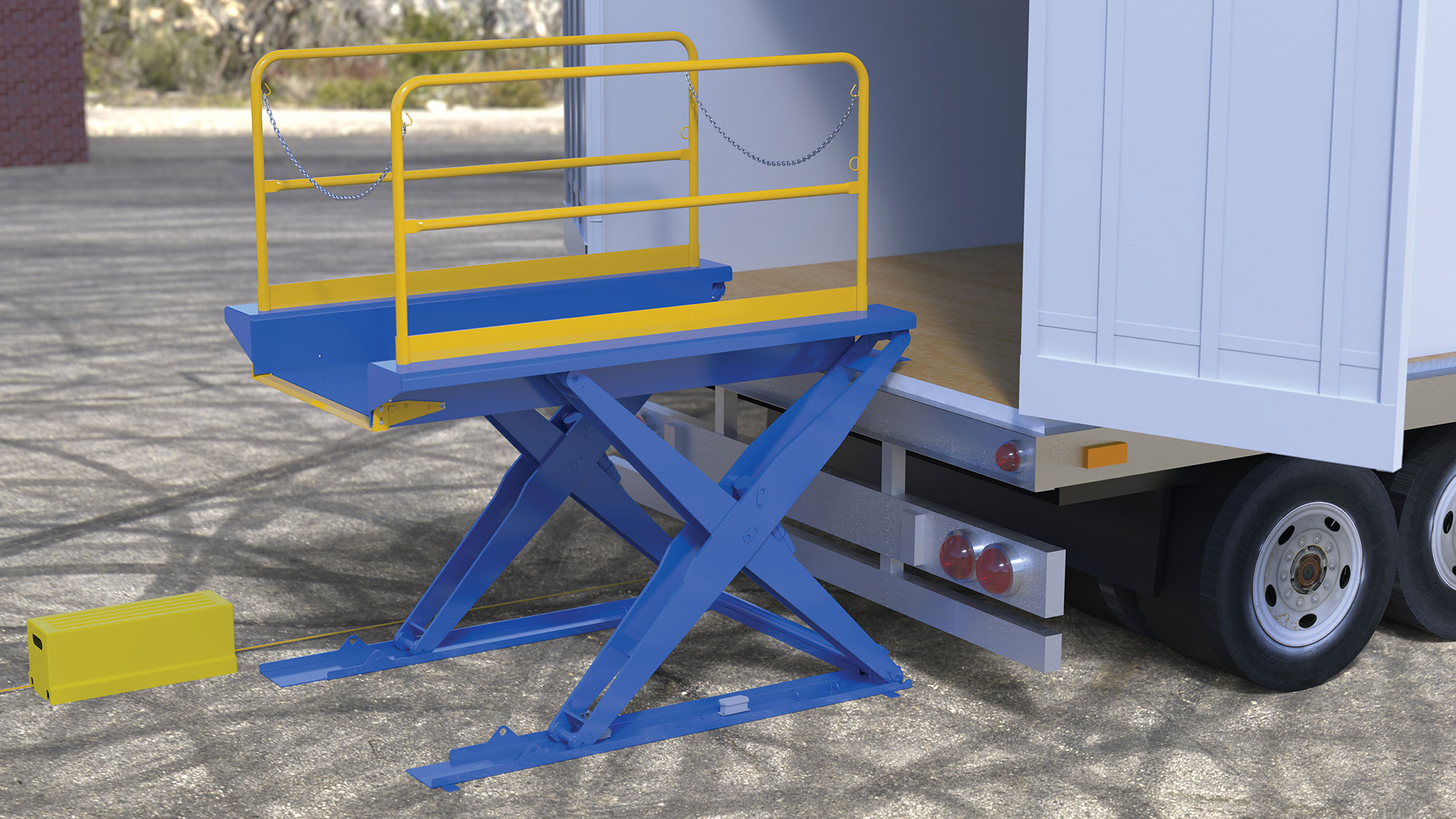

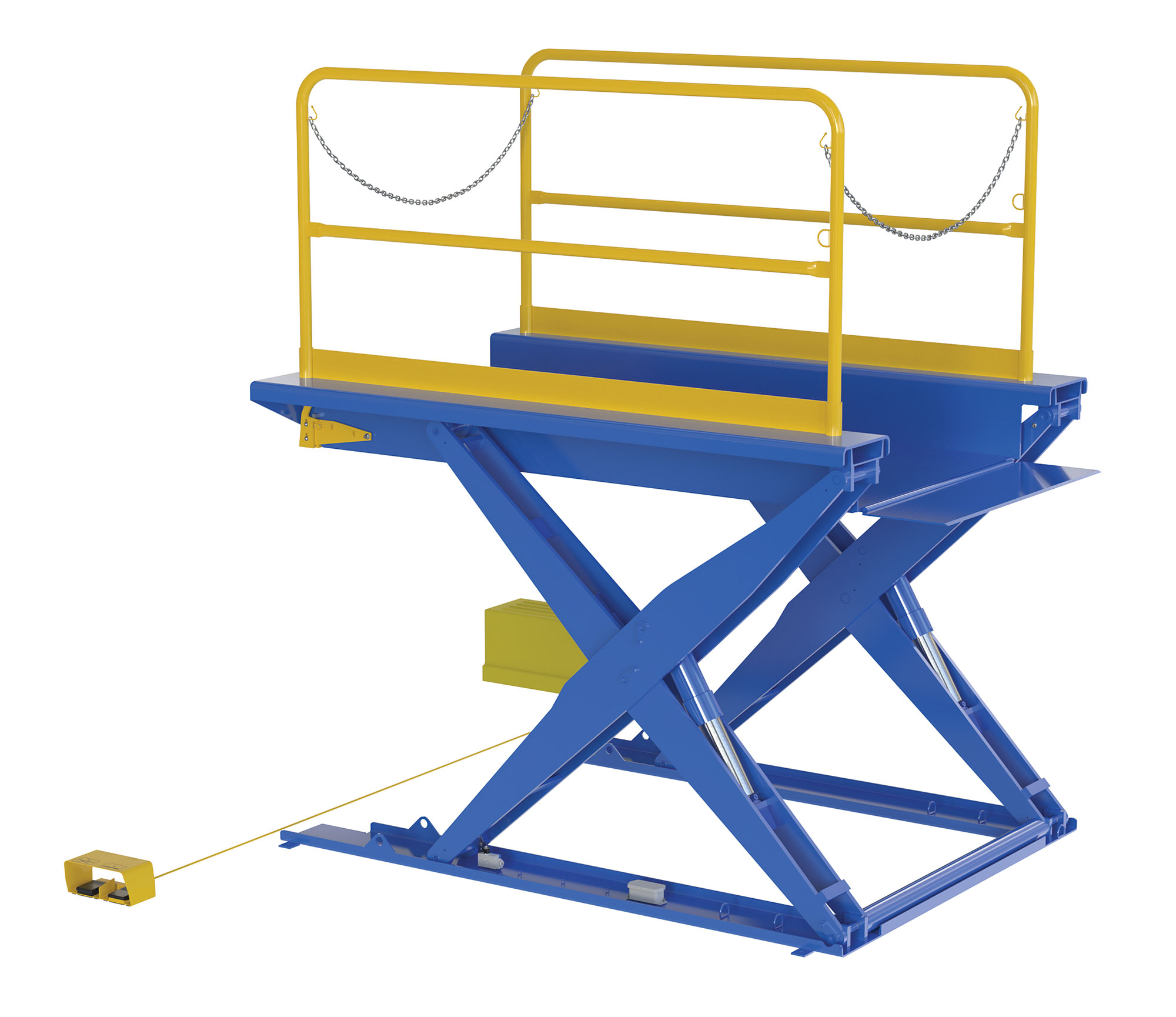

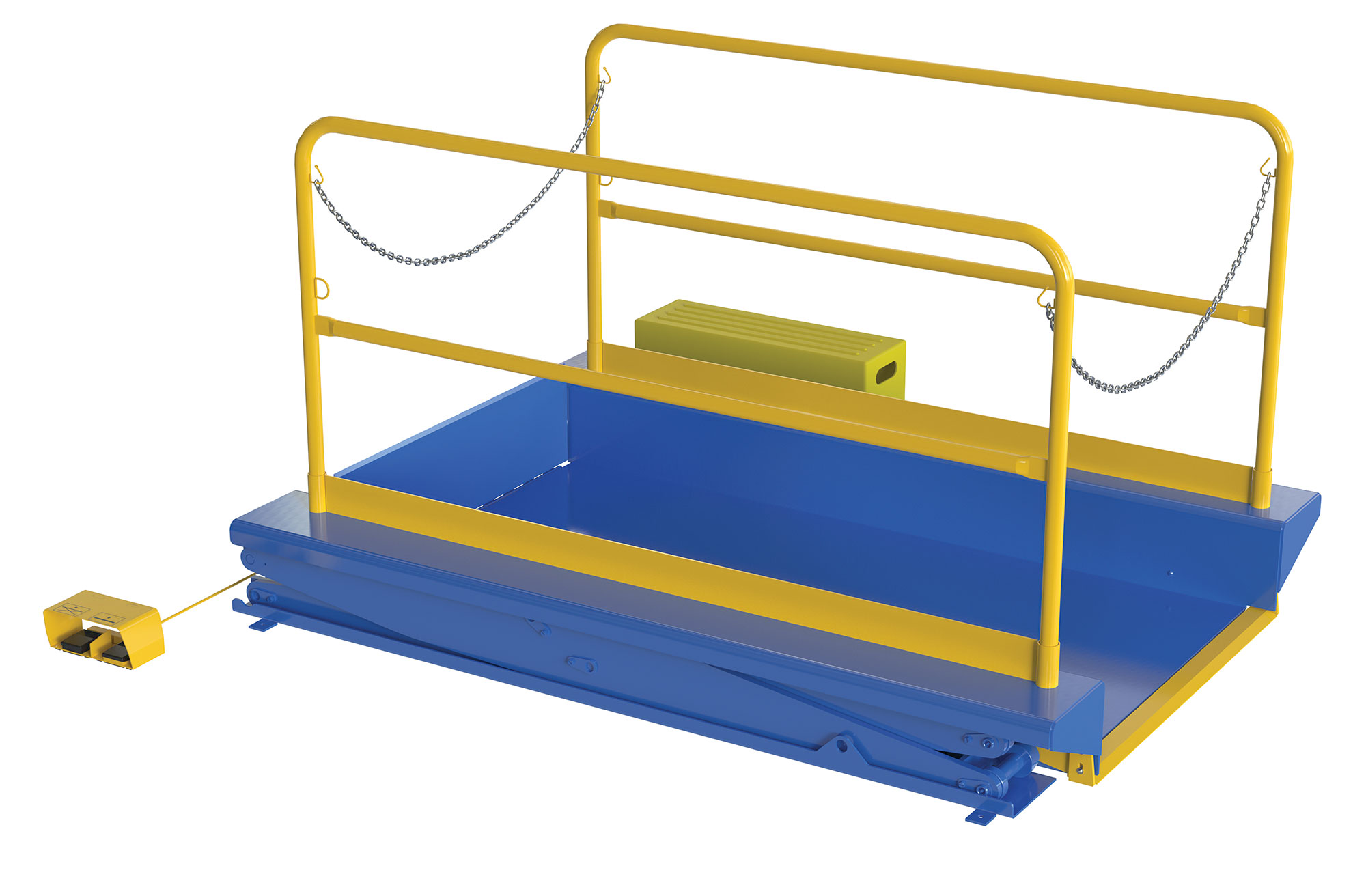

EHLTG-4484-3-54_A.jpg EHLTG-4484-3-54_B.jpg EHLTG-4484-3-54_C.jpg EHLTG-4484-3-54_D.jpg
Ground Lift Scissor Tables with Handrails

model: EHLTG-4484-3-54



Featured Ergonomic Solutions


Pallet Truck Stop
Pallet Jockeys for "Walkie" Trucks
Counter-Balanced Stackers
Conveyor with Retractable End Stops
Hydraulic Post Tables
Single Fork Electric Pallet Truck w/ Scale
Heavy Duty Low Profile Scissor Lift Cart
Hand Control Pedestal
Electric Pallet Truck
model chart

Product Family Overview

Print Friendly
Ground Lift Scissor Tables with Handrails
SERIES: EHLTG

Great For Loading/Unloading Semi Trucks with a Pallet Truck!

The Ground Lift Scissor Table with Handrails is designed for use when fork trucks or other dock lifts are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. The safety features include: entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. The motor is totally enclosed standard with optional voltages available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.

  • Pallets can be loaded onto the platform and raised to a working height
  • Features toe guard to protect pinch points
  • Guardrails for stability and support
  • Remote power unit can be located up to eight feet away from the table

Check Out Our Standard Ground Lift Scissor Tables

Great For Loading/Unloading Semi Trucks with a Pallet Truck!

The Ground Lift Scissor Table with Handrails is designed for use when fork trucks or other dock lifts are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. The safety features include: entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. The motor is totally enclosed standard with optional voltages available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.

  • Pallets can be loaded onto the platform and raised to a working height
  • Features toe guard to protect pinch points
  • Guardrails for stability and support
  • Remote power unit can be located up to eight feet away from the table

Check Out Our Standard Ground Lift Scissor Tables

Other Lift & Tilt Tables

 Pneumatic Scissor Lift Table Accordion Skirting Shorty Scissor Lift Tables Double Scissor Lift Tables

Additional Models In This Family
view entire Image Gallery

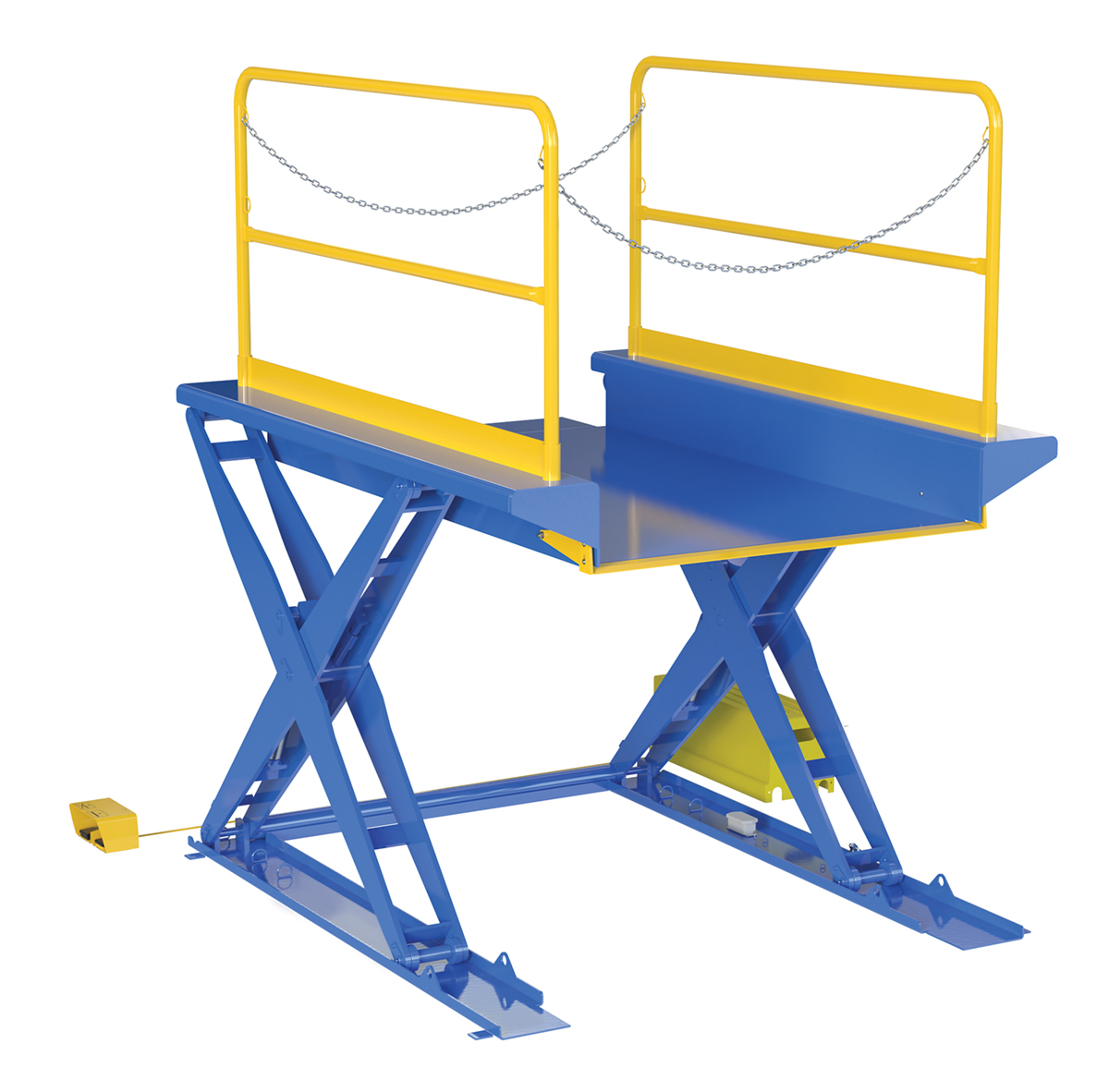

EHLTG-5284-3-54

model EHLTG-5284-3-54

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
EHLTG-4484-3-54
EHLTG-4484-3-541 Year Limited WarrantySteel Ground Lift Scissor Table 44 In. x 84 In. 3000 Lb. Capacity BluePower Source: Electric - Corded
Maximum Height (in): 54		2835
EHLTG-5284-3-54
EHLTG-5284-3-541 Year Limited WarrantySteel Ground Lift Scissor Table 52 In. x 84 In. 3000 Lb. Capacity BluePower Source: Electric - Corded
Maximum Height (in): 54		3044

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

EHLTG-4484-3-54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Maximum Height (in): 54
Power Source: Electric - Corded
Maximum Height (in): 54

EHLTG-5284-3-54
Unit:
Size: W x L x H
Weight:
Limited Warranty
Power Source: Electric - Corded
Maximum Height (in): 54
Power Source: Electric - Corded
Maximum Height (in): 54
For More Details of the Option Click the Red Model Button
Model Description WT (lbs.)
HH2PB-8-FC2 Hand Held Pendant Control (foot control Standard) 2
EHLTG-44-SB Steel Rollover Bridge For 44"W Decks (12" Long) / 3,000 lbs. capacity 36
EHLTG-52-SB Steel Rollover Bridge For 52"W Decks (12" Long) /3,000 lbs. capacity 42
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Ground Lift Scissor Tables with Handrails PDF's will open in a new window when clicked.

Manuals


EHLTG
Owners Manual

EHLTG-SKIRT
Owners Manual

Survey Sheets


ehltg
Survey Sheet

Approval Drawings


EHLTG-4484-3-54

EHLTG-5284-3-54

Testing Certificates


EHLTG-4484-3-54

EHLTG-5284-3-54

SDS Sheets

No SDS Sheets For This Product

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets

Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.




Related or Similar Products:

Ground Lift Scissor Tables
Product

Ground Lift Scissor Tables

Low Profile Electric Lift Tables
Product

Low Profile Electric Lift Tables

Lift & Tilt Scissor Tables
Product

Lift & Tilt Scissor Tables

Ground Lift & Tilt Tables
Product

Ground Lift & Tilt Tables

Single Scissor Lift & Tilt Tables
Product

Single Scissor Lift & Tilt Tables

Zero Lift & Tilt Tables
Product

Zero Lift & Tilt Tables

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Ground Lift Scissor Tables wit...




Great For Loading/Unloading Semi Trucks with a Pallet Truck!

The Ground Lift Scissor Table with Handrails is designed for use when fork trucks or other dock lifts are not available. The pallets can be loaded onto the platform with pallet trucks and raised to an ergonomic working height. The safety features include: entry-side electric toe guard to protect pinch points during lowering of the table, velocity fuse to maintain platform height in the event of a hose or fitting failure, foot control, maintenance prop, and upper travel limit switch to stop table at maximum height reducing motor wear. The motor is totally enclosed standard with optional voltages available. The remote power unit can be located up to eight (8) feet away from the table. Optional accordion skirting is available.

  • Pallets can be loaded onto the platform and raised to a working height
  • Features toe guard to protect pinch points
  • Guardrails for stability and support
  • Remote power unit can be located up to eight feet away from the table

Check Out Our Standard Ground Lift Scissor Tables


Model # Description Attributes Net Wt.
(lbs)
EHLTG-4484-3-54 EHLTG-4484-3-54Steel Ground Lift Scissor Table 44 In. x 84 In. 3000 Lb. Capacity BluePower Source: Electric - Corded
Maximum Height (in): 54		2835
EHLTG-5284-3-54 EHLTG-5284-3-54Steel Ground Lift Scissor Table 52 In. x 84 In. 3000 Lb. Capacity BluePower Source: Electric - Corded
Maximum Height (in): 54		3044

Options


Model Description WT (lbs.)
HH2PB-8-FC2 Hand Held Pendant Control (foot control Standard) 2
EHLTG-44-SB Steel Rollover Bridge For 44"W Decks (12" Long) / 3,000 lbs. capacity 36
EHLTG-52-SB Steel Rollover Bridge For 52"W Decks (12" Long) /3,000 lbs. capacity 42

Our Customer Service Associates Are Here To Assist You!
Call Vestil At 260-665-7586 Or info@vestil.com
