Double Scissor Lift Tables

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

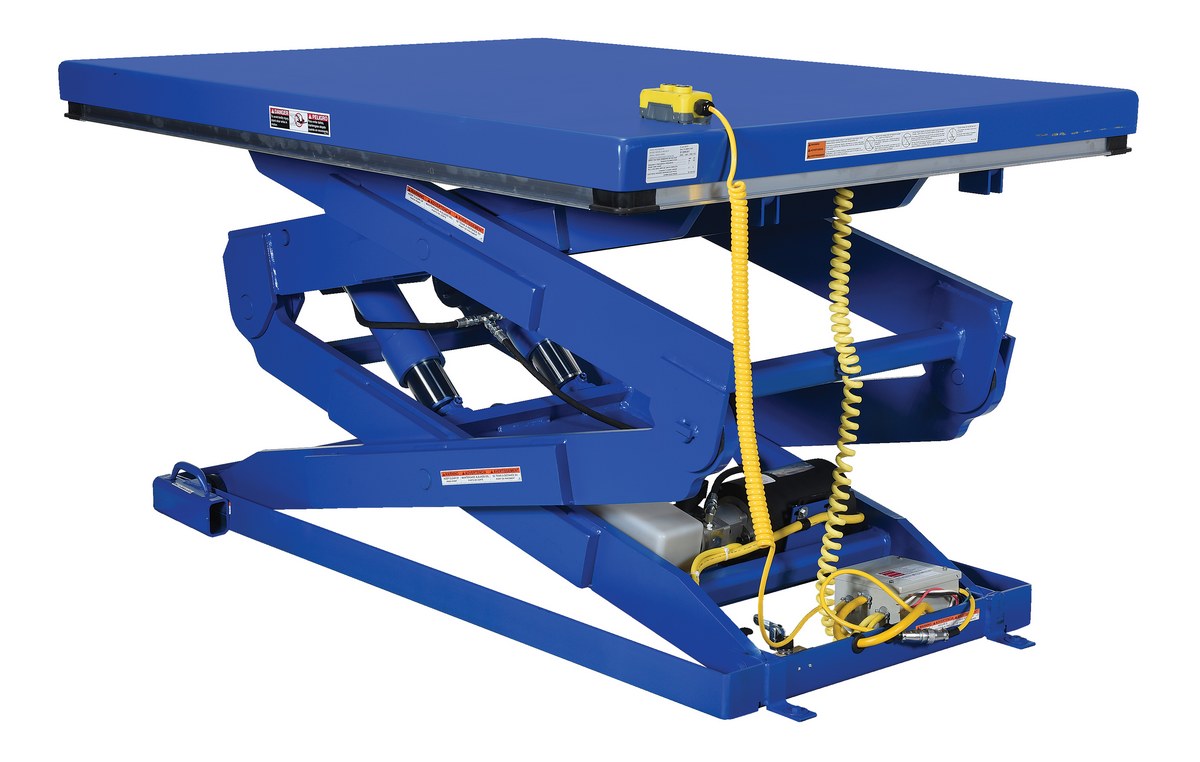

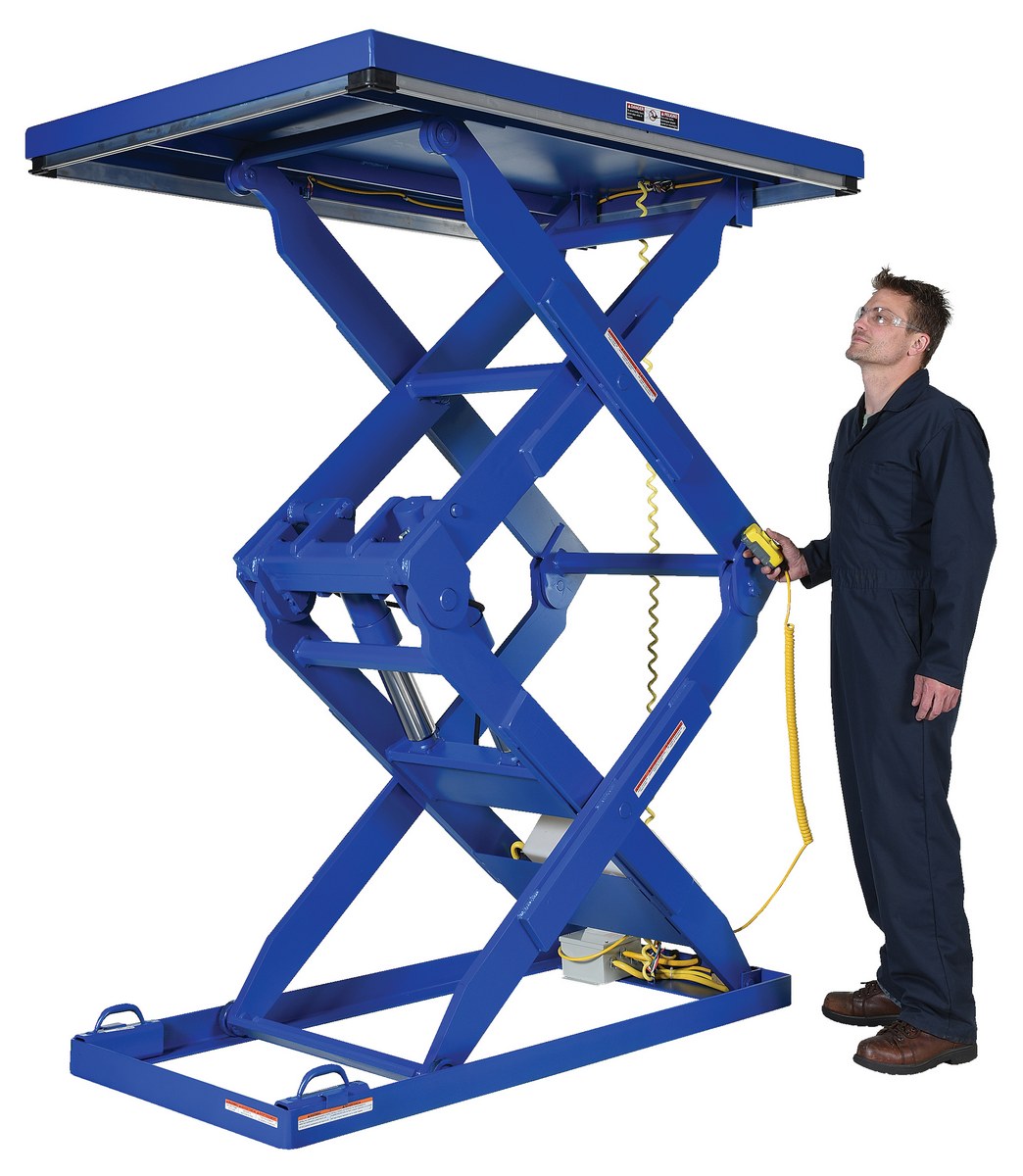

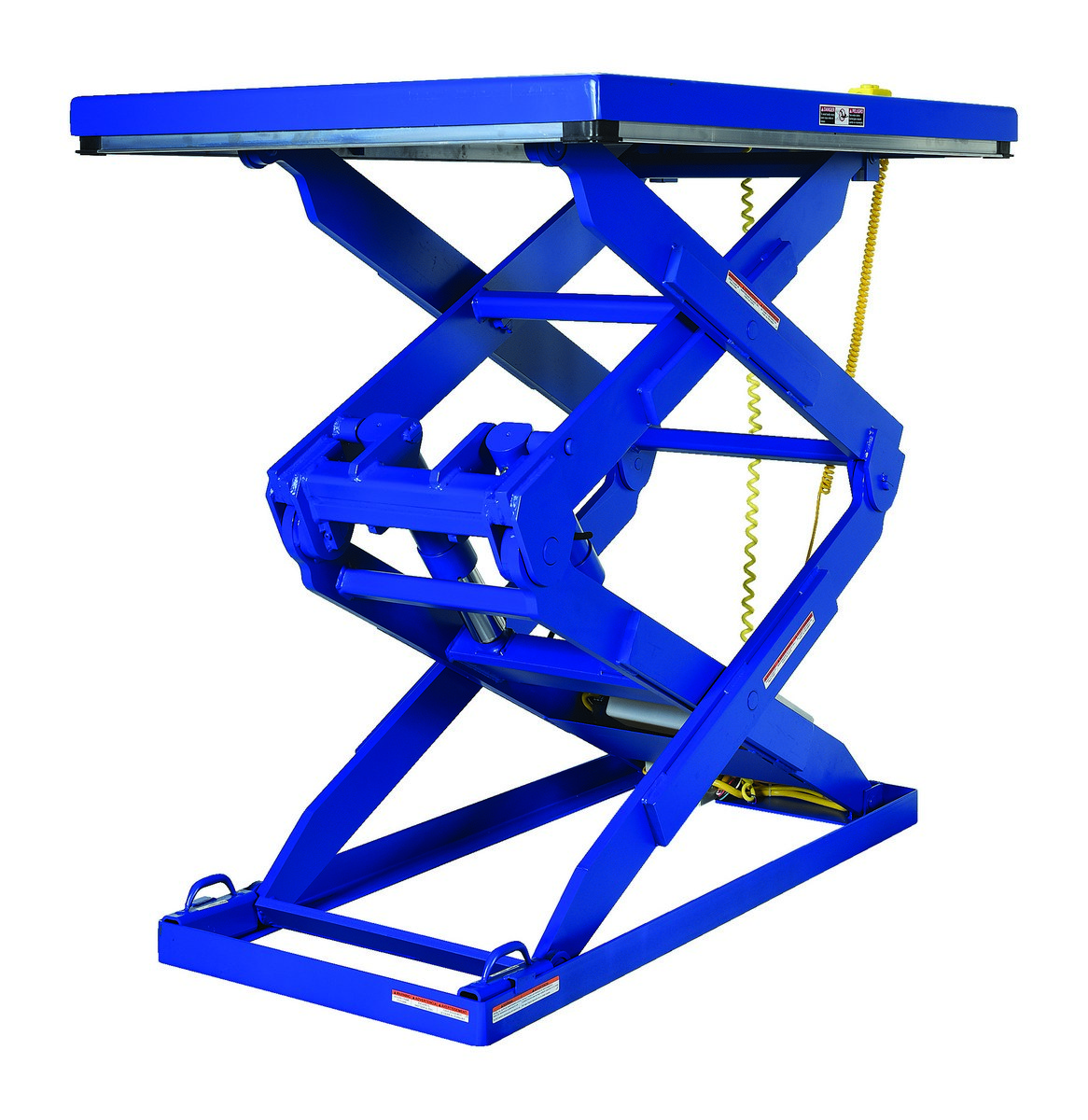

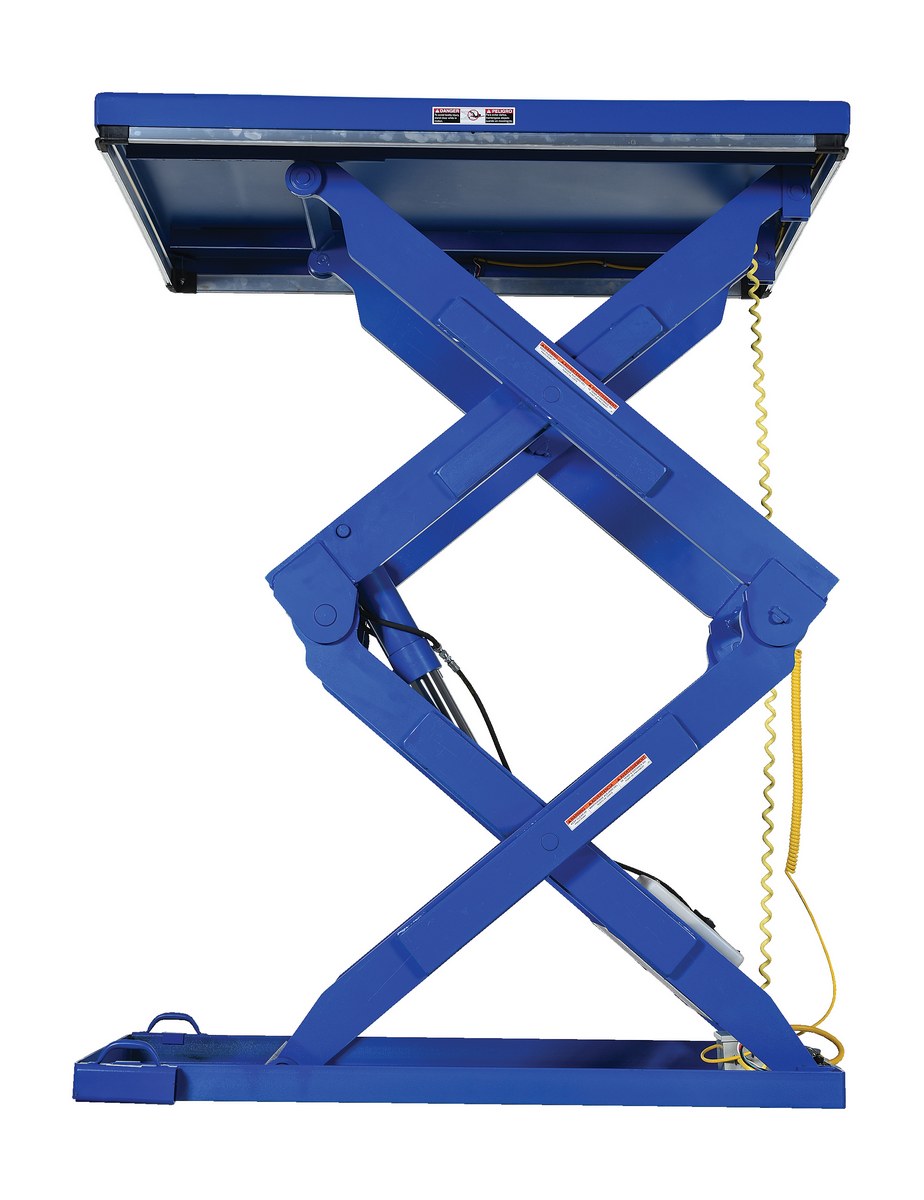

EHLTD-3-84_F.jpg EHLTD-3-84_A.jpg EHLTD-3-84_B.jpg EHLTD-3-84_C.jpg

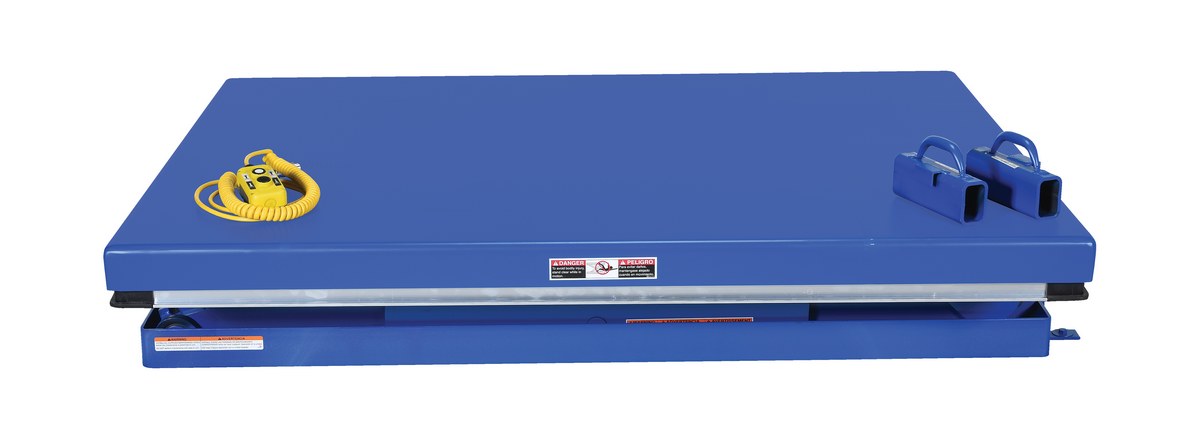

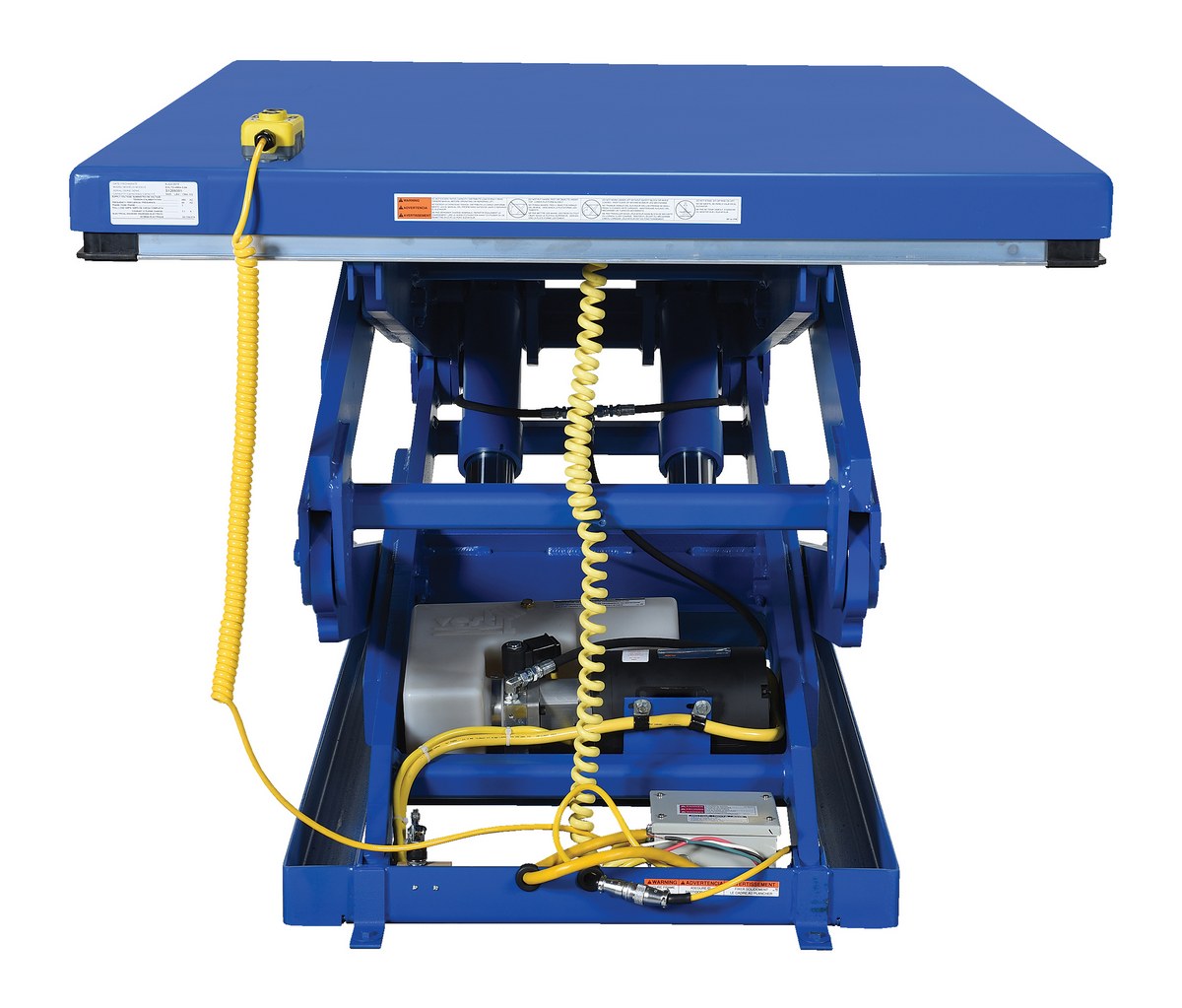

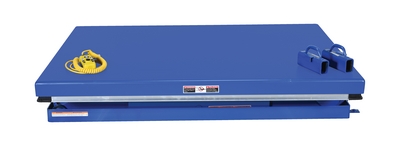

EHLTD-3-84_D.jpg EHLTD-3-84_E.jpg
Double Scissor Lift Tables

model: EHLTD-3-84



Featured Ergonomic Solutions


DC Powered Tilt Master
Air Bag Scissor Lift Tables
Low Profile Electric Lift Table
Ball Transfer Strips & Single Ball Transfers
Powered Lift Table With Manual Rotation
Hinge & Sliding Tilt Tables
Foot Pump & Powered Scissor Lift Tables
Air Corner Tilters
Pneumatic Scissor Lift Table
model chart

Product Family Overview

Print Friendly
Double Scissor Lift Tables
SERIES: EHLTD

The double scissor lift table can achieve the extra reach you're looking for. The full featured electric scissor table is used by all types of manufacturing and warehouse facilities. The safety features include an electric toe guard to protect pinch points during lowering of the table, brass safety velocity fuse to maintain platform height in the event of a hose or fitting failure, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed with additional voltage options available. 3000 psi hydraulic component rating.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use

The double scissor lift table can achieve the extra reach you're looking for. The full featured electric scissor table is used by all types of manufacturing and warehouse facilities. The safety features include an electric toe guard to protect pinch points during lowering of the table, brass safety velocity fuse to maintain platform height in the event of a hose or fitting failure, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed with additional voltage options available. 3000 psi hydraulic component rating.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use

Other Lift & Tilt Tables

 Double Scissor Lift Tables Heavy-Duty Air Bag Scissor Lift Tables Hydraulic Motorcycle Lift Work Station Electric Hydraulic Scissor Tables

Additional Models In This Family
view entire Image Gallery

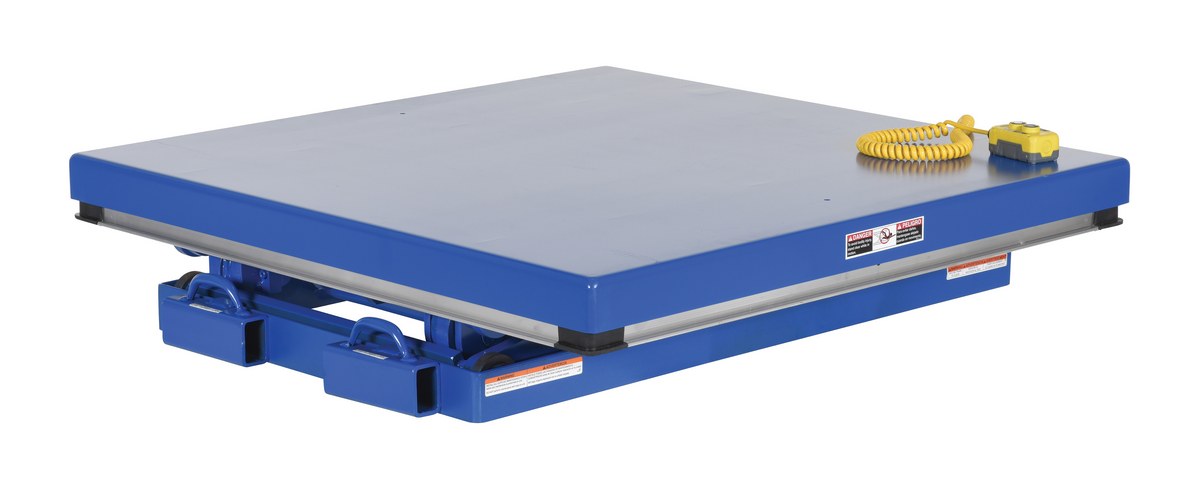

EHLTD-1-70

model EHLTD-1-70

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Double Scissor Lift Table
Model Number Format

EHLTD-(width)(length) - capacity - raised height
PDF's Vertical
Travel		 Platform
Width		 Platform
Length		 Capacity (lbs) Raised Height Lowered Height Travel Time (sec) Wt. (lbs)
Warranty PDF 60" 34"-48" 48"-72" 1,000 70" 10" 11 1157
Warranty PDF 60" 34"-48" 48"-72" 2,000 70" 10" 16 1250
Warranty PDF 60" 34"-48" 48"-72" 3,000 70" 10" 22 1343
Warranty PDF 60" 34"-48" 48"-72" 4,000 70" 10" 32 1436
Warranty PDF 60" 34"-48" 48"-72" 5,000 70" 10" 34 1529
Warranty PDF 72" 34"-48" 64"-88" 1,000 84" 12" 16 1576
Warranty PDF 72" 34"-48" 64"-88" 2,000 84" 12" 32 1669
Warranty PDF 72" 34"-48" 64"-88" 3,000 84" 12" 48 1762
Warranty PDF 72" 34"-48" 64"-88" 4,000 84" 12" 48 1855
Warranty PDF 72" 34"-48" 64"-88" 5,000 84" 12" 48 1948
Travel time based on 460V Three-Phase power
icon_approvaldrawings.jpgCompliance Certificate
EHLTD-4864-1-84		 icon_approvaldrawings.jpgCompliance Certificate
EHLTD-4864-2-84		 icon_approvaldrawings.jpgCompliance Certificate
EHLTD-4864-3-84		 icon_approvaldrawings.jpgCompliance Certificate
EHLTD-4864-4-84		 icon_approvaldrawings.jpgCompliance Certificate
EHLTD-4864-5-84
icon_approvaldrawings.jpgCompliance Certificate
EHLTD-4848-1-70		 icon_approvaldrawings.jpgCompliance Certificate
EHLTD-4848-2-70		 icon_approvaldrawings.jpgCompliance Certificate
EHLTD-4848-3-70		 icon_approvaldrawings.jpgCompliance Certificate
EHLTD-4848-4-70		 icon_approvaldrawings.jpgCompliance Certificate
EHLTD-4848-5-70

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

EHLTD-1-70
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 1,000

Uniform Capacity (lbs.): 1,000

EHLTD-1-84
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 1,000

Uniform Capacity (lbs.): 1,000

EHLTD-2-70
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000

Uniform Capacity (lbs.): 2,000

EHLTD-2-84
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 2,000

Uniform Capacity (lbs.): 2,000

EHLTD-3-70
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 3,000

Uniform Capacity (lbs.): 3,000

EHLTD-3-84
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 3,000

Uniform Capacity (lbs.): 3,000

EHLTD-4-70
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000

Uniform Capacity (lbs.): 4,000

EHLTD-4-84
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 4,000

Uniform Capacity (lbs.): 4,000

EHLTD-4848-2-70
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16

EHLTD-4848-2-70
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16
Uniform Capacity (lb.): 2000
Travel Time (sec.): 16

EHLTD-5-70
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 5,000

Uniform Capacity (lbs.): 5,000

EHLTD-5-84
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lbs.): 5,000

Uniform Capacity (lbs.): 5,000

For More Details of the Option Click the Red Model Button

Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
Model Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Double Scissor Lift Tables PDF's will open in a new window when clicked.

Manuals


EHLTD
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


EHLTD-4848-1-70

EHLTD-4848-2-70

EHLTD-4848-3-70

EHLTD-4848-4-70

EHLTD-4848-5-70

EHLTD-4864-1-84

EHLTD-4864-2-84

EHLTD-4864-3-84

EHLTD-4864-4-84

EHLTD-4864-5-84

Testing Certificates


EHLTD-1-70

EHLTD-1-84

EHLTD-2-70

EHLTD-2-84

EHLTD-3-70

EHLTD-3-84

EHLTD-4-70

EHLTD-4-84

EHLTD-4848-1-70

EHLTD-4848-2-70

EHLTD-4848-2-70

EHLTD-4848-3-70

EHLTD-4848-4-70

EHLTD-4848-5-70

EHLTD-4864-1-84

EHLTD-4864-2-84

EHLTD-4864-3-84

EHLTD-4864-4-84

EHLTD-4864-5-84

EHLTD-5-70

EHLTD-5-84

SDS Sheets

Hydraulic Oil SDS Sheet for: EHLTD-4848-2-70
Hydraulic Oil SDS Sheet for: EHLTD-4884-3-104

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.




Related or Similar Products:

Electric Hydraulic Scissor Lift Tables
Product

Electric Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables
Product

Rotary Air/Hydraulic Scissor Lift Tables

Portable Scissor Lift Tables
Product

Portable Scissor Lift Tables

Work Station Electric Hydraulic Scissor Tables
Product

Work Station Electric Hydraulic Scissor Tables

Low Profile Electric/Hydraulic Scissor Lift Tables
Product

Low Profile Electric/Hydraulic Scissor Lift Tables

Low Profile Electric Lift Tables
Product

Low Profile Electric Lift Tables

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Double Scissor Lift Tables




The double scissor lift table can achieve the extra reach you're looking for. The full featured electric scissor table is used by all types of manufacturing and warehouse facilities. The safety features include an electric toe guard to protect pinch points during lowering of the table, brass safety velocity fuse to maintain platform height in the event of a hose or fitting failure, maintenance prop, and upper travel limit switch to stop the table at maximum height and reduce motor wear. The motor is totally enclosed with additional voltage options available. 3000 psi hydraulic component rating.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use

Model # Description Attributes Net Wt.
(lbs)
EHLTD-1-70 EHLTD-1-70Steel Double Scissor Lift Table 70 In. Height 1000 Lb. Capacity BlueUniform Capacity (lbs.): 1,000
1157
EHLTD-1-84 EHLTD-1-84Steel Double Scissor Lift Table 84 In. Height 1000 Lb. Capacity BlueUniform Capacity (lbs.): 1,000
1576
EHLTD-2-70 EHLTD-2-70Steel Double Scissor Lift Table 70 In. Height 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2,000
1156
EHLTD-2-84 EHLTD-2-84Steel Double Scissor Lift Table 84 In. Height 2000 Lb. Capacity BlueUniform Capacity (lbs.): 2,000
1801
EHLTD-3-70 EHLTD-3-70Steel Double Scissor Lift Table 70 In. Height 3000 Lb. Capacity BlueUniform Capacity (lbs.): 3,000
1390
EHLTD-3-84 EHLTD-3-84Steel Double Scissor Lift Table 84 In. Height 3000 Lb. Capacity BlueUniform Capacity (lbs.): 3,000
1785
EHLTD-4-70 EHLTD-4-70Steel Double Scissor Lift Table 70 In. Height 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4,000
1318
EHLTD-4-84 EHLTD-4-84Steel Double Scissor Lift Table 84 In. Height 4000 Lb. Capacity BlueUniform Capacity (lbs.): 4,000
1777
EHLTD-4848-2-70 EHLTD-4848-2-70Steel Double Leg Scissor Lift Table 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Travel Time (sec.): 16		1214
EHLTD-4848-2-70 EHLTD-4848-2-70Steel Double Leg Scissor Lift Table 48 In. x 48 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Travel Time (sec.): 16		1214
EHLTD-5-70 EHLTD-5-70Steel Double Scissor Lift Table 70 In. Height 5,000 Lb. Capacity BlueUniform Capacity (lbs.): 5,000
1300
EHLTD-5-84 EHLTD-5-84Steel Double Scissor Lift Table 84 In. Height 5,000 Lb. Capacity BlueUniform Capacity (lbs.): 5,000
1870

Options


Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
Model Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
