Product Family Overview


Hydraulic Drum Crusher/Compactors
SERIES: HDC

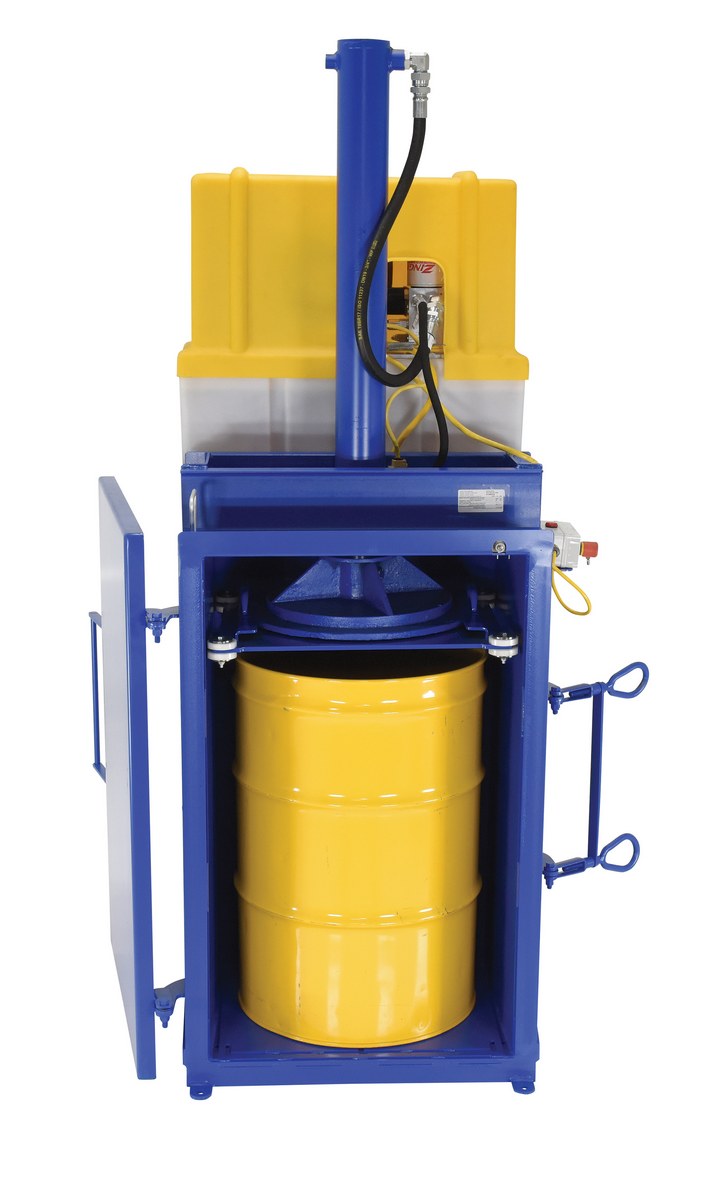

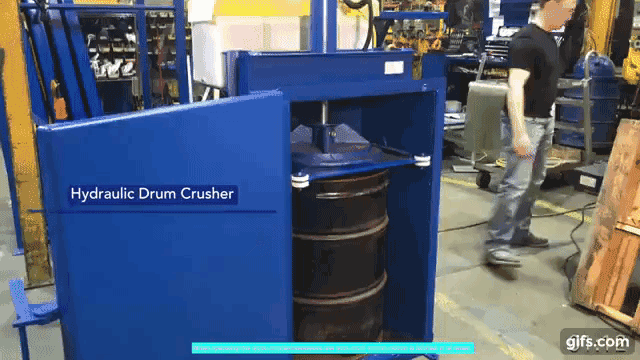

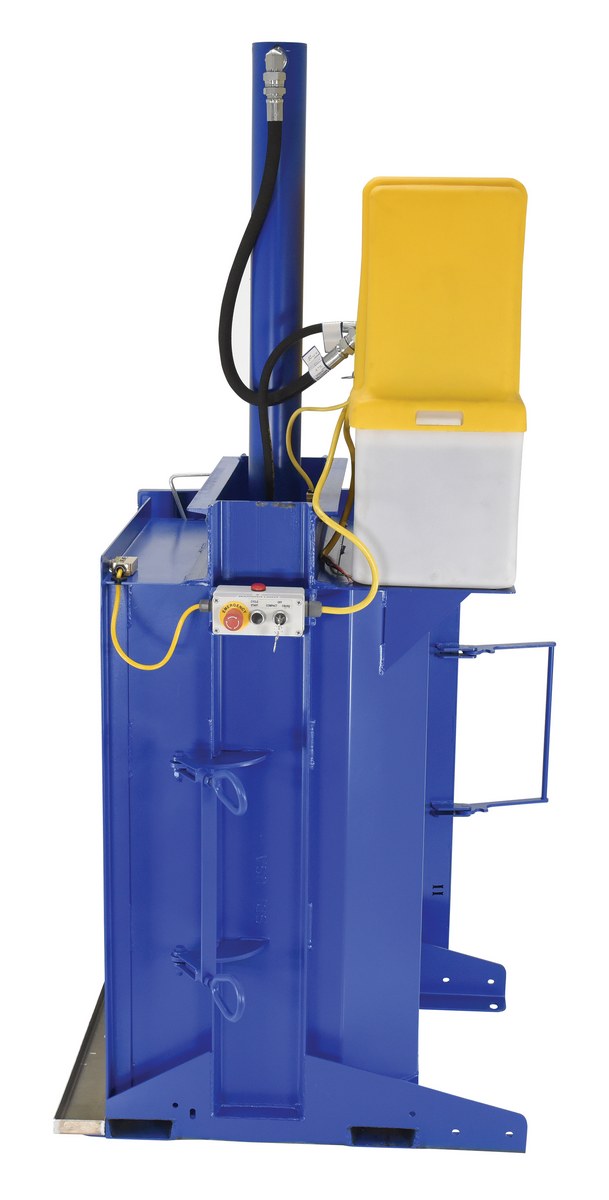

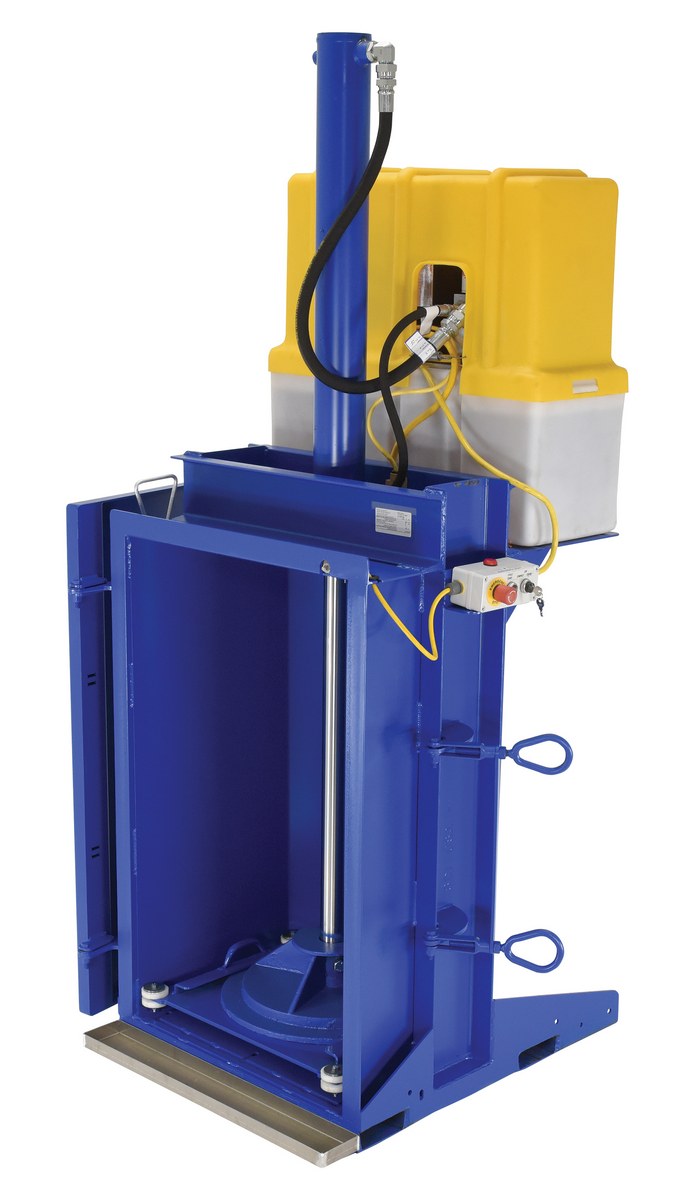

The model HDC-905-IDC crushes 55-gallon steel drums to approximately 6" high and resets automatically to crush another drum. Full cycle time is 25 seconds (crush and retract). This unit is designed for an intermittent duty cycle that will allow for crushing or compacting up to 250 drums per week in a typical non-hazardous, indoor room-temperature environment when operated on a three-phase power supply. For crushing or compacting a large volume of drums continuously, the HDC-905-HC is recommended. Both units are capable of 38,000 pounds of crushing force. The included drum compacting feature allows you to compact contents inside the drum by simply removing the drum crushing platen. Crushing feature will work with any drum size up to 55-gallons. Compacting feature will only work with 55-gallon drums. This convenient design gives you two pieces of equipment in one. Safety features include a pressure relief valve, which prevents overload, and a double door latch to secure the door when crushing. Plus an interlock system that will prevent the motor from running unless the door is closed. 6.5 hp motor, 3-phase, 60 hz, choose from 208V, 230V or 460V Meets OSHA 1910.212 and ANSI Z245.5 standards. Built-in fork pockets aid in transporting. Aluminum drip pan, for catching any excess liquid that may be expelled during the crushing operation. The pan holds 1 gallon and measures 31-1/2"W x 4-1/2"L x 1-5/8"H. Replacement and additional drip pans are available, model HDC-905-DPN. Crating is recommended for international shipments, contact factory.

  • 38,000 lbs. of crushing force flattens 55-gallon drums to 6" in 25 seconds
  • Powered illuminated on/off switch increases user awareness and safety
  • Mushroom-head emergency stop button will instantly shut-down unit
  • Manufactured to comply with OSHA and JIC standards & specifications

Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.

The model HDC-905-IDC crushes 55-gallon steel drums to approximately 6" high and resets automatically to crush another drum. Full cycle time is 25 seconds (crush and retract). This unit is designed for an intermittent duty cycle that will allow for crushing or compacting up to 250 drums per week in a typical non-hazardous, indoor room-temperature environment when operated on a three-phase power supply. For crushing or compacting a large volume of drums continuously, the HDC-905-HC is recommended. Both units are capable of 38,000 pounds of crushing force. The included drum compacting feature allows you to compact contents inside the drum by simply removing the drum crushing platen. Crushing feature will work with any drum size up to 55-gallons. Compacting feature will only work with 55-gallon drums. This convenient design gives you two pieces of equipment in one. Safety features include a pressure relief valve, which prevents overload, and a double door latch to secure the door when crushing. Plus an interlock system that will prevent the motor from running unless the door is closed. 6.5 hp motor, 3-phase, 60 hz, choose from 208V, 230V or 460V Meets OSHA 1910.212 and ANSI Z245.5 standards. Built-in fork pockets aid in transporting. Aluminum drip pan, for catching any excess liquid that may be expelled during the crushing operation. The pan holds 1 gallon and measures 31-1/2"W x 4-1/2"L x 1-5/8"H. Replacement and additional drip pans are available, model HDC-905-DPN. Crating is recommended for international shipments, contact factory.

  • 38,000 lbs. of crushing force flattens 55-gallon drums to 6" in 25 seconds
  • Powered illuminated on/off switch increases user awareness and safety
  • Mushroom-head emergency stop button will instantly shut-down unit
  • Manufactured to comply with OSHA and JIC standards & specifications

Do not attempt to crush smooth-walled drums with this machine. Drums must be ribbed to crush properly.

Additional Models In This Family

HDC-905-HC-230V

model HDC-905-HC-230V

HDC-905-HC-460V

model HDC-905-HC-460V

HDC-905-DPN

model HDC-905-DPN

Applications



Warehouses

Do It Yourself

Farming and Agriculture

Maintenance Yards

Recycling Areas

Model Specific Details


All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
HDC-905-HC/208V HDC-905-HC/208V1 Year Limited WarrantySteel High Cycle Hydraulic Drum Crusher and Compactor 208 Volt Three Phase 38,000 Lbs. Crushing Force BlueApproximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
2148

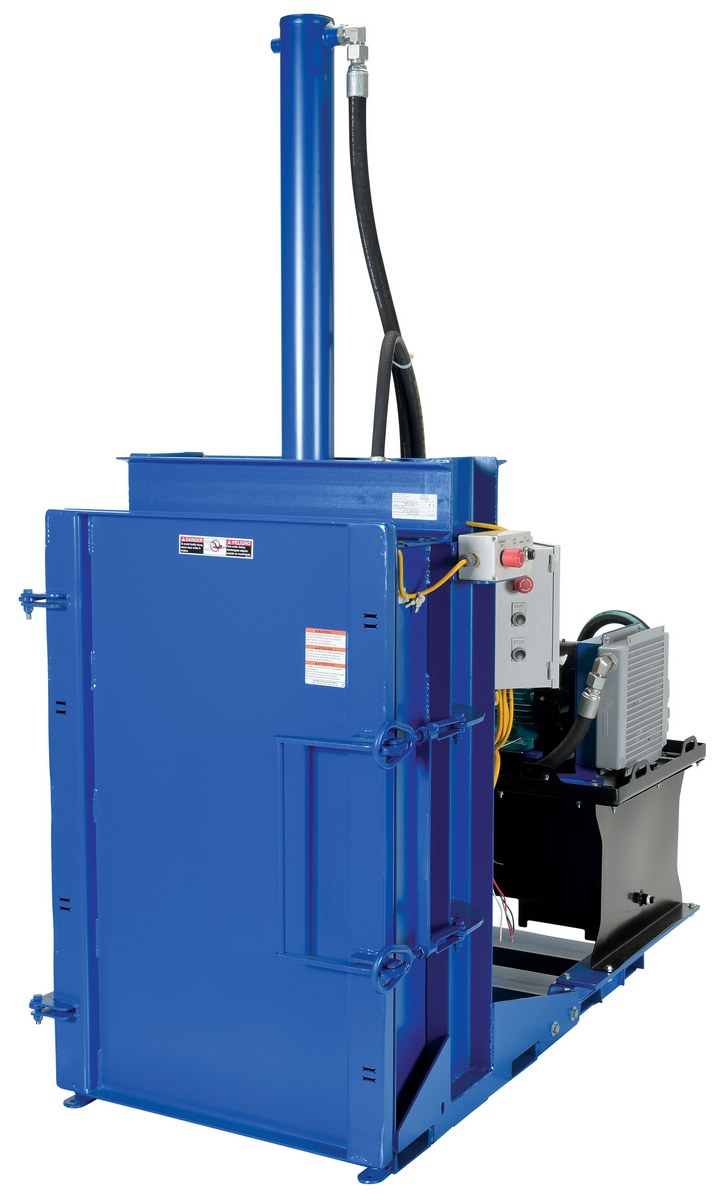

HDC-905-HC/230V HDC-905-HC/230V1 Year Limited WarrantySteel High Cycle Hydraulic Drum Crusher and Compactor 230 Volt Three Phase 38,000 Lbs. Crushing Force BlueApproximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
2148

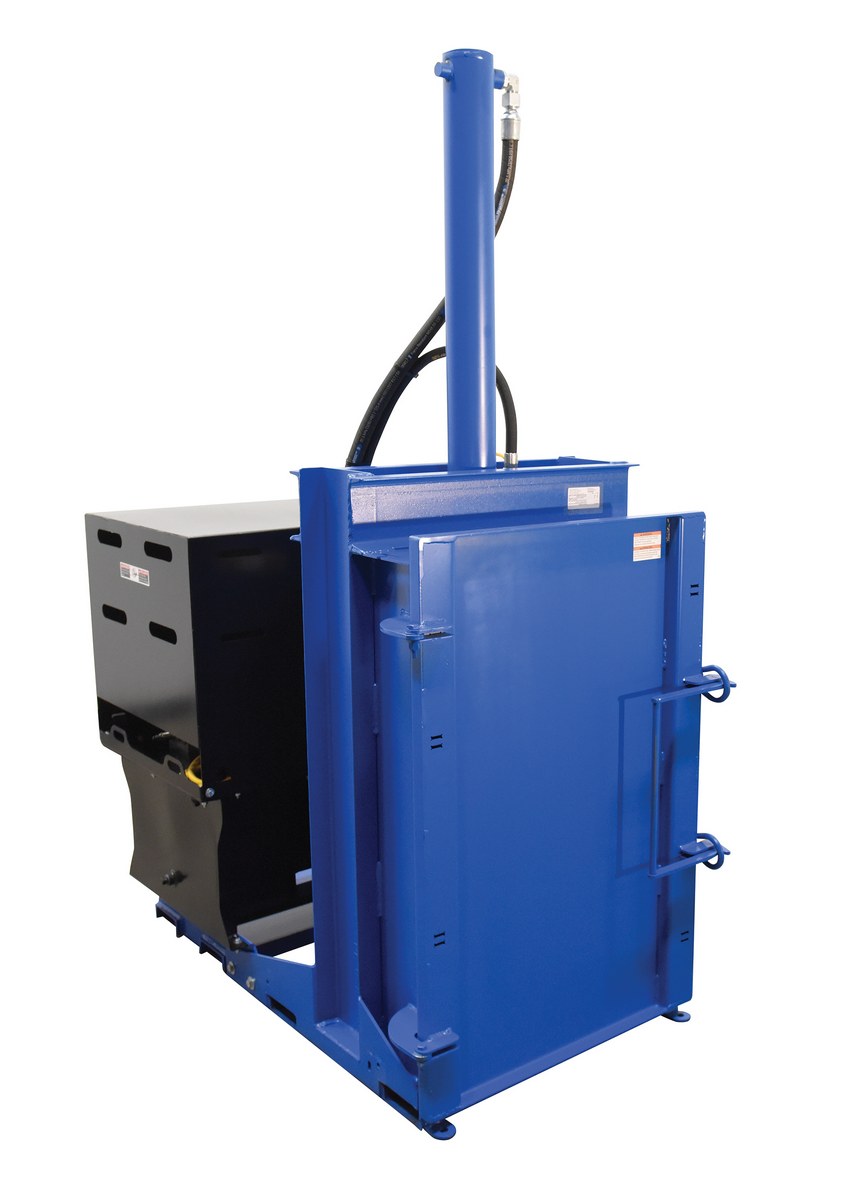

HDC-905-HC/460V HDC-905-HC/460V1 Year Limited WarrantySteel High Cycle Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 Lbs. Crushing Force BlueApproximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
1992

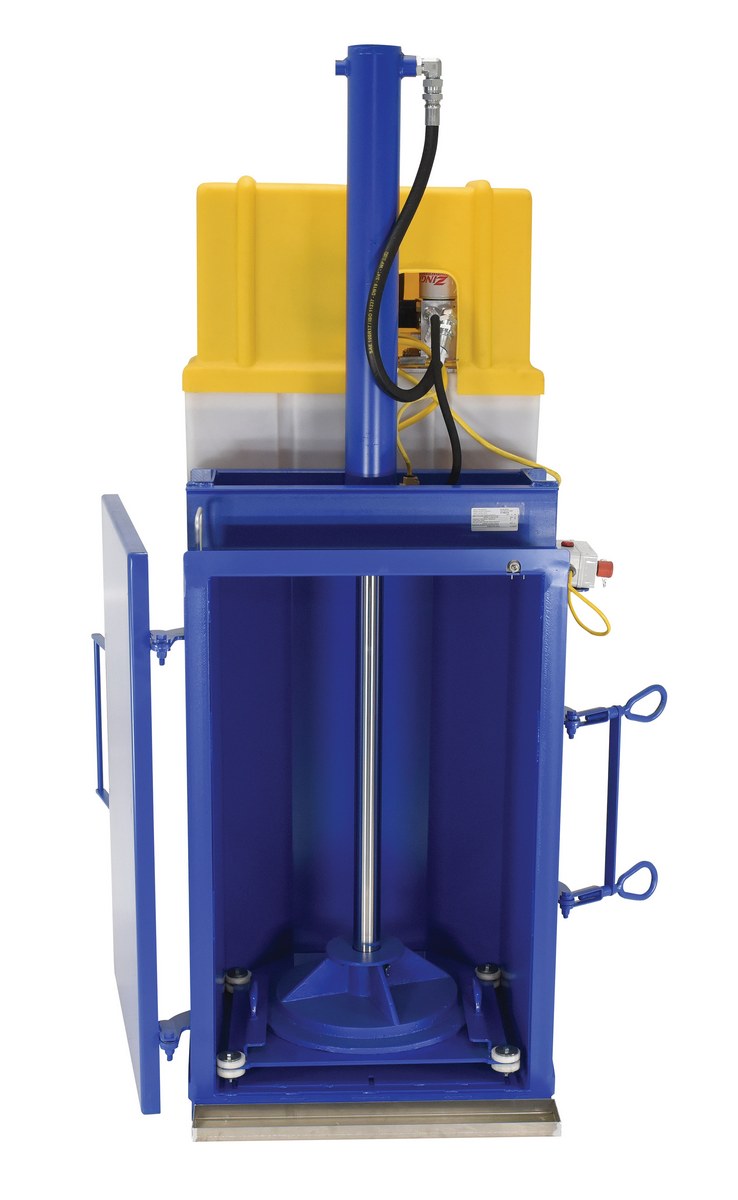

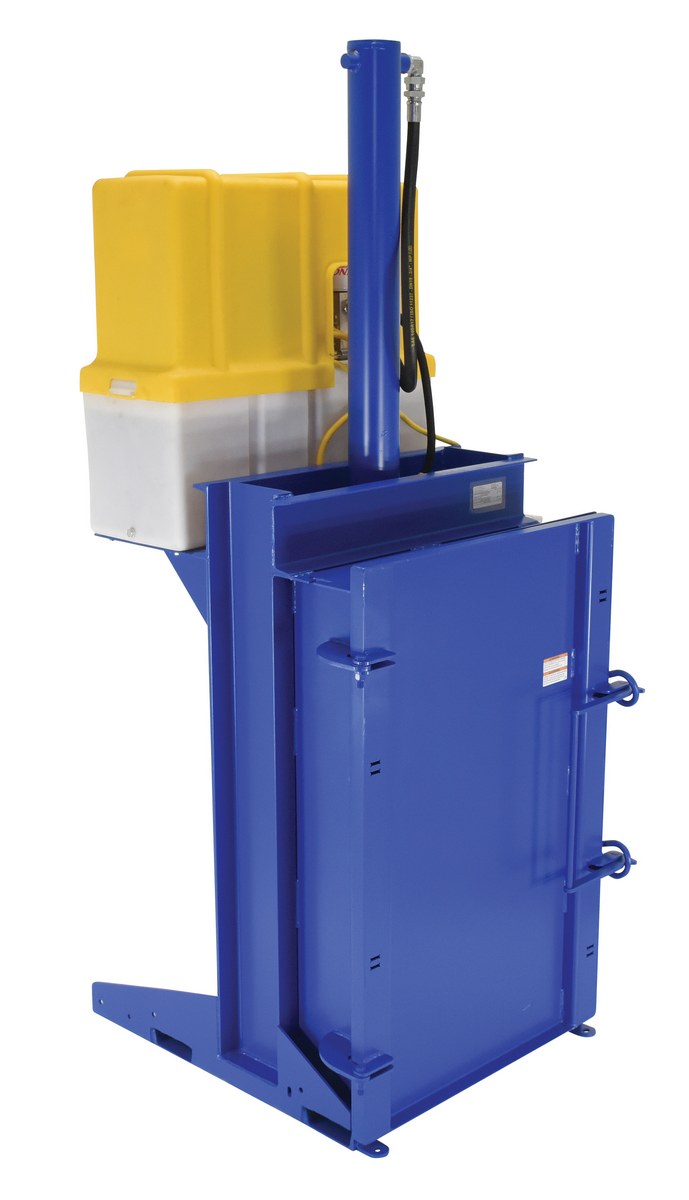

HDC-905-IDC/208V HDC-905-IDC/208V1 Year Limited WarrantySteel Hydraulic Drum Crusher and Compactor 208 Volt Three Phase 38,000 Lbs. Crushing Force BlueApproximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
1396
HDC-905-IDC/230V HDC-905-IDC/230V1 Year Limited WarrantySteel Hydraulic Drum Crusher and Compactor 230 Volt Three Phase 38,000 Lbs. Crushing Force BlueApproximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
1406

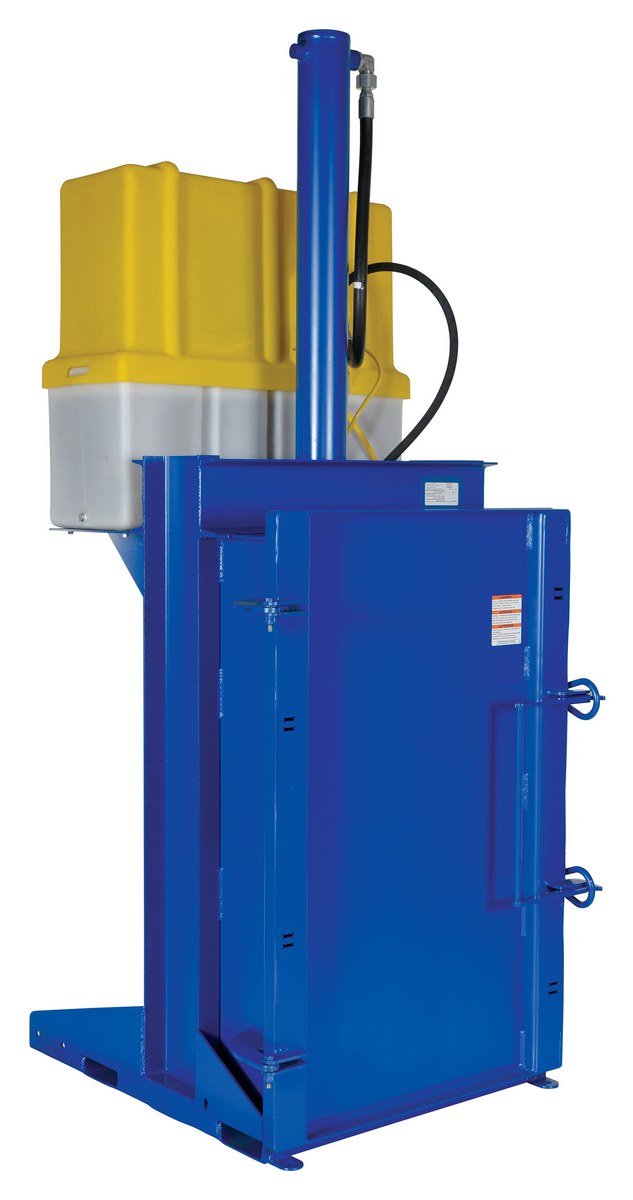

HDC-905-IDC/460V HDC-905-IDC/460V1 Year Limited WarrantySteel Hydraulic Drum Crusher and Compactor 460 Volt Three Phase 38,000 Lbs. Crushing Force BlueApproximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
1570

* 3HP Power Upgrade option (HDC9-1) is available for HDC-905-IDC Models. See options table below

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

HDC-905-HC/208V
Unit:
Size: W x L x H
Weight:
Limited Warranty
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25

HDC-905-HC/230V
Unit:
Size: W x L x H
Weight:
Limited Warranty
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25

HDC-905-HC/460V
Unit:
Size: W x L x H
Weight:
Limited Warranty
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25

HDC-905-IDC/208V
Unit:
Size: W x L x H
Weight:
Limited Warranty
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25

HDC-905-IDC/230V
Unit:
Size: W x L x H
Weight:
Limited Warranty
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25

HDC-905-IDC/460V
Unit:
Size: W x L x H
Weight:
Limited Warranty
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
Approximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 25
For More Details of the Option Click the Red Model Button

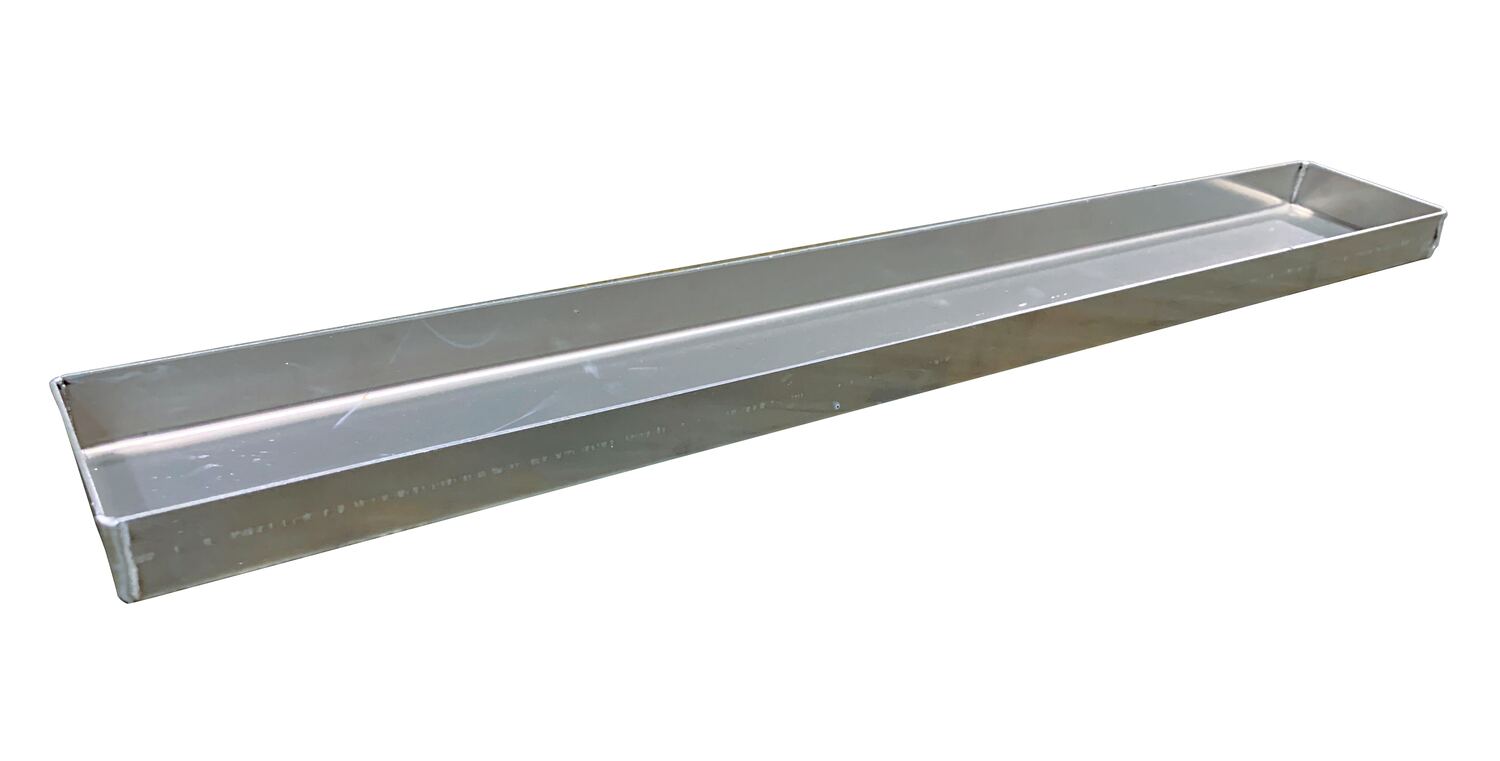

HDC-905-DPN HDC-905-DPN90 Days Limited WarrantyAluminum Drip Pan For Use with HDC-905 Models SilverPan Capacity (gal.): 1
5
HDC-905-HC-WD 90 Days Limited WarrantyFactory Installed High Cycle Wash-Down Motor and NEMA Four Enclosure For Hydraulic Drum CrusherBrand / Model Compatibility: HDC-905-HC/208V, HDC-905-HC/230V, HDC-905-HC/460V
1500

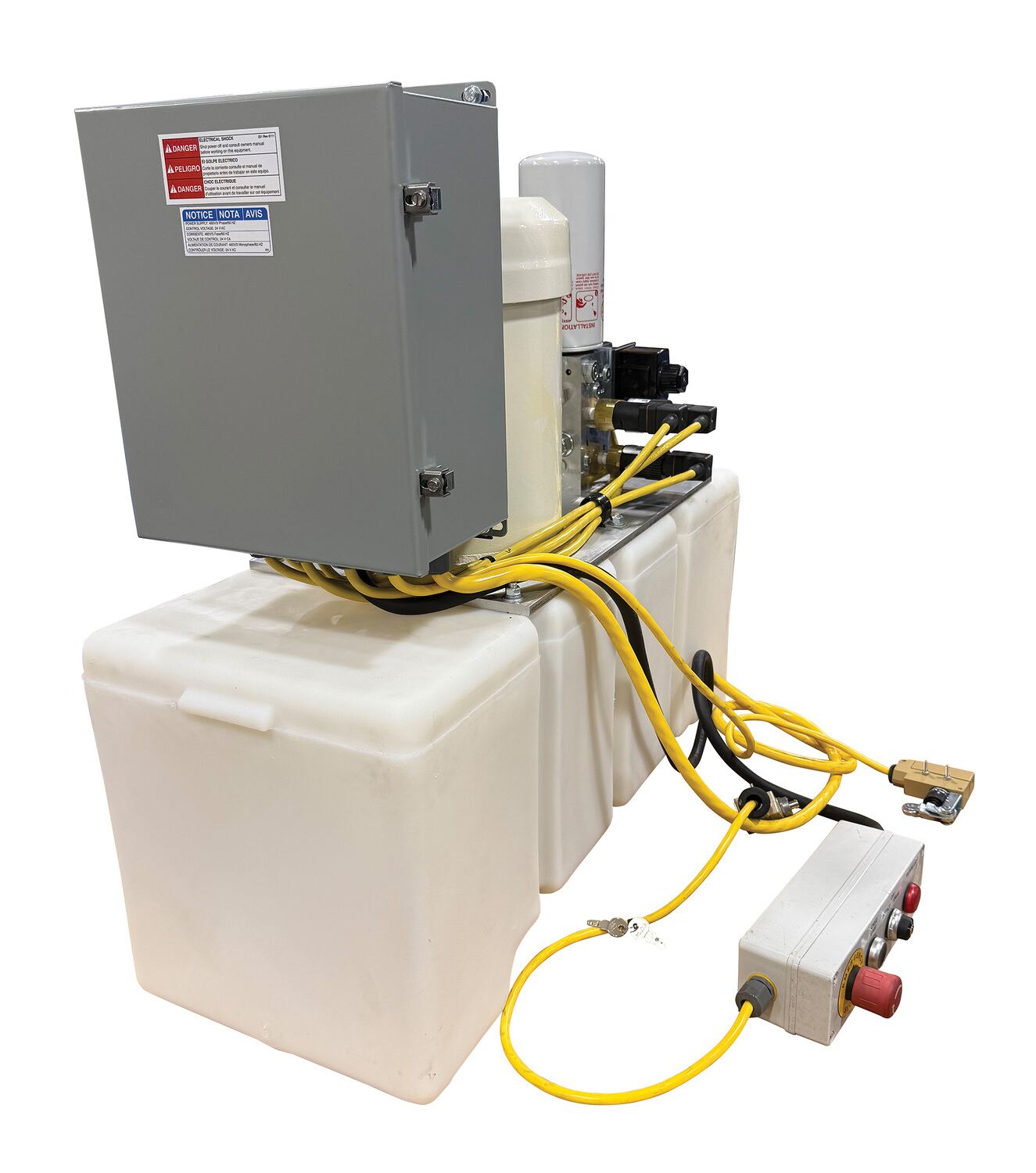

HDC-905-WD 90 Days Limited WarrantyFactory Installed Wash-Down Motor and NEMA Four Enclosure For Hydraulic Drum CrusherBrand / Model Compatibility: HDC-905-IDC/208V, HDC-905-IDC/230V, HDC-905-IDC/460V
1500
HDC9-1 90 Days Limited WarrantyFactory Installed 3 Horsepower Single Phase Power Unit For HDC-905-IDCApproximate Crushed Height (in.): 6
Full Cycle Time (Crush and Retract) (seconds): 70

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

Hydraulic Drum Crusher/Compactors PDF's will open in a new window when clicked.

Manuals


Survey Sheets


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


HDC-905-HC-208V

HDC-905-HC-230V

HDC-905-HC-460V

HDC-905-HC-WD

HDC-905-IDC-208V

HDC-905-IDC-230V

HDC-905-IDC-460V

HDC9-1

SDS Sheets

Hydraulic Oil SDS Sheet for: HDC-905-HC/460V
Hydraulic Oil SDS Sheet for: HDC-905-IDC/208V
Hydraulic Oil SDS Sheet for: HDC-905-IDC/230V
Hydraulic Oil SDS Sheet for: HDC-905-IDC/460V

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products


Q: Can you increase the crushing force of the drum crushers to more than 38,000 lbs.?

A: The HDC-905 units have a maximum crushing force of 38,000 lbs.


Q: Do you have to hold the button the entire cycle or can you press it and walk away?

A: This is hydraulic unit has a latching circuit that has an automatic operation after a single depression of the hand-held pendant. At the end of the cycle, the unit resets to the start position. To interrupt operation, depress the E-Stop button.


Q: Is the drum crusher spark resistant?

A: No, the HDC units are not spark resistant.


Q: Is the drum crusher explosive proof?

A: No, the HDC units are not explosive proof.


Q: Is this designed to operate without being bolted down?

A: Yes the drum crusher can be used without being bolted down. There are fork pockets so the drum crusher can be moved. Please see the owners manual for additional information.


Q: What is the difference between the standard (IDC) and the high cycle (HC)?

A: HDC-905-HC is high cycle version. It has a heavy duty continuous run (with timer) power unit and will basically do unlimited number of cycles. Standard unit is designed for a duty cycle that will allow for crushing or compacting up to 250 drums per week in a typical non-hazardous, indoor room-temperature environment when operated on a three-phase power supply.


Q: We are expecting to crush about 1500 drums per month. Will this unit work for us?

A: Approximately 2000 drums per month is possible with HDC-905-HC high cycle crusher. Cycle time is approx 25 seconds.


Q: What is the compacting plate diameter?

A: The diameter is 21"


Q: I have fiber drums. Will this work?

A: Yes fiber drums can be used with the drum crusher


Q: What is the AMP range for the HDC-905-IDC/460V?

A: The 460V 3 phase full - load current is 9.5 AMPS.


Q: What is the amp draw of the HDC-905-IDC/230V?

A: If set up for operation on 230V, single-phase, the motor nameplate full-load current is 12.8 amps. If set up for operation on 230V, three-phase, the motor nameplate full-load current is 16.8 amps.
