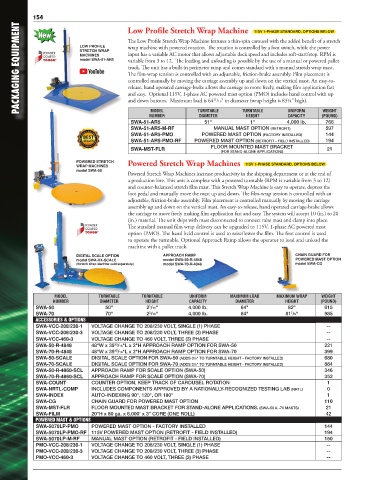

154 Low Profile Stretch Wrap Machine 115V 1-PHASE STANDARD, OPTIONS BELOW
PACKAGING EQUIPMENT LOW PROFILE wrap machine with powered rotation. The rotation is controlled by a foot switch, while the power
New
The Low Profile Stretch Wrap Machine features a thin-spin carousel with the added benefit of a stretch
STRETCH WRAP
input has a variable AC motor that allows adjustable deck speed and includes soft-start/stop. RPM is
MACHINES
variable from 3 to 12. The loading and unloading is possible by the use of a manual or powered pallet
model SWA-51-AR5
truck. The unit has a built-in perimeter ramp and comes standard with a manual stretch wrap mast.
The film-wrap tension is controlled with an adjustable, friction-brake assembly. Film placement is
controlled manually by moving the carriage assembly up and down on the vertical mast. An easy-to-
release, hand operated carriage-brake allows the carriage to move freely, making film application fast
and easy. Optional 115V, 1-phase AC powered mast option (PMO) includes hand control with up
and down buttons. Maximum load is 64 /16" in diameter (wrap height is 83¼" high).
11
WEIGHT
UNIFORM
MODEL
NUMBER TURNTABLE TURNTABLE CAPACITY (POUND)
DIAMETER
HEIGHT
SWA-51-AR5 51" 1" 4,000 lb. 766
SWA-51-AR5-M-RF MANUAL MAST OPTION (RETROFIT) 597
SWA-51-AR5-PMO POWERED MAST OPTION (FACTORY INSTALLED) 144
SWA-51-AR5-PMO-RF POWERED MAST OPTION (RETROFIT - FIELD INSTALLED) 194
FLOOR MOUNTED MAST BRACKET
SWA-MST-FLR (FOR STAND-ALONE APPLICATIONS 21
POWERED STRETCH Powered Stretch Wrap Machines
WRAP MACHINES 115V 1-PHASE STANDARD, OPTIONS BELOW
model SWA-50
Powered Stretch Wrap Machines increase productivity in the shipping department or at the end of
a production line. This unit is complete with a powered turntable (RPM is variable from 3 to 12)
and counter-balanced stretch film mast. This Stretch Wrap Machine is easy to operate, depress the
foot pedal and manually move the mast up and down. The film-wrap tension is controlled with an
adjustable, friction-brake assembly. Film placement is controlled manually by moving the carriage
assembly up and down on the vertical mast. An easy-to-release, hand operated carriage-brake allows
the carriage to move freely making film application fast and easy. The system will accept 10 (in.) to 20
(in.) material. The unit ships with mast disconnected to connect raise mast and clamp into place.
The standard manual film wrap delivery can be upgraded to 115V, 1-phase AC powered mast
option (PMO). The hand held control is used to raise/lower the film. The foot control is used
to operate the turntable. Optional Approach Ramp allows the operator to load and unload the
machine with a pallet truck.
DIGITAL SCALE OPTION APPROACH RAMP CHAIN GUARD FOR
model SWA-XX-SCALE model SWA-50-R-4848 POWERED MAST OPTION
(Stretch Wrap Machine sold separately.) model SWA-70-R-4848 model SWA-CG

MODEL TURNTABLE TURNTABLE UNIFORM MAXIMUM LOAD MAXIMUM WRAP WEIGHT
NUMBER DIAMETER HEIGHT CAPACITY DIAMETER HEIGHT (POUND)
1
SWA-50 50" 2 /16" 4,000 lb. 64" 82" 615
3
7
SWA-70 70" 2 /16" 4,000 lb. 84" 81 /8" 985
ACCESSORIES & OPTIONS
SWA-VCC-208/230-1 VOLTAGE CHANGE TO 208/230 VOLT, SINGLE (1) PHASE --
SWA-VCC-208/230-3 VOLTAGE CHANGE TO 208/230 VOLT, THREE (3) PHASE --
SWA-VCC-460-3 VOLTAGE CHANGE TO 460 VOLT, THREE (3) PHASE --
15
SWA-50-R-4848 48"W x 39 /16"L x 2"H APPROACH RAMP OPTION FOR SWA-50 221
15
SWA-70-R-4848 48"W x 39 /16"L x 2"H APPROACH RAMP OPTION FOR SWA-70 399
SWA-50-SCALE DIGITAL SCALE OPTION FOR SWA-50 (ADDS 3½" TO TURNTABLE HEIGHT - FACTORY INSTALLED) 680
SWA-70-SCALE DIGITAL SCALE OPTION FOR SWA-70 (ADDS 3½" TO TURNTABLE HEIGHT - FACTORY INSTALLED) 884
SWA-50-R-4860-SCL APPROACH RAMP FOR SCALE OPTION (SWA-50) 346
SWA-70-R-4860-SCL APPROACH RAMP FOR SCALE OPTION (SWA-70) 352
SWA-COUNT COUNTER OPTION, KEEP TRACK OF CAROUSEL ROTATION 1
SWA-NRTL-COMP INCLUDES COMPONENTS APPROVED BY A NATIONALLY-RECOGNIZED TESTING LAB (NRTL) 0
SWA-INDEX AUTO-INDEXING 90°, 120°, OR 180° 1
SWA-CG CHAIN GUARD FOR POWERED MAST OPTION 110
SWA-MST-FLR FLOOR MOUNTED MAST BRACKET FOR STAND-ALONE APPLICATIONS. (SWA-50 & -70 MASTS) 21
SWA-FILM 20"H x 80 ga. x 6,000' x 3" CORE (ONE ROLL) 42
POWERED MAST & OPTIONS
SWA-5070LP-PMO POWERED MAST OPTION - FACTORY INSTALLED 144
SWA-5070LP-PMO-RF 115V POWERED MAST OPTION (RETROFIT - FIELD INSTALLED) 194
SWA-5070LP-M-RF MANUAL MAST OPTION (RETROFIT - FIELD INSTALLED) 150
PMO-VCC-208/230-1 VOLTAGE CHANGE TO 208/230 VOLT, SINGLE (1) PHASE --
PMO-VCC-208/230-3 VOLTAGE CHANGE TO 208/230 VOLT, THREE (3) PHASE --
PMO-VCC-460-3 VOLTAGE CHANGE TO 460 VOLT, THREE (3) PHASE --
