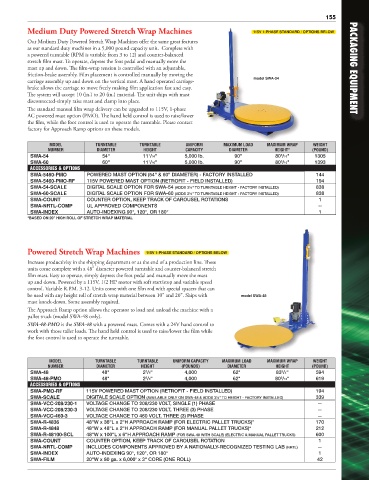

Page 149 - Vestil Catalog 112

155
Medium Duty Powered Stretch Wrap Machines 115V 1-PHASE STANDARD / OPTIONS BELOW

Our Medium Duty Powered Stretch Wrap Machines offer the same great features
as our standard duty machines in a 5,000 pound capacity unit. Complete with
a powered turntable (RPM is variable from 3 to 12) and counter-balanced
stretch film mast. To operate, depress the foot pedal and manually move the
mast up and down. The film-wrap tension is controlled with an adjustable, PACKAGING EQUIPMENT
friction-brake assembly. Film placement is controlled manually by moving the
carriage assembly up and down on the vertical mast. A hand operated carriage- model SWA-54
brake allows the carriage to move freely making film application fast and easy.
The system will accept 10 (in.) to 20 (in.) material. The unit ships with mast
disconnected-simply raise mast and clamp into place.
The standard manual film wrap delivery can be upgraded to 115V, 1-phase
AC powered mast option (PMO). The hand held control is used to raise/lower
the film, while the foot control is used to operate the turntable. Please contact
factory for Approach Ramp options on these models.

MODEL TURNTABLE TURNTABLE UNIFORM MAXIMUM LOAD MAXIMUM WRAP WEIGHT
NUMBER DIAMETER HEIGHT CAPACITY DIAMETER HEIGHT* (POUND)
1
5
SWA-54 54" 11 /16" 5,000 lb. 90" 80 /16" 1305
5
1
SWA-60 60" 11 /16" 5,000 lb. 90" 80 /16" 1393
ACCESSORIES & OPTIONS
SWA-5460-PMO POWERED MAST OPTION (54" & 60" DIAMETER) - FACTORY INSTALLED 144
SWA-5460-PMO-RF 115V POWERED MAST OPTION (RETROFIT - FIELD INSTALLED) 194
SWA-54-SCALE DIGITAL SCALE OPTION FOR SWA-54 (ADDS 3½" TO TURNTABLE HEIGHT - FACTORY INSTALLED) 838
SWA-60-SCALE DIGITAL SCALE OPTION FOR SWA-60 (ADDS 3½" TO TURNTABLE HEIGHT - FACTORY INSTALLED) 838
SWA-COUNT COUNTER OPTION, KEEP TRACK OF CAROUSEL ROTATIONS 1
SWA-NRTL-COMP UL APPROVED COMPONENTS --
SWA-INDEX AUTO-INDEXING 90°, 120°, OR 180° 1
*BASED ON 20" HIGH ROLL OF STRETCH WRAP MATERIAL

Powered Stretch Wrap Machines 115V 1-PHASE STANDARD / OPTIONS BELOW

Increase productivity in the shipping department or at the end of a production line. These
units come complete with a 48" diameter powered turntable and counter-balanced stretch
film mast. Easy to operate, simply depress the foot pedal and manually move the mast
up and down. Powered by a 115V, 1/2 HP motor with soft start/stop and variable speed
control. Variable R.P.M. 3-12. Units come with one film rod with special spacers that can
be used with any height roll of stretch wrap material between 10" and 20". Ships with model SWA-48
mast knock-down. Some assembly required.
The Approach Ramp option allows the operator to load and unload the machine with a
pallet truck (model SWA-48 only).
SWA-48-PMO is the SWA-48 with a powered mast. Comes with a 24V hand control to
work with those taller loads. The hand held control is used to raise/lower the film while
the foot control is used to operate the turntable.

MODEL TURNTABLE TURNTABLE UNIFORM CAPACITY MAXIMUM LOAD MAXIMUM WRAP WEIGHT
NUMBER DIAMETER HEIGHT (POUNDS) DIAMETER HEIGHT (POUND)
3
SWA-48 48" 2 /8" 4,000 62" 83 /4" 594
3
5
3
SWA-48-PMO 48" 2 /8" 4,000 62" 80 /16" 619
ACCESSORIES & OPTIONS
SWA-PMO-RF 115V POWERED MAST OPTION (RETROFIT - FIELD INSTALLED) 194
SWA-SCALE DIGITALE SCALE OPTION (AVAILABLE ONLY ON SWA-48 & ADDS 3½" TO HEIGHT - FACTORY INSTALLED) 339
SWA-VCC-208/230-1 VOLTAGE CHANGE TO 208/230 VOLT, SINGLE (1) PHASE --
SWA-VCC-208/230-3 VOLTAGE CHANGE TO 208/230 VOLT, THREE (3) PHASE --
SWA-VCC-460-3 VOLTAGE CHANGE TO 460 VOLT, THREE (3) PHASE --
SWA-R-4836 48"W x 36"L x 2"H APPROACH RAMP (FOR ELECTRIC PALLET TRUCKS)* 170
SWA-R-4848 48"W x 48"L x 2"H APPROACH RAMP (FOR MANUAL PALLET TRUCKS)* 212
SWA-R-48100-SCL 48"W x 100"L x 6"H APPROACH RAMP (FOR SWA-48 WITH SCALE) (ELECTRIC & MANUAL PALLET TRUCKS) 600
SWA-COUNT COUNTER OPTION, KEEP TRACK OF CAROUSEL ROTATION 1
SWA-NRTL-COMP INCLUDES COMPONENTS APPROVED BY A NATIONALLY-RECOGNIZED TESTING LAB (NRTL) --
SWA-INDEX AUTO-INDEXING 90°, 120°, OR 180° 1
SWA-FILM 20"W x 80 ga. x 6,000' x 3" CORE (ONE ROLL) 42
