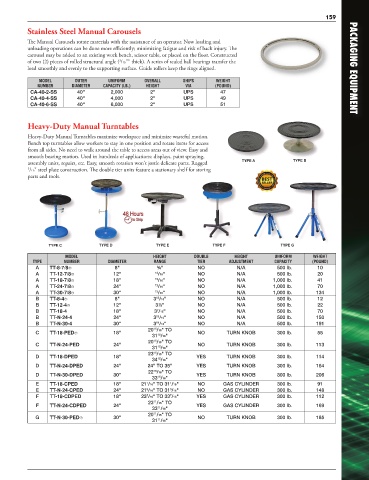

Page 153 - Vestil Catalog 112

159
Stainless Steel Manual Carousels

The Manual Carousels rotate materials with the assistance of an operator. Now loading and
unloading operations can be done more efficiently; minimizing fatigue and risk of back injury. The
carousel may be added to an existing work bench, scissor table, or placed on the floor. Constructed
3
of two (2) pieces of rolled structural angle ( /16"" thick). A series of sealed ball bearings transfer the
load smoothly and evenly to the supporting surface. Guide rollers keep the rings aligned. PACKAGING EQUIPMENT
MODEL OUTER UNIFORM OVERALL SHIPS WEIGHT
NUMBER DIAMETER CAPACITY (LB.) HEIGHT VIA (POUND)
CA-40-2-SS 40" 2,000 2" UPS 47
CA-40-4-SS 40" 4,000 2" UPS 49
CA-40-6-SS 40" 6,000 2" UPS 51

Heavy-Duty Manual Turntables
Heavy-Duty Manual Turntables maximize workspace and minimize wasteful motion.
Bench top turntables allow workers to stay in one position and rotate items for access
from all sides. No need to walk around the table to access areas out of view. Easy and
smooth bearing motion. Used in hundreds of applications: displays, paint spraying,
assembly units, repairs, etc. Easy, smooth rotation won't jostle delicate parts. Rugged TYPE A TYPE B
5 /16" steel plate construction. The double tier units feature a stationary shelf for storing
parts and tools.

TYPE C TYPE D TYPE E TYPE F TYPE G
MODEL HEIGHT DOUBLE HEIGHT UNIFORM WEIGHT
TYPE NUMBER DIAMETER RANGE TIER ADJUSTMENT CAPACITY (POUND)
A TT-8-7/8� 8" ¾" NO N/A 500 lb. 10
A TT-12-7/8� 12" 13 /16" NO N/A 500 lb. 20
A TT-18-7/8� 18" 13 /16" NO N/A 1,000 lb. 41
A TT-24-7/8� 24" 13 /16" NO N/A 1,000 lb. 70
A TT-30-7/8� 30" 13 /16" NO N/A 1,000 lb. 134
B TT-8-4� 8" 3 /16" NO N/A 500 lb. 12
15
B TT-12-4� 12" 3⅞" NO N/A 500 lb. 22
B TT-18-4 18" 3 /16" NO N/A 500 lb. 70
7
B TT-N-24-4 24" 3 /16" NO N/A 500 lb. 150
11
B TT-N-30-4 30" 3 /16" NO N/A 500 lb. 191
11
15
C TT-18-PED� 18" 20 /16" TO NO TURN KNOB 300 lb. 55
31 /16"
15
20 /16" TO
15
C TT-N-24-PED 24" 31 /16" NO TURN KNOB 300 lb. 113
15
15
D TT-18-DPED 18" 23 /16" TO YES TURN KNOB 300 lb. 114
34 /16"
15
D TT-N-24-DPED 24" 24" TO 35" YES TURN KNOB 300 lb. 164
22 /16" TO
15
D TT-N-30-DPED 30" YES TURN KNOB 300 lb. 206
33 /16"
15
E TT-18-CPED 18" 21 /16" TO 31 /16" NO GAS CYLINDER 300 lb. 91
1
1
E TT-N-24-CPED 24" 21 /16" TO 31 /16" NO GAS CYLINDER 300 lb. 148
5
5
F TT-18-CDPED 18" 23 /16" TO 33 /16" YES GAS CYLINDER 300 lb. 112
7
7
23 /16" TO
11
F TT-N-24-CDPED 24" 33 /16" YES GAS CYLINDER 300 lb. 169
11
11
G TT-N-30-PED� 30" 20 /16" TO NO TURN KNOB 300 lb. 185
31 /16"
11
