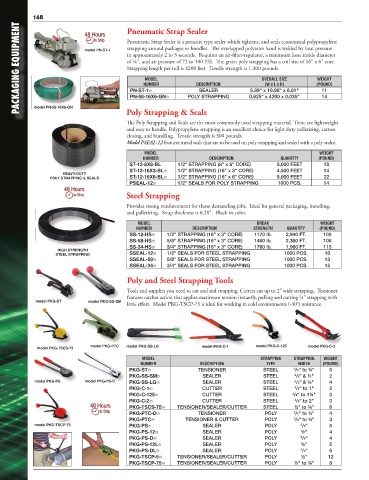

168 Pneumatic Strap Sealer
PACKAGING EQUIPMENT model PN-ST-1 strapping around packages or bundles. The overlapped polyester band is welded by heat pressure

Pneumatic Strap Sealer is a pressure type sealer which tightens, and seals economical polypropylene
in approximately 2 to 5 seconds. Requires an air-filter-regulator, a minimum hose inside diameter
of ¼", and air pressure of 72 to 100 PSI. The green poly strapping has a coil size of 16" x 6" core.
Strapping length per roll is 4200 feet. Tensile strength is 1,400 pounds.

MODEL
WEIGHT
OVERALL SIZE
DESCRIPTION
(W x L x H)
NUMBER
(POUND)
SEALER
5.89" x 10.96" x 6.81"
11
PN-ST-1�
14
POLY STRAPPING
0.625" x 4200 x 0.035"
PN-58-16X6-GN�
model PN-58-16X6-GN
Poly Strapping & Seals
The Poly Strapping and Seals are the most commonly used strapping material. These are lightweight
and easy to handle. Polypropylene strapping is an excellent choice for light duty palletizing, carton
closing, and bundling. Tensile strength is 300 pounds.
Model PSEAL-12 features metal seals that are to be used on poly strapping and sealed with a poly sealer.
MODEL WEIGHT
NUMBER DESCRIPTION QUANTITY (POUND)
ST-12-8X8-BL 1/2" STRAPPING (8" x 8" CORE) 9,000 FEET 18
ST-12-16X3-BL� 1/2" STRAPPING (16" x 3" CORE) 4,500 FEET 14
HEAVY-DUTY
POLY STRAPPING & SEALS ST-12-16X6-BL� 1/2" STRAPPING (16" x 6" CORE) 9,000 FEET 22
PSEAL-12� 1/2" SEALS FOR POLY STRAPPING 1000 PCS. 14
Steel Strapping
Provides strong reinforcement for those demanding jobs. Ideal for general packaging, bundling,
and palletizing. Strap thickness is 0.20". Black in color.
MODEL BREAK WEIGHT
NUMBER DESCRIPTION STRENGTH QUANTITY (POUND)
SS-12-HS� 1/2" STRAPPING (16" x 3" CORE) 1170 lb. 2,940 FT. 105
SS-58-HS� 5/8" STRAPPING (16" x 3" CORE) 1460 lb. 2,360 FT. 106
SS-34-HS� 3/4" STRAPPING (16" x 3" CORE) 1760 lb. 1,960 FT. 113
HIGH STRENGTH
STEEL STRAPPING SSEAL-12� 1/2" SEALS FOR STEEL STRAPPING 1000 PCS. 10
SSEAL-58� 5/8" SEALS FOR STEEL STRAPPING 1000 PCS. 13
SSEAL-34� 3/4" SEALS FOR STEEL STRAPPING 1000 PCS. 15
Poly and Steel Strapping Tools

Tools and supplies you need to cut and seal strapping. Cutters cut up to 2" wide strapping. Tensioner
features ratchet action that applies maximum tension instantly, pulling and cutting ¾" strapping with
model PKG-ST model PKG-SS-SM
little effort. Model PKG-TSCP-75 is ideal for working in cold environments (-40°) resistance.

model PKG-TSCS-75 model PKG-PTC model PKG-SS-LG model PKG-C-1 model PKG-C-125 model PKG-C-2
MODEL STRAPPING STRAPPING WEIGHT
NUMBER DESCRIPTION TYPE WIDTH (POUND)
PKG-ST� TENSIONER STEEL 3 /8" to ¾" 5
PKG-SS-SM� SEALER STEEL 3 /8" & ½" 2
model PKG-PS model PKG-PS-D PKG-SS-LG� SEALER STEEL 5 /8" & ¾" 4
PKG-C-1� CUTTER STEEL 3 /8" to 1" 2
PKG-C-125� CUTTER STEEL 3 /8" to 1¼" 3
PKG-C-2� CUTTER STEEL 3 /8" to 2" 3
PKG-TSCS-75� TENSIONER/SEALER/CUTTER STEEL ½" to ¾" 8
PKG-PTC-D� TENSIONER POLY 3 /8" to ¾" 4
PKG-PTC� TENSIONER & CUTTER POLY 3 /8" to ¾" 3
model PKG-TSCP-75 PKG-PS� SEALER POLY 5 /8" 5
PKG-PS-12� SEALER POLY ½" 4
PKG-PS-D� SEALER POLY 5 /8" 4
PKG-PS-12L� SEALER POLY ½" 5
PKG-PS-DL� SEALER POLY 5 /8" 5
PKG-TSCP-5� TENSIONER/SEALER/CUTTER POLY ½" 12
PKG-TSCP-75� TENSIONER/SEALER/CUTTER POLY ½" to ¾" 8
