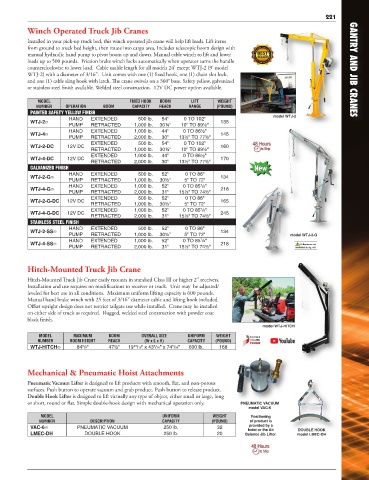

Winch Operated Truck Jib Cranes

Installed in your pick-up truck bed, this winch operated jib crane will help lift loads. Lift items
from ground to truck bed height, then rotate into cargo area. Includes telescopic boom design with
manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower
loads up to 500 pounds. Friction brake winch locks automatically when operator turns the handle
counterclockwise to lower load. Cable usable length for all models 24' except WTJ-2 (9' model GANTRY AND JIB CRANES
WTJ-2) with a diameter of 3/16". Unit comes with one (1) fixed hook, one (1) chain slot lock,
and one (1) cable sling hook with latch. The crane swivels on a 360° base. Safety yellow, galvanized
or stainless steel finish available. Welded steel construction. 12V DC power option available.

MODEL FIXED HOOK BOOM LIFT WEIGHT
NUMBER OPERATION BOOM CAPACITY REACH RANGE (POUND)
PAINTED SAFETY YELLOW FINISH
model WTJ-2
HAND EXTENDED 500 lb. 54" 0 TO 102"
WTJ-2� 135
PUMP RETRACTED 1,000 lb. 30¼" 10" TO 89½"
HAND EXTENDED 1,000 lb. 44" 0 TO 86½"
WTJ-4� 145
PUMP RETRACTED 2,000 lb. 30" 13½" TO 77½"
EXTENDED 500 lb. 54" 0 TO 102"
WTJ-2-DC 12V DC 160
RETRACTED 1,000 lb. 30¼" 10" TO 89½"
EXTENDED 1,000 lb. 44" 0 TO 86½"
WTJ-4-DC 12V DC 170
RETRACTED 2,000 lb. 30" 13½" TO 77½"
GALVANIZED FINISH New
HAND EXTENDED 500 lb. 52" 0 TO 86"
WTJ-2-G� 134
PUMP RETRACTED 1,000 lb. 30½" 5" TO 72"
7
HAND EXTENDED 1,000 lb. 52" 0 TO 85 /8"
WTJ-4-G� 218
PUMP RETRACTED 2,000 lb. 31" 15½" TO 74½"
WTJ-2-G-DC 12V DC EXTENDED 500 lb. 52" 0 TO 86" 165
RETRACTED 1,000 lb. 30½" 5" TO 72"
7
EXTENDED 1,000 lb. 52" 0 TO 85 /8"
WTJ-4-G-DC 12V DC 245
RETRACTED 2,000 lb. 31" 15½" TO 74½"
STAINLESS STEEL FINISH
HAND EXTENDED 500 lb. 52" 0 TO 86"
WTJ-2-SS� 134
PUMP RETRACTED 1,000 lb. 30½" 5" TO 72" model WTJ-2-G
7
HAND EXTENDED 1,000 lb. 52" 0 TO 85 /8"
WTJ-4-SS� 218 CA Residents see
PUMP RETRACTED 2,000 lb. 31" 15½" TO 74½" WARNING A, Pg. 459
Hitch-Mounted Truck Jib Crane
Hitch-Mounted Truck Jib Crane easily mounts in standard Class III or higher 2" receivers.
Installation and use requires no modifications to receiver or truck. Unit may be adjusted/
leveled for best use in all conditions. Maximum uniform lifting capacity is 600 pounds.
Manual hand brake winch with 25 feet of 3/16" diameter cable and lifting hook included.
Offset upright design does not restrict tailgate use while installed. Crane may be installed
on either side of truck as required. Rugged, welded steel construction with powder coat
black finish.
model WTJ-HITCH
MODEL MAXIMUM BOOM OVERALL SIZE UNIFORM WEIGHT
NUMBER BOOM HEIGHT REACH (W x L x H) CAPACITY (POUND)
13
5
5
WTJ-HITCH� 84 /8" 47½" 19 /16" x 43 /16" x 74 /16" 600 lb. 168
5
Mechanical & Pneumatic Hoist Attachments
Pneumatic Vacuum Lifter is designed to lift products with smooth, flat, and non-porous
surfaces. Push button to operate vacuum and grab product. Push button to release product.
Double Hook Lifter is designed to lift virtually any type of object, either small or large, long
or short, round or flat. Simple double-hook design with mechanical operation only. PNEUMATIC VACUUM
model VAC-6
MODEL UNIFORM WEIGHT Positioning
NUMBER DESCRIPTION CAPACITY (POUND) of product is
provided by a
VAC-6� PNEUMATIC VACUUM 250 lb. 32 hoist or the Air DOUBLE HOOK
LMEC-DH DOUBLE HOOK 250 lb. 20 Balance Jib Lifter. model LMEC-DH
