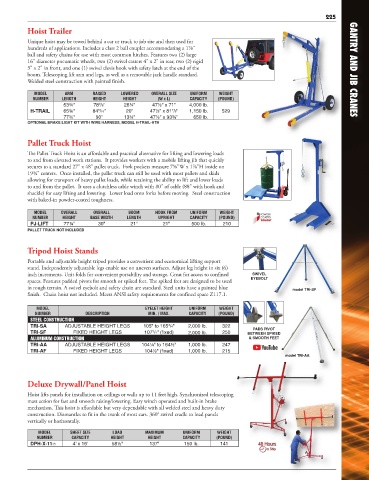

Hoist Trailer
Unique hoist may be towed behind a car or truck to job site and then used for
hundreds of applications. Includes a class 2 ball coupler accommodating a 1⅞"
ball and safety chains for use with most common hitches. Features two (2) large
16" diameter pneumatic wheels, two (2) swivel casters 4" x 2" in rear, two (2) rigid
5" x 2" in front, and one (1) swivel clevis hook with safety latch at the end of the GANTRY AND JIB CRANES
boom. Telescoping lift arm and legs, as well as a removable jack handle standard.
Welded steel construction with painted finish.
MODEL ARM RAISED LOWERED OVERALL SIZE UNIFORM WEIGHT
NUMBER LENGTH HEIGHT HEIGHT (W x L) CAPACITY (POUND)
3
53¾" 78 /8" 26¼" 47½" x 71" 4,000 lb.
H-TRAIL 65¾" 84 /16" 20" 47½" x 81 /8" 1,150 lb. 529
7
5
77¾" 90" 13¾" 47½" x 93¾" 650 lb.
OPTIONAL BRAKE LIGHT KIT WITH WIRE HARNESS, MODEL H-TRAIL-HTH
Pallet Truck Hoist
The Pallet Truck Hoist is an affordable and practical alternative for lifting and lowering loads
to and from elevated work stations. It provides workers with a mobile lifting jib that quickly
secures to a standard 27" x 48" pallet truck. Fork pockets measure 7⅝"W x 1⅞"H inside on
19¾" centers. Once installed, the pallet truck can still be used with most pallets and skids
allowing for transport of heavy pallet loads, while retaining the ability to lift and lower loads
to and from the pallet. It uses a clutchless cable winch with 80" of cable (88" with hook and
shackle) for easy lifting and lowering. Lower load onto forks before moving. Steel construction
with baked-in powder-coated toughness.
MODEL OVERALL OVERALL BOOM HOOK FROM UNIFORM WEIGHT
NUMBER HEIGHT BASE WIDTH LENGTH UPRIGHT CAPACITY (POUND)
PJ-LIFT 77¼" 30" 21" 21" 500 lb. 210
PALLET TRUCK NOT INCLUDED
Tripod Hoist Stands
Portable and adjustable height tripod provides a convenient and economical lifting support
stand. Independently adjustable legs enable use on uneven surfaces. Adjust leg height in six (6)
inch increments. Unit folds for convenient portability and storage. Great for access to confined SWIVEL
spaces. Features padded pivots for smooth or spiked feet. The spiked feet are designed to be used EYEBOLT
in rough terrain. A swivel eyebolt and safety chain are standard. Steel units have a painted blue model TRI-SF
finish. Chain hoist not included. Meets ANSI safety requirements for confined space Z117.1.
MODEL EYELET HEIGHT UNIFORM WEIGHT
NUMBER DESCRIPTION MIN. / MAX. CAPACITY (POUND)
STEEL CONSTRUCTION
TRI-SA ADJUSTABLE HEIGHT LEGS 105" to 165 /4" 2,000 lb. 322 PADS PIVOT
3
TRI-SF FIXED HEIGHT LEGS 107 /4" (fixed) 2,000 lb. 250 BETWEEN SPIKED
3
ALUMINUM CONSTRUCTION & SMOOTH FEET
TRI-AA ADJUSTABLE HEIGHT LEGS 104¼" to 164½" 1,000 lb. 247
TRI-AF FIXED HEIGHT LEGS 104½" (fixed) 1,000 lb. 215
model TRI-AA
Deluxe Drywall/Panel Hoist
Hoist lifts panels for installation on ceilings or walls up to 11 feet high. Synchronized telescoping
mast action for fast and smooth raising/lowering. Easy winch operated and built-in brake
mechanism. This hoist is affordable but very dependable with all welded steel and heavy duty
construction. Dismantles to fit in the trunk of most cars. 360° swivel cradle to load panels
vertically or horizontally.
MODEL SHEET SIZE LOAD MAXIMUM UNIFORM WEIGHT
NUMBER CAPACITY HEIGHT HEIGHT CAPACITY (POUND)
DPH-X-11� 4' x 16' 58½" 137" 150 lb. 141
