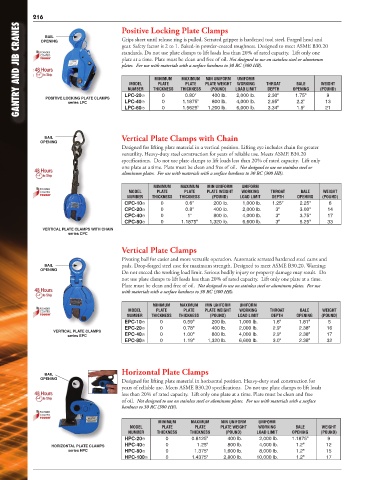

Page 210 - Vestil Catalog 112

216 OPENING Positive Locking Plate Clamps
GANTRY AND JIB CRANES POSITIVE LOCKING PLATE CLAMPS gear. Safety factor is 2 to 1. Baked-in powder-coated toughness. Designed to meet ASME B30.20 9

BAIL
Grips sheet until release ring is pulled. Serrated gripper is hardened tool steel. Forged head and
standards. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one
plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum
plates. For use with materials with a surface hardness to 30 RC (300 HB).

MINIMUM
MAXIMUM
MIN UNIFORM
UNIFORM
PLATE
BALE
MODEL
THROAT
WORKING
PLATE WEIGHT
PLATE
WEIGHT
LOAD LIMIT
THICKNESS
NUMBER
DEPTH
(POUND)
THICKNESS
(POUND)
OPENING
2.30"
0.80"
1.75"
2,000 lb.
400 lb.
0
LPC-20�
800 lb.
4,000 lb.
2.2"
1.1875"
0
13
LPC-40�
2.95"
series LPC
0
1.5625"
1,200 lb.
LPC-60�
BAIL Vertical Plate Clamps with Chain 6,000 lb. 3.34" 1.9" 21
OPENING
Designed for lifting plate material in a vertical position. Lifting eye includes chain for greater
versatility. Heavy-duty steel construction for years of reliable use. Meets ASME B30.20
specifications. Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only
one plate at a time. Plate must be clean and free of oil. Not designed to use on stainless steel or
aluminum plates. For use with materials with a surface hardness to 30 RC (300 HB).
MINIMUM MAXIMUM MIN UNIFORM UNIFORM
MODEL PLATE PLATE PLATE WEIGHT WORKING THROAT BALE WEIGHT
NUMBER THICKNESS THICKNESS (POUND) LOAD LIMIT DEPTH OPENING (POUND)
CPC-10� 0 0.6" 200 lb. 1,000 lb. 1.25" 2.25" 6
CPC-20� 0 0.8" 400 lb. 2,000 lb. 3" 3.00" 14
CPC-40� 0 1" 800 lb. 4,000 lb. 3" 3.75" 17
CPC-80� 0 1.1875" 1,320 lb. 6,600 lb. 3" 5.25" 33
VERTICAL PLATE CLAMPS WITH CHAIN
series CPC
Vertical Plate Clamps
Pivoting bail for easier and more versatile operation. Automatic serrated hardened steel cams and
BAIL pads. Drop-forged steel case for maximum strength. Designed to meet ASME B30.20. Warning:
OPENING
Do not exceed the working load limit. Serious bodily injury or property damage may result. Do
not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time.
Plate must be clean and free of oil. Not designed to use on stainless steel or aluminum plates. For use
with materials with a surface hardness to 30 RC (300 HB).
MINIMUM MAXIMUM MIN UNIFORM UNIFORM
MODEL PLATE PLATE PLATE WEIGHT WORKING THROAT BALE WEIGHT
NUMBER THICKNESS THICKNESS (POUND) LOAD LIMIT DEPTH OPENING (POUND)
EPC-10� 0 0.59" 200 lb. 1,000 lb. 1.6" 1.81" 5
EPC-20� 0 0.78" 400 lb. 2,000 lb. 2.9" 2.38" 16
VERTICAL PLATE CLAMPS
series EPC EPC-40� 0 1.00" 800 lb. 4,000 lb. 2.9" 2.38" 17
EPC-80� 0 1.19" 1,320 lb. 6,600 lb. 3.0" 2.38" 32
Horizontal Plate Clamps
BAIL
OPENING Designed for lifting plate material in horizontal position. Heavy-duty steel construction for
years of reliable use. Meets ASME B30.20 specifications. Do not use plate clamps to lift loads
less than 20% of rated capacity. Lift only one plate at a time. Plate must be clean and free
of oil. Not designed to use on stainless steel or aluminum plates. For use with materials with a surface
hardness to 30 RC (300 HB).
MINIMUM MAXIMUM MIN UNIFORM UNIFORM
MODEL PLATE PLATE PLATE WEIGHT WORKING BALE WEIGHT
NUMBER THICKNESS THICKNESS (POUND) LOAD LIMIT OPENING (POUND)
HPC-20� 0 0.8125" 400 lb. 2,000 lb. 1.1875" 9
HORIZONTAL PLATE CLAMPS HPC-40� 0 1.25" 800 lb. 4,000 lb. 1.2" 12
series HPC HPC-80� 0 1.375" 1,600 lb. 8,000 lb. 1.2" 15
HPC-100� 0 1.4375" 2,800 lb. 10,000 lb. 1.2" 17
