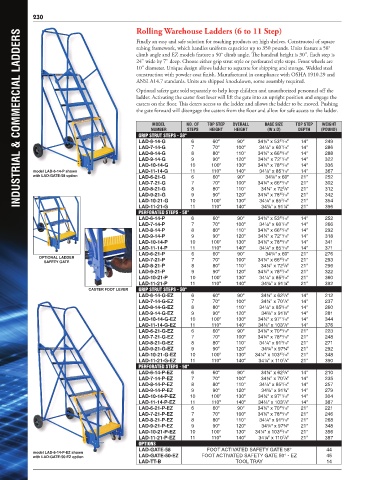

Page 224 - Vestil Catalog 112

230
Rolling Warehouse Ladders (6 to 11 Step)
INDUSTRIAL & COMMERCIAL LADDERS
Finally an easy and safe solution for reaching products on high shelves. Constructed of square
tubing framework, which handles uniform capacities up to 350 pounds. Units feature a 58°
climb angle and EZ models feature a 50° climb angle. The handrail height is 30". Each step is
24" wide by 7" deep. Choose either grip strut style or perforated style steps. Front wheels are
10" diameter. Unique design allows ladder to separate for shipping and storage. Welded steel
construction with powder coat finish. Manufactured in compliance with OSHA 1910.29 and
ANSI A14.7 standards. Units are shipped knockdown, some assembly required.
Optional safety gate sold separately to help keep children and unauthorized personnel off the
ladder. Activating the caster foot lever will lift the gate into an upright position and engage the
casters on the floor. This deters access to the ladder and allows the ladder to be moved. Pushing
the gate forward will disengage the casters from the floor and allow for safe access to the ladder.

MODEL NO. OF TOP STEP OVERALL BASE SIZE TOP STEP WEIGHT
NUMBER STEPS HEIGHT HEIGHT (W x D) DEPTH (POUND)
GRIP STRUT STEPS - 58°
LAD-6-14-G 6 60" 90" 34¼" x 53 /16" 14" 249
15
LAD-7-14-G 7 70" 100" 34¼" x 60 /16" 14" 286
1
LAD-8-14-G 8 80" 110" 34¼" x 66 /16" 14" 288
15
LAD-9-14-G 9 90" 120" 34¼" x 72 /16" 14" 322
11
LAD-10-14-G 10 100" 130" 34¼" x 78 /16" 14" 336
15
model LAD-6-14-P shown LAD-11-14-G 11 110" 140" 34¼" x 85 /16" 14" 367
1
with LAD-GATE-58 option LAD-6-21-G 6 60" 90" 34¼" x 60" 21" 252
LAD-7-21-G 7 70" 100" 34¼" x 66 /16" 21" 302
15
LAD-8-21-G 8 80" 110" 34¼" x 72 /8" 21" 312
5
LAD-9-21-G 9 90" 120" 34¼" x 78 /16" 21" 342
15
LAD-10-21-G 10 100" 130" 34¼" x 85 /16" 21" 354
3
LAD-11-21-G 11 110" 140" 34¼" x 91¼" 21" 396
PERFORATED STEPS - 58°
LAD-6-14-P 6 60" 90" 34¼" x 53 /16" 14" 252
15
LAD-7-14-P 7 70" 100" 34¼" x 60 /16" 14" 266
1
LAD-8-14-P 8 80" 110" 34¼" x 66 /16" 14" 292
15
LAD-9-14-P 9 90" 120" 34¼" x 72 /16" 14" 318
11
LAD-10-14-P 10 100" 130" 34¼" x 78 /16" 14" 341
15
LAD-11-14-P 11 110" 140" 34¼" x 85 /16" 14" 371
1
LAD-6-21-P 6 60" 90" 34¼" x 60" 21" 276
OPTIONAL LADDER 15
SAFETY GATE LAD-7-21-P 7 70" 100" 34¼" x 66 /16" 21" 293
LAD-8-21-P 8 80" 110" 34¼" x 72 /8" 21" 296
5
LAD-9-21-P 9 90" 120" 34¼" x 78 /16" 21" 322
15
LAD-10-21-P 10 100" 130" 34¼" x 85 /16" 21" 360
3
LAD-11-21-P 11 110" 140" 34¼" x 91¼" 21" 392
CASTER FOOT LEVER GRIP STRUT STEPS - 50°
LAD-6-14-G-EZ 6 60" 90" 34¼" x 62 /8" 14" 212
3
LAD-7-14-G-EZ 7 70" 100" 34¼" x 70 /8" 14" 237
7
LAD-8-14-G-EZ 8 80" 110" 34¼" x 85 /16" 14" 260
5
LAD-9-14-G-EZ 9 90" 120" 34¼" x 91½" 14" 281
LAD-10-14-G-EZ 10 100" 130" 34¼" x 97 /16" 14" 344
11
LAD-11-14-G-EZ 11 110" 140" 34¼" x 103 /8" 14" 376
7
LAD-6-21-G-EZ 6 60" 90" 34¼" x 70 /16" 21" 223
15
LAD-7-21-G-EZ 7 70" 100" 34¼" x 78 /16" 21" 248
15
LAD-8-21-G-EZ 8 80" 110" 34¼" x 91 /16" 21" 271
9
LAD-9-21-G-EZ 9 90" 120" 34¼" x 97¾" 21" 292
LAD-10-21-G-EZ 10 100" 130" 34¼" x 103 /16" 21" 348
15
LAD-11-21-G-EZ 11 110" 140" 34¼" x 110 /8" 21" 390
7
PERFORATED STEPS - 50°
LAD-6-14-P-EZ 6 60" 90" 34¼" x 62 /8" 14" 210
3
LAD-7-14-P-EZ 7 70" 100" 34¼" x 70 /8" 14" 235
7
LAD-8-14-P-EZ 8 80" 110" 34¼" x 85 /16" 14" 257
5
LAD-9-14-P-EZ 9 90" 120" 34¼" x 91½" 14" 279
LAD-10-14-P-EZ 10 100" 130" 34¼" x 97 /16" 14" 304
11
LAD-11-14-P-EZ 11 110" 140" 34¼" x 103 /8" 14" 387
7
LAD-6-21-P-EZ 6 60" 90" 34¼" x 70 /16" 21" 221
15
LAD-7-21-P-EZ 7 70" 100" 34¼" x 78 /16" 21" 246
15
LAD-8-21-P-EZ 8 80" 110" 34¼" x 91 /16" 21" 268
9
LAD-9-21-P-EZ 9 90" 120" 34¼" x 97¾" 21" 348
LAD-10-21-P-EZ 10 100" 130" 34¼" x 103 /16" 21" 356
15
LAD-11-21-P-EZ 11 110" 140" 34¼" x 110 /8" 21" 387
7
OPTIONS
LAD-GATE-58 FOOT ACTIVATED SAFETY GATE 58° 44
model LAD-6-14-P-EZ shown
with LAD-GATE-50-EZ option LAD-GATE-50-EZ FOOT ACTIVATED SAFETY GATE 50° - EZ 45
LAD-TT-B TOOL TRAY 14
