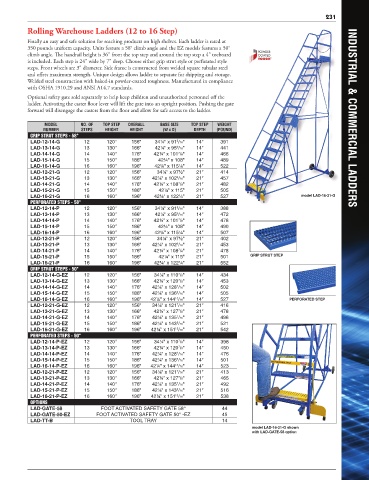

Rolling Warehouse Ladders (12 to 16 Step)

Finally an easy and safe solution for reaching products on high shelves. Each ladder is rated at
350 pounds uniform capacity. Units feature a 58° climb angle and the EZ models features a 50°
climb angle. The handrail height is 36" from the top step and around the top step a 4" toeboard
is included. Each step is 24" wide by 7" deep. Choose either grip strut style or perforated style
steps. Front wheels are 3" diameter. Side frame is constructed from welded square tubular steel
and offers maximum strength. Unique design allows ladder to separate for shipping and storage.
Welded steel construction with baked-in powder-coated toughness. Manufactured in compliance
with OSHA 1910.29 and ANSI A14.7 standards.
Optional safety gate sold separately to help keep children and unauthorized personnel off the
ladder. Activating the caster floor lever will lift the gate into an upright position. Pushing the gate
forward will disengage the casters from the floor and allow for safe access to the ladder.

MODEL NO. OF TOP STEP OVERALL BASE SIZE TOP STEP WEIGHT INDUSTRIAL & COMMERCIAL LADDERS
NUMBER STEPS HEIGHT HEIGHT (W x D) DEPTH (POUND)
GRIP STRUT STEPS - 58°
LAD-12-14-G 12 120" 156" 34¼" x 91 /16" 14" 391
5
LAD-13-14-G 13 130" 166" 42¼" x 95 /16" 14" 441
9
LAD-14-14-G 14 140" 176" 42¼" x 101 /8" 14" 466
7
LAD-15-14-G 15 150" 186" 42¼" x 108" 14" 489
LAD-16-14-G 16 160" 196" 42¼" x 115¼" 14" 522
LAD-12-21-G 12 120" 156" 34¼" x 97½" 21" 414
LAD-13-21-G 13 130" 166" 42¼" x 102 /16" 21" 457
9
LAD-14-21-G 14 140" 176" 42¼" x 108 /8" 21" 482
7
LAD-15-21-G 15 150" 186" 42¼" x 115" 21" 505
LAD-16-21-G 16 160" 196" 42¼" x 122¼" 21" 527 model LAD-16-21-G
PERFORATED STEPS - 58°
LAD-12-14-P 12 120" 156" 34¼" x 91 /16" 14" 388
5
LAD-13-14-P 13 130" 166" 42¼" x 95 /16" 14" 472
9
LAD-14-14-P 14 140" 176" 42¼" x 101 /8" 14" 478
7
LAD-15-14-P 15 150" 186" 42¼" x 108" 14" 490
LAD-16-14-P 16 160" 196" 42¼" x 115¼" 14" 507
LAD-12-21-P 12 120" 156" 34¼" x 97½" 21" 402
LAD-13-21-P 13 130" 166" 42¼" x 102 /16" 21" 453
9
LAD-14-21-P 14 140" 176" 42¼" x 108 /8" 21" 478
7
LAD-15-21-P 15 150" 186" 42¼" x 115" 21" 501 GRIP STRUT STEP
LAD-16-21-P 16 160" 196" 42¼" x 122¼" 21" 552
GRIP STRUT STEPS - 50°
LAD-12-14-G-EZ 12 120" 156" 34¼" x 110 /8" 14" 434
7
LAD-13-14-G-EZ 13 130" 166" 42¼" x 120 /8" 14" 453
7
LAD-14-14-G-EZ 14 140" 176" 42¼" x 128 /16" 14" 502
1
LAD-15-14-G-EZ 15 150" 186" 42¼" x 136 /16" 14" 505
5
LAD-16-14-G-EZ 16 160" 196" 42¼" x 144 /16" 14" 527 PERFORATED STEP
13
LAD-12-21-G-EZ 12 120" 156" 34¼" x 121 /16" 21" 416
7
LAD-13-21-G-EZ 13 130" 166" 42¼" x 127 /8" 21" 478
7
LAD-14-21-G-EZ 14 140" 176" 42¼" x 135 /16" 21" 496
1
LAD-15-21-G-EZ 15 150" 186" 42¼" x 143 /16" 21" 521
5
LAD-16-21-G-EZ 16 160" 196" 42¼" x 151 /16" 21" 542
13
PERFORATED STEPS - 50°
LAD-12-14-P-EZ 12 120" 156" 34¼" x 110 /8" 14" 398
7
LAD-13-14-P-EZ 13 130" 166" 42¼" x 120 /8" 14" 450
7
LAD-14-14-P-EZ 14 140" 176" 42¼" x 128 /16" 14" 476
1
LAD-15-14-P-EZ 15 150" 186" 42¼" x 136 /16" 14" 501
5
LAD-16-14-P-EZ 16 160" 196" 42¼" x 144 /16" 14" 523
13
LAD-12-21-P-EZ 12 120" 156" 34¼" x 121 /16" 21" 413
7
LAD-13-21-P-EZ 13 130" 166" 42¼" x 127 /8" 21" 465
7
LAD-14-21-P-EZ 14 140" 176" 42¼" x 135 /16" 21" 492
1
LAD-15-21-P-EZ 15 150" 186" 42¼" x 143 /16" 21" 516
5
LAD-16-21-P-EZ 16 160" 196" 42¼" x 151 /16" 21" 538
13
OPTIONS
LAD-GATE-58 FOOT ACTIVATED SAFETY GATE 58° 44
LAD-GATE-50-EZ FOOT ACTIVATED SAFETY GATE 50° -EZ 45
LAD-TT-B TOOL TRAY 14
model LAD-16-21-G shown
with LAD-GATE-58 option
