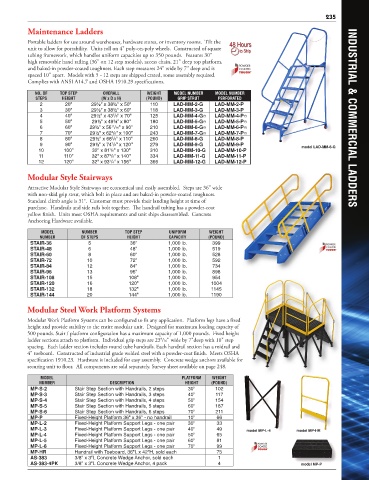

Page 229 - Vestil Catalog 112

235
Maintenance Ladders

Portable ladders for use around warehouses, hardware stores, or inventory rooms. Tilt the
unit to allow for portability. Units roll on 4" poly-on-poly wheels. Constructed of square
tubing framework, which handles uniform capacities up to 350 pounds. Features 30"
high removable hand railing (36" on 12 step models), access chain, 21" deep top platform,
and baked-in powder-coated toughness. Each step measures 24" wide by 7" deep and is
spaced 10" apart. Models with 5 - 12 steps are shipped crated, some assembly required.
Complies with ANSI A14.7 and OSHA 1910.29 specifications.
NO. OF TOP STEP OVERALL WEIGHT MODEL NUMBER MODEL NUMBER
STEPS HEIGHT (W x D x H) (POUND) GRIP STRUT PERFORATED
2 20" 29½" x 38½" x 50" 110 LAD-MM-2-G LAD-MM-2-P
3 30" 29½" x 38½" x 60" 118 LAD-MM-3-G LAD-MM-3-P
5
4 40" 29½" x 43 /8" x 70" 125 LAD-MM-4-G� LAD-MM-4-P� INDUSTRIAL & COMMERCIAL LADDERS
5 50" 29½" x 49¾" x 80" 180 LAD-MM-5-G� LAD-MM-5-P�
11
6 60" 29½" x 56 /16" x 90" 210 LAD-MM-6-G� LAD-MM-6-P�
3
7 70" 29½" x 62 /8" x 100" 243 LAD-MM-7-G� LAD-MM-7-P�
5
8 80" 29½" x 68 /8" x 110" 260 LAD-MM-8-G LAD-MM-8-P
7
9 90" 29½" x 74 /8" x 120" 279 LAD-MM-9-G LAD-MM-9-P model LAD-MM-6-G
10 100" 32" x 81 /8" x 130" 310 LAD-MM-10-G LAD-MM-10-P
1
11 110" 32" x 87 /8" x 140" 334 LAD-MM-11-G LAD-MM-11-P
3
12 120" 32" x 93 /4" x 156" 366 LAD-MM-12-G LAD-MM-12-P
1
Modular Style Stairways
Attractive Modular Style Stairways are economical and easily assembled. Steps are 36" wide
with non-skid grip strut, which bolt in place and are baked-in powder-coated toughness.
Standard climb angle is 31°. Customer must provide their landing height at time of
purchase. Handrails and side rails bolt together. The handrail tubing has a powder-coat
yellow finish. Units meet OSHA requirements and unit ships disassembled. Concrete
Anchoring Hardware available.
MODEL NUMBER TOP STEP UNIFORM WEIGHT
NUMBER OF STEPS HEIGHT CAPACITY (POUND)
STAIR-36 5 36" 1,000 lb. 399
STAIR-48 6 48" 1,000 lb. 519
STAIR-60 8 60" 1,000 lb. 528
STAIR-72 10 72" 1,000 lb. 592
STAIR-84 12 84" 1,000 lb. 734
STAIR-96 13 96" 1,000 lb. 898
STAIR-108 15 108" 1,000 lb. 954
STAIR-120 16 120" 1,000 lb. 1004
STAIR-132 18 132" 1,000 lb. 1145
STAIR-144 20 144" 1,000 lb. 1190
Modular Steel Work Platform Systems

Modular Work Platform Systems can be configured to fit any application. Platform legs have a fixed
height and provide stability to the entire modular unit. Designed for maximum loading capacity of
500 pounds. Stair / platform configuration has a maximum capacity of 1,000 pounds. Fixed height
ladder sections attach to platform. Individual grip steps are 23 /16" wide by 7"deep with 10" step
9
spacing. Each ladder section includes round tube handrails. Each handrail section has a midrail and
4" toeboard. Constructed of industrial grade welded steel with a powder-coat finish. Meets OSHA
specification 1910.23. Hardware is included for easy assembly. Concrete wedge anchors available for
securing unit to floor. All components are sold separately. Survey sheet available on page 248.
MODEL PLATFORM WEIGHT
NUMBER DESCRIPTION HEIGHT (POUND)
MP-S-2 Stair Step Section with Handrails, 2 steps 30" 102
MP-S-3 Stair Step Section with Handrails, 3 steps 40" 117
MP-S-4 Stair Step Section with Handrails, 4 steps 50" 154
MP-S-5 Stair Step Section with Handrails, 5 steps 60" 187
MP-S-6 Stair Step Section with Handrails, 6 steps 70" 211
MP-P Fixed-Height Platform 36" x 36" - no handrail 10" 66
MP-L-2 Fixed-Height Platform Support Legs - one pair 30" 33
MP-L-3 Fixed-Height Platform Support Legs - one pair 40" 49 model MP-L-4 model MP-HR
MP-L-4 Fixed-Height Platform Support Legs - one pair 50" 65
MP-L-5 Fixed-Height Platform Support Legs - one pair 60" 81
MP-L-6 Fixed-Height Platform Support Legs - one pair 70" 99
MP-HR Handrail with Toeboard, 36"L x 42"H, sold each 75
AS-383 3/8" x 3"L Concrete Wedge Anchor, sold each 1
AS-383-4PK 3/8" x 3"L Concrete Wedge Anchor, 4 pack 4 model MP-P
