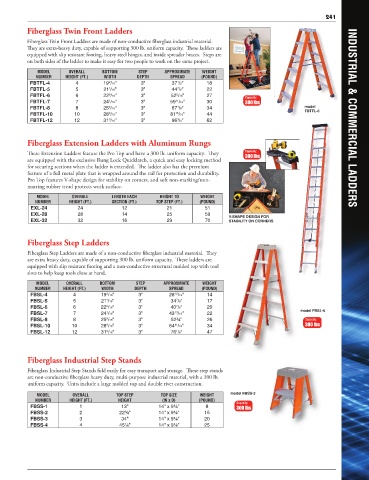

Page 235 - Vestil Catalog 112

241
Fiberglass Twin Front Ladders

Fiberglass Twin Front Ladders are made of non-conductive fiberglass industrial material.
They are extra-heavy duty, capable of supporting 300 lb. uniform capacity. These ladders are
equipped with slip resistant footing, heavy steel hinges, and inside spreader braces. Steps are
on both sides of the ladder to make it easy for two people to work on the same project.
MODEL OVERALL BOTTOM STEP APPROXIMATE WEIGHT
NUMBER HEIGHT (FT.) WIDTH DEPTH SPREAD (POUND)
FBTFL-4 4 19 /16" 3" 37 /2" 18
9
1
FBTFL-5 5 21 /16" 3" 44 /8" 22
7
1
FBTFL-6 6 22 /16" 3" 52 /16" 27 Capacity:
9
5
FBTFL-7 7 24 /16" 3" 59 /16" 30 300 lbs
1
11
FBTFL-8 8 25 /16" 3" 67 /8" 34 model
1
9
FBTFL-6
FBTFL-10 10 28 /16" 3" 81 /16" 44
15
9
FBTFL-12 12 31 /16" 3" 96 /4" 62 INDUSTRIAL & COMMERCIAL LADDERS
3
9
Fiberglass Extension Ladders with Aluminum Rungs
Capacity:
These Extension Ladders feature the Pro Top and have a 300 lb. uniform capacity. They 300 lbs
are equipped with the exclusive Rung Lock Quicklatch, a quick and easy locking method
for securing sections when the ladder is extended. The ladder also has the premium
feature of a full metal plate that is wrapped around the rail for protection and durability.
Pro Top features V-shape design for stability on corners, and soft non-marking/non-
marring rubber tread protects work surface.
MODEL OVERALL LENGTH EACH HEIGHT TO WEIGHT
NUMBER HEIGHT (FT.) SECTION (FT.) TOP STEP (FT.) (POUND)
EXL-24 24 12 21 51
EXL-28 28 14 25 59 V-SHAPE DESIGN FOR
EXL-32 32 16 29 70 STABILITY ON CORNERS
Fiberglass Step Ladders
Fiberglass Step Ladders are made of a non-conductive fiberglass industrial material. They
are extra heavy duty, capable of supporting 300 lb. uniform capacity. These ladders are
equipped with slip resistant footing and a non-conductive structural molded top with tool
slots to help keep tools close at hand.
MODEL OVERALL BOTTOM STEP APPROXIMATE WEIGHT
NUMBER HEIGHT (FT.) WIDTH DEPTH SPREAD (POUND)
FBSL-4 4 19 /16" 3" 28 /16" 14
15
9
FBSL-5 5 21 /16" 3" 34 /8" 17
7
1
FBSL-6 6 22 /16" 3" 40 /8" 20
9
7
FBSL-7 7 24 /16" 3" 43 /16" 22 model FBSL-6
13
1
FBSL-8 8 25 /16" 3" 52¾" 26 Capacity:
9
FBSL-10 10 28 /16" 3" 64 /16" 34 300 lbs
11
9
FBSL-12 12 31 /16" 3" 76 /8" 47
1
9
Fiberglass Industrial Step Stands
Fiberglass Industrial Step Stands fold easily for easy transport and storage. These step stands
are non-conductive fiberglass heavy duty, multi-purpose industrial material, with a 300 lb.
uniform capacity. Units include a large molded top and double rivet construction.
MODEL OVERALL TOP STEP TOP SIZE WEIGHT model FBSS-2
NUMBER HEIGHT (FT.) HEIGHT (W x D) (POUND) Capacity:
FBSS-1 1 13" 14" x 9¼" 8 300 lbs
FBSS-2 2 22¾" 14" x 9¼" 15
FBSS-3 3 34" 14" x 9¼" 20
FBSS-4 4 45¼" 14" x 9¼" 25
