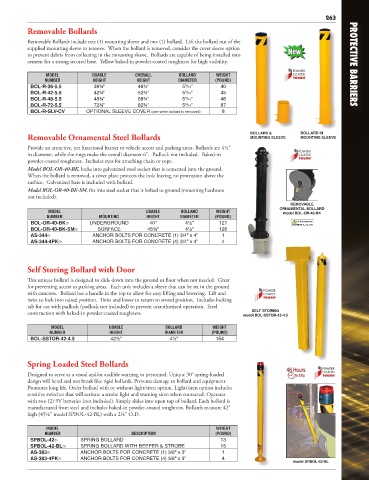

Page 257 - Vestil Catalog 112

263
Removable Bollards

Removable Bollards include one (1) mounting sleeve and one (1) bollard. Lift the bollard out of the
supplied mounting sleeve to remove. When the bollard is removed, consider the cover sleeve option New
to prevent debris from collecting in the mounting sleeve. Bollards are capable of being installed into
cement for a strong secured base. Yellow baked-in powder-coated toughness for high visibility. PROTECTIVE BARRIERS

MODEL USABLE OVERALL BOLLARD WEIGHT
NUMBER HEIGHT HEIGHT DIAMETER (POUND)
BOL-R-36-5.5 36¾" 46¾" 5 /16" 40
9
BOL-R-42-5.5 42¾" 52¾" 5 /16" 45
9
BOL-R-48-5.5 48¾" 58¾" 5 /16" 46
9
BOL-R-72-5.5 72¾" 82¾" 5 /16" 87
9
BOL-R-SLV-CV OPTIONAL SLEEVE COVER (use when bollard is removed) 8
Removable Ornamental Steel Bollards BOLLARD & BOLLARD IN
MOUNTING SLEEVE
MOUNTING SLEEVE
Provide an attractive, yet functional barrier to vehicle access and parking areas. Bollards are 4½"
in diameter, while the rings make the overall diameter 6". Padlock not included. Baked-in
powder-coated toughness. Includes eyes for attaching chain or rope.
Model BOL-OR-40-BK, locks into galvanized steel socket that is cemented into the ground.
When the bollard is removed, a cover plate protects the hole leaving no protrusion above the
surface. Galvanized base is included with bollard.
Model BOL-OR-40-BK-SM, fits into steel socket that is bolted to ground (mounting hardware
not included).
REMOVABLE
ORNAMENTAL BOLLARD
MODEL USABLE BOLLARD WEIGHT model BOL-OR-40-BK
NUMBER MOUNTING HEIGHT DIAMETER (POUND)
BOL-OR-40-BK� UNDERGROUND 40" 4½" 121 CA Residents see
WARNING A, Pg. 459
BOL-OR-40-BK-SM� SURFACE 46¾" 4½" 126
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" 4

Self Storing Bollard with Door
This unique bollard is designed to slide down into the ground or floor when not needed. Great
for preventing access to parking areas. Each unit includes a sleeve that can be set in the ground
with concrete. Bollard has a handle in the top to allow for easy lifting and lowering. Lift and
twist to lock into raised position. Twist and lower to return to stored position. Includes locking
tab for use with padlock (padlock not included) to prevent unauthorized operation. Steel
SELF STORING
construction with baked-in powder-coated toughness. model BOL-SSTOR-42-4.5
MODEL USABLE BOLLARD WEIGHT
NUMBER HEIGHT DIAMETER (POUND)
BOL-SSTOR-42-4.5 42½" 4½" 154

Spring Loaded Steel Bollards

Designed to serve as a visual and/or audible warning to personnel. Unique 30° spring-loaded
design will bend and not break like rigid bollards. Prevents damage to bollard and equipment.
Promotes long life. Order bollard with or without light/siren option. Light/siren option includes
sensitive switches that will activate a strobe light and warning siren when contacted. Operates
with two (2) 9V batteries (not included). Simply slides into open top of bollard. Each bollard is
manufactured from steel and includes baked-in powder-coated toughness. Bollards measure 42"
high (45¼" model SPBOL-42-BL) with a 2⅛" O.D.

MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
SPBOL-42� SPRING BOLLARD 13
SPBOL-42-BL� SPRING BOLLARD WITH BEEPER & STROBE 15
AS-383� ANCHOR BOLTS FOR CONCRETE (1) 3/8" x 3" 1
AS-383-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/8" x 3" 4
model SPBOL-42-BL
