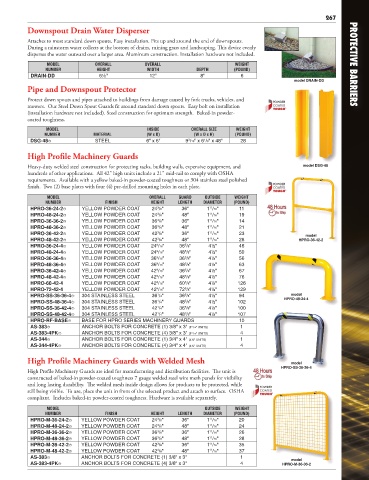

Page 261 - Vestil Catalog 112

267
Downspout Drain Water Disperser

Attaches to most standard down spouts. Easy installation. Fits up and around the end of downspouts.
During a rainstorm water collects at the bottom of drains, ruining grass and landscaping. This device evenly
disperses the water outward over a larger area. Aluminum construction. Installation hardware not included.
MODEL OVERALL OVERALL WEIGHT PROTECTIVE BARRIERS
NUMBER HEIGHT WIDTH DEPTH (POUND)
DRAIN-DD 6½" 12" 8" 6
model DRAIN-DD
Pipe and Downspout Protector

Protect down spouts and pipes attached to buildings from damage caused by fork trucks, vehicles, and
mowers. Our Steel Down Spout Guards fit around standard down spouts. Easy bolt on installation
(installation hardware not included). Steel construction for optimum strength. Baked-in powder-
coated toughness.
MODEL INSIDE OVERALL SIZE WEIGHT
NUMBER MATERIAL (W x D) (W x D x H) (POUND)
1
3
DSG-48� STEEL 6" x 6" 9 /16" x 6 /8" x 48" 28
High Profile Machinery Guards
Heavy-duty welded steel construction for protecting racks, building walls, expensive equipment, and model DSG-48
hundreds of other applications. All 42" high units include a 21" mid-rail to comply with OSHA
requirements. Available with a yellow baked-in powder-coated toughness or 304 stainless steel polished
finish. Two (2) base plates with four (4) pre-drilled mounting holes in each plate.

MODEL OVERALL GUARD OUTSIDE WEIGHT
NUMBER FINISH HEIGHT LENGTH DIAMETER (POUND)
3
11
HPRO-36-24-2� YELLOW POWDER COAT 24 /8" 36" 1 /16" 11
3
11
HPRO-48-24-2� YELLOW POWDER COAT 24 /8" 48" 1 /16" 19
11
3
HPRO-36-36-2� YELLOW POWDER COAT 36 /8" 36" 1 /16" 14
11
3
HPRO-48-36-2� YELLOW POWDER COAT 36 /8" 48" 1 /16" 21
3
11
HPRO-36-42-2� YELLOW POWDER COAT 42 /8" 36" 1 /16" 23 model
11
HPRO-48-42-2� YELLOW POWDER COAT 42 /8" 48" 1 /16" 26 HPRO-36-42-2
3
9
HPRO-36-24-4� YELLOW POWDER COAT 24 /16" 36 /8" 4½" 46
5
9
5
HPRO-48-24-4� YELLOW POWDER COAT 24 /16" 48 /8" 4½" 50
5
9
HPRO-36-36-4� YELLOW POWDER COAT 36 /16" 36 /8" 4½" 56
9
5
HPRO-48-36-4� YELLOW POWDER COAT 36 /16" 48 /8" 4½" 63
5
9
HPRO-36-42-4� YELLOW POWDER COAT 42 /16" 36 /8" 4½" 67
9
5
HPRO-48-42-4� YELLOW POWDER COAT 42 /16" 48 /8" 4½" 76
HPRO-60-42-4 YELLOW POWDER COAT 42 /16" 60 /8" 4½" 126
9
5
HPRO-72-42-4 YELLOW POWDER COAT 42 /16" 72 /8" 4½" 129
5
9
1
HPRO-SS-36-36-4� 304 STAINLESS STEEL 36 /4" 36 /8" 4½" 94 model
5
HPRO-48-24-4
5
1
HPRO-SS-48-36-4� 304 STAINLESS STEEL 36 /4" 48 /8" 4½" 102
1
5
HPRO-SS-36-42-4� 304 STAINLESS STEEL 42 /4" 36 /8" 4½" 100
1
3
HPRO-SS-48-42-4� 304 STAINLESS STEEL 42 /4" 48 /8" 4½" 107
HPRO-RF-BASE� BASE FOR HPRO SERIES MACHINERY GUARDS 10
AS-383� ANCHOR BOLTS FOR CONCRETE (1) 3/8" x 3" (1 11 /16" UNITS) 1
AS-383-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/8" x 3" (1 11 /16" UNITS) 4
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" (4½" UNITS) 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" (4½" UNITS) 4
High Profile Machinery Guards with Welded Mesh model
HPRO-SS-36-36-4
High Profile Machinery Guards are ideal for manufacturing and distribution facilities. The unit is
constructed of baked-in powder-coated toughness 7 gauge welded steel wire mesh panels for visibility
and long lasting durability. The welded mesh inside design allows for products to be protected, while
still being visible. To use, place the unit in front of the selected product and attach to surface. OSHA
compliant. Includes baked-in powder-coated toughness. Hardware is available separately.
MODEL OUTSIDE WEIGHT
NUMBER FINISH HEIGHT LENGTH DIAMETER (POUND)
3
11
HPRO-M-36-24-2� YELLOW POWDER COAT 24 /8" 36" 1 /16" 20
11
3
HPRO-M-48-24-2� YELLOW POWDER COAT 24 /8" 48" 1 /16" 24
11
HPRO-M-36-36-2� YELLOW POWDER COAT 36 /8" 36" 1 /16" 26
3
3
11
HPRO-M-48-36-2� YELLOW POWDER COAT 36 /8" 48" 1 /16" 28
11
3
HPRO-M-36-42-2� YELLOW POWDER COAT 42 /8" 36" 1 /16" 35
3
11
HPRO-M-48-42-2� YELLOW POWDER COAT 42 /8" 48" 1 /16" 37
AS-383� ANCHOR BOLTS FOR CONCRETE (1) 3/8" x 3" 1
model
AS-383-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/8" x 3" 4 HPRO-M-36-36-2
