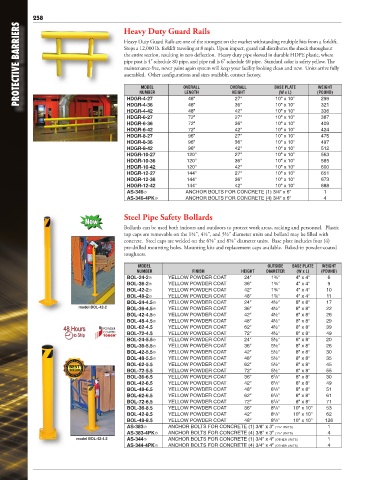

258 Heavy Duty Guard Rails
PROTECTIVE BARRIERS Heavy Duty Guard Rails are one of the strongest on the market withstanding multiple hits from a forklift.

Stops a 12,000 lb. forklift traveling at 8 mph. Upon impact, guard rail distributes the shock throughout
the entire section, resulting in zero deflection. Heavy duty pipe sleeved in durable HDPE plastic, where
pipe post is 4" schedule 80 pipe, and pipe rail is 6" schedule 40 pipe. Standard color is safety yellow. The
maintenance-free, never paint again system will keep your facility looking clean and new. Units arrive fully
assembled. Other configurations and sizes available, contact factory.

OVERALL
BASE PLATE
OVERALL
MODEL
WEIGHT
(W x L)
NUMBER
HDGR-4-27
48"
299
27"
HDGR-4-36
10" x 10"
36"
48"
321
HDGR-4-42 LENGTH HEIGHT 10" x 10" (POUND)
42"
336
48"
10" x 10"
HDGR-6-27 72" 27" 10" x 10" 387
HDGR-6-36 72" 36" 10" x 10" 409
HDGR-6-42 72" 42" 10" x 10" 424
HDGR-8-27 96" 27" 10" x 10" 475
HDGR-8-36 96" 36" 10" x 10" 497
HDGR-8-42 96" 42" 10" x 10" 512
HDGR-10-27 120" 27" 10" x 10" 563
HDGR-10-36 120" 36" 10" x 10" 585
HDGR-10-42 120" 42" 10" x 10" 600
HDGR-12-27 144" 27" 10" x 10" 651
HDGR-12-36 144" 36" 10" x 10" 673
HDGR-12-42 144" 42" 10" x 10" 688
AS-346� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 6" 1
AS-346-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 6" 4
Steel Pipe Safety Bollards
New
Bollards can be used both indoors and outdoors to protect work areas, racking and personnel. Plastic
top caps are removable on the 1¾", 4½", and 5½" diameter units and bollard may be filled with
concrete. Steel caps are welded on the 6⅝" and 8⅝" diameter units. Base plate includes four (4)
pre-drilled mounting holes. Mounting kits and replacement caps available. Baked-in powder-coated
toughness.
MODEL OUTSIDE BASE PLATE WEIGHT
NUMBER FINISH HEIGHT DIAMETER (W x L) (POUND)
BOL-24-2� YELLOW POWDER COAT 24" 1¾" 4" x 4" 6
BOL-36-2� YELLOW POWDER COAT 36" 1¾" 4" x 4" 9
BOL-42-2� YELLOW POWDER COAT 42" 1¾" 4" x 4" 10
BOL-48-2� YELLOW POWDER COAT 48" 1¾" 4" x 4" 11
BOL-24-4.5� YELLOW POWDER COAT 24" 4½" 8" x 8" 17
model BOL-42-2
BOL-36-4.5� YELLOW POWDER COAT 36" 4½" 8" x 8" 22
BOL-42-4.5� YELLOW POWDER COAT 42" 4½" 8" x 8" 26
BOL-48-4.5� YELLOW POWDER COAT 48" 4½" 8" x 8" 29
BOL-62-4.5 YELLOW POWDER COAT 62" 4½" 8" x 8" 39
BOL-72-4.5 YELLOW POWDER COAT 72" 4½" 8" x 8" 49
BOL-24-5.5� YELLOW POWDER COAT 24" 5½" 8" x 8" 20
BOL-36-5.5� YELLOW POWDER COAT 36" 5½" 8" x 8" 26
BOL-42-5.5� YELLOW POWDER COAT 42" 5½" 8" x 8" 30
BOL-48-5.5� YELLOW POWDER COAT 48" 5½" 8" x 8" 35
BOL-62-5.5 YELLOW POWDER COAT 62" 5½" 8" x 8" 45
BOL-72-5.5 YELLOW POWDER COAT 72" 5½" 8" x 8" 55
BOL-36-6.5 YELLOW POWDER COAT 36" 6 /8" 8" x 8" 30
5
BOL-42-6.5 YELLOW POWDER COAT 42" 6 /8" 8" x 8" 49
5
BOL-48-6.5 YELLOW POWDER COAT 48" 6 /8" 8" x 8" 51
5
BOL-62-6.5 YELLOW POWDER COAT 62" 6 /8" 8" x 8" 61
5
BOL-72-6.5 YELLOW POWDER COAT 72" 6 /8" 8" x 8" 71
5
BOL-36-8.5 YELLOW POWDER COAT 36" 8 /8" 10" x 10" 53
5
BOL-42-8.5 YELLOW POWDER COAT 42" 8 /8" 10" x 10" 62
5
BOL-48-8.5 YELLOW POWDER COAT 48" 8 /8" 10" x 10" 126
5
AS-383� ANCHOR BOLTS FOR CONCRETE (1) 3/8" x 3" (1 3 /4" UNITS) 1
AS-383-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/8" x 3" (1 3 /4" UNITS) 4
model BOL-42-4.5 AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" (OTHER UNITS) 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" (OTHER UNITS) 4
