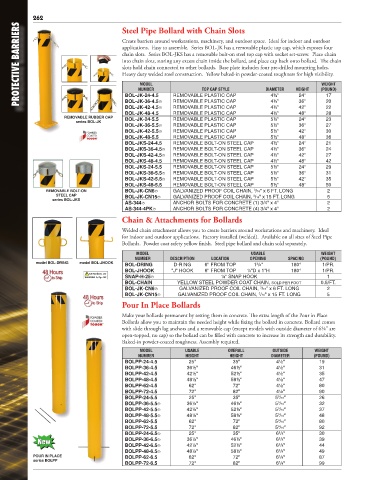

Page 256 - Vestil Catalog 112

262 Steel Pipe Bollard with Chain Slots
PROTECTIVE BARRIERS applications. Easy to assemble. Series BOL-JK has a removable plastic top cap, which exposes four

Create barriers around workstations, machinery, and outdoor space. Ideal for indoor and outdoor
chain slots. Series BOL-JKS has a removable bolt-on steel top cap with socket set-screw. Place chain
into chain slots, storing any excess chain inside the bollard, and place cap back onto bollard. The chain
slots hold chain connected to other bollards. Base plate includes four pre-drilled mounting holes.
Heavy duty welded steel construction. Yellow baked-in powder-coated toughness for high visibility.

MODEL
WEIGHT
TOP CAP STYLE
NUMBER
BOL-JK-24-4.5
24"
4½"
17
REMOVABLE PLASTIC CAP
BOL-JK-36-4.5�
4½"
20
36"
22
REMOVABLE PLASTIC CAP
42"
4½"
BOL-JK-42-4.5� REMOVABLE PLASTIC CAP DIAMETER HEIGHT (POUND)
BOL-JK-48-4.5 REMOVABLE PLASTIC CAP 4½" 48" 28
REMOVABLE RUBBER CAP BOL-JK-24-5.5 REMOVABLE PLASTIC CAP 5½" 24" 23
series BOL-JK
BOL-JK-36-5.5� REMOVABLE PLASTIC CAP 5½" 36" 27
BOL-JK-42-5.5� REMOVABLE PLASTIC CAP 5½" 42" 30
BOL-JK-48-5.5 REMOVABLE PLASTIC CAP 5½" 48" 36
BOL-JKS-24-4.5 REMOVABLE BOLT-ON STEEL CAP 4½" 24" 21
BOL-JKS-36-4.5� REMOVABLE BOLT-ON STEEL CAP 4½" 36" 24
BOL-JKS-42-4.5� REMOVABLE BOLT-ON STEEL CAP 4½" 42" 27
BOL-JKS-48-4.5 REMOVABLE BOLT-ON STEEL CAP 4½" 48" 42
BOL-JKS-24-5.5 REMOVABLE BOLT-ON STEEL CAP 5½" 24" 29
BOL-JKS-36-5.5� REMOVABLE BOLT-ON STEEL CAP 5½" 36" 31
BOL-JKS-42-5.5� REMOVABLE BOLT-ON STEEL CAP 5½" 42" 35
BOL-JKS-48-5.5 REMOVABLE BOLT-ON STEEL CAP 5½" 48" 50
3
REMOVABLE BOLT-ON BOL-JK-CN6� GALVANIZED PROOF COIL CHAIN, /16" x 6 FT. LONG 2
STEEL CAP BOL-JK-CN15� GALVANIZED PROOF COIL CHAIN, /16" x 15 FT. LONG 5
3
series BOL-JKS
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" 2
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" 2
Chain & Attachments for Bollards
Welded chain attachment allows you to create barriers around workstations and machinery. Ideal
for indoor and outdoor applications. Factory installed (welded). Available on all sizes of Steel Pipe
Bollards. Powder coat safety yellow finish. Steel pipe bollard and chain sold separately.
MODEL USABLE WEIGHT
NUMBER DESCRIPTION LOCATION OPENING SPACING (POUND)
model BOL-DRING model BOL-JHOOK
BOL-DRING D-RING 6" FROM TOP 1 /8" 180° 1/PR.
3
BOL-JHOOK "J" HOOK 6" FROM TOP ¼"D x 1"H 180° 1/PR.
CA Residents see
WARNING A, Pg. 459 SNAP-H-25� ¼" SNAP HOOK 1
BOL-CHAIN YELLOW STEEL POWDER COAT CHAIN, SOLD PER FOOT 0.5/FT.
3
BOL-JK-CN6� GALVANIZED PROOF COIL CHAIN, /16" x 6 FT. LONG 2
3
BOL-JK-CN15� GALVANIZED PROOF COIL CHAIN, /16" x 15 FT. LONG 5
Pour In Place Bollards
Make your bollards permanent by setting them in concrete. The extra length of the Pour in Place
Bollards allow you to maintain the needed height while fixing the bollard in concrete. Bollard comes
with slide through lag anchors and a removable cap (except models with outside diameter of 6⅝" are
open-topped, no cap) so the bollard can be filled with concrete to increase its strength and durability.
Baked-in powder-coated toughness. Assembly required.
MODEL USABLE OVERALL OUTSIDE WEIGHT
NUMBER HEIGHT HEIGHT DIAMETER (POUND)
BOLPP-24-4.5 25" 35" 4½" 19
BOLPP-36-4.5 36½" 46½" 4½" 31
BOLPP-42-4.5 42½" 52½" 4½" 35
BOLPP-48-4.5 48½" 58½" 4½" 47
BOLPP-62-4.5 62" 72" 4½" 80
BOLPP-72-4.5 72" 82" 4½" 90
BOLPP-24-5.5 25" 35" 5 /16" 26
9
BOLPP-36-5.5� 36½" 46½" 5 /16" 32
9
9
BOLPP-42-5.5� 42½" 52½" 5 /16" 37
9
BOLPP-48-5.5� 48½" 58½" 5 /16" 48
BOLPP-62-5.5 62" 72" 5 /16" 80
9
BOLPP-72-5.5 72" 82" 5 /16" 92
9
5
BOLPP-24-6.5� 25" 35" 6 /8" 30
New BOLPP-36-6.5� 36½" 46½" 6 /8" 39
5
5
BOLPP-42-6.5� 42½" 52½" 6 /8" 44
BOLPP-48-6.5� 48½" 58½" 6 /8" 49
5
POUR IN PLACE BOLPP-62-6.5 62" 72" 6 /8" 87
5
series BOLPP
BOLPP-72-6.5 72" 82" 6 /8" 99
5
