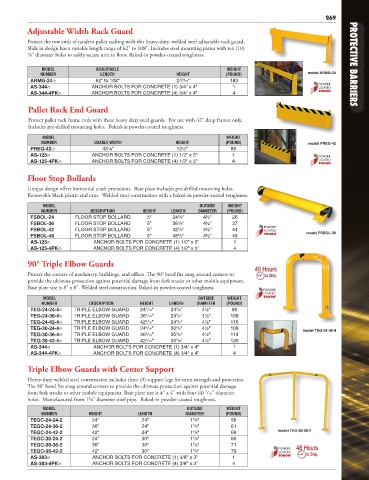

Page 263 - Vestil Catalog 112

269
Adjustable Width Rack Guard

Protect the row ends of tandem pallet racking with this heavy-duty, welded steel adjustable rack guard.
Slide in design has a variable length range of 62" to 108". Includes steel mounting plates with ten (10)
⅞" diameter holes to safely secure unit to floor. Baked-in powder-coated toughness.

MODEL ADJUSTABLE WEIGHT PROTECTIVE BARRIERS
NUMBER LENGTH HEIGHT (POUND) model ARMG-24
9
ARMG-24� 62" to 108" 24 /16" 183
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" 4
Pallet Rack End Guard

Protect pallet rack frame ends with these heavy duty steel guards. For use with 42" deep frames only.
Includes pre-drilled mounting holes. Baked-in powder-coated toughness.

MODEL WEIGHT
NUMBER USABLE WIDTH HEIGHT (POUND) model PREG-42
PREG-42� 43¼" 12½" 89
AS-125� ANCHOR BOLTS FOR CONCRETE (1) 1/2" x 5" 1
AS-125-4PK� ANCHOR BOLTS FOR CONCRETE (4) 1/2" x 5" 4

Floor Stop Bollards

Unique design offers horizontal crash protection. Base plate includes pre-drilled mounting holes.
Removable black plastic end caps. Welded steel construction with a baked-in powder-coated toughness.
MODEL OUTSIDE WEIGHT
NUMBER DESCRIPTION HEIGHT LENGTH DIAMETER (POUND)
FSBOL-24 FLOOR STOP BOLLARD 5" 24 /8" 4½" 26
3
FSBOL-36 FLOOR STOP BOLLARD 5" 36 /8" 4½" 37
3
FSBOL-42 FLOOR STOP BOLLARD 5" 42 /8" 4½" 44 model FSBOL-36
3
FSBOL-48 FLOOR STOP BOLLARD 5" 48 /8" 4½" 49
3
AS-125� ANCHOR BOLTS FOR CONCRETE (1) 1/2" x 5" 1
AS-125-4PK� ANCHOR BOLTS FOR CONCRETE (4) 1/2" x 5" 4
90° Triple Elbow Guards
Protect the corners of machinery, buildings, and offices. The 90° bend fits snug around corners to
provide the ultimate protection against potential damage from fork trucks or other mobile equipment.
Base plate size is 8" x 8". Welded steel construction. Baked-in powder-coated toughness.
MODEL OUTSIDE WEIGHT
NUMBER DESCRIPTION HEIGHT LENGTH DIAMETER (POUND)
9
TEG-24-24-4� TRIPLE ELBOW GUARD 24 /16" 24 /8" 4½" 96
5
TEG-24-36-4� TRIPLE ELBOW GUARD 36 /16" 24 /8" 4½" 108
9
5
9
5
TEG-24-42-4� TRIPLE ELBOW GUARD 42 /16" 24 /8" 4½" 116
9
5
TEG-30-24-4� TRIPLE ELBOW GUARD 24 /16" 30 /8" 4½" 108 model TEG-24-36-4
5
9
TEG-30-36-4� TRIPLE ELBOW GUARD 36 /16" 30 /8" 4½" 114
5
9
TEG-30-42-4� TRIPLE ELBOW GUARD 42 /16" 30 /8" 4½" 120
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" 4
Triple Elbow Guards with Center Support
Heavy-duty welded steel construction includes three (3) support legs for extra strength and protection.
The 90° bend fits snug around corners to provide the ultimate protection against potential damage
from fork trucks or other mobile equipment. Base plate size is 4" x 4" with four (4) /16" diameter
7
holes. Manufactured from 1⅝" diameter steel pipe. Baked-in powder-coated toughness.
MODEL OUTSIDE WEIGHT
NUMBER HEIGHT LENGTH DIAMETER (POUND)
TEGC-24-24-2 24" 24" 1 /8" 56
5
TEGC-24-36-2 36" 24" 1 /8" 61
5
TEGC-24-42-2 42" 24" 1 /8" 69 model TEG-30-36-2
5
TEGC-30-24-2 24" 30" 1 /8" 66
5
TEGC-30-36-2 36" 30" 1 /8" 71
5
TEGC-30-42-2 42" 30" 1 /8" 79
5
AS-383� ANCHOR BOLTS FOR CONCRETE (1) 3/8" x 3" 1
AS-383-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/8" x 3" 4
