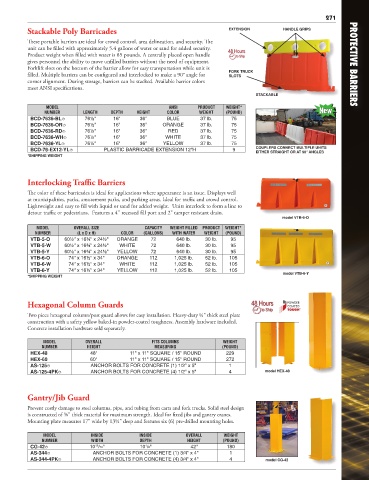

Page 265 - Vestil Catalog 112

271
Stackable Poly Barricades EXTENSION HANDLE GRIPS

These portable barriers are ideal for crowd control, area delineation, and security. The
unit can be filled with approximately 5.4 gallons of water or sand for added security.
Product weight when filled with water is 85 pounds. A centrally placed open handle
gives personnel the ability to move unfilled barriers without the need of equipment.
Forklift slots on the bottom of the barrier allow for easy transportation while unit is PROTECTIVE BARRIERS
filled. Multiple barriers can be configured and interlocked to make a 90° angle for FORK TRUCK
SLOTS
corner alignment. During storage, barriers can be stacked. Available barrier colors
meet ANSI specifications.
STACKABLE
MODEL ANSI PRODUCT WEIGHT*
NUMBER LENGTH DEPTH HEIGHT COLOR WEIGHT (POUND) New
BCD-7636-BL� 76½" 16" 36" BLUE 37 lb. 75
BCD-7636-OR� 76½" 16" 36" ORANGE 37 lb. 75
BCD-7636-RD� 76½" 16" 36" RED 37 lb. 75
BCD-7636-WH� 76½" 16" 36" WHITE 37 lb. 75
BCD-7636-YL� 76½" 16" 36" YELLOW 37 lb. 75
BCD-76-EX12-YL� PLASTIC BARRICADE EXTENSION 12"H 9 COUPLERS CONNECT MULTIPLE UNITS
EITHER STRAIGHT OR AT 90° ANGLES
*SHIPPING WEIGHT

Interlocking Traffic Barriers

The color of these barricades is ideal for applications where appearance is an issue. Displays well
at municipalities, parks, amusement parks, and parking areas. Ideal for traffic and crowd control.
Lightweight and easy to fill with liquid or sand for added weight. Units interlock to form a line to
detour traffic or pedestrians. Features a 4" recessed fill port and 2" tamper resistant drain.
model VTB-6-O
MODEL OVERALL SIZE CAPACITY WEIGHT FILLED PRODUCT WEIGHT*
NUMBER (L x D x H) COLOR (GALLONS) WITH WATER WEIGHT (POUND)
VTB-5-O 60½" x 16¾" x 24½" ORANGE 72 640 lb. 30 lb. 95
VTB-5-W 60½" x 16¾" x 24½" WHITE 72 640 lb. 30 lb. 95
VTB-5-Y 60½" x 16¾" x 24½" YELLOW 72 640 lb. 30 lb. 95
VTB-6-O 74" x 16½" x 34" ORANGE 112 1,025 lb. 52 lb. 105
VTB-6-W 74" x 16½" x 34" WHITE 112 1,025 lb. 52 lb. 105
VTB-6-Y 74" x 16½" x 34" YELLOW 112 1,025 lb. 52 lb. 105
*SHIPPING WEIGHT model VTB-6-Y

Hexagonal Column Guards

Two piece hexagonal column/post guard allows for easy installation. Heavy-duty ¼" thick steel plate
construction with a safety yellow baked-in powder-coated toughness. Assembly hardware included.
Concrete installation hardware sold separately.

MODEL OVERALL FITS COLUMNS WEIGHT
NUMBER HEIGHT MEASURING (POUND)
HEX-48 48" 11" x 11" SQUARE / 15" ROUND 229
HEX-60 60" 11" x 11" SQUARE / 15" ROUND 272
AS-125� ANCHOR BOLTS FOR CONCRETE (1) 1/2" x 5" 1
AS-125-4PK� ANCHOR BOLTS FOR CONCRETE (4) 1/2" x 5" 4 model HEX-48

Gantry/Jib Guard
Prevent costly damage to steel columns, pipe, and tubing from carts and fork trucks. Solid steel design
is constructed of ⅜" thick material for maximum strength. Ideal for fixed jibs and gantry cranes.
Mounting plate measures 17" wide by 13½" deep and features six (6) pre-drilled mounting holes.

MODEL INSIDE INSIDE OVERALL WEIGHT
NUMBER WIDTH DEPTH HEIGHT (POUND)
13
1
CG-42� 10 /16" 10 /8" 42" 180
AS-344� ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" 1
AS-344-4PK� ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" 4 model CG-42
