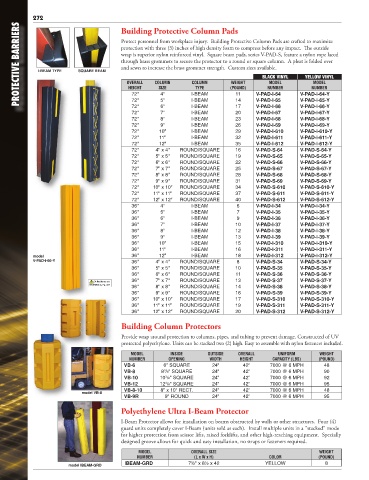

272 Building Protective Column Pads
PROTECTIVE BARRIERS I-BEAM TYPE SQUARE BEAM Protect personnel from workplace injury. Building Protective Column Pads are crafted to maximize

protection with three (3) inches of high density foam to compress before any impact. The outside
wrap is superior nylon reinforced vinyl. Square beam pads, series V-PAD-S, feature a nylon rope laced
through brass grommets to secure the protector to a round or square column. A pleat is folded over
and sewn to increase the brass grommet strength. Custom sizes available.
BLACK VINYL
YELLOW VINYL
MODEL
OVERALL
COLUMN
WEIGHT
COLUMN
MODEL
NUMBER
NUMBER
HEIGHT
TYPE
11
4"
72"
V-PAD-I-65
V-PAD-I-65-Y
5"
14
72"
I-BEAM
V-PAD-I-66-Y
V-PAD-I-66
72" SIZE I-BEAM (POUND) V-PAD-I-64 V-PAD-I-64-Y
I-BEAM
17
6"
72" 7" I-BEAM 20 V-PAD-I-67 V-PAD-I-67-Y
72" 8" I-BEAM 23 V-PAD-I-68 V-PAD-I-68-Y
72" 9" I-BEAM 26 V-PAD-I-69 V-PAD-I-69-Y
72" 10" I-BEAM 29 V-PAD-I-610 V-PAD-I-610-Y
72" 11" I-BEAM 32 V-PAD-I-611 V-PAD-I-611-Y
72" 12" I-BEAM 35 V-PAD-I-612 V-PAD-I-612-Y
72" 4" x 4" ROUND/SQUARE 16 V-PAD-S-64 V-PAD-S-64-Y
72" 5" x 5" ROUND/SQUARE 19 V-PAD-S-65 V-PAD-S-65-Y
72" 6" x 6" ROUND/SQUARE 22 V-PAD-S-66 V-PAD-S-66-Y
72" 7" x 7" ROUND/SQUARE 25 V-PAD-S-67 V-PAD-S-67-Y
72" 8" x 8" ROUND/SQUARE 28 V-PAD-S-68 V-PAD-S-68-Y
72" 9" x 9" ROUND/SQUARE 31 V-PAD-S-69 V-PAD-S-69-Y
72" 10" x 10" ROUND/SQUARE 34 V-PAD-S-610 V-PAD-S-610-Y
72" 11" x 11" ROUND/SQUARE 37 V-PAD-S-611 V-PAD-S-611-Y
72" 12" x 12" ROUND/SQUARE 40 V-PAD-S-612 V-PAD-S-612-Y
36" 4" I-BEAM 6 V-PAD-I-34 V-PAD-I-34-Y
36" 5" I-BEAM 7 V-PAD-I-35 V-PAD-I-35-Y
36" 6" I-BEAM 9 V-PAD-I-36 V-PAD-I-36-Y
36" 7" I-BEAM 10 V-PAD-I-37 V-PAD-I-37-Y
36" 8" I-BEAM 12 V-PAD-I-38 V-PAD-I-38-Y
36" 9" I-BEAM 13 V-PAD-I-39 V-PAD-I-39-Y
36" 10" I-BEAM 15 V-PAD-I-310 V-PAD-I-310-Y
36" 11" I-BEAM 16 V-PAD-I-311 V-PAD-I-311-Y
model 36" 12" I-BEAM 18 V-PAD-I-312 V-PAD-I-312-Y
V-PAD-I-66-Y 36" 4" x 4" ROUND/SQUARE 8 V-PAD-S-34 V-PAD-S-34-Y
36" 5" x 5" ROUND/SQUARE 10 V-PAD-S-35 V-PAD-S-35-Y
36" 6" x 6" ROUND/SQUARE 11 V-PAD-S-36 V-PAD-S-36-Y
CA Residents see 36" 7" x 7" ROUND/SQUARE 13 V-PAD-S-37 V-PAD-S-37-Y
WARNING A, Pg. 459
36" 8" x 8" ROUND/SQUARE 14 V-PAD-S-38 V-PAD-S-38-Y
36" 9" x 9" ROUND/SQUARE 16 V-PAD-S-39 V-PAD-S-39-Y
36" 10" x 10" ROUND/SQUARE 17 V-PAD-S-310 V-PAD-S-310-Y
36" 11" x 11" ROUND/SQUARE 19 V-PAD-S-311 V-PAD-S-311-Y
36" 12" x 12" ROUND/SQUARE 20 V-PAD-S-312 V-PAD-S-312-Y
Building Column Protectors
Provide wrap around protection to columns, pipes, and tubing to prevent damage. Constructed of UV
protected polyethylene. Units can be stacked two (2) high. Easy to assemble with nylon fasteners included.
MODEL INSIDE OUTSIDE OVERALL UNIFORM WEIGHT
NUMBER OPENING WIDTH HEIGHT CAPACITY (LBS) (POUND)
VB-6 6" SQUARE 24" 42" 7000 @ 6 MPH 48
VB-8 8 /8" SQUARE 24" 42" 7000 @ 6 MPH 90
3
VB-10 10 /8" SQUARE 24" 42" 7000 @ 6 MPH 92
3
VB-12 12 /8" SQUARE 24" 42" 7000 @ 6 MPH 95
3
VB-8-10 8" x 10" RECT. 24" 42" 7000 @ 6 MPH 48
model VB-8
VB-9R 9" ROUND 24" 42" 7000 @ 6 MPH 95
Polyethylene Ultra I-Beam Protector
I-Beam Protector allows for installation on beams obstructed by walls or other structures. Four (4)
guard units completely cover I-Beam (units sold as each). Install multiple units in a "stacked" mode
for higher protection from scissor lifts, raised forklifts, and other high-reaching equipment. Specially
designed groove allows for quick and easy installation, no straps or fasteners required.
MODEL OVERALL SIZE WEIGHT
NUMBER (L x W x H) COLOR (POUND)
IBEAM-GRD 7½" x 8½ x 42 YELLOW 8
model IBEAM-GRD
