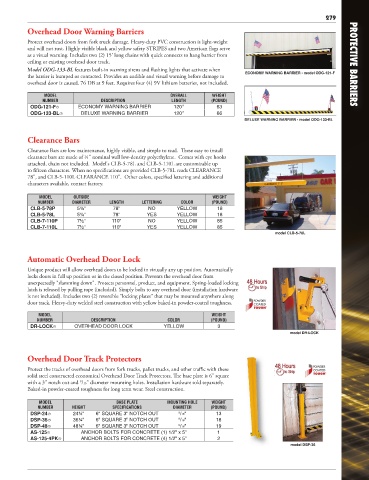

Page 273 - Vestil Catalog 112

279
Overhead Door Warning Barriers

Protect overhead doors from fork truck damage. Heavy-duty PVC construction is light-weight
and will not rust. Highly visible black and yellow safety STRIPES and two American flags serve
as a visual warning. Includes two (2) 15' long chains with quick connects to hang barrier from
ceiling or existing overhead door track. PROTECTIVE BARRIERS
Model ODG-133-BL features built-in warning sirens and flashing lights that activate when
the barrier is bumped or contacted. Provides an audible and visual warning before damage to ECONOMY WARNING BARRIER • model ODG-121-F
overhead door is caused. 76 DB at 9 feet. Requires four (4) 9V lithium batteries, not included.

MODEL OVERALL WEIGHT
NUMBER DESCRIPTION LENGTH (POUND)
ODG-121-F� ECONOMY WARNING BARRIER 120" 63
ODG-133-BL� DELUXE WARNING BARRIER 120" 66
DELUXE WARNING BARRIER • model ODG-133-BL

Clearance Bars
Clearance Bars are low maintenance, highly visible, and simple to read. These easy to install
clearance bars are made of ¼" nominal wall low-density polyethylene. Comes with eye hooks
attached, chain not included. Model's CLB-5-78L and CLB-5-110L are customizable up
to fifteen characters. When no specifications are provided CLB-5-78L reads CLEARANCE
78", and CLB-5-110L CLEARANCE 110". Other colors, specified lettering and additional
characters available, contact factory.

MODEL OUTSIDE WEIGHT
NUMBER DIAMETER LENGTH LETTERING COLOR (POUND)
CLB-5-78P 5¼" 78" NO YELLOW 18
CLB-5-78L 5¼" 78" YES YELLOW 18
CLB-7-110P 7½" 110" NO YELLOW 85
CLB-7-110L 7½" 110" YES YELLOW 85
model CLB-5-78L

Automatic Overhead Door Lock
Unique product will allow overhead doors to be locked in virtually any up position. Automatically
locks doors in full up position or in the closed position. Prevents the overhead door from
unexpectedly "slamming down". Protects personnel, product, and equipment. Spring-loaded locking
latch is released by pulling rope (included). Simply bolts to any overhead door (installation hardware
is not included). Includes two (2) reversible "locking plates" that may be mounted anywhere along
door track. Heavy-duty welded steel construction with yellow baked-in powder-coated toughness.

MODEL WEIGHT
NUMBER DESCRIPTION COLOR (POUND)
DR-LOCK� OVERHEAD DOOR LOCK YELLOW 3
model DR-LOCK

Overhead Door Track Protectors

Protect the tracks of overhead doors from fork trucks, pallet trucks, and other traffic with these
solid steel constructed economical Overhead Door Track Protectors. The base plate is 6" square
with a 3" notch out and /16" diameter mounting holes. Installation hardware sold separately.
9
Baked-in powder-coated toughness for long term wear. Steel construction.
MODEL BASE PLATE MOUNTING HOLE WEIGHT
NUMBER HEIGHT SPECIFICATIONS DIAMETER (POUND)
DSP-24� 24¼" 6" SQUARE 3" NOTCH OUT 9 /16" 13
DSP-36� 36¼" 6" SQUARE 3" NOTCH OUT 9 /16" 18
DSP-48� 48¼" 6" SQUARE 3" NOTCH OUT 9 /16" 19
AS-125� ANCHOR BOLTS FOR CONCRETE (1) 1/2" x 5" 1
AS-125-4PK� ANCHOR BOLTS FOR CONCRETE (4) 1/2" x 5" 2
model DSP-36
