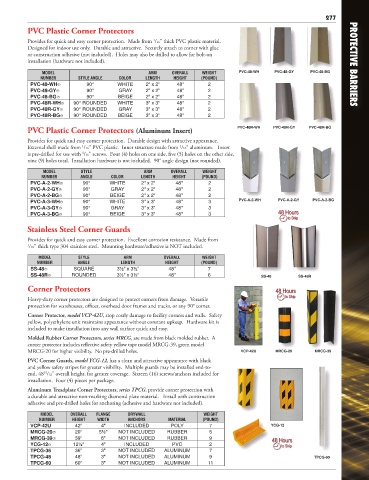

Page 271 - Vestil Catalog 112

277
PVC Plastic Corner Protectors

1
Provides for quick and easy corner protection. Made from /16" thick PVC plastic material.
Designed for indoor use only. Durable and attractive. Securely attach to corner with glue
or construction adhesive (not included). Holes may also be drilled to allow for bolt-on
installation (hardware not included). PROTECTIVE BARRIERS
MODEL ARM OVERALL WEIGHT PVC-48-WH PVC-48-GY PVC-48-BG
NUMBER STYLE ANGLE COLOR LENGTH HEIGHT (POUND)
PVC-48-WH� 90° WHITE 2" x 2" 48" 2
PVC-48-GY� 90° GRAY 2" x 2" 48" 2
PVC-48-BG� 90° BEIGE 2" x 2" 48" 2
PVC-48R-WH� 90° ROUNDED WHITE 3" x 3" 48" 2
PVC-48R-GY� 90° ROUNDED GRAY 3" x 3" 48" 2
PVC-48R-BG� 90° ROUNDED BEIGE 3" x 3" 48" 2

PVC Plastic Corner Protectors (Aluminum Insert) PVC-48R-WH PVC-48R-GY PVC-48R-BG
Provides for quick and easy corner protection. Durable design with attractive appearance.
External shell made from /16" PVC plastic. Inner structure made from /16" aluminum. Insert
1
1
is pre-drilled for use with /16" screws. Four (4) holes on one side, five (5) holes on the other side,
3
nine (9) holes total. Installation hardware is not included. 90° angle design (not rounded).
MODEL STYLE ARM OVERALL WEIGHT
NUMBER ANGLE COLOR LENGTH HEIGHT (POUND)
PVC-A-2-WH� 90° WHITE 2" x 2" 48" 2
PVC-A-2-GY� 90° GRAY 2" x 2" 48" 2
PVC-A-2-BG� 90° BEIGE 2" x 2" 48" 2
PVC-A-2-WH PVC-A-2-GY PVC-A-2-BG
PVC-A-3-WH� 90° WHITE 3" x 3" 48" 3
PVC-A-3-GY� 90° GRAY 3" x 3" 48" 3
PVC-A-3-BG� 90° BEIGE 3" x 3" 48" 3
Stainless Steel Corner Guards
Provides for quick and easy corner protection. Excellent corrosion resistance. Made from
1 /16" thick type 304 stainless steel. Mounting hardware/adhesive is NOT included.
MODEL STYLE ARM OVERALL WEIGHT
NUMBER ANGLE LENGTH HEIGHT (POUND)
SS-48� SQUARE 3½" x 3½" 48" 7
SS-48R� ROUNDED 3½" x 3½" 48" 6 SS-48 SS-48R
Corner Protectors
Heavy-duty corner protectors are designed to protect corners from damage. Versatile
protection for warehouses, offices, overhead door frames and tracks, or any 90° corner.
Corner Protector, model VCP-42U, stop costly damage to facility corners and walls. Safety
yellow, polyethylene unit maintains appearance without constant upkeep. Hardware kit is
included to make installation into any wall surface quick and easy.
Molded Rubber Corner Protectors, series MRCG, are made from black molded rubber. A
corner protector includes reflective safety yellow tape model MRCG-39, green model
MRCG-20 for higher visibility. No pre-drilled holes. VCP-42U MRCG-20 MRCG-39
PVC Corner Guards, model YCG-12, has a clean and attractive appearance with black
and yellow safety stripes for greater visibility. Multiple guards may be installed end-to-
end, 48 /32" overall height, for greater coverage. Sixteen (16) screws/anchors included for
25
installation. Four (4) pieces per package.
Aluminum Treadplate Corner Protectors, series TPCG, provide corner protection with
a durable and attractive non-marking diamond plate material. Install with construction
adhesive and pre-drilled holes for anchoring (adhesive and hardware not included).
MODEL OVERALL FLANGE DRYWALL WEIGHT
NUMBER HEIGHT WIDTH ANCHORS MATERIAL (POUND)
VCP-42U 42" 4" INCLUDED POLY 7 YCG-12
MRCG-20� 20" 5½" NOT INCLUDED RUBBER 5
MRCG-39� 39" 6" NOT INCLUDED RUBBER 9
YCG-12� 12½" 4" INCLUDED PVC 2
TPCG-36 36" 3" NOT INCLUDED ALUMINUM 7
TPCG-48 48" 3" NOT INCLUDED ALUMINUM 9 TPCG-60
TPCG-60 60" 3" NOT INCLUDED ALUMINUM 11
