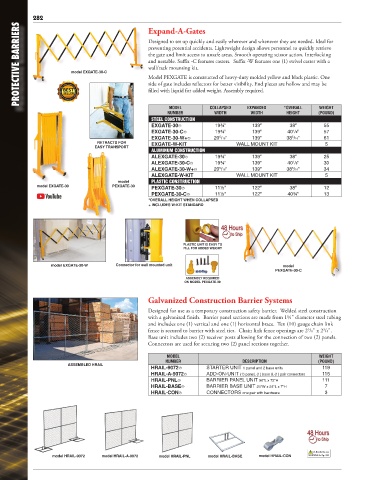

Page 276 - Vestil Catalog 112

282 Expand-A-Gates
PROTECTIVE BARRIERS model EXGATE-30-C Designed to set up quickly and easily wherever and whenever they are needed. Ideal for

preventing potential accidents. Lightweight design allows personnel to quickly retrieve
the gate and limit access to unsafe areas. Smooth operating scissor action. Interlocking
and nestable. Suffix -C features casters. Suffix -W features one (1) swivel caster with a
wall/rack mounting kit.
Model PEXGATE is constructed of heavy-duty molded yellow and black plastic. One
side of gate includes reflectors for better visibility. End pieces are hollow and may be
filled with liquid for added weight. Assembly required.

MODEL COLLAPSED EXPANDED *OVERALL WEIGHT
NUMBER WIDTH WIDTH HEIGHT (POUND)
STEEL CONSTRUCTION
EXGATE-30� 19¾" 139" 38" 55
1
EXGATE-30-C� 19¾" 139" 40 /8" 57
EXGATE-30-W+� 20 /16" 139" 38 /16" 61
5
5
RETRACTS FOR EXGATE-W-KIT WALL MOUNT KIT 5
EASY TRANSPORT
ALUMINUM CONSTRUCTION
ALEXGATE-30� 19¾" 139" 38" 25
1
ALEXGATE-30-C� 19¾" 139" 40 /8" 30
5
5
ALEXGATE-30-W+� 20 /16" 139" 38 /16" 34
ALEXGATE-W-KIT WALL MOUNT KIT 5
model PLASTIC CONSTRUCTION
model EXGATE-30 PEXGATE-30
PEXGATE-30� 11½" 122" 38" 12
PEXGATE-30-C� 11½" 122" 40¾" 13
*OVERALL HEIGHT WHEN COLLAPSED
+ INCLUDES W-KIT STANDARD

PLASTIC UNIT IS EASY TO
FILL FOR ADDED WEIGHT

model EXGATE-30-W Connector for wall mounted unit model
PEXGATE-30-C
ASSEMBLY REQUIRED
ON MODEL PEXGATE-30

Galvanized Construction Barrier Systems

Designed for use as a temporary construction safety barrier. Welded steel construction
with a galvanized finish. Barrier panel sections are made from 1¼" diameter steel tubing
and includes one (1) vertical and one (1) horizontal brace. Ten (10) gauge chain link
3
3
fence is secured to barrier with steel ties. Chain link fence openings are 2 /8" x 2 /8".
Base unit includes two (2) receiver posts allowing for the connection of two (2) panels.
Connectors are used for securing two (2) panel sections together.
MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
ASSEMBLED HRAIL
HRAIL-9072� STARTER UNIT 1 panel and 2 base units 119
HRAIL-A-9072� ADD-ON-UNIT (1) panel, (1) base & (1) pair connectors 115
HRAIL-PNL� BARRIER PANEL UNIT 90"L x 72"H 111
HRAIL-BASE� BARRIER BASE UNIT 24"W x 24"L x 7"H 7
HRAIL-CON� CONNECTORS one pair with hardware 3

CA Residents see
model HRAIL-9072 model HRAIL-A-9072 model HRAIL-PNL model HRAIL-BASE model HRAIL-CON WARNING A, Pg. 459
