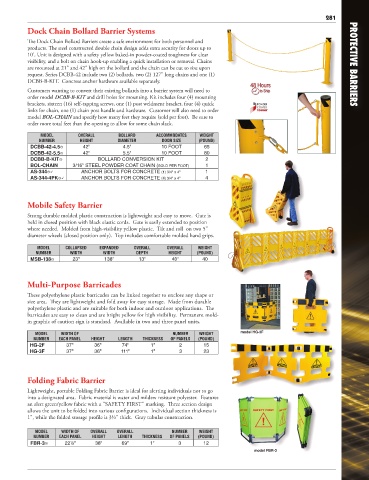

Page 275 - Vestil Catalog 112

281
Dock Chain Bollard Barrier Systems

The Dock Chain Bollard Barriers create a safe environment for both personnel and
products. The steel constructed double chain design adds extra security for doors up to
10'. Unit is designed with a safety yellow baked-in powder-coated toughness for clear
visibility, and a bolt on chain hook-up enabling a quick installation or removal. Chains
are mounted at 21" and 42" high on the bollard and the chain can be cut to size upon PROTECTIVE BARRIERS
request. Series DCBB-42 include two (2) bollards, two (2) 127" long chains and one (1)
DCBB-B-KIT. Concrete anchor hardware available separately.
Customers wanting to convert their existing bollards into a barrier system will need to
order model DCBB-B-KIT and drill holes for mounting. Kit includes four (4) mounting
brackets, sixteen (16) self-tapping screws, one (1) post weldment bracket, four (4) quick
links for chain, one (1) chain post handle and hardware. Customer will also need to order
model BOL-CHAIN and specify how many feet they require (sold per foot). Be sure to
order more total feet than the opening to allow for some chain slack.

MODEL OVERALL BOLLARD ACCOMMODATES WEIGHT
NUMBER HEIGHT DIAMETER DOOR SIZE (POUND)
DCBB-42-4.5� 42" 4.5" 10 FOOT 65
DCBB-42-5.5� 42" 5.5" 10 FOOT 80
DCBB-B-KIT� BOLLARD CONVERSION KIT 2
BOL-CHAIN 3/16" STEEL POWDER COAT CHAIN (SOLD PER FOOT) 1
AS-344 ANCHOR BOLTS FOR CONCRETE (1) 3/4" x 4" 1
AS-344-4PK ANCHOR BOLTS FOR CONCRETE (4) 3/4" x 4" 4

Mobile Safety Barrier
Strong durable molded plastic construction is lightweight and easy to move. Gate is
held in closed position with black elastic cords. Gate is easily extended to position
where needed. Molded from high-visibility yellow plastic. Tilt and roll on two 5"
diameter wheels (closed position only). Top includes comfortable molded hand grips.

MODEL COLLAPSED EXPANDED OVERALL OVERALL WEIGHT
NUMBER WIDTH WIDTH DEPTH HEIGHT (POUND)
MSB-138� 23" 138" 13" 40" 40

Multi-Purpose Barricades

These polyethylene plastic barricades can be linked together to enclose any shape or
size area. They are lightweight and fold away for easy storage. Made from durable
polyethylene plastic and are suitable for both indoor and outdoor applications. The
barricades are easy to clean and are bright yellow for high visibility. Permanent mold-
in graphic of caution sign is standard. Available in two and three panel units.

MODEL WIDTH OF NUMBER WEIGHT model HG-3F
NUMBER EACH PANEL HEIGHT LENGTH THICKNESS OF PANELS (POUND)
HG-2F 37" 36" 74" 1" 2 15
HG-3F 37" 36" 111" 1" 3 23

Folding Fabric Barrier

Lightweight, portable Folding Fabric Barrier is ideal for alerting individuals not to go
into a designated area. Fabric material is water and mildew resistant polyester. Features
an alert green/yellow fabric with a "SAFETY FIRST" marking. Three section design
allows the unit to be folded into various configurations. Individual section thickness is
1", while the folded storage profile is 3½" thick. Gray tubular construction.

MODEL WIDTH OF OVERALL OVERALL NUMBER WEIGHT
NUMBER EACH PANEL HEIGHT LENGTH THICKNESS OF PANELS (POUND)
FBR-3� 22½" 38" 69" 1" 3 12
model FBR-3
