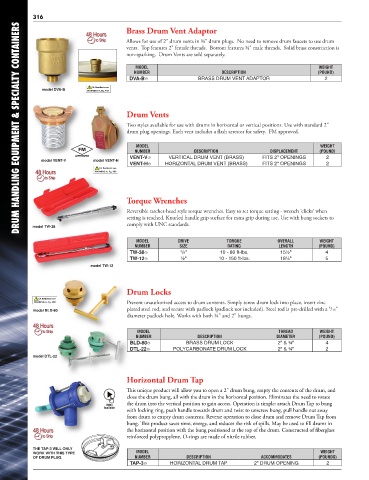

Page 310 - Vestil Catalog 112

316
DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS
Brass Drum Vent Adaptor

Allows for use of 2" drum vents in ¾" drum plugs. No need to remove drum faucets to use drum
vents. Top features 2" female threads. Bottom features ¾" male threads. Solid brass construction is
non-sparking. Drum Vents are sold separately.

MODEL WEIGHT
NUMBER DESCRIPTION (POUND)
DVA-B BRASS DRUM VENT ADAPTOR 2
CA Residents see
model DVA-B WARNING A, Pg. 459

Drum Vents

Two styles available for use with drums in horizontal or vertical positions. Use with standard 2"
drum plug openings. Each vent includes a flash arrestor for safety. FM approved.

MODEL WEIGHT
NUMBER DESCRIPTION DISPLACEMENT (POUND)
VENT-V VERTICAL DRUM VENT (BRASS) FITS 2" OPENINGS 2
model VENT-V model VENT-H
VENT-H HORIZONTAL DRUM VENT (BRASS) FITS 2" OPENINGS 2
CA Residents see
WARNING A, Pg. 459

Torque Wrenches
Reversible ratchet-head style torque wrenches. Easy to set torque setting - wrench ‘clicks’ when
setting is reached. Knurled handle grip surface for extra grip during use. Use with bung sockets to
comply with UNC standards.
model TW-38
MODEL DRIVE TORQUE OVERALL WEIGHT
NUMBER SIZE RATING LENGTH (POUND)
TW-38 3 /8" 10 - 80 ft-lbs. 15½" 4
TW-12 ½" 10 - 150 ft-lbs. 18¼" 5
model TW-12

Drum Locks

CA Residents see
WARNING A, Pg. 459 Prevent unauthorized access to drum contents. Simply screw drum lock into place, insert zinc
5
model BLD-80 plated steel rod, and secure with padlock (padlock not included). Steel rod is pre-drilled with a /16"
diameter padlock hole. Works with both ¾" and 2" bungs.
MODEL THREAD WEIGHT
NUMBER DESCRIPTION DIAMETER (POUND)
BLD-80 BRASS DRUM LOCK 2" & ¾" 4
DTL-22 POLYCARBONATE DRUM LOCK 2" & ¾" 2
model DTL-22

Horizontal Drum Tap

This unique product will allow you to open a 2" drum bung, empty the contents of the drum, and
close the drum bung, all with the drum in the horizontal position. Eliminates the need to rotate
the drum into the vertical position to gain access. Operation is simple: attach Drum Tap to bung
with locking ring, push handle towards drum and twist to unscrew bung, pull handle out away
from drum to empty drum contents. Reverse operation to close drum and remove Drum Tap from
bung. This product saves time, energy, and reduces the risk of spills. May be used to fill drums in
the horizontal position with the bung positioned at the top of the drum. Constructed of fiberglass
reinforced polypropylene. O-rings are made of nitrile rubber.

THE TAP-3 WILL ONLY
WORK WITH THIS TYPE MODEL WEIGHT
OF DRUM PLUG. NUMBER DESCRIPTION ACCOMMODATES (POUNDS)
TAP-3 HORIZONTAL DRUM TAP 2" DRUM OPENING 2
