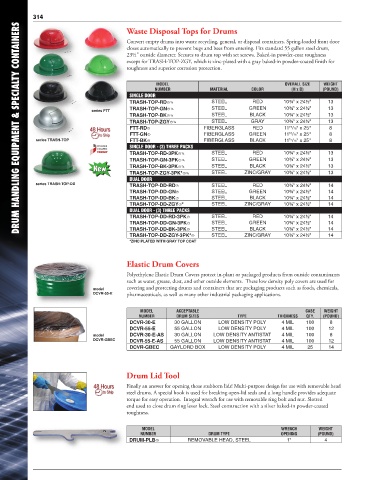

Page 308 - Vestil Catalog 112

314
DRUM HANDLING EQUIPMENT & SPECIALTY CONTAINERS
Waste Disposal Tops for Drums

Convert empty drums into waste recycling, general, or disposal containers. Spring-loaded front door
closes automatically to prevent bugs and bees from entering. Fits standard 55 gallon steel drum,
23½" outside diameter. Secures to drum top with set screws. Baked-in powder-coat toughness
except for TRASH-TOP-ZGY, which is zinc-plated with a gray baked-in powder-coated finish for
toughness and superior corrosion protection.

MODEL OVERALL SIZE WEIGHT
NUMBER MATERIAL COLOR (H x D) (POUND)
SINGLE DOOR
TRASH-TOP-RD STEEL RED 10¾" x 24½" 13
series FTT TRASH-TOP-GN STEEL GREEN 10¾" x 24½" 13
TRASH-TOP-BK STEEL BLACK 10¾" x 24½" 13
TRASH-TOP-ZGY STEEL GRAY 10¾" x 24½" 13
15
FTT-RD FIBERGLASS RED 11 /16" x 25" 8
FTT-GN FIBERGLASS GREEN 11 /16" x 25" 8
15
series TRASH-TOP FTT-BK FIBERGLASS BLACK 11 /16" x 25" 8
15
SINGLE DOOR - (3) THREE PACKS
TRASH-TOP-RD-3PK STEEL RED 10¾" x 24½" 13
TRASH-TOP-GN-3PK STEEL GREEN 10¾" x 24½" 13
New TRASH-TOP-BK-3PK STEEL BLACK 10¾" x 24½" 13
TRASH-TOP-ZGY-3PK* STEEL ZINC/GRAY 10¾" x 24½" 13
DUAL DOOR
series TRASH-TOP-DD
TRASH-TOP-DD-RD STEEL RED 10¾" x 24½" 14
TRASH-TOP-DD-GN STEEL GREEN 10¾" x 24½" 14
TRASH-TOP-DD-BK STEEL BLACK 10¾" x 24½" 14
TRASH-TOP-DD-ZGY* STEEL ZINC/GRAY 10¾" x 24½" 14
DUAL DOOR - (3) THREE PACKS
TRASH-TOP-DD-RD-3PK STEEL RED 10¾" x 24½" 14
TRASH-TOP-DD-GN-3PK STEEL GREEN 10¾" x 24½" 14
TRASH-TOP-DD-BK-3PK STEEL BLACK 10¾" x 24½" 14
TRASH-TOP-DD-ZGY-3PK* STEEL ZINC/GRAY 10¾" x 24½" 14
*ZINC PLATED WITH GRAY TOP COAT

Elastic Drum Covers
Polyethylene Elastic Drum Covers protect in-plant or packaged products from outside contaminants
such as water, grease, dust, and other outside elements. These low density poly covers are used for
model covering and protecting drums and containers that are packaging products such as foods, chemicals,
DCVR-55-E pharmaceuticals, as well as many other industrial packaging applications.

MODEL ACCEPTABLE CASE WEIGHT
NUMBER DRUM SIZES TYPE THICKNESS QTY. (POUND)
DCVR-30-E 30 GALLON LOW DENSITY POLY 4 MIL 100 8
DCVR-55-E 55 GALLON LOW DENSITY POLY 4 MIL 100 12
model DCVR-30-E-AS 30 GALLON LOW DENSITY ANTISTAT 4 MIL 100 8
DCVR-GBEC DCVR-55-E-AS 55 GALLON LOW DENSITY ANTISTAT 4 MIL 100 12
DCVR-GBEC GAYLORD BOX LOW DENSITY POLY 4 MIL 25 14

Drum Lid Tool
Finally an answer for opening those stubborn lids! Multi-purpose design for use with removable head
steel drums. A special hook is used for breaking open-lid seals and a long handle provides adequate
torque for easy operation. Integral wrench for use with removable ring bolt and nut. Slotted
end used to close drum ring lever lock. Steel construction with a silver baked-in powder-coated
toughness.

MODEL WRENCH WEIGHT
NUMBER DRUM TYPE OPENING (POUND)
DRUM-PLB REMOVABLE HEAD, STEEL 1" 4
