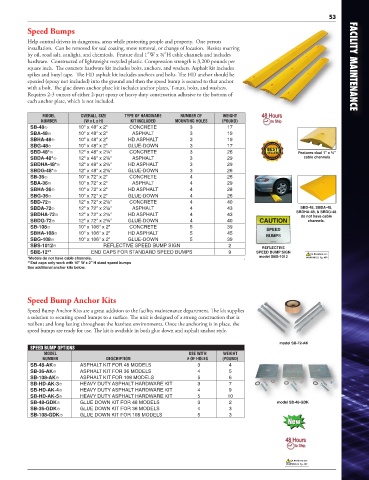

Page 47 - Vestil Catalog 112

53
Speed Bumps

Help control drivers in dangerous, areas while protecting people and property. One person
installation. Can be removed for seal coating, snow removal, or change of location. Resists marring
by oil, road salt, sunlight, and chemicals. Feature dual 1"W x ¾"H cable channels and includes
hardware. Constructed of lightweight recycled plastic. Compression strength is 3,200 pounds per
square inch. The concrete hardware kit includes bolts, anchors, and washers. Asphalt kit includes FACILITY MAINTENANCE
spikes and butyl tape. The HD asphalt kit includes anchors and bolts. The HD anchor should be
epoxied (epoxy not included) into the ground and then the speed bump is secured to that anchor
with a bolt. The glue down anchor plate kit includes anchor plates, T-nuts, bolts, and washers.
Requires 2-3 ounces of either 2-part epoxy or heavy duty construction adhesive to the bottom of
each anchor plate, which is not included.

MODEL OVERALL SIZE TYPE OF HARDWARE NUMBER OF WEIGHT
NUMBER (W x L x H) KIT INCLUDED MOUNTING HOLES (POUND)
SB-48� 10" x 48" x 2" CONCRETE 3 17
SBA-48� 10" x 48" x 2" ASPHALT 3 19
SBHA-48� 10" x 48" x 2" HD ASPHALT 3 19
SBG-48� 10" x 48" x 2" GLUE-DOWN 3 17
SBD-48*� 12" x 48" x 2¼" CONCRETE 3 26 Features dual 1" x ¾"
SBDA-48*� 12" x 48" x 2¼" ASPHALT 3 29 cable channels
SBDHA-48*� 12" x 48" x 2¼" HD ASPHALT 3 29
SBDG-48*� 12" x 48" x 2¼" GLUE-DOWN 3 26
SB-36� 10" x 72" x 2" CONCRETE 4 26
SBA-36� 10" x 72" x 2" ASPHALT 4 29
SBHA-36� 10" x 72" x 2" HD ASPHALT 4 28
SBG-36� 10" x 72" x 2" GLUE-DOWN 4 26
SBD-72� 12" x 72" x 2¼" CONCRETE 4 40
SBDA-72� 12" x 72" x 2¼" ASPHALT 4 43 SBD-48, SBDA-48,
SBDHA-48, & SBDG-48
SBDHA-72� 12" x 72" x 2¼" HD ASPHALT 4 43 do not have cable
SBDG-72� 12" x 72" x 2¼" GLUE-DOWN 4 40 channels.
SB-108� 10" x 106" x 2" CONCRETE 5 39
SBHA-108� 10" x 106" x 2" HD ASPHALT 5 45
SBG-108� 10" x 106" x 2" GLUE-DOWN 5 39
SBS-1012� REFLECTIVE SPEED BUMP SIGN 2 REFLECTIVE
SBE-12** END CAPS FOR STANDARD SPEED BUMPS 9 SPEED BUMP SIGN CA Residents see
*Models do not have cable channels. . model SBS-1012 WARNING B, Pg. 459
**End caps only work with 10" W x 2" H sized speed bumps
See additional anchor kits below.

Speed Bump Anchor Kits

Speed Bump Anchor Kits are a great addition to the facility maintenance department. The kit supplies
a solution to securing speed bumps to a surface. The unit is designed of a strong construction that is
resilient and long lasting throughout the harshest environments. Once the anchoring is in place, the
speed bumps are ready for use. The kit is available in both glue down and asphalt anchor style.

model SB-72-AK
SPEED BUMP OPTIONS
MODEL USE WITH WEIGHT
NUMBER DESCRIPTION # OF HOLES (POUND)
SB-48-AK� ASPHALT KIT FOR 48 MODELS 3 4
SB-36-AK� ASPHALT KIT FOR 36 MODELS 4 5
SB-108-AK� ASPHALT KIT FOR 108 MODELS 5 6
SB-HD-AK-3� HEAVY DUTY ASPHALT HARDWARE KIT 3 7
SB-HD-AK-4� HEAVY DUTY ASPHALT HARDWARE KIT 4 9
SB-HD-AK-5� HEAVY DUTY ASPHALT HARDWARE KIT 5 10
SB-48-GDK� GLUE DOWN KIT FOR 48 MODELS 3 2 model SB-48-GDK
SB-36-GDK� GLUE DOWN KIT FOR 36 MODELS 4 3
SB-108-GDK� GLUE DOWN KIT FOR 108 MODELS 5 3
New

CA Residents see
WARNING B, Pg. 459
