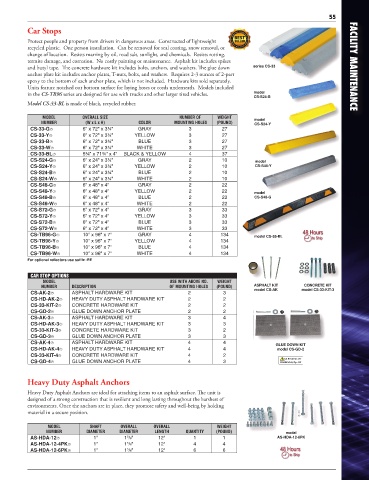

Page 49 - Vestil Catalog 112

55
Car Stops

Protect people and property from drivers in dangerous areas. Constructed of lightweight
recycled plastic. One person installation. Can be removed for seal coating, snow removal, or
change of location. Resists marring by oil, road salt, sunlight, and chemicals. Resists rotting,
termite damage, and corrosion. No costly painting or maintenance. Asphalt kit includes spikes
and butyl tape. The concrete hardware kit includes bolts, anchors, and washers. The glue down series CS-33 FACILITY MAINTENANCE
anchor plate kit includes anchor plates, T-nuts, bolts, and washers. Requires 2-3 ounces of 2-part
epoxy to the bottom of each anchor plate, which is not included. Hardware kits sold separately.
Units feature notched out bottom surface for laying hoses or cords underneath. Models included
in the CS-TB96 series are designed for use with trucks and other larger tired vehicles. model
CS-S24-B
Model CS-33-BL is made of black, recycled rubber.

MODEL OVERALL SIZE NUMBER OF WEIGHT model
NUMBER (W x L x H) COLOR MOUNTING HOLES (POUND) CS-S24-Y
CS-33-G� 6" x 72" x 3¼" GRAY 3 27
CS-33-Y� 6" x 72" x 3¼" YELLOW 3 27
CS-33-B� 6" x 72" x 3¼" BLUE 3 27
CS-33-W� 6" x 72" x 3¼" WHITE 3 27
CS-33-BL� 5¾" x 71¾" x 4" BLACK & YELLOW 4 37
CS-S24-G� 6" x 24" x 3¼" GRAY 2 10 model
CS-S24-Y� 6" x 24" x 3¼" YELLOW 2 10 CS-S48-Y
CS-S24-B� 6" x 24" x 3¼" BLUE 2 10
CS-S24-W� 6" x 24" x 3¼" WHITE 2 10
CS-S48-G� 6" x 48" x 4" GRAY 2 22
CS-S48-Y� 6" x 48" x 4" YELLOW 2 22 model
CS-S48-B� 6" x 48" x 4" BLUE 2 22 CS-S48-G
CS-S48-W� 6" x 48" x 4" WHITE 2 22
CS-S72-G� 6" x 72" x 4" GRAY 3 33
CS-S72-Y� 6" x 72" x 4" YELLOW 3 33
CS-S72-B� 6" x 72" x 4" BLUE 3 33
CS-S72-W� 6" x 72" x 4" WHITE 3 33
CS-TB96-G� 10" x 96" x 7" GRAY 4 134 model CS-33-BL
CS-TB96-Y� 10" x 96" x 7" YELLOW 4 134
CS-TB96-B� 10" x 96" x 7" BLUE 4 134
CS-TB96-W� 10" x 96" x 7" WHITE 4 134
For optional reflectors use suffix -RE

CAR STOP OPTIONS
MODEL USE WITH ABOVE NO. WEIGHT
NUMBER DESCRIPTION OF MOUNTING HOLES (POUND) ASPHALT KIT CONCRETE KIT
model CS-AK model CS-33-KIT-3
CS-AK-2� ASPHALT HARDWARE KIT 2 3
CS-HD-AK-2� HEAVY DUTY ASPHALT HARDWARE KIT 2 2
CS-33-KIT-2� CONCRETE HARDWARE KIT 2 2
CS-GD-2� GLUE DOWN ANCHOR PLATE 2 2
CS-AK-3� ASPHALT HARDWARE KIT 3 4
CS-HD-AK-3� HEAVY DUTY ASPHALT HARDWARE KIT 3 3
CS-33-KIT-3� CONCRETE HARDWARE KIT 3 2
CS-GD-3� GLUE DOWN ANCHOR PLATE 3 3
CS-AK-4� ASPHALT HARDWARE KIT 4 4
GLUE DOWN KIT
CS-HD-AK-4� HEAVY DUTY ASPHALT HARDWARE KIT 4 4 model CS-GD-2
CS-33-KIT-4� CONCRETE HARDWARE KIT 4 2
CA Residents see
CS-GD-4� GLUE DOWN ANCHOR PLATE 4 3 WARNING B, Pg. 459
Heavy Duty Asphalt Anchors
Heavy Duty Asphalt Anchors are ideal for attaching items to an asphalt surface. The unit is
designed of a strong construction that is resilient and long lasting throughout the harshest of
environments. Once the anchors are in place, they promote safety and well-being by holding
material in a secure position.

MODEL SHAFT OVERALL OVERALL WEIGHT
NUMBER DIAMETER DIAMETER LENGTH QUANTITY (POUND) model
AS-HDA-12� 1" 1 /8" 12" 1 1 AS-HDA-12-6PK
5
AS-HDA-12-4PK� 1" 1 /8" 12" 4 4
5
5
AS-HDA-12-6PK� 1" 1 /8" 12" 6 6
