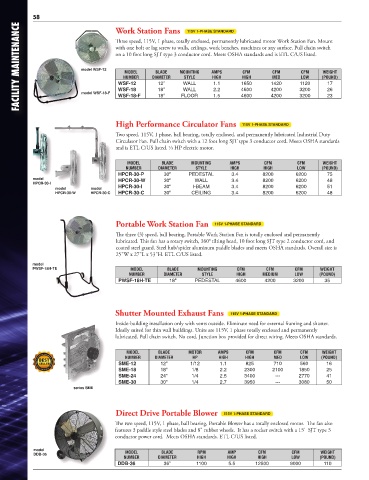

58 Work Station Fans 115V 1-PHASE STANDARD
FACILITY MAINTENANCE FACILITIES MAINTENANCE model WSF-12 with one bolt or lag screw to walls, ceilings, work benches, machines or any surface. Pull chain switch

Three speed, 115V, 1 phase, totally enclosed, permanently lubricated motor Work Station Fan. Mount
on a 10 foot long SJT type 3 conductor cord. Meets OSHA standards and is ETL C/US listed.

WEIGHT
CFM
CFM
MOUNTING
AMPS
BLADE
MODEL
CFM
MED
HIGH
DIAMETER
HIGH
NUMBER
STYLE
LOW
(POUND)
WSF-12
1.1
1120
WALL
12"
17
1650
1420
WSF-18
18"
4200
4600
26
2.2
WALL
3200
model WSF-18-F
WSF-18-F
1.5
FLOOR
18"
High Performance Circulator Fans 4600 4200 3200 23
115V 1-PHASE STANDARD
Two speed, 115V, 1 phase, ball bearing, totally enclosed, and permanently lubricated Industrial Duty
Circulator Fan. Pull chain switch with a 12 foot long SJT type 3 conductor cord. Meets OSHA standards
and is ETL C/US listed. ⅓ HP electric motor.
MODEL BLADE MOUNTING AMPS CFM CFM WEIGHT
NUMBER DIAMETER STYLE HIGH HIGH LOW (POUND)
HPCR-30-P 30" PEDESTAL 3.4 8200 6200 75
model HPCR-30-W 30" WALL 3.4 8200 6200 48
HPCR-30-I
model model HPCR-30-I 30" I-BEAM 3.4 8200 6200 51
HPCR-30-W HPCR-30-C HPCR-30-C 30" CEILING 3.4 8200 6200 48
Portable Work Station Fan 115V 1-PHASE STANDARD
The three (3) speed, ball bearing, Portable Work Station Fan is totally enclosed and permanently
lubricated. This fan has a rotary switch, 360° tilting head, 10 foot long SJT type 2 conductor cord, and
coated steel guard. Steel hub/spider aluminum paddle blades and meets OSHA standards. Overall size is
25"W x 27"L x 53"H. ETL C/US listed.
model
PWSF-18H-TE MODEL BLADE MOUNTING CFM CFM CFM WEIGHT
NUMBER DIAMETER STYLE HIGH MEDIUM LOW (POUND)
PWSF-18H-TE 18" PEDESTAL 4600 4200 3200 35
Shutter Mounted Exhaust Fans 115V 1-PHASE STANDARD
Inside-building installation only with vents outside. Eliminate need for external framing and shutter.
Ideally suited for thin wall buildings. Units are 115V, 1 phase totally enclosed and permanently
lubricated. Pull chain switch. No cord. Junction box provided for direct wiring. Meets OSHA standards.
MODEL BLADE MOTOR AMPS CFM CFM CFM WEIGHT
NUMBER DIAMETER HP HIGH HIGH MED LOW (POUND)
SME-12 12" 1/12 1.1 825 710 560 16
SME-18 18" 1/8 2.2 2300 2100 1850 25
SME-24 24" 1/4 2.5 3400 --- 2770 41
SME-30 30" 1/4 2.7 3950 --- 3080 50
series SME
Direct Drive Portable Blower 115V 1-PHASE STANDARD

The two speed, 115V, 1 phase, ball bearing, Portable Blower has a totally enclosed motor. The fan also
features 3 paddle style steel blades and 8" rubber wheels. It has a rocker switch with a 15' SJT type 3
conductor power cord. Meets OSHA standards. ETL C/US listed.

model
DDB-36 MODEL BLADE RPM AMP CFM CFM WEIGHT
NUMBER DIAMETER HIGH HIGH HIGH LOW (POUND)
DDB-36 36" 1100 5.5 12500 9000 110
