Heavy-Duty Air Bag Scissor Lift Tables

- - - -

Description
Model Chart
Options
PDF's
Image Gallery
ABLT-1000_A.jpg ABLT-1000_C.jpg ABLT-1000_D.jpg ABLT-1000_E.jpg
ABLT-1000_F.jpg ABLT-1000_H.jpg ABLT-1000_I.jpg ABLT-1000_J.jpg

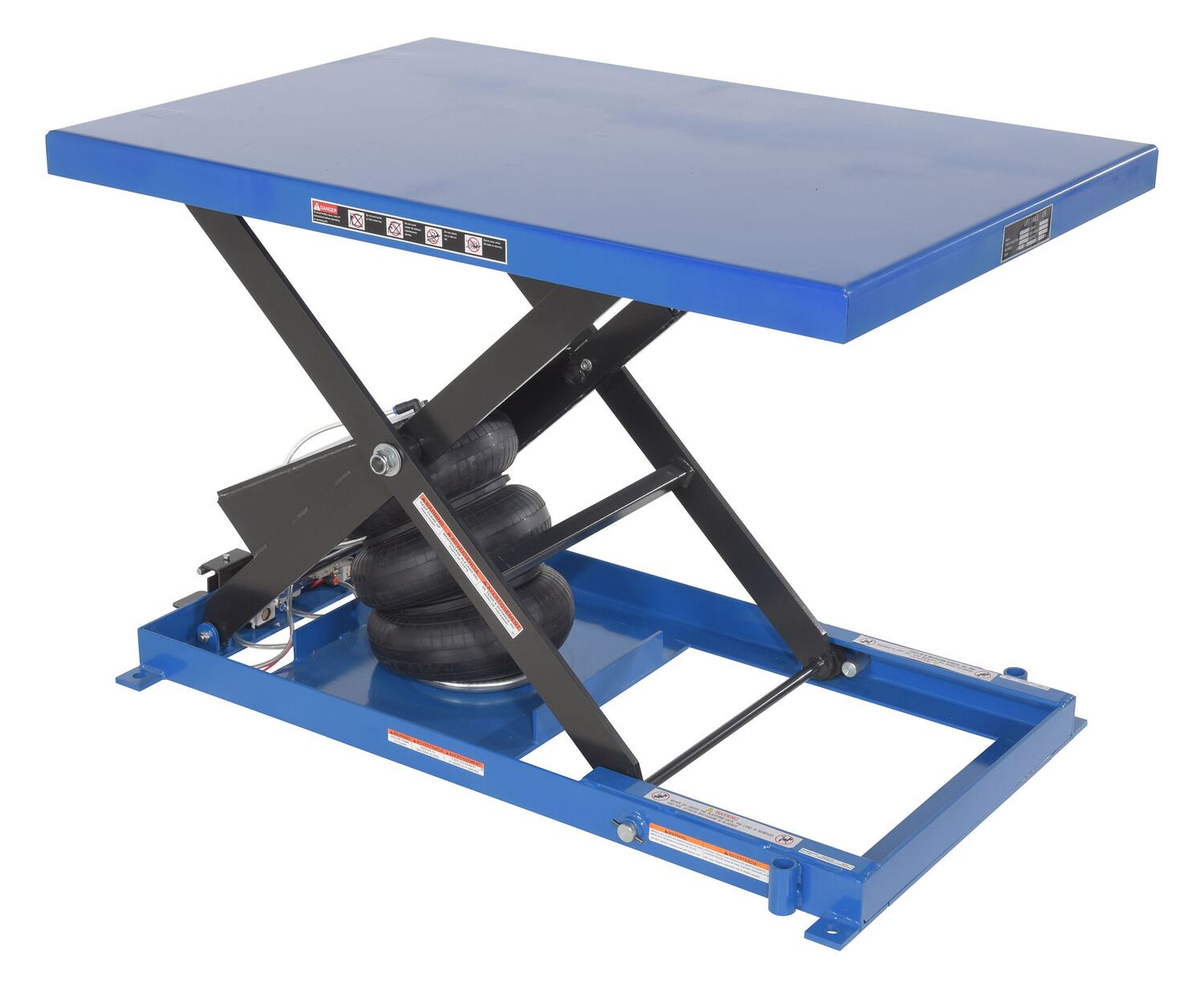

Heavy-Duty Air Bag Scissor Lift Tables

model: ABLT-1000



Featured Ergonomic Solutions


Manual Adjustable Ergonomic Work Benches
Ball Transfer Strips & Single Ball Transfers
Powered All Terrain Stackers and Pallet Trucks
Self Elevating Tables
Scissor Cart with Built-In Scale (partially stainless steel)
Economy Hand Pallet Truck
Pneumatic Scissor Lift Table
Side Winder Pallet Truck
Ergonomic Worker Seats
model chart

Product Family Overview

Print Friendly

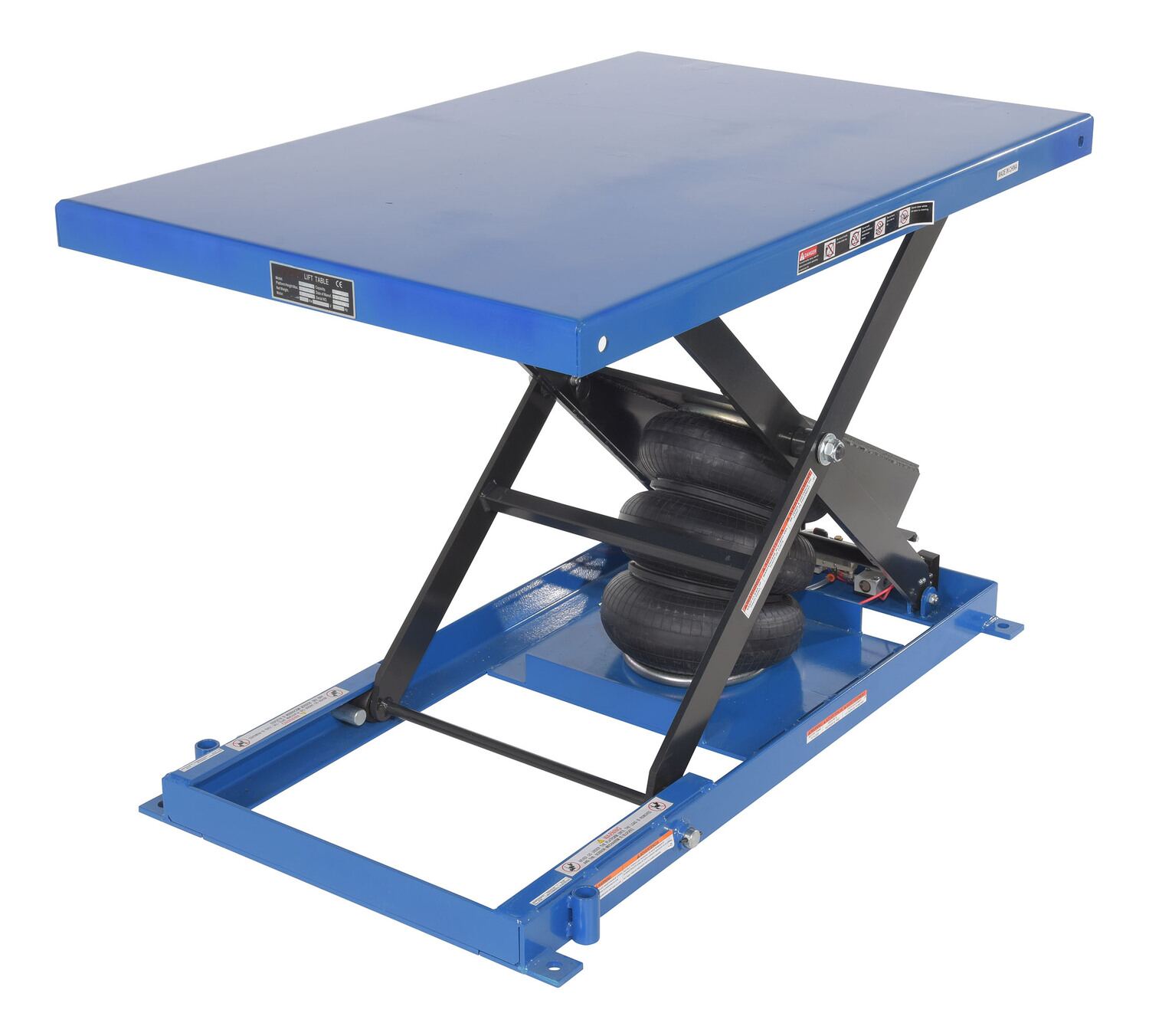

Heavy-Duty Air Bag Scissor Lift Tables
SERIES: ABLT

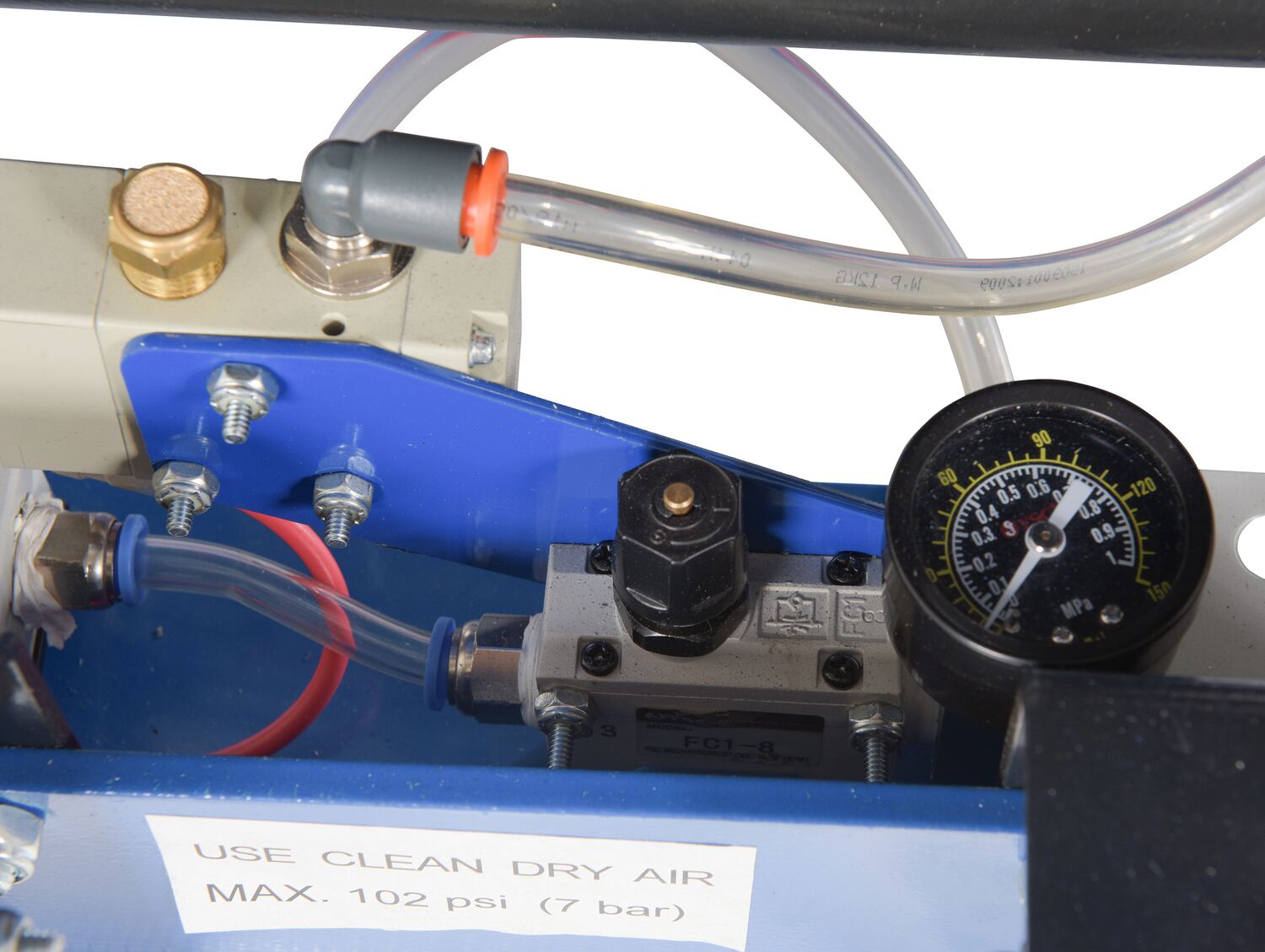

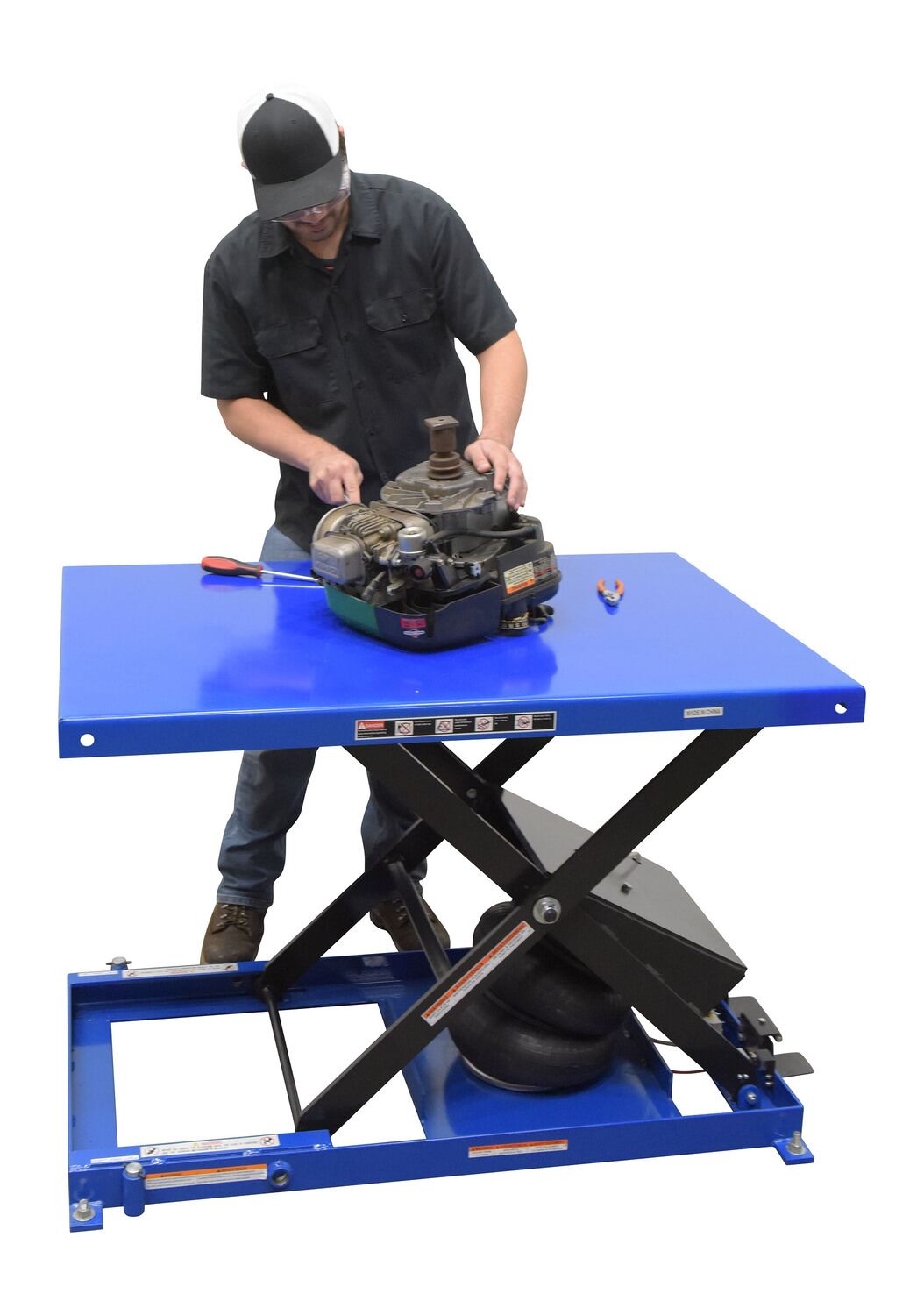

Air Bag Scissor Lift Tables use factory air for clean, dependable, maintenance free operation. Designed to raise products up to an ergonomic working height. Safety features include pressure relief valve and pinch point guard. Models ABLT-1000 and ABLT-2000 come standard with a foot control. Incoming air must be clean, dry, and regulated to 80 psi (min.). Requires 1/2" incoming airline. Standard features include adjustable upper travel limit valve, state-of-the-art lifetime lubricated bearings, and maintenance prop. Filter required. Other sizes available, contact factory.

ABLT GIF

  • Uses factory air for a clean and maintenance free operation

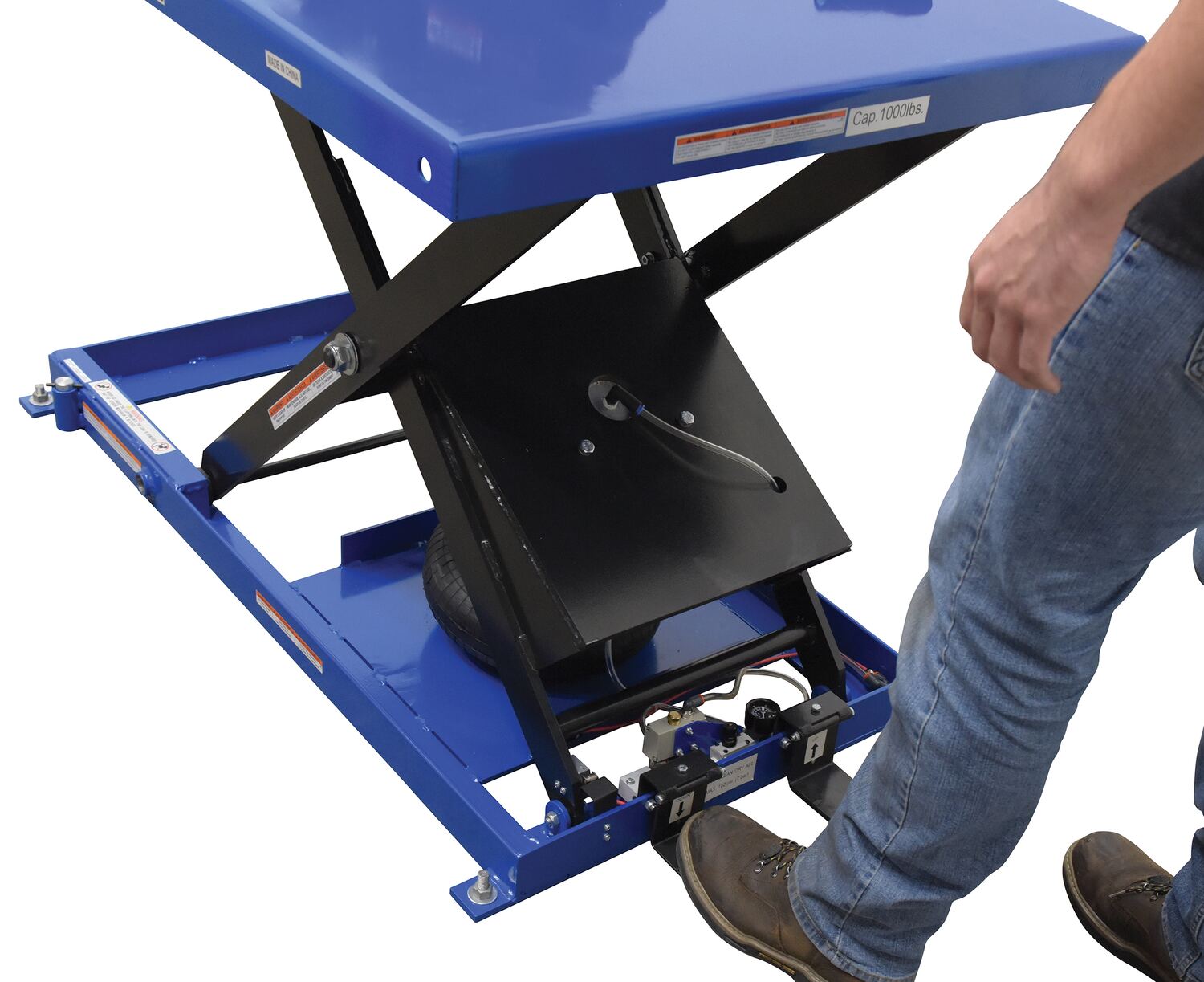

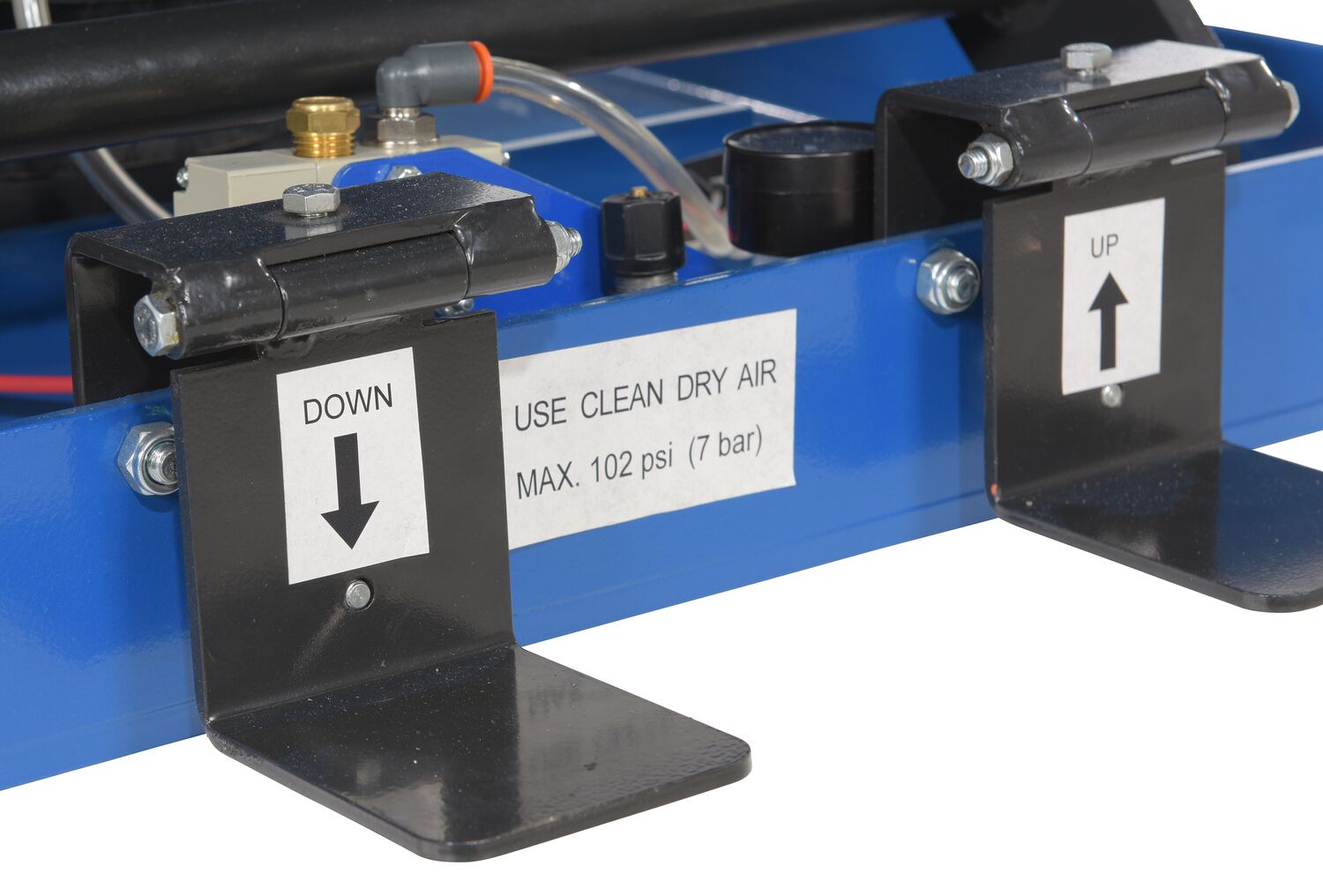

  • Includes a pressure relief valve, pinch point guard, and foot control
  • Incoming air must be clean, dry, and regulated with a filter
  • Features an adjustable upper travel limit valve and lifetime lubricated bearings

Air Bag Scissor Lift Tables use factory air for clean, dependable, maintenance free operation. Designed to raise products up to an ergonomic working height. Safety features include pressure relief valve and pinch point guard. Models ABLT-1000 and ABLT-2000 come standard with a foot control. Incoming air must be clean, dry, and regulated to 80 psi (min.). Requires 1/2" incoming airline. Standard features include adjustable upper travel limit valve, state-of-the-art lifetime lubricated bearings, and maintenance prop. Filter required. Other sizes available, contact factory.

ABLT GIF

  • Uses factory air for a clean and maintenance free operation
  • Includes a pressure relief valve, pinch point guard, and foot control
  • Incoming air must be clean, dry, and regulated with a filter
  • Features an adjustable upper travel limit valve and lifetime lubricated bearings

Other Lift & Tilt Tables

 Rotary Air/Hydraulic Scissor Lift Tables Accordion Skirting Programmable Height For Lift Tables Low Profile Electric/Hydraulic Scissor Lift Tables

Additional Models In This Family
view entire Image Gallery

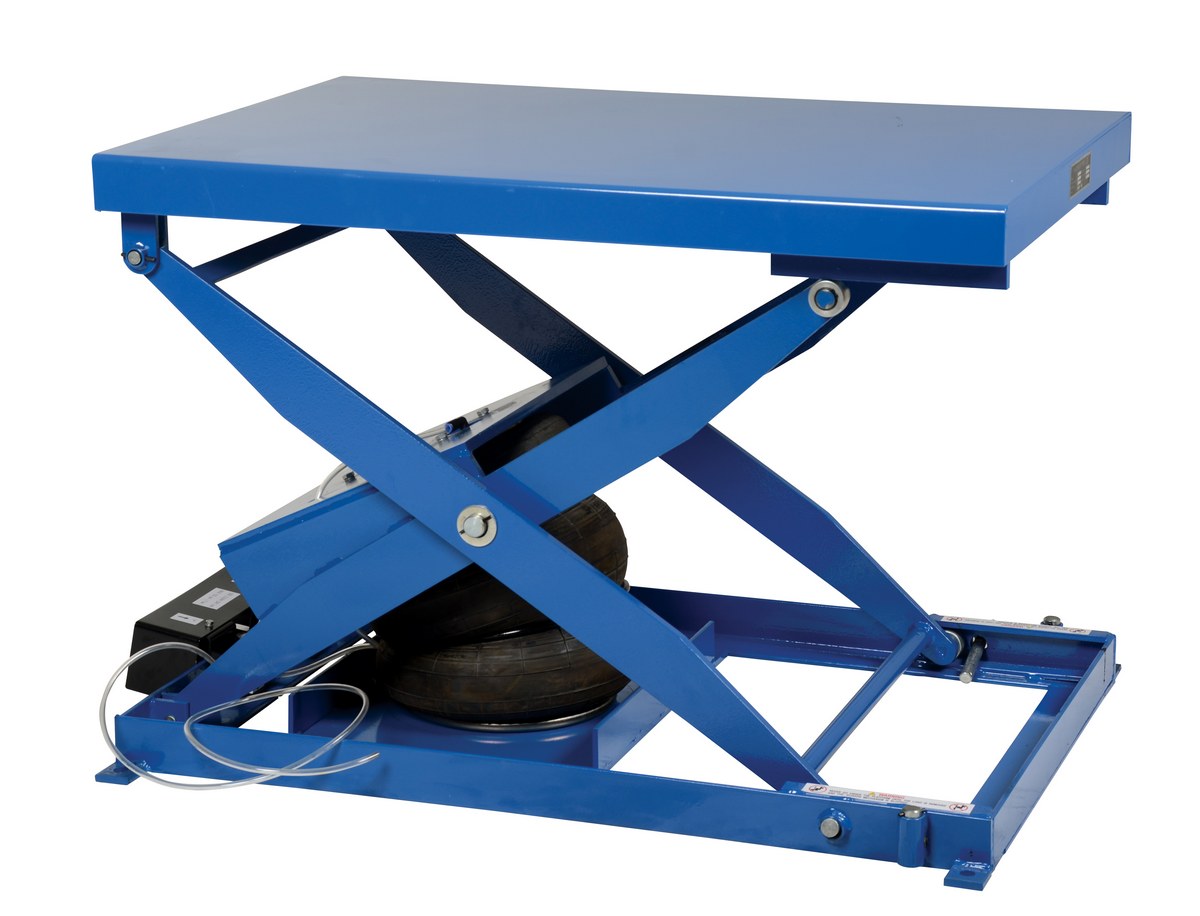

ABLT-2000

model ABLT-2000

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
ABLT-1000 ABLT-10001 Year Limited WarrantySteel Heavy-Duty Air Bag Scissor Lift Table 48 In. x 32 In. 1,000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Lowered Height (in.): 9		357
ABLT-2000 ABLT-20001 Year Limited WarrantySteel Heavy-Duty Air Bag Scissor Lift Table 48 In. x 32 In. 2,000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Lowered Height (in.): 9		630

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

ABLT-1000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1,000
Lowered Height (in.): 9
Uniform Capacity (lb.): 1,000
Lowered Height (in.): 9

ABLT-2000
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2,000
Lowered Height (in.): 9
Uniform Capacity (lb.): 2,000
Lowered Height (in.): 9
For More Details of the Option Click the Red Model Button


Safety Accordion Skirt

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Heavy-Duty Air Bag Scissor Lift Tables PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings

No Approval Drawings For This Product

Testing Certificates


ABLT-1000

ABLT-2000

SDS Sheets

Hydraulic Oil SDS Sheet for: ABLT-1000
Hydraulic Oil SDS Sheet for: ABLT-2000

Other PDF's


Heavy-Duty Air Bag Scissor Lift Mailing Brochure

Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: How long does it take for ABLT-1000 to the raised height?

A: Raised height with no load is 2.25 seconds. Lowered height with no load is 30.75 seconds Raised height loaded is 10.13 seconds Lowered height loaded is 12.6 seconds
