Shorty Scissor Lift Tables

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

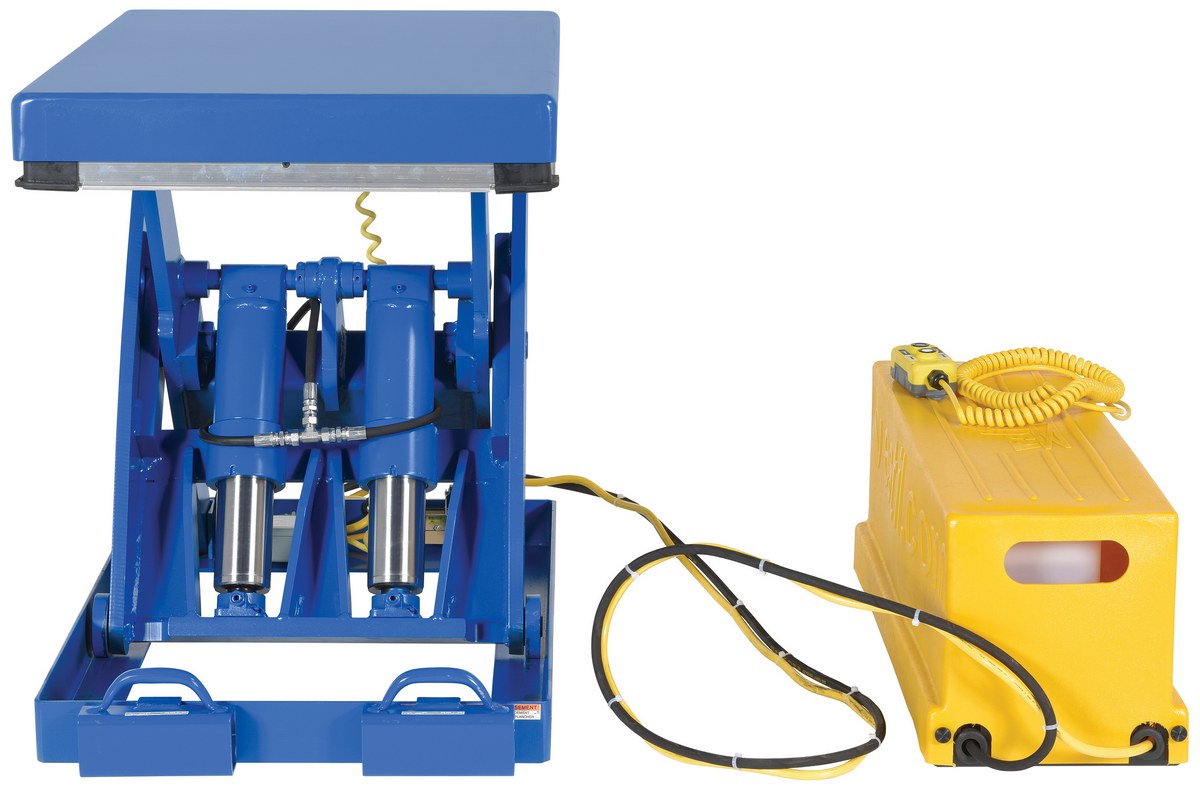

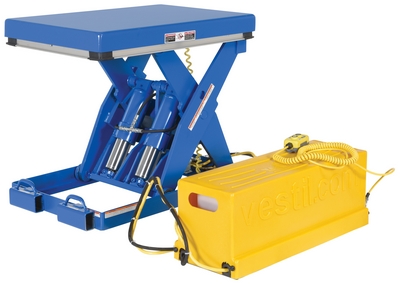

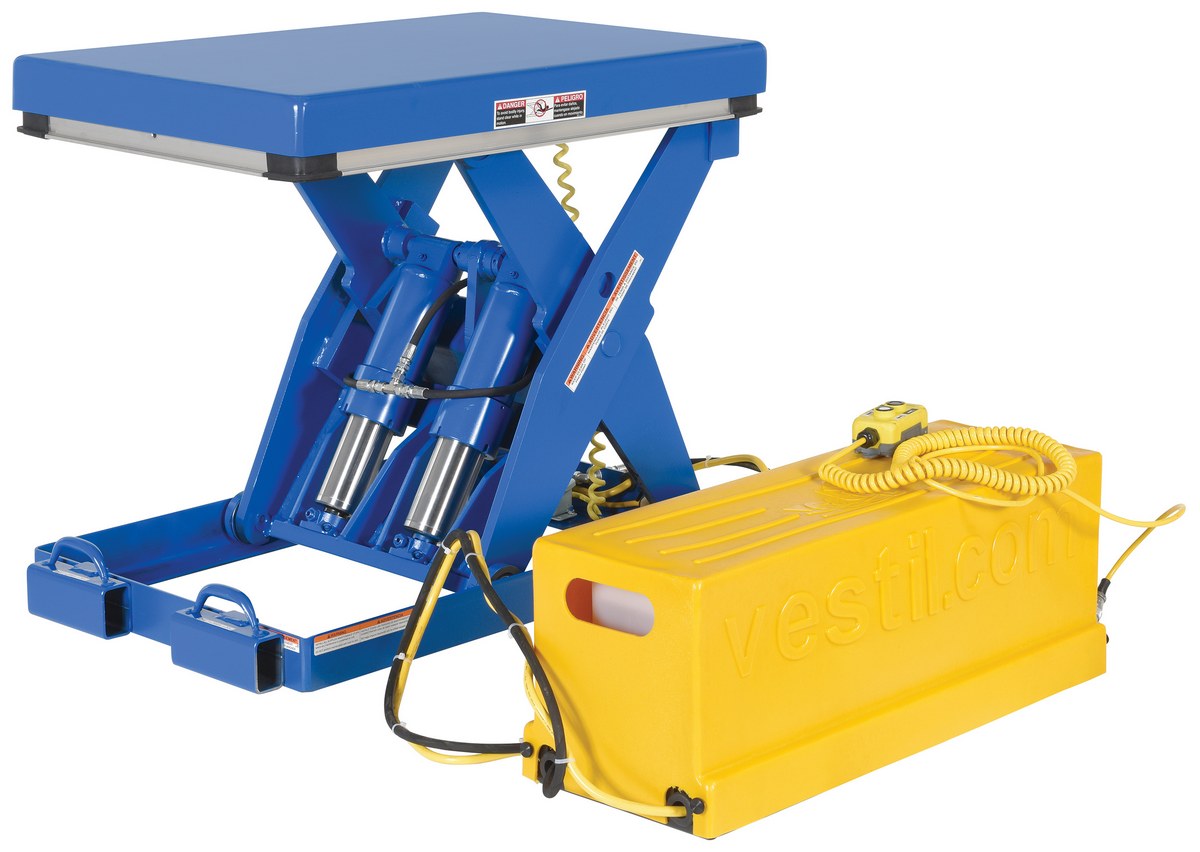

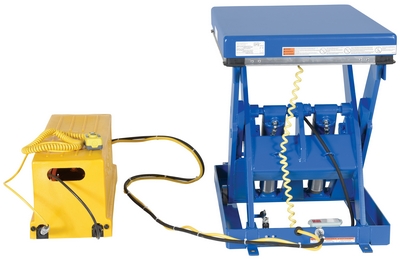

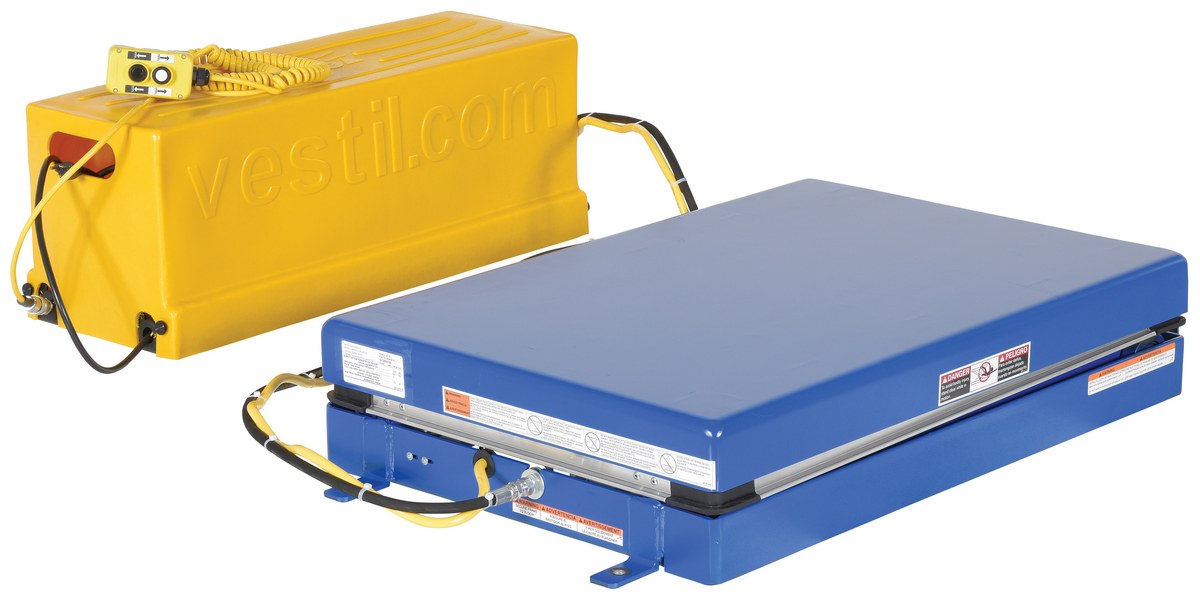

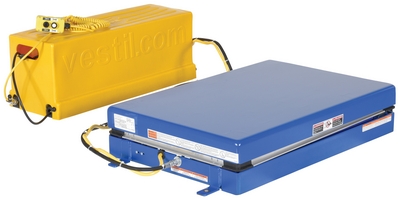

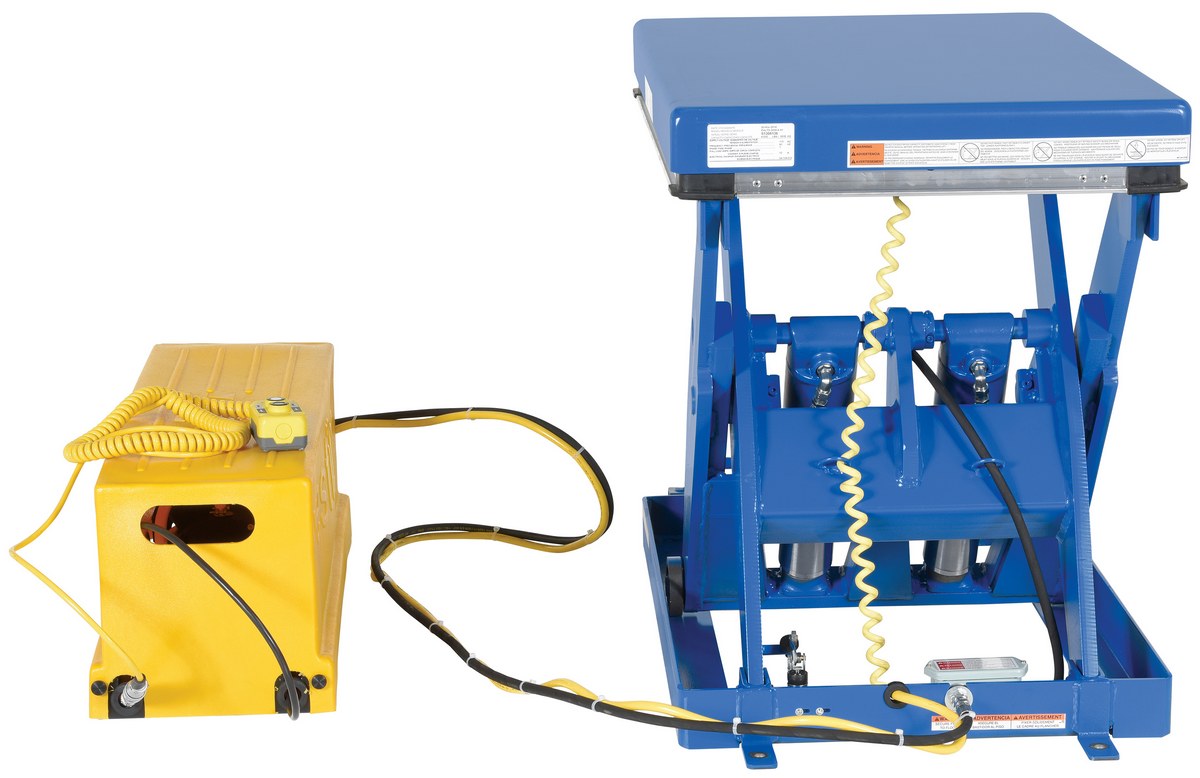

EHLTS-2436-4-31_B.jpg EHLTS-2436-4-31_A.jpg EHLTS-2436-4-31_C.jpg EHLTS-2436-4-31_D.jpg
Shorty Scissor Lift Tables

model: EHLTS-2436-4-31



Featured Ergonomic Solutions


Pallet Truck Stop
DC Powered and Manual Scissor Carts (partially stainless steel)
Electric Pallet Truck (Pegasolift)
DC Powered Hefti-Lift
Universal Trash Can Dumpers
Ergonomic Matting
Self-Elevating Spring Tables
All Terrain Pallet Trucks
Hydraulic Elevating Carts
model chart

Product Family Overview

Print Friendly
Shorty Scissor Lift Tables
SERIES: EHLTS,EHLTSD

Built with the same quality as all our lift tables, the EHLTS and EHLTSD maximize safety and durability. Designed to raise products up to an ergonomic working height. When tight spaces are what you have, consider a Shorty Scissor Table. Available in both a single and double leg styles these tables offer smaller deck sizes customized to your space requirements. Design features includes full perimeter pinch point guard and emergency internal safety velocity fuse. 460V 3-Phase external power unit and hand control is standard.

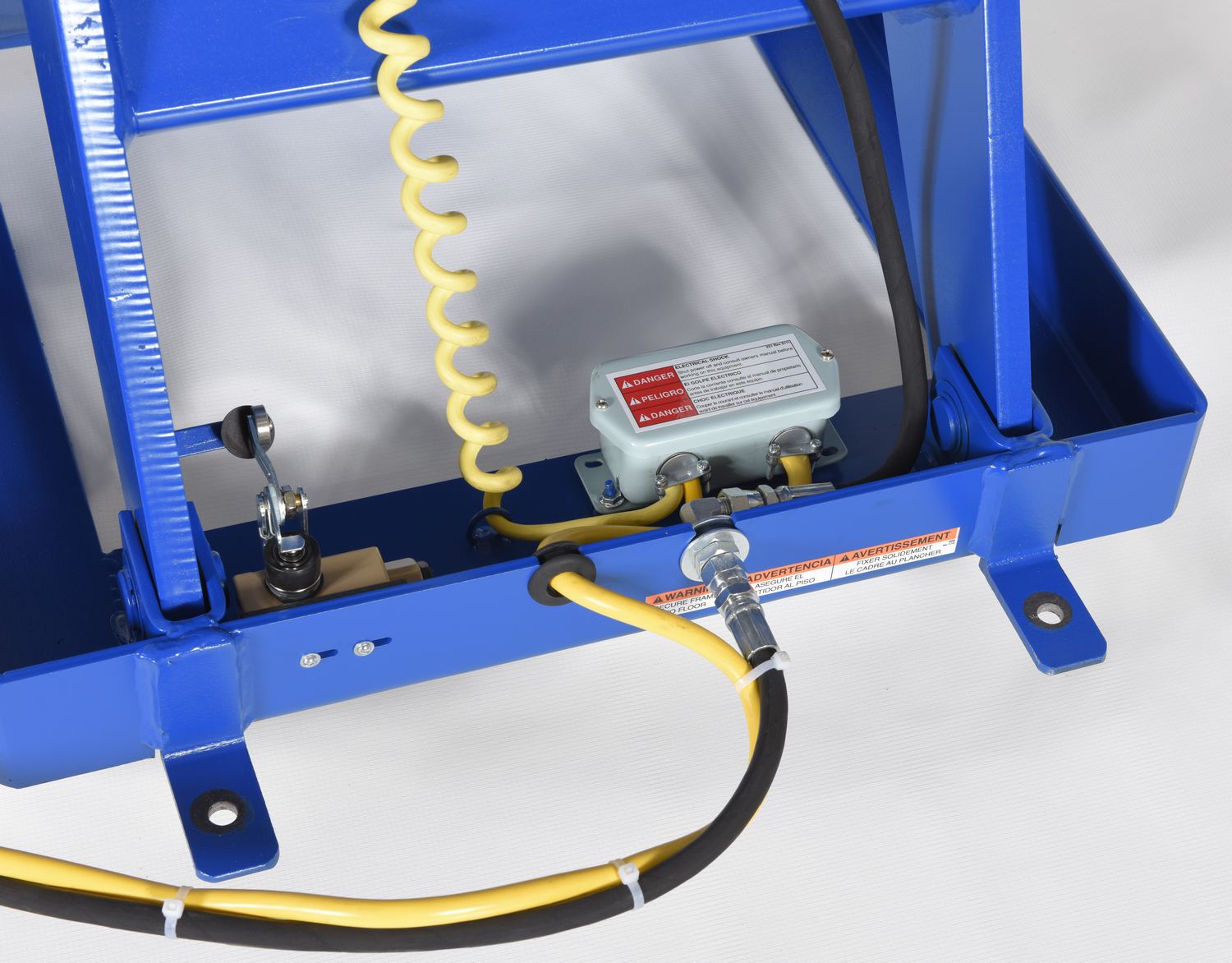

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
  • Utilizes small areas effectively

Built with the same quality as all our lift tables, the EHLTS and EHLTSD maximize safety and durability. Designed to raise products up to an ergonomic working height. When tight spaces are what you have, consider a Shorty Scissor Table. Available in both a single and double leg styles these tables offer smaller deck sizes customized to your space requirements. Design features includes full perimeter pinch point guard and emergency internal safety velocity fuse. 460V 3-Phase external power unit and hand control is standard.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
  • Utilizes small areas effectively

Other Lift & Tilt Tables

 Hinge & Sliding Tilt Tables Low Profile Electric/Hydraulic Scissor Lift Tables Programmable Height For Lift Tables Double Scissor Lift Tables

Additional Models In This Family
view entire Image Gallery

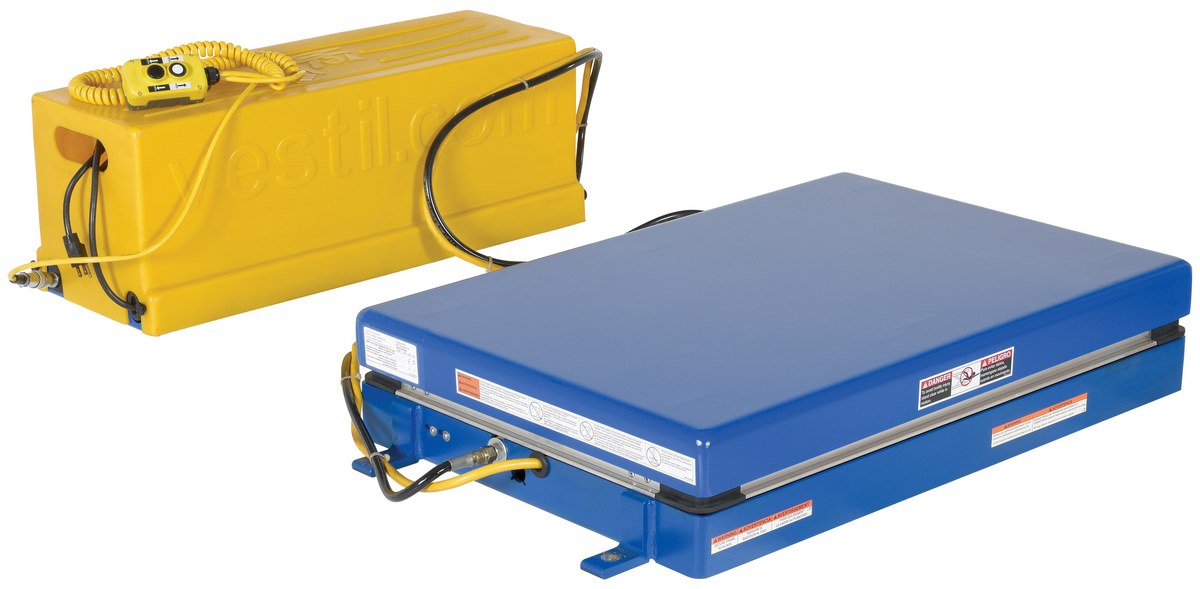

EHLTS-2436-2-31

model EHLTS-2436-2-31

EHLTSD-1628-1-35

model EHLTSD-1628-1-35

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
Shorty Scissor Lift Tables
Model Number Format
EHLTS - (width)(length) - capacity - raised height
Single Leg Set
Vertical
Travel		 Platform
Width		 Platform
Length		 Capacity
(lbs.)		 Raised
Height		 Lowered
Height		 Travel
Time (sec.)		 Wt.
(lbs.)
24" 24"-48" 36"-48" 1,000 31" 7" 12 689
24" 24"-48" 36"-48" 2,000 31" 7" 12 769
24" 24"-48" 36"-48" 3,000 31" 7" 12 788
24" 24"-48" 36"-48" 4,000 31" 7" 23 850
23" 36"-48" 36"-48" 5,000 31" 8" 23 937

Travel Time Based on 3 Phase Power
Double Shorty Narrow Scissor Lift Tables
Model Image PDF Platform Size
(WxL)		 Lowered
Height		 Raised
Height		 Capacity
(lbs.)		 Voltage/
Phase		 Wt.
(lbs.)
EHLTSD-1228-05-35 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 12"x28" 7" 35" 500 460/3 300
EHLTSD-1228-1-35 Warranty PDFCompliance Certificate 12"x28" 7" 35" 1,000 460/3 300
EHLTSD-1628-1-35 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 16"x28" 7" 35" 1,000 460/3 350
EHLTSD-2436-1-35 icon_approvaldrawings.jpgWarranty PDFCompliance Certificate 24"x36" 7" 35" 1,000 460/3 400
Double Shorty Scissor Lift Tables
Model Number Format
EHLTSD - (width)(length) - capacity - raised height
Double Leg Set
Vertical Travel Image Platform Width Platform Length Capacity
(lbs.)		 Raised
Height		 Lowered Height Travel Time (sec.) Wt.
(lbs.)
41" - 34"-48" 36"-48" 1,000 51" 10" 16 882
41" - 34"-48" 36"-48" 2,000 51" 10" 23 892
41" - 34"-48" 36"-48" 3,000 51" 10" 32 903
41" - 34"-48" 36"-48" 4,000 51" 10" 32 955
41" - 34"-48" 36"-48" 5,000 51" 10" 48 966
Travel Time Based on 3 Phase Power
EHLTS-3636-4-31		 icon_approvaldrawings.jpg
EHLTS-3636-5-31		 icon_approvaldrawings.jpg
EHLTS-4848-2-31		 icon_approvaldrawings.jpg
EHLTS-4848-4-31		 icon_approvaldrawings.jpg
EHLTS-4848-5-31		 icon_approvaldrawings.jpg
EHLTS-2436-2-31
EHLTS-2436-4-31		 icon_approvaldrawings.jpg
EHLTS-2436-5-31		 icon_approvaldrawings.jpg
EHLTS-3436-2-31		 icon_approvaldrawings.jpg
EHLTS-3436-4-31		 icon_approvaldrawings.jpg
EHLTS-3436-5-31		 icon_approvaldrawings.jpg
EHLTS-3636-2-31

KEY: Approval Drawing = Approval Drawing -- Approval Drawing = Warranty -- Approval Drawing = Testing Certificate

If you did not find an expected Model or SKU # in the table, try the Options Section Below

EHLTS-2436-2-31
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 2000
Raised Height (in.): 31
Uniform Capacity (lb.): 2000
Raised Height (in.): 31

EHLTS-2436-4-31
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 4000
Raised Height (in.): 31
Uniform Capacity (lb.): 4000
Raised Height (in.): 31

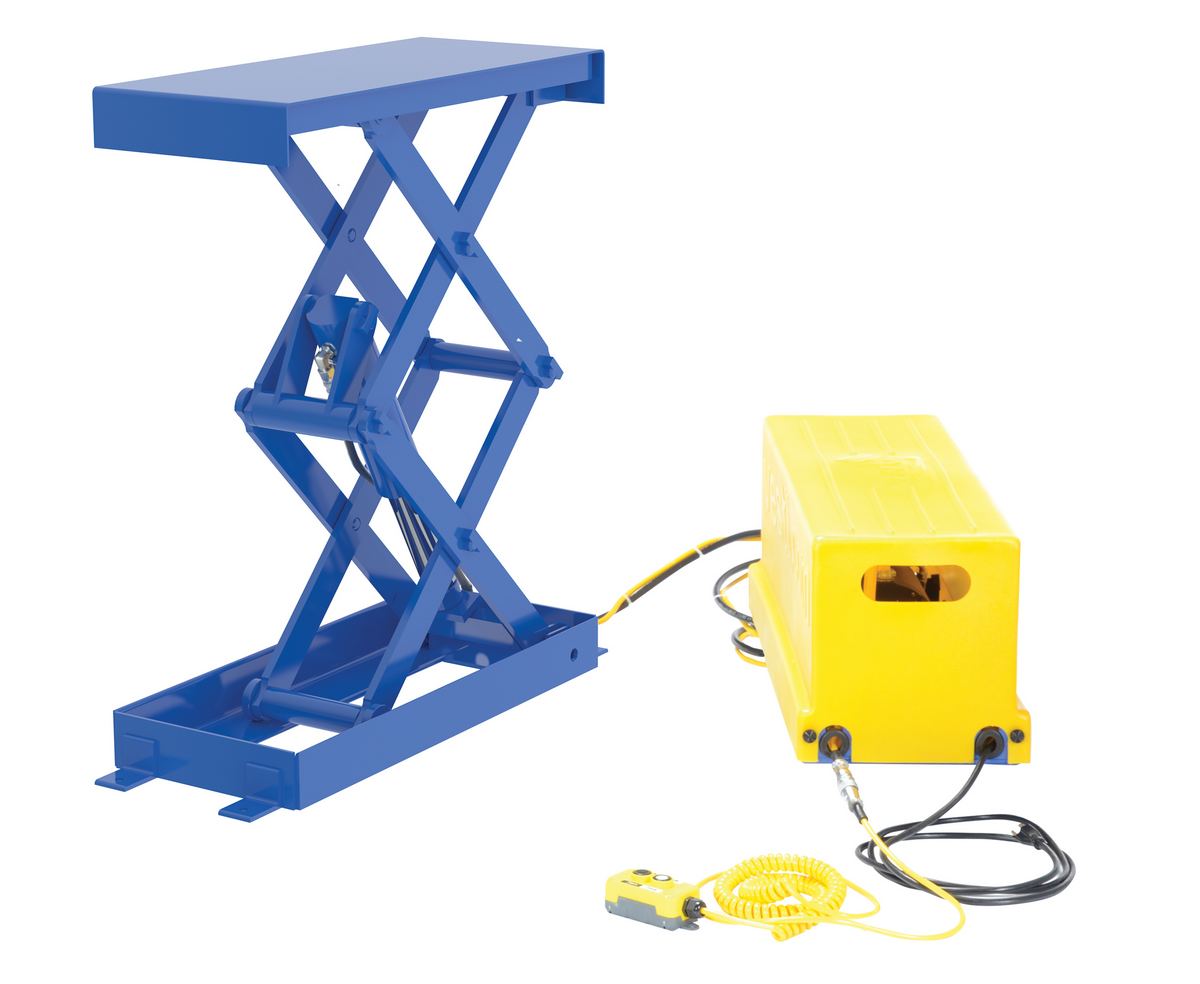

EHLTSD-1228-05-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 500
Lowered Height (in.): 7
Uniform Capacity (lb.): 500
Lowered Height (in.): 7

EHLTSD-1628-1-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7

EHLTSD-2436-1-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7

EHLTSD-2448-1-35
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
Uniform Capacity (lb.): 1000
Lowered Height (in.): 7
For More Details of the Option Click the Red Model Button

Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
Model Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Shorty Scissor Lift Tables PDF's will open in a new window when clicked.

Manuals

No Owners Manuals For This Product


Survey Sheets

No Survey Sheets For This Product


Approval Drawings


EHLTS-2436-2-31

EHLTS-2436-4-31

EHLTS-2436-5-31

EHLTS-3436-2-31

EHLTS-3436-4-31

EHLTS-3436-5-31

EHLTS-3636-2-31

EHLTS-3636-4-31

EHLTS-3636-5-31

EHLTS-4848-2-31

EHLTS-4848-4-31

EHLTS-4848-5-31

EHLTSD-1228-05-35

EHLTSD-1628-1-35

EHLTSD-2436-1-35

Testing Certificates


EHLTS-1-31

EHLTS-2-31

EHLTS-2436-2-31

EHLTS-2436-4-31

EHLTS-3-31

EHLTS-4-31

EHLTS-5-31

EHLTSD-1228-05-35

EHLTSD-1228-1-35

EHLTSD-1628-1-35

EHLTSD-2436-1-35

EHLTSD-2448-1-35

SDS Sheets

Hydraulic Oil SDS Sheet for: EHLTS-2436-2-31
Hydraulic Oil SDS Sheet for: EHLTS-2436-4-31
Hydraulic Oil SDS Sheet for: EHLTSD-1228-05-35
Hydraulic Oil SDS Sheet for: EHLTSD-1228-1-35
Hydraulic Oil SDS Sheet for: EHLTSD-1628-1-35
Hydraulic Oil SDS Sheet for: EHLTSD-2436-1-35
Hydraulic Oil SDS Sheet for: EHLTSD-2448-1-35

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Q: What is the standard voltage and phase? Can the voltage and phase be changed?

A: The lift tables come standard 460 V 3 phase. The voltage and phase can be changed. For details, please see "options for electric hydraulic equipment" or contact a sales associate for voltage options.




Related or Similar Products:

Electric Hydraulic Scissor Lift Tables
Product

Electric Hydraulic Scissor Lift Tables

Double Scissor Lift Tables
Product

Double Scissor Lift Tables

Portable Scissor Lift Tables
Product

Portable Scissor Lift Tables

Work Station Electric Hydraulic Scissor Tables
Product

Work Station Electric Hydraulic Scissor Tables

Low Profile Electric/Hydraulic Scissor Lift Tables
Product

Low Profile Electric/Hydraulic Scissor Lift Tables

Rotary Air/Hydraulic Scissor Lift Tables
Product

Rotary Air/Hydraulic Scissor Lift Tables

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Shorty Scissor Lift Tables




Built with the same quality as all our lift tables, the EHLTS and EHLTSD maximize safety and durability. Designed to raise products up to an ergonomic working height. When tight spaces are what you have, consider a Shorty Scissor Table. Available in both a single and double leg styles these tables offer smaller deck sizes customized to your space requirements. Design features includes full perimeter pinch point guard and emergency internal safety velocity fuse. 460V 3-Phase external power unit and hand control is standard.

  • Four-sided electric toe-guard meets OSHA pinch point specification
  • Durable aluminum pressure-plated hydraulic pump provides maximum efficiency
  • Displacement-style hydraulic cylinders offer maximum strength
  • Welded steel construction provides reliable heavy-duty use
  • Utilizes small areas effectively

Model # Description Attributes Net Wt.
(lbs)
EHLTS-2436-2-31 EHLTS-2436-2-31Steel Single Leg Shorty Scissor Lift Table 24 In. x 36 In. 2000 Lb. Capacity BlueUniform Capacity (lb.): 2000
Raised Height (in.): 31		616
EHLTS-2436-4-31 EHLTS-2436-4-31Steel Single Leg Shorty Scissor Lift Table 24 In. x 36 In. 4000 Lb. Capacity BlueUniform Capacity (lb.): 4000
Raised Height (in.): 31		605
EHLTSD-1228-05-35 EHLTSD-1228-05-35Steel Double Leg Shorty Scissor Lift Table 12 In. x 28 In. 500 Lb. Capacity BlueUniform Capacity (lb.): 500
Lowered Height (in.): 7		300

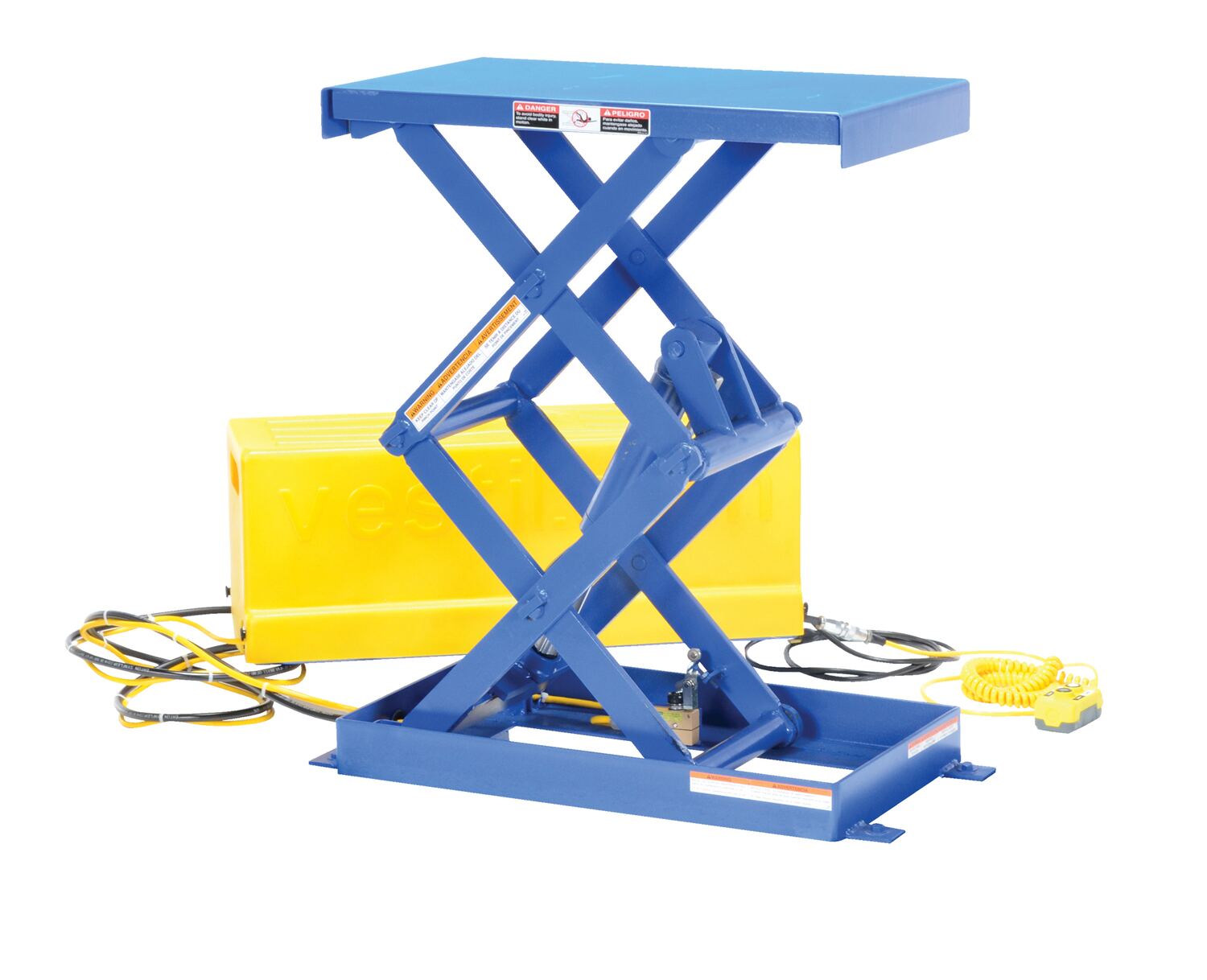

EHLTSD-1628-1-35 EHLTSD-1628-1-35Steel Double Leg Shorty Scissor Lift Table 16 In. x 28 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Lowered Height (in.): 7		350

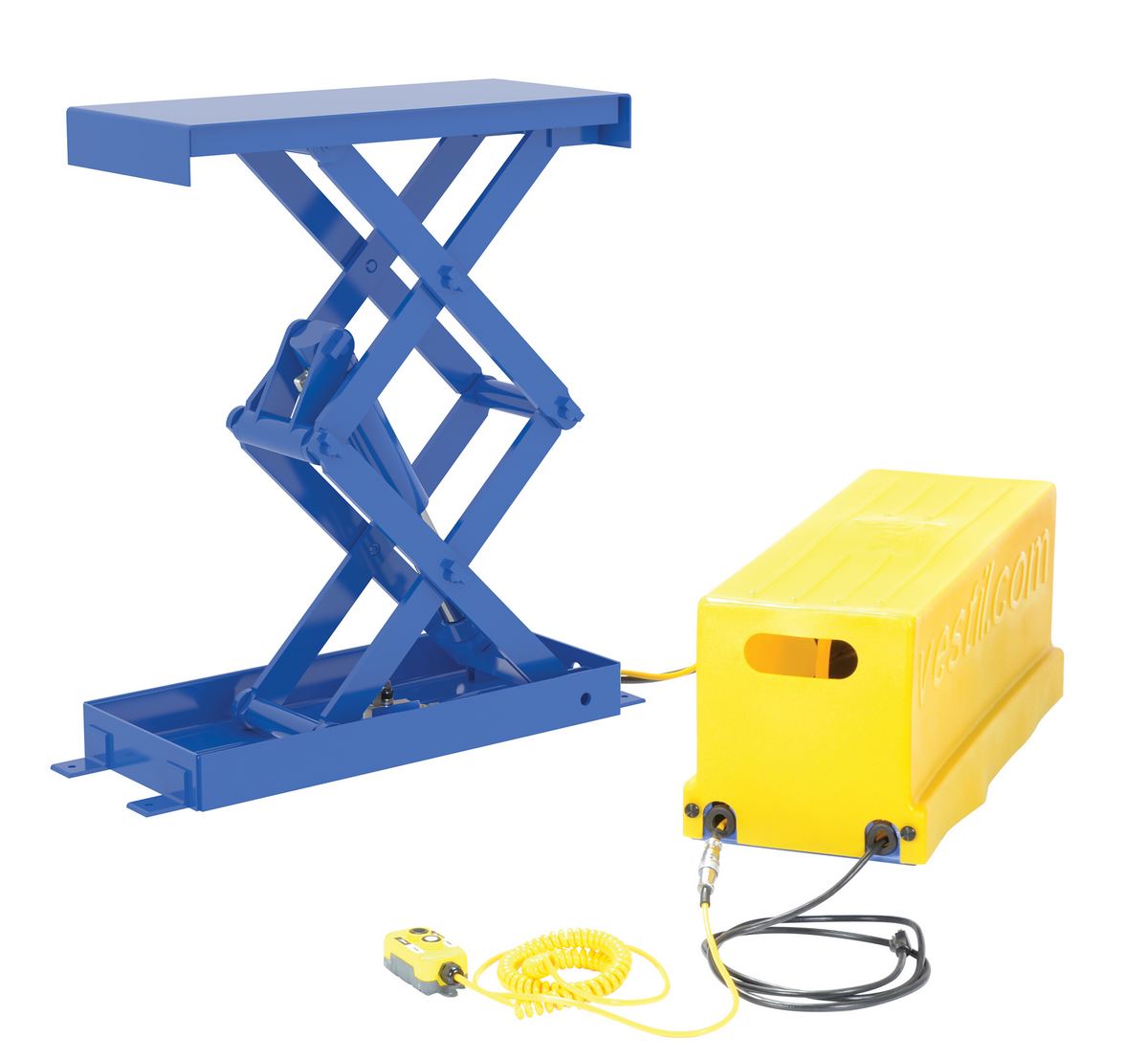

EHLTSD-2436-1-35 EHLTSD-2436-1-35Steel Double Leg Shorty Scissor Lift Table 24 In. x 36 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Lowered Height (in.): 7		400
EHLTSD-2448-1-35 EHLTSD-2448-1-35Steel Double Leg Shorty Scissor Lift Table 24 In. x 48 In. 1000 Lb. Capacity BlueUniform Capacity (lb.): 1000
Lowered Height (in.): 7		386

Options


Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
Model Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
Integeral Scale for Scissor Tables Scales for lift tables
Radio Remote Control Option 2 and 4 button hand controllers
Programmable Height Option Multiple working heights at the touch of a button
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
ADDL-HH-25-10 Synthetic Rubber 1/4 In. 10 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
ADDL-HH-25-20 Synthetic Rubber 1/4 In. 20 Ft. Length Hydraulic Hose For Lift & Tilt Workstation Tables Black
