Rotary Air/Hydraulic Scissor Lift Tables

- - - -

Description
Model Chart
Options
PDF's
Image Gallery

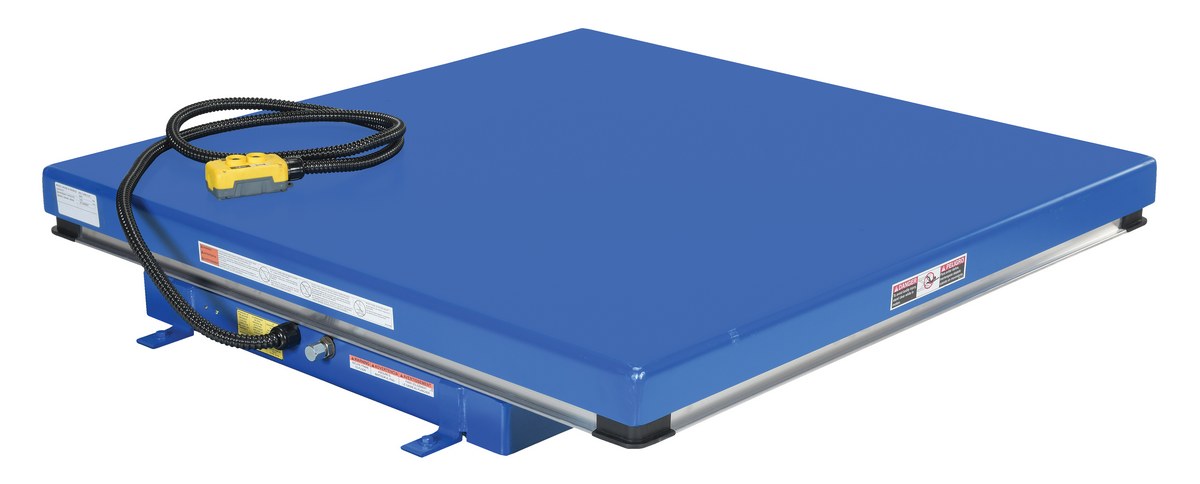

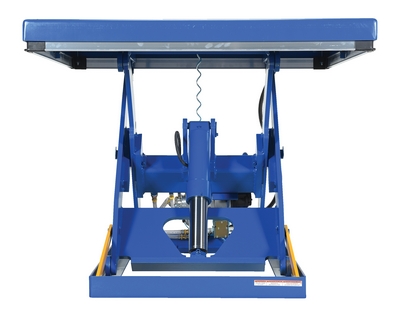

AHLT-4848-3-43_B.jpg AHLT-4848-3-43_A.jpg AHLT-4848-3-43_C.jpg AHLT-4848-3-43_D.jpg
AHLT-4848-3-43_E.jpg AHLT-4848-3-43_1.jpg AHLT-4848-3-43_2.jpg

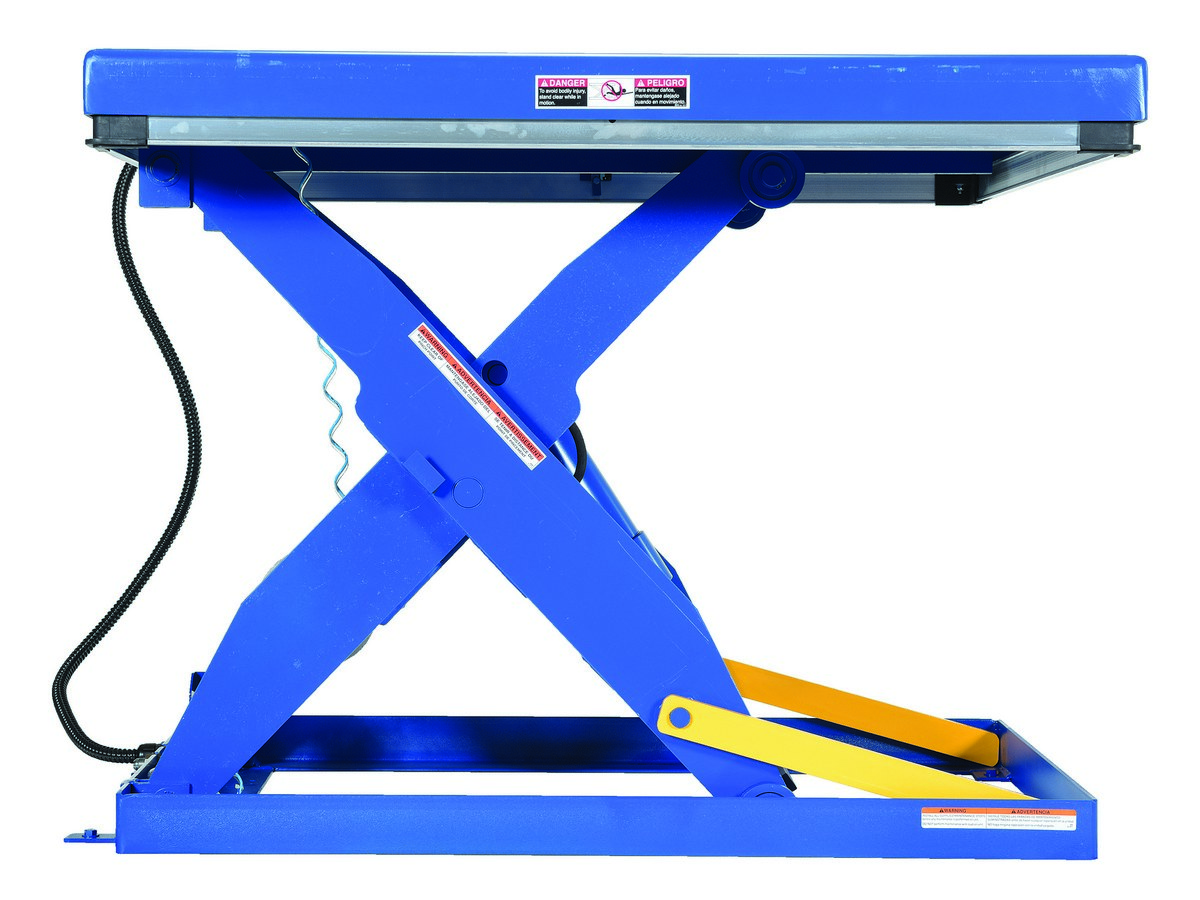

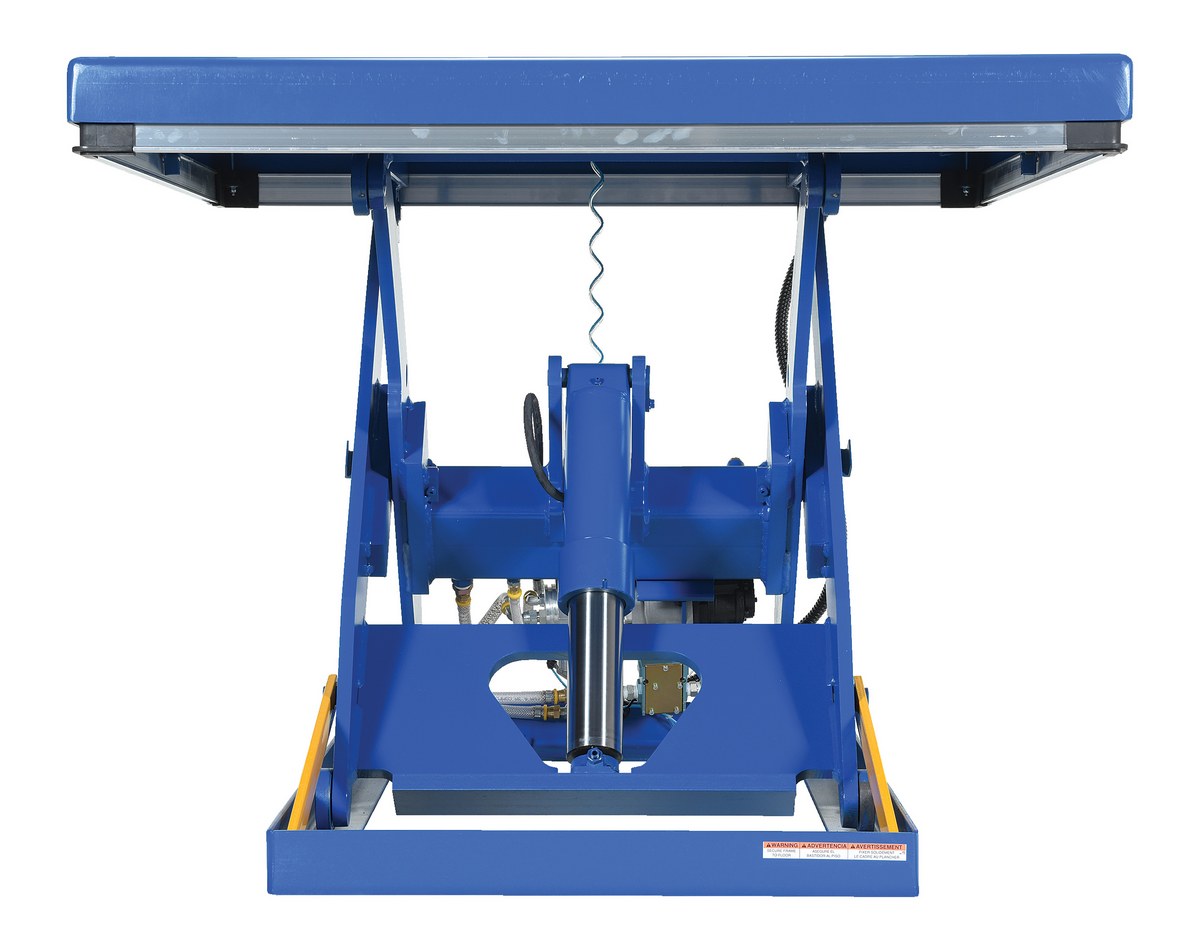

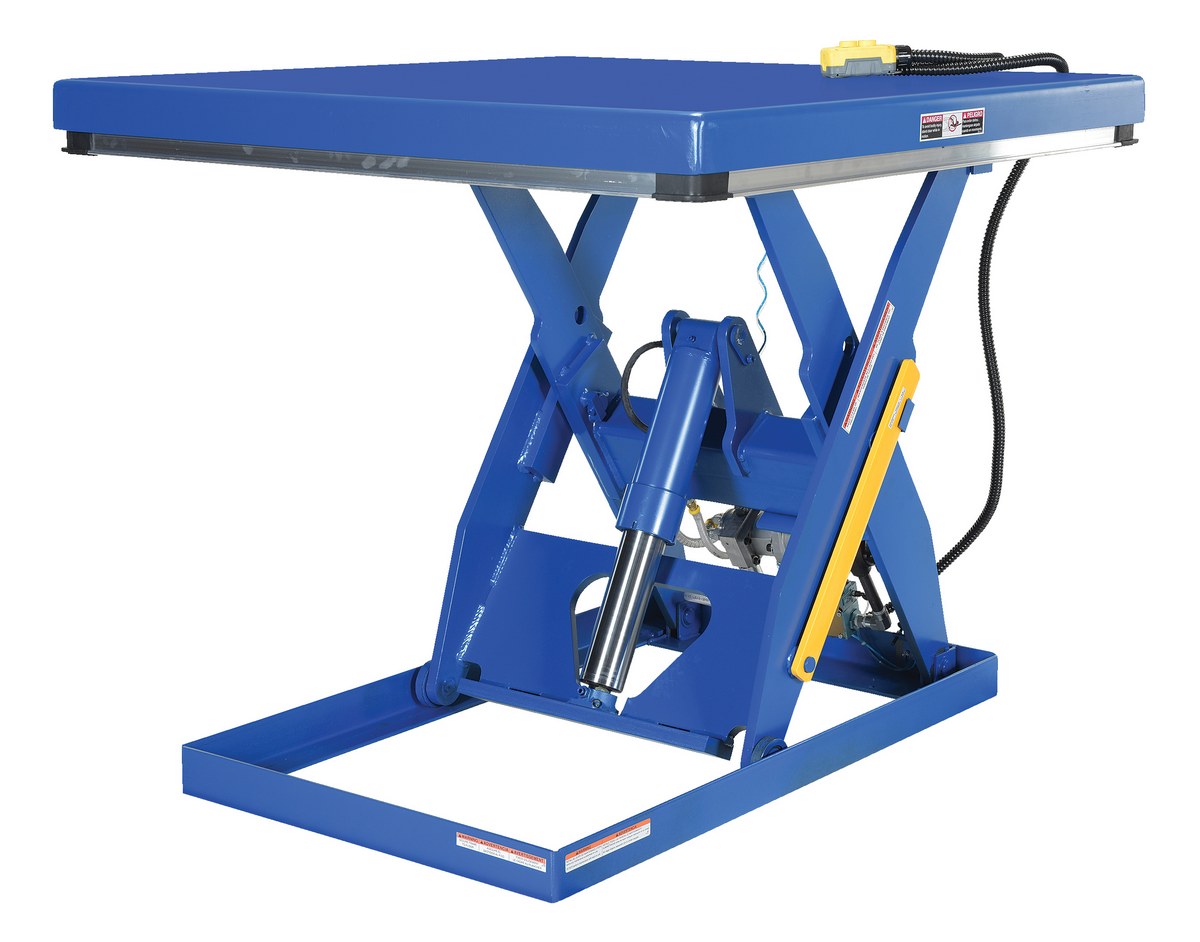

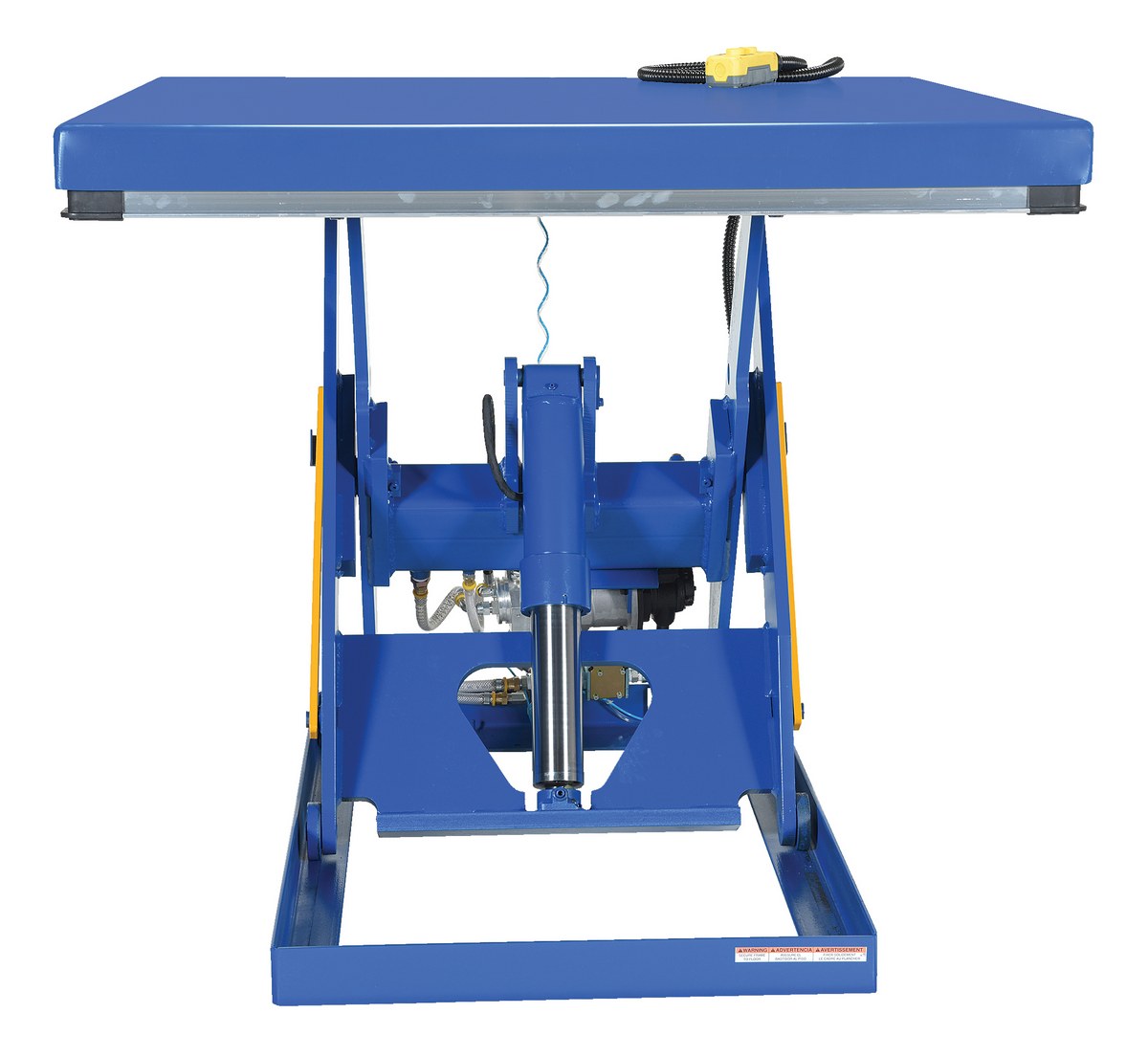

Rotary Air/Hydraulic Scissor Lift Tables

model: AHLT-4848-3-43



Featured Ergonomic Solutions


Tote/ Skid Lifters
Mechanical Post Tables
Pallet Truck Chock
DC Powered and Manual Scissor Carts
Tilt Master & Tilt Master Straddle
Low Profile Electric Lift Table
Lift & Tilt Carts with Sequence Select
Traction Drive Electric Hydraulic Elevating Carts
Portable Mini Stacker
model chart

Product Family Overview

Print Friendly
Rotary Air/Hydraulic Scissor Lift Tables
SERIES: AHLT

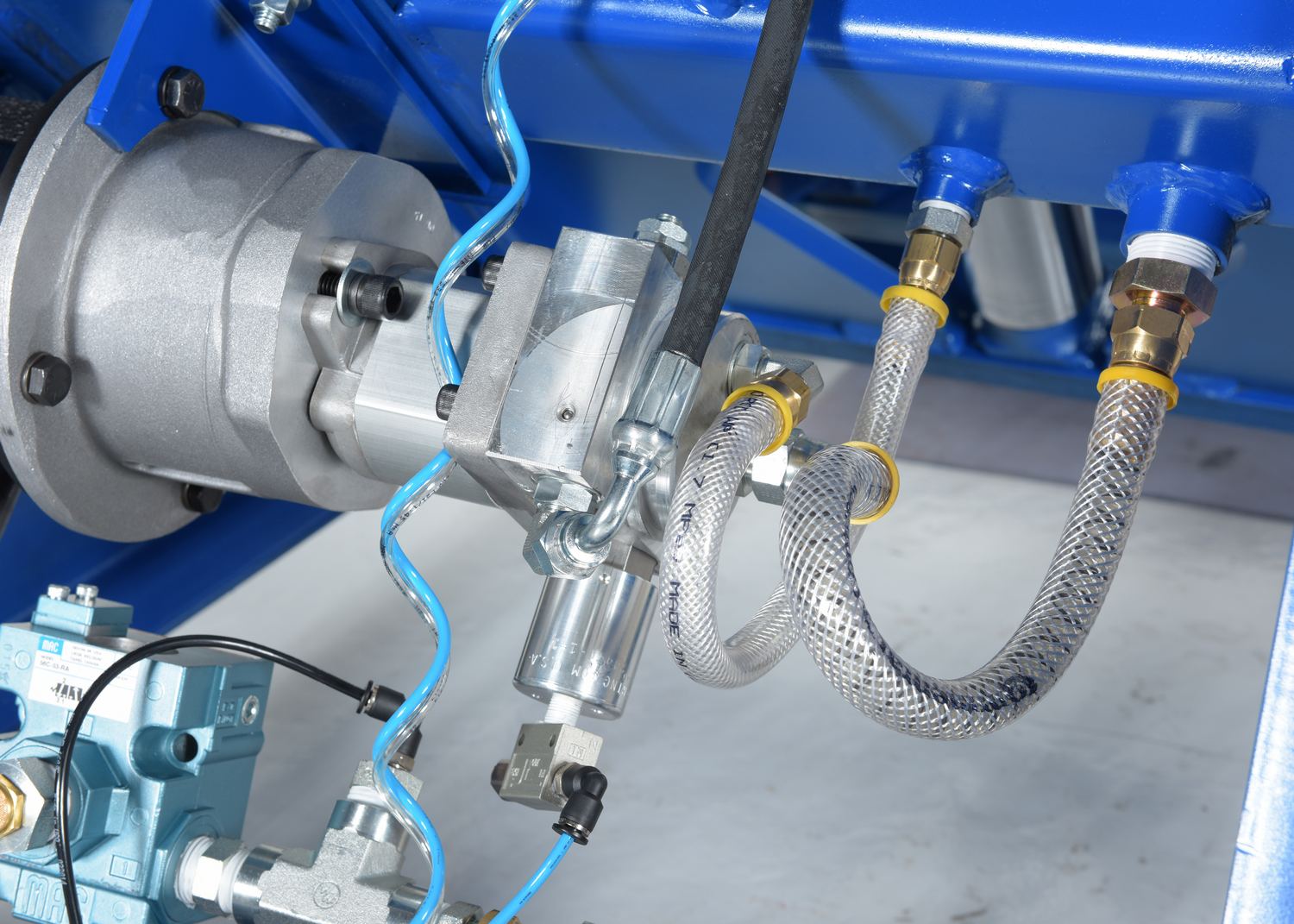

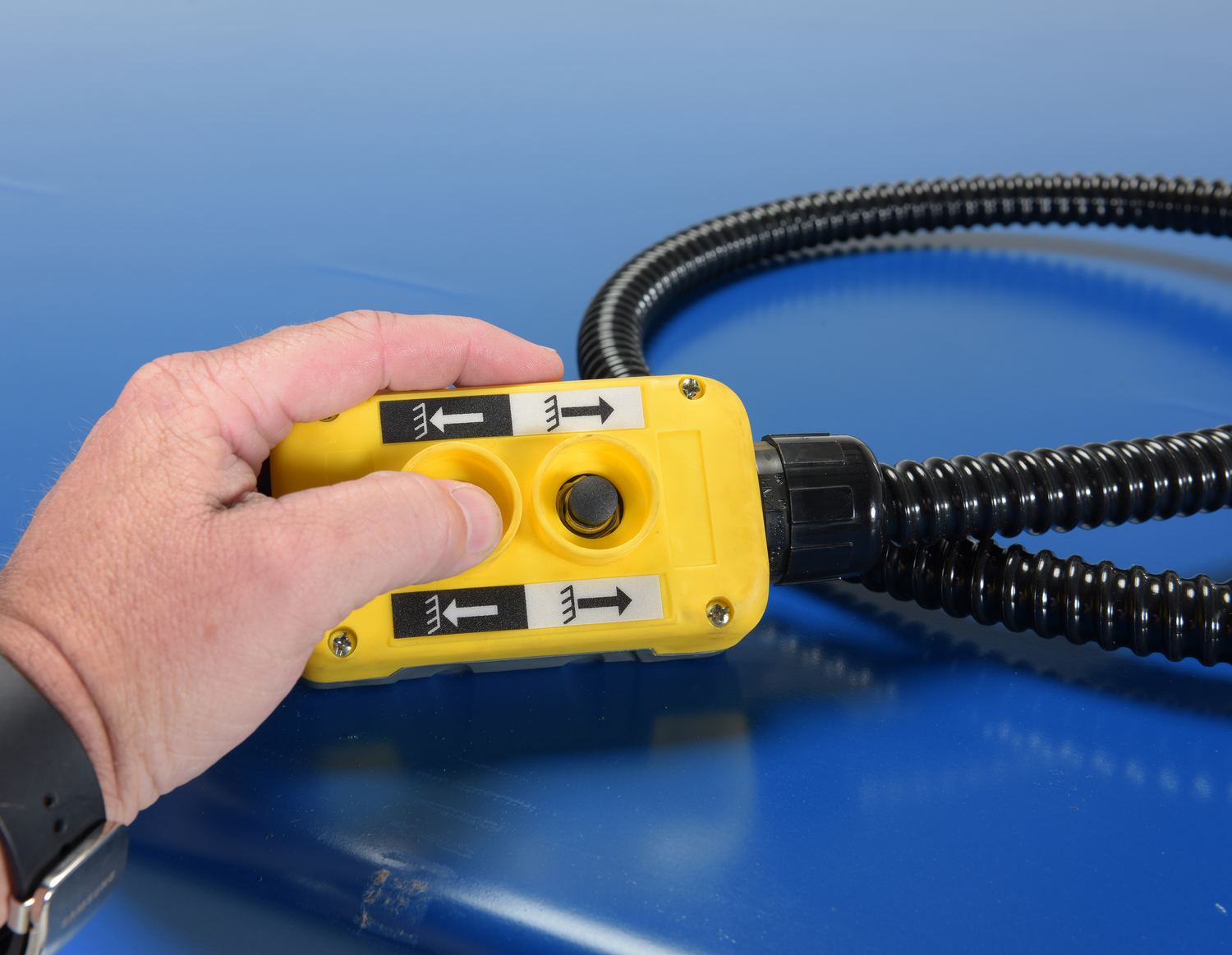

Utilize the convenience of factory air to power these lift tables. Simply connect to an 80 CFM & 80 PSI (minimum) air supply (minimum 3/4" supply recommended) through a filter, regulator, lubricator and you now have a lift table suitable for a wide range of applications and operating environments. Features pneumatic upper travel limit switch, safety toe guards, cylinder with internal safety velocity fuse, two button hand control, and life-time lubricated sleeve bearings.

  • Utilizes the convenience of factory air for power
  • Connect through a filter, regulator, or lubricator
  • Suitable for a wide range of applications and environments
  • Features a pneumatic upper travel limit switch and safety toe guards

Utilize the convenience of factory air to power these lift tables. Simply connect to an 80 CFM & 80 PSI (minimum) air supply (minimum 3/4" supply recommended) through a filter, regulator, lubricator and you now have a lift table suitable for a wide range of applications and operating environments. Features pneumatic upper travel limit switch, safety toe guards, cylinder with internal safety velocity fuse, two button hand control, and life-time lubricated sleeve bearings.

  • Utilizes the convenience of factory air for power
  • Connect through a filter, regulator, or lubricator
  • Suitable for a wide range of applications and environments
  • Features a pneumatic upper travel limit switch and safety toe guards

Other Lift & Tilt Tables

 Portable Uni-Tilts Hinge & Sliding Tilt Tables Ground Lift Scissor Tables Hand Control Pedestal

Additional Models In This Family
view entire Image Gallery

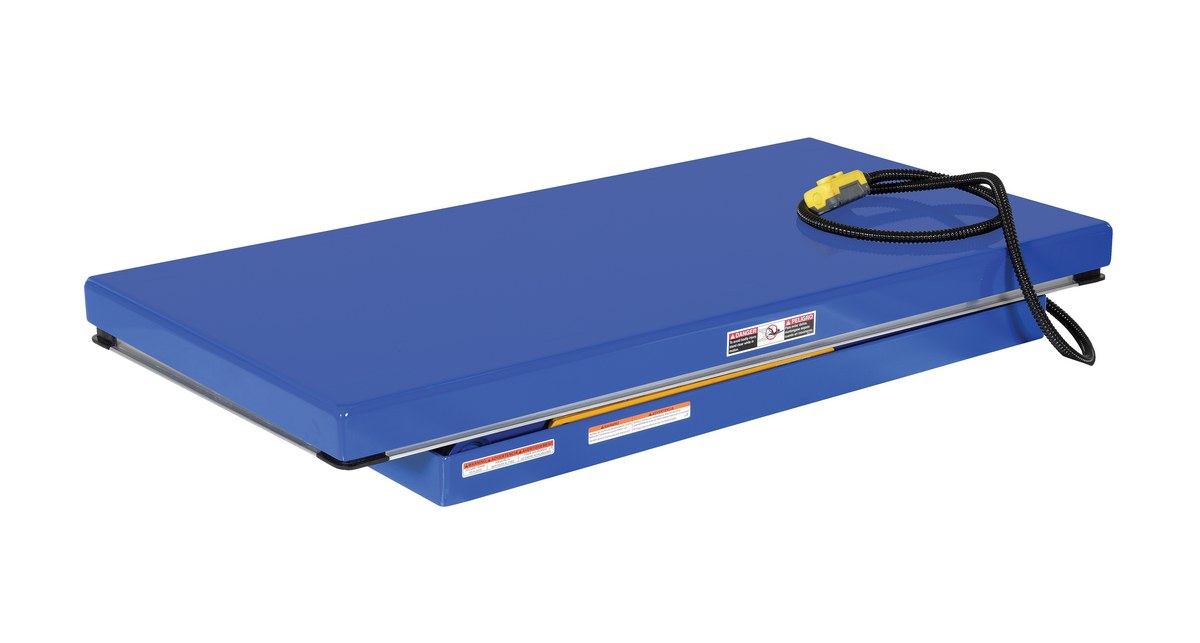

AHLT-3060-3-43

model AHLT-3060-3-43

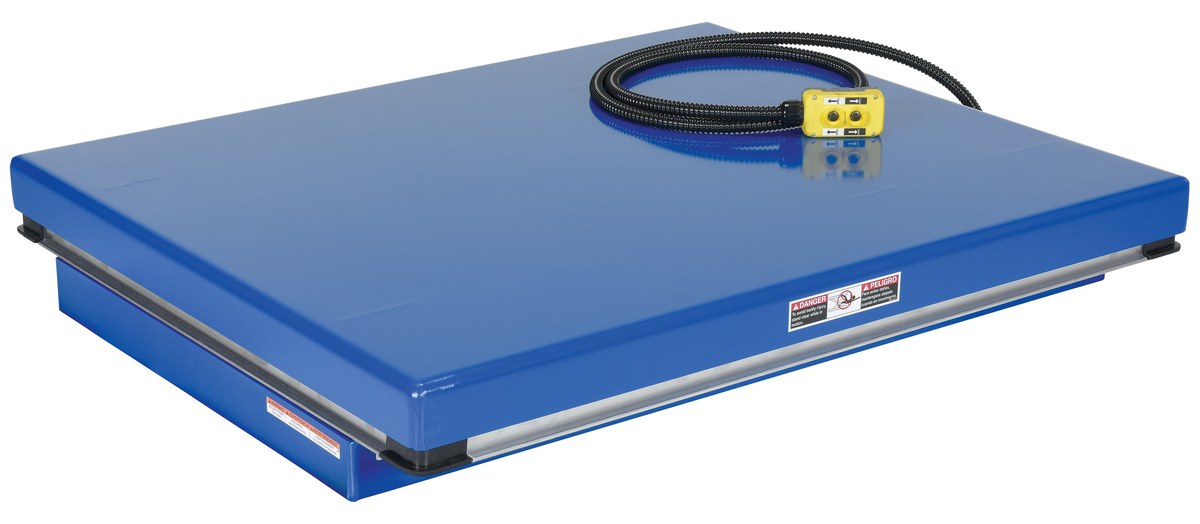

AHLT-4048-3-43

model AHLT-4048-3-43

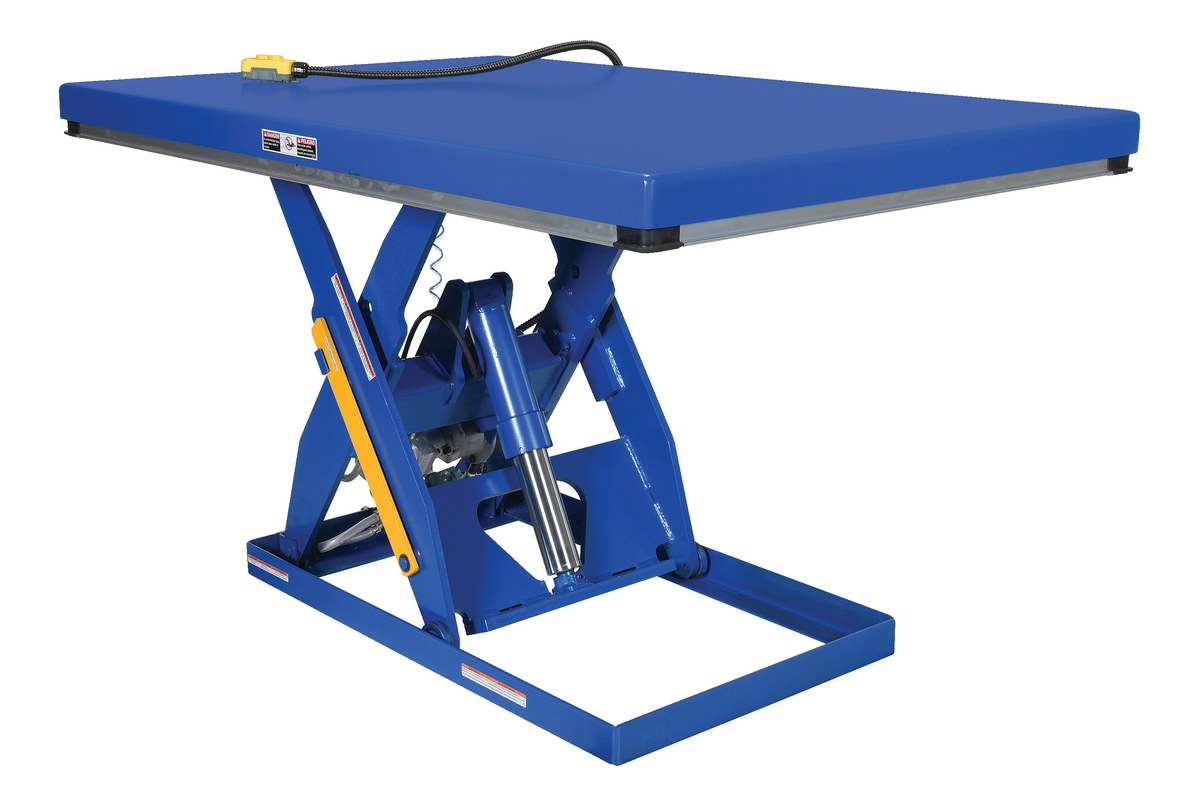

AHLT-4872-3-43

model AHLT-4872-3-43

model chart
How To Purchase

Model Specific Details

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.
The Search Box below is within the Model Chart for this Product Family (on this current page). Not an entire site search.
Model # Description Attributes Net Wt.
(lbs)
AHLT-2448-3-43 AHLT-2448-3-431 Year Limited WarrantySteel Rotary Air Hydraulic Scissor Lift Table 24 In. x 48 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 43		662
AHLT-3060-3-43 AHLT-3060-3-431 Year Limited WarrantySteel Rotary Air Hydraulic Scissor Lift Table 30 In. x 60 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 43		787
AHLT-4048-3-43 AHLT-4048-3-431 Year Limited WarrantySteel Rotary Air Hydraulic Scissor Lift Table 40 In. x 48 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 43		769
AHLT-4848-3-43 AHLT-4848-3-431 Year Limited WarrantySteel Rotary Air Hydraulic Scissor Lift Table 48 In. x 48 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 43		780
AHLT-4872-3-43 AHLT-4872-3-431 Year Limited WarrantySteel Rotary Air Hydraulic Scissor Lift Table 48 In. x 72 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 43		937

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = 360 Image Warranty
= Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

AHLT-2448-3-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Raised Height (in.): 43
Uniform Capacity (lb.): 3000
Raised Height (in.): 43

AHLT-3060-3-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Raised Height (in.): 43
Uniform Capacity (lb.): 3000
Raised Height (in.): 43

AHLT-4048-3-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Raised Height (in.): 43
Uniform Capacity (lb.): 3000
Raised Height (in.): 43

AHLT-4848-3-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Raised Height (in.): 43
Uniform Capacity (lb.): 3000
Raised Height (in.): 43

AHLT-4872-3-43
Unit:
Size: W x L x H
Weight:
Limited Warranty
Uniform Capacity (lb.): 3000
Raised Height (in.): 43
Uniform Capacity (lb.): 3000
Raised Height (in.): 43
For More Details of the Option Click the Red Model Button

Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
Model Image Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
FC-2P Pneumatic twin foot switch (Option for ROTARY-LHL-HHPB and ROTARY-DA-HHPB only)
Integeral Scale for Scissor Tables Scales for lift tables
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
Rotary Air/Hydraulic Scissor Lift Tables PDF's will open in a new window when clicked.

Manuals


AHLT
Owners Manual

Survey Sheets

No Survey Sheets For This Product


Approval Drawings


AHLT-2448-3-43

AHLT-3060-3-43

AHLT-4048-3-43

AHLT-4848-3-43

AHLT-4872-3-43

Testing Certificates


AHLT-2448-3-43

AHLT-3060-3-43

AHLT-4048-3-43

AHLT-4848-3-43

AHLT-4872-3-43

SDS Sheets

Hydraulic Oil SDS Sheet for: AHLT-2448-3-43
Hydraulic Oil SDS Sheet for: AHLT-3060-3-43
Hydraulic Oil SDS Sheet for: AHLT-4048-3-43
Hydraulic Oil SDS Sheet for: AHLT-4848-3-43
Hydraulic Oil SDS Sheet for: AHLT-4872-3-43

Other PDF's

No "Other PDFs" For This Product...


Directory Links Of Available PDF's For All Products

Manuals
Survey Sheets
Drawings
Certificates of Testing
Warranties
SDS Data Sheets







Visit Our Youtube Channel For All Available Videos For All Products

Related or Similar Products:

Electric Hydraulic Scissor Lift Tables
Product

Electric Hydraulic Scissor Lift Tables

Heavy-Duty Air Bag Scissor Lift Tables
Product

Heavy-Duty Air Bag Scissor Lift Tables

Air Bag Scissor Lift Tables
Product

Air Bag Scissor Lift Tables

Double Scissor Lift Tables
Product

Double Scissor Lift Tables

Portable Scissor Lift Tables
Product

Portable Scissor Lift Tables

Work Station Electric Hydraulic Scissor Tables
Product

Work Station Electric Hydraulic Scissor Tables

Before placing an order, please confirm that the ship to company is able to receive shipments on the estimated delivery date





Rotary Air/Hydraulic Scissor L...




Utilize the convenience of factory air to power these lift tables. Simply connect to an 80 CFM & 80 PSI (minimum) air supply (minimum 3/4" supply recommended) through a filter, regulator, lubricator and you now have a lift table suitable for a wide range of applications and operating environments. Features pneumatic upper travel limit switch, safety toe guards, cylinder with internal safety velocity fuse, two button hand control, and life-time lubricated sleeve bearings.

  • Utilizes the convenience of factory air for power
  • Connect through a filter, regulator, or lubricator
  • Suitable for a wide range of applications and environments
  • Features a pneumatic upper travel limit switch and safety toe guards

Model # Description Attributes Net Wt.
(lbs)
AHLT-2448-3-43 AHLT-2448-3-43Steel Rotary Air Hydraulic Scissor Lift Table 24 In. x 48 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 43		662
AHLT-3060-3-43 AHLT-3060-3-43Steel Rotary Air Hydraulic Scissor Lift Table 30 In. x 60 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 43		787
AHLT-4048-3-43 AHLT-4048-3-43Steel Rotary Air Hydraulic Scissor Lift Table 40 In. x 48 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 43		769
AHLT-4848-3-43 AHLT-4848-3-43Steel Rotary Air Hydraulic Scissor Lift Table 48 In. x 48 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 43		780
AHLT-4872-3-43 AHLT-4872-3-43Steel Rotary Air Hydraulic Scissor Lift Table 48 In. x 72 In. 3,000 Lb. Capacity BlueUniform Capacity (lb.): 3000
Raised Height (in.): 43		937

Options


Options For Electric Hydraulic Equipment

Available at the time of sale for most of the powered products listed in the Ergonomic Solutions section.
Model Image Description
HCP-2642 HCP-2642 Optional Hand Control Pedestal
FC-2P Pneumatic twin foot switch (Option for ROTARY-LHL-HHPB and ROTARY-DA-HHPB only)
Integeral Scale for Scissor Tables Scales for lift tables
Manual Built-In Carousel Option Manual carousel (factory installed on new units only)
Safety Accordion Skirt Keep people and debris from getting under the lift. Customer Installed. Contact factory.
