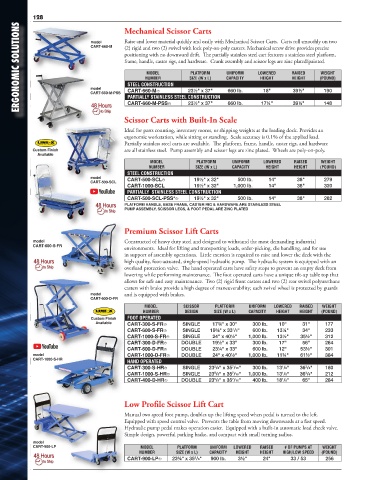

Page 122 - Vestil Catalog 112

128 Mechanical Scissor Carts
ERGONOMIC SOLUTIONS model (2) rigid and two (2) swivel with lock poly-on-poly casters. Mechanical screw drive provides precise

Raise and lower material quickly and easily with Mechanical Scissor Carts. Carts roll smoothly on two
CART-660-M
positioning with no downward drift. The partially stainless steel cart features a stainless steel platform,
frame, handle, caster rigs, and hardware. Crank assembly and scissor legs are zinc plated/painted.
RAISED
MODEL
PLATFORM
UNIFORM
WEIGHT
LOWERED
HEIGHT
NUMBER
SIZE (W x L)
HEIGHT
(POUND)
CAPACITY
STEEL CONSTRUCTION
39½"
660 lb.
190
model
18"
23½" x 37"
CART-660-M�
CART-660-M-PSS
PARTIALLY STAINLESS STEEL CONSTRUCTION
660 lb.
23½" x 37"
CART-660-M-PSS�
Scissor Carts with Built-In Scale 17¼" 39¼" 148
Ideal for parts counting, inventory rooms, or shipping weights at the loading dock. Provides an
ergonomic workstation, while sitting or standing. Scale accuracy is 0.1% of the applied load.
Partially stainless steel carts are available. The platform, frame, handle, caster rigs, and hardware
Custom Finish are all stainless steel. Pump assembly and scissor legs are zinc plated. Wheels are poly-on-poly.
Available
MODEL PLATFORM UNIFORM LOWERED RAISED WEIGHT
NUMBER SIZE (W x L) CAPACITY HEIGHT HEIGHT (POUND)
STEEL CONSTRUCTION
model 19½" x 32" 500 lb. 14" 38" 279
CART-500-SCL CART-500-SCL�
CART-1000-SCL 19½" x 32" 1,000 lb. 14" 38" 320
PARTIALLY STAINLESS STEEL CONSTRUCTION
CART-500-SCL-PSS*� 19½" x 32" 500 lb. 14" 38" 282
PLATFORM HANDLE, BASE FRAME, CASTER RIG & HARDWARE ARE STAINLESS STEEL
PUMP ASSEMBLY, SCISSOR LEGS, & FOOT PEDAL ARE ZINC PLATED
Premium Scissor Lift Carts
model Constructed of heavy duty steel and designed to withstand the most demanding industrial
CART-600-S-FR
environments. Ideal for lifting and transporting loads, order-picking, die handling, and for use
in support of assembly operations. Little exertion is required to raise and lower the deck with the
high quality, foot-actuated, single-speed hydraulic pump. The hydraulic system is equipped with an
overload protection valve. The hand operated carts have safety stops to prevent an empty deck from
lowering while performing maintenance. The foot operated carts have a unique tilt-up table top that
allows for safe and easy maintenance. Two (2) rigid front casters and two (2) rear swivel polyurethane
casters with brake provide a high degree of maneuverability; each swivel wheel is protected by guards
model and is equipped with brakes.
CART-600-D-FR
MODEL SCISSOR PLATFORM UNIFORM LOWERED RAISED WEIGHT
NUMBER DESIGN SIZE (W x L) CAPACITY HEIGHT HEIGHT (POUND)
Custom Finish FOOT OPERATED
Available CART-300-S-FR� SINGLE 17¾" x 30" 300 lb. 10" 31" 177
1
CART-600-S-FR� SINGLE 19¾" x 33 /8" 600 lb. 13¼" 34" 233
CART-1000-S-FR� SINGLE 24" x 40½" 1,000 lb. 13½" 35½" 312
CART-300-D-FR� DOUBLE 19½" x 33" 300 lb. 17" 56" 264
CART-600-D-FR� DOUBLE 23¼" x 33" 600 lb. 12" 53½" 301
model CART-1000-D-FR� DOUBLE 24" x 40½" 1,000 lb. 11¾" 61½" 384
CART-1000-S-HR HAND OPERATED
3
1
5
7
CART-300-S-HR� SINGLE 23 /8" x 35 /16" 300 lb. 13 /8" 36 /8" 180
1
3
7
5
CART-1000-S-HR� SINGLE 23 /8" x 35 /16" 1,000 lb. 13 /8" 36 /8" 212
1
7
5
CART-400-D-HR� DOUBLE 23 /8" x 35 /16" 400 lb. 18 /8" 65" 284
Low Profile Scissor Lift Cart
Manual two speed foot pump, doubles up the lifting speed when pedal is turned to the left.
Equipped with speed control valve. Prevents the table from moving downwards at a fast speed.
Hydraulic pump pedal makes operation easier. Equipped with a built-in automatic load check valve.
Simple design, powerful parking brake, and compact with small turning radius.
model
CART-900-LP MODEL PLATFORM UNIFORM LOWERED RAISED # OF PUMPS AT WEIGHT
NUMBER SIZE (W x L) CAPACITY HEIGHT HEIGHT HIGH/LOW SPEED (POUND)
5
CART-900-LP� 23¾" x 35 /8" 900 lb. 3½" 24" 33 / 53 256
