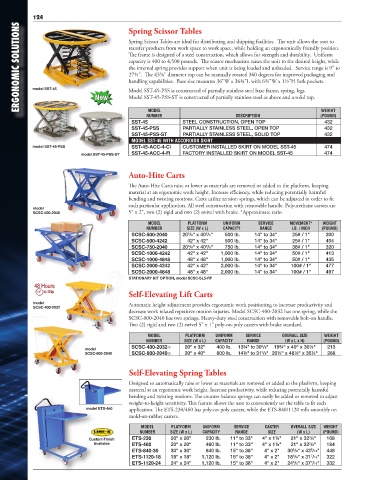

Page 118 - Vestil Catalog 112

124 Spring Scissor Tables
ERGONOMIC SOLUTIONS model SST-45 transfer products from work space to work space, while holding an ergonomically friendly position.

Spring Scissor Tables are ideal for distributing and shipping facilities. The unit allows the user to
The frame is designed of a steel construction, which allows for strength and durability. Uniform
capacity is 400 to 4,500 pounds. The scissor mechanism raises the unit to the desired height, while
the internal spring provides support when unit is being loaded and unloaded. Service range is 9" to
27¾". The 43⅝" diameter top can be manually rotated 360 degrees for improved packaging and
handling capabilities. Base size measures 36"W x 36¾"L with 6¾"W x 1½"H fork pockets.
Model SST-45-PSS is constructed of partially stainless steel base frame, spring, legs.
New
Model SST-45-PSS-ST is constructed of partially stainless steel as above and a solid top.
MODEL
WEIGHT
NUMBER DESCRIPTION (POUND)
SST-45 STEEL CONSTRUCTION, OPEN TOP 432
SST-45-PSS PARTIALLY STAINLESS STEEL, OPEN TOP 432
SST-45-PSS-ST PARTIALLY STAINLESS STEEL, SOLID TOP 432
MODEL SST-45 WITH ACCORDION SKIRT
model SST-45-PSS SST-45-ACC-4-CI CUSTOMER INSTALLED SKIRT ON MODEL SST-45 474
model SST-45-PSS-ST SST-45-ACC-4-FI FACTORY INSTALLED SKIRT ON MODEL SST-45 474

Auto-Hite Carts
The Auto-Hite Carts raise or lower as materials are removed or added to the platform, keeping
material at an ergonomic work height. Increase efficiency, while reducing potentially harmful
bending and twisting motions. Carts utilize tension springs, which can be adjusted in order to fit
each particular application. All steel construction with removable handle. Polyurethane casters are
model
SCSC-500-2040 5" x 2", two (2) rigid and two (2) swivel with brake. *Approximate ratio.
MODEL PLATFORM UNIFORM SERVICE MOVEMENT* WEIGHT
NUMBER SIZE (W x L) CAPACITY RANGE LB. / INCH (POUND)
3
3
SCSC-500-2040 20 /8" x 40 /8" 500 lb. 14" to 34" 25# / 1" 300
SCSC-500-4242 42" x 42" 500 lb. 14" to 34" 25# / 1" 404
3
3
SCSC-750-2040 20 /8" x 40 /8" 750 lb. 14" to 34" 38# / 1" 320
SCSC-1000-4242 42" x 42" 1,000 lb. 14" to 34" 50# / 1" 413
SCSC-1000-4848 48" x 48" 1,000 lb. 14" to 34" 50# / 1" 435
SCSC-2000-4242 42" x 42" 2,000 lb. 14" to 34" 100# / 1" 477
SCSC-2000-4848 48" x 48" 2,000 lb. 14" to 34" 100# / 1" 497
STATIONARY KIT OPTION, model SCSC-SL5-RF
Self-Elevating Lift Carts
model Automatic height adjustment provides ergonomic work positioning to increase productivity and
SCSC-400-2032
decrease work related repetitive motion injuries. Model SCSC-400-2032 has one spring, while the
SCSC-800-2040 has two springs. Heavy-duty steel construction with removable bolt-on handle.
Two (2) rigid and two (2) swivel 5" x 1" poly-on-poly casters with brake standard.
MODEL PLATFORM UNIFORM SERVICE OVERALL SIZE WEIGHT
NUMBER SIZE (W x L) CAPACITY RANGE (W x L x H) (POUND)
3
model SCSC-400-2032� 20" x 32" 400 lb. 13¾" to 30 /8" 19¾" x 40" x 30½" 213
1
SCSC-800-2040 SCSC-800-2040� 20" x 40" 800 lb. 14½" to 31 /8" 20½" x 48½" x 35½" 288
Self-Elevating Spring Tables
Designed to automatically raise or lower as materials are removed or added to the platform, keeping
material at an ergonomic work height. Increase productivity, while reducing potentially harmful
bending and twisting motions. The counter balance springs can easily be added or removed to adjust
weight-to-height sensitivity. This feature allows the user to conveniently set the table to fit each
model ETS-460 application. The ETS-230/460 has poly-on-poly casters, while the ETS-840/1120 rolls smoothly on
mold-on-rubber casters.
MODEL PLATFORM UNIFORM SERVICE CASTER OVERALL SIZE WEIGHT
NUMBER SIZE (W x L) CAPACITY RANGE SIZE (W x L) (POUND)
3
Custom Finish ETS-230 20" x 20" 230 lb. 11" to 33" 4" x 1¼" 21" x 32 /8" 168
3
Available ETS-460 20" x 20" 460 lb. 11" to 33" 4" x 1¼" 21" x 32 /8" 184
5
5
ETS-840-30 30" x 30" 840 lb. 15" to 38" 4" x 2" 30 /8" x 43 /16" 448
ETS-1120-18 18" x 18" 1,120 lb. 15" to 38" 4" x 2" 18 /8" x 31 /16" 322
7
5
ETS-1120-24 24" x 24" 1,120 lb. 15" to 38" 4" x 2" 24 /8" x 37 /16" 332
7
5
