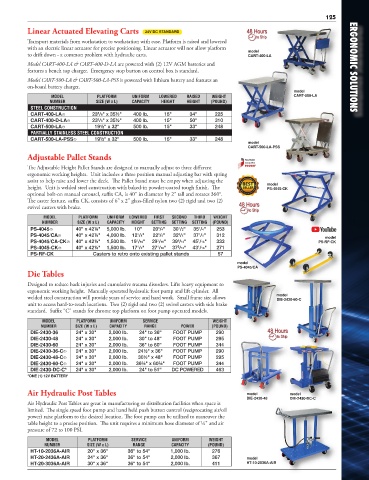

Page 119 - Vestil Catalog 112

125
Linear Actuated Elevating Carts 24V DC STANDARD

Transport materials from workstation to workstation with ease. Platform is raised and lowered
with an electric linear actuator for precise positioning. Linear actuator will not allow platform
to drift down - a common problem with hydraulic carts. model
CART-400-LA
Model CART-400-LA & CART-400-D-LA are powered with (2) 12V AGM batteries and
features a bench top charger. Emergency stop button on control box is standard. ERGONOMIC SOLUTIONS
Model CART-500-LA & CART-500-LA-PSS is powered with lithium battery and features an
on-board battery charger.
model
MODEL PLATFORM UNIFORM LOWERED RAISED WEIGHT CART-500-LA
NUMBER SIZE (W x L) CAPACITY HEIGHT HEIGHT (POUND)
STEEL CONSTRUCTION
5
CART-400-LA� 23 /8" x 35½" 400 lb. 15" 34" 225
5
CART-400-D-LA� 23 /8" x 35½" 400 lb. 15" 50" 310
CART-500-LA� 19½" x 32" 500 lb. 15" 33" 248
PARTIALLY STAINLESS STEEL CONSTRUCTION
CART-500-LA-PSS� 19½" x 32" 500 lb. 15" 33" 248
model
CART-500-LA-PSS
Adjustable Pallet Stands
The Adjustable Height Pallet Stands are designed to manually adjust to three different
ergonomic working heights. Unit includes a three position manual adjusting bar with spring
assist to help raise and lower the deck. The Pallet Stand must be empty when adjusting the
height. Unit is welded steel construction with baked-in powder-coated tough finish. The model
PS-4045-CK
optional bolt-on manual carousel, suffix CA, is 40" in diameter by 2" tall and rotates 360°.
The caster feature, suffix CK, consists of 6" x 2" glass-filled nylon two (2) rigid and two (2)
swivel casters with brake.
MODEL PLATFORM UNIFORM LOWERED FIRST SECOND THIRD WEIGHT
NUMBER SIZE (W x L) CAPACITY HEIGHT SETTING SETTING SETTING (POUND)
1
1
1
PS-4045� 40" x 42¼" 5,000 lb. 10" 20 /4" 30 /2" 35 /4" 253
3
1
1
1
PS-4045/CA� 40" x 42¼" 4,000 lb. 12 /4" 22 /4" 32 /4" 37 /4" 312 model
1
1
1
5
PS-4045/CA-CK� 40" x 42¼" 1,500 lb. 19 /16" 29 /16" 39 /16" 45 /16" 333 PS-RF-CK
1
5
1
1
PS-4045-CK� 40" x 42¼" 1,500 lb. 17 /2" 27 /16" 37 /16" 43 /16" 271
PS-RF-CK Casters to retro onto existing pallet stands 57
model
PS-4045/CA
Die Tables
Designed to reduce back injuries and cumulative trauma disorders. Lifts heavy equipment to
ergonomic working height. Manually operated hydraulic foot pump and lift cylinder. All
welded steel construction will provide years of service and hard work. Small frame size allows model
DIE-2430-60-C
unit to access hard-to-reach locations. Two (2) rigid and two (2) swivel casters with side brake
standard. Suffix "C" stands for chrome top platform on foot pump operated models.
MODEL PLATFORM UNIFORM SERVICE WEIGHT
NUMBER SIZE (W x L) CAPACITY RANGE POWER (POUND)
DIE-2430-36 24" x 30" 2,000 lb. 24" to 36" FOOT PUMP 290
DIE-2430-48 24" x 30" 2,000 lb. 30" to 48" FOOT PUMP 295
DIE-2430-60 24" x 30" 2,000 lb. 36" to 60" FOOT PUMP 344
DIE-2430-36-C� 24" x 30" 2,000 lb. 24½" x 36" FOOT PUMP 290
DIE-2430-48-C� 24" x 30" 2,000 lb. 30½" x 48" FOOT PUMP 295
DIE-2430-60-C� 24" x 30" 2,000 lb. 36¾" x 60¾" FOOT PUMP 344
DIE-2430-DC-C* 24" x 30" 2,000 lb. 24" to 51" DC POWERED 463
*ONE (1) 12V BATTERY
Air Hydraulic Post Tables model model
DIE-2430-48 DIE-2430-DC-C
Air Hydraulic Post Tables are great in manufacturing or distribution facilities when space is
limited. The single speed foot pump and hand held push button control (reciprocating air/oil
power) raise platform to the desired location. The foot pump can be utilized to maneuver the
table height to a precise position. The unit requires a minimum hose diameter of ¼" and air
pressure of 72 to 100 PSI.
MODEL PLATFORM SERVICE UNIFORM WEIGHT
NUMBER SIZE (W x L) RANGE CAPACITY (POUND)
HT-10-2036A-AIR 20" x 36" 36" to 54" 1,000 lb. 276
HT-20-2436A-AIR 24" x 36" 36" to 54" 2,000 lb. 367 model
HT-20-3036A-AIR 30" x 36" 36" to 54" 2,000 lb. 411 HT-10-2036A-AIR
