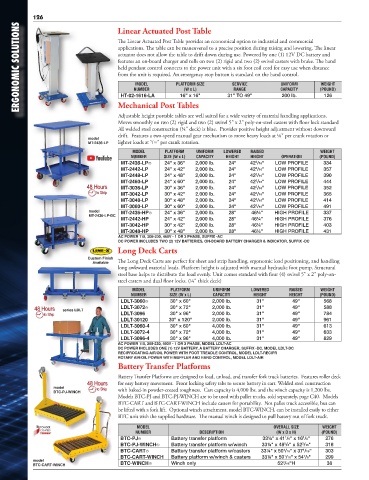

Page 120 - Vestil Catalog 112

126 Linear Actuated Post Table
ERGONOMIC SOLUTIONS applications. The table can be maneuvered to a precise position during raising and lowering. The linear

The Linear Actuated Post Table provides an economical option to industrial and commercial
actuator does not allow the table to drift down during use. Powered by one (1) 12V DC battery and
features an on-board charger and rolls on two (2) rigid and two (2) swivel casters with brake. The hand
held pendant control connects to the power unit with a six foot coil cord for easy use when distance
from the unit is required. An emergency stop button is standard on the hand control.

SERVICE
UNIFORM
MODEL
PLATFORM SIZE
WEIGHT
(POUND)
NUMBER
RANGE
CAPACITY
(W x L)
16" x 16"
200 lb.
31" TO 49"
126
HT-02-1616-LA
Mechanical Post Tables
Adjustable height portable tables are well suited for a wide variety of material handling applications.
Moves smoothly on two (2) rigid and two (2) swivel 5" x 2" poly-on-steel casters with floor lock standard
All welded steel construction (¼" deck) is blue. Provides positive height adjustment without downward
drift. Features a two-speed manual gear mechanism to move heavy loads at ⅛" per crank rotation or
model
5
MT-2436-LP lighter loads at / 16" per crank rotation.
MODEL PLATFORM UNIFORM LOWERED RAISED WEIGHT
NUMBER SIZE (W x L) CAPACITY HEIGHT HEIGHT OPERATION (POUND)
3
MT-2436-LP� 24" x 36" 2,000 lb. 24" 42 /16" LOW PROFILE 334
3
MT-2442-LP 24" x 42" 2,000 lb. 24" 42 /16" LOW PROFILE 357
MT-2448-LP 24" x 48" 2,000 lb. 24" 42 /16" LOW PROFILE 390
3
MT-2460-LP 24" x 60" 2,000 lb. 24" 42 /16" LOW PROFILE 444
3
MT-3036-LP 30" x 36" 2,000 lb. 24" 42 /16" LOW PROFILE 352
3
3
MT-3042-LP 30" x 42" 2,000 lb. 24" 42 /16" LOW PROFILE 365
3
MT-3048-LP 30" x 48" 2,000 lb. 24" 42 /16" LOW PROFILE 414
3
MT-3060-LP 30" x 60" 2,000 lb. 24" 42 /16" LOW PROFILE 491
model MT-2436-HP� 24" x 36" 2,000 lb. 28" 46¼" HIGH PROFILE 337
MT-2436-LP-DC
MT-2442-HP 24" x 42" 2,000 lb. 28" 46¼" HIGH PROFILE 376
MT-3042-HP 30" x 42" 2,000 lb. 28" 46¼" HIGH PROFILE 403
MT-3048-HP 30" x 48" 2,000 lb. 28" 46¼" HIGH PROFILE 431
AC POWER 115, 208-230, 460V - 1 OR 3 PHASE, SUFFIX -AC
DC POWER INCLUDES TWO (2) 12V BATTERIES, ON-BOARD BATTERY CHARGER & INDICATOR, SUFFIX -DC
Long Deck Carts
Custom Finish
Available The Long Deck Carts are perfect for sheet and strip handling, ergonomic load positioning, and handling
long awkward material loads. Platform height is adjusted with manual hydraulic foot pump. Structural
steel base helps to distribute the load evenly. Unit comes standard with four (4) swivel 5" x 2" poly-on-
steel casters and dual floor locks. (¼" thick deck)
MODEL PLATFORM UNIFORM LOWERED RAISED WEIGHT
NUMBER SIZE (W x L) CAPACITY HEIGHT HEIGHT (POUND)
LDLT-3060� 30" x 60" 2,000 lb. 31" 49" 568
LDLT-3072� 30" x 72" 2,000 lb. 31" 49" 588
series LDLT
LDLT-3096 30" x 96" 2,000 lb. 31" 49" 784
LDLT-30120 30" x 120" 2,000 lb. 31" 49" 961
LDLT-3060-4 30" x 60" 4,000 lb. 31" 49" 613
LDLT-3072-4 30" x 72" 4,000 lb. 31" 49" 633
LDLT-3096-4 30" x 96" 4,000 lb. 31" 49" 829
AC POWER 115, 208-230, 460V - 1 OR 3 PHASE, MODEL LDLT-AC
DC POWER INCLUDES ONE (1) 12V BATTERY, A BATTERY CHARGER, SUFFIX -DC, MODEL LDLT-DC
RECIPROCATING AIR/OIL POWER WITH FOOT TREADLE CONTROL, MODEL LDLT-RECIPR
ROTARY AIR/OIL POWER WITH MUFFLER AND HAND CONTROL, MODEL LDLT-AIR
Battery Transfer Platforms
Battery Transfer Platforms are designed to load, unload, and transfer fork truck batteries. Features roller deck
for easy battery movement. Front locking safety tabs to secure battery in cart. Welded steel construction
model with baked-in powder-coated toughness. Cart capacity is 4,000 lbs. and the winch capacity is 1,200 lbs.
BTC-PJ-WINCH
Models BTC-PJ and BTC-PJ-WINCH are to be used with pallet trucks, sold separately, page C40. Models
BTC-CART and BTC-CART-WINCH include casters for portability. Not pallet truck accessible, but can
be lifted with a fork lift. Optional winch attachment, model BTC-WINCH, can be installed easily to either
BTC unit with the supplied hardware. The manual winch is designed to pull battery out of fork truck.
MODEL OVERALL SIZE WEIGHT
NUMBER DESCRIPTION (W x D x H) (POUND)
1
1
BTC-PJ� Battery transfer platform 33¼" x 41 /8" x 16 /8" 276
3
5
BTC-PJ-WINCH� Battery transfer platform w/winch 33¼" x 48 /8" x 52 /16" 318
1
1
BTC-CART� Battery transfer platform w/casters 33¼" x 50 /16" x 37 /16" 303
7
1
BTC-CART-WINCH Battery platform w/winch & casters 33¼" x 50 /16" x 54 /8" 299
model Winch only 52 /16"H 38
3
BTC-CART-WINCH BTC-WINCH�
