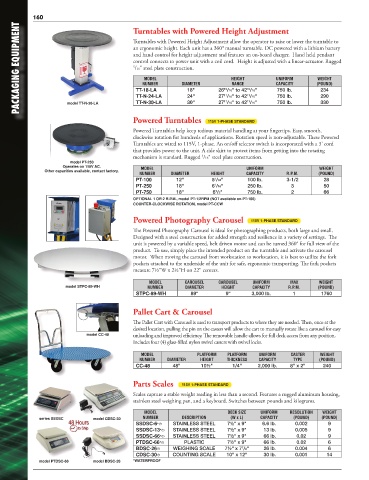

Page 154 - Vestil Catalog 112

160 Turntables with Powered Height Adjustment
PACKAGING EQUIPMENT an ergonomic height. Each unit has a 360° manual turntable. DC powered with a lithium battery

Turntables with Powered Height Adjustment allow the operator to raise or lower the turntable to
and hand control for height adjustment and features an on-board charger. Hand held pendant
control connects to power unit with a coil cord. Height is adjusted with a linear-actuator. Rugged
/16" steel plate construction.
5
MODEL
UNIFORM
WEIGHT
HEIGHT
RANGE
CAPACITY
(POUND)
NUMBER
DIAMETER
26 /16" to 42 /16"
234
750 lb.
18"
15
15
TT-18-LA
24"
27 /16" to 42 /16"
11
11
TT-N-24-LA
750 lb.
27 /16" to 42 /16"
330
30"
11
11
TT-N-30-LA
model TT-N-30-LA
Powered Turntables 115V 1-PHASE STANDARD 750 lb. 290
Powered Turntables help keep tedious material handling at your fingertips. Easy, smooth,
clockwise rotation for hundreds of applications. Rotation speed is non-adjustable. These Powered
Turntables are wired to 115V, 1-phase. An on/off selector switch is incorporated with a 3' cord
that provides power to the unit. A side skirt to protect items from getting into the rotating
5
mechanism is standard. Rugged /16" steel plate construction.
model PT-250
Operates on 115V AC. MODEL UNIFORM WEIGHT
Other capacities available, contact factory.
NUMBER DIAMETER HEIGHT CAPACITY R.P.M. (POUND)
PT-100 12" 5 /32" 100 lb. 3-1/2 28
1
1
PT-250 18" 6 /16" 250 lb. 3 50
1
PT-750 18" 6 /2" 750 lb. 2 66
OPTIONAL 1 OR 2 R.P.M., model PT-1/2RPM (NOT available on PT-100)
COUNTER-CLOCKWISE ROTATION, model PT-CCW
Powered Photography Carousel 115V 1-PHASE STANDARD
The Powered Photography Carousel is ideal for photographing products, both large and small.
Designed with a steel construction for added strength and resilience in a variety of settings. The
unit is powered by a variable speed, belt driven motor and can be turned 360° for full view of the
product. To use, simply place the intended product on the turntable and activate the carousel
motor. When moving the carousel from workstation to workstation, it is best to utilize the fork
pockets attached to the underside of the unit for safe, ergonomic transporting. The fork pockets
measure 7½"W x 2½"H on 22" centers.
MODEL CAROUSEL CAROUSEL UNIFORM MAX WEIGHT
model STPC-89-WH NUMBER DIAMETER HEIGHT CAPACITY R.P.M. (POUND)
STPC-89-WH 89" 9" 3,000 lb. 1 1760

Pallet Cart & Carousel
The Pallet Cart with Carousel is used to transport products to where they are needed. Then, once at the
desired location, pulling the pin on the casters will allow the cart to manually rotate like a carousel for easy
model CC-48 unloading and improved efficiency. The removable handle allows for full deck access from any position.
Includes four (4) glass-filled nylon swivel casters with swivel locks.
MODEL PLATFORM PLATFORM UNIFORM CASTER WEIGHT
NUMBER DIAMETER HEIGHT THICKNESS CAPACITY TYPE (POUND)
CC-48 48" 10½" 1/4" 2,000 lb. 8" x 2" 240
Parts Scales 115V 1-PHASE STANDARD
Scales capture a stable weight reading in less than a second. Features a rugged aluminum housing,
stainless steel weighing pan, and a keyboard. Switches between pounds and kilograms.
MODEL DECK SIZE UNIFORM RESOLUTION WEIGHT
series SSDSC model CDSC-30 NUMBER DESCRIPTION (W x L) CAPACITY (POUND) (POUND)
SSDSC-6*� STAINLESS STEEL 7½" x 9" 6.6 lb. 0.002 9
SSDSC-13*� STAINLESS STEEL 7½" x 9" 13 lb. 0.005 9
SSDSC-66*� STAINLESS STEEL 7½" x 9" 66 lb. 0.02 9
PTDSC-66*� PLASTIC 7½" x 9" 66 lb. 0.02 6
7
BDSC-26� WEIGHING SCALE 7½" x 7 /8" 26 lb. 0.004 6
CDSC-30� COUNTING SCALE 10" x 12" 30 lb. 0.001 14
model PTDSC-66 model BDSC-26 *WATERPROOF
