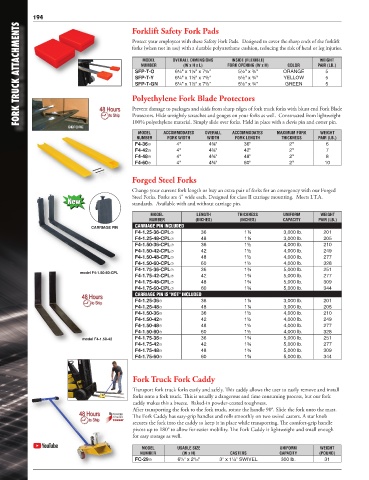

Page 188 - Vestil Catalog 112

194 Forklift Safety Fork Pads
FORK TRUCK ATTACHMENTS forks (when not in use) with a durable polyurethane cushion, reducing the risk of head or leg injuries.

Protect your employees with these Safety Fork Pads. Designed to cover the sharp ends of the forklift

MODEL
OVERALL DIMENSIONS
INSIDE (FLEXIBLE)
WEIGHT
(W x H x L)
COLOR
PAIR (LB.)
FORK OPENING (W x H)
NUMBER
SFP-T-O
5
ORANGE
6¼" x 1½" x 7½"
5½" x ¾"
SFP-T-Y
YELLOW
5
6¼" x 1½" x 7½"
5½" x ¾"
SFP-T-GN
6¼" x 1½" x 7½"
5
GREEN
5½" x ¾"
Polyethylene Fork Blade Protectors
Protectors. Hide unsightly scratches and gouges on your forks as well. Constructed from lightweight
100% polyethylene material. Simply slide over forks. Held in place with a clevis pin and cotter pin.
BEFORE Prevent damage to packages and skids from sharp edges of fork truck forks with blunt end Fork Blade
MODEL ACCOMMODATES OVERALL ACCOMMODATES MAXIMUM FORK WEIGHT
NUMBER FORK WIDTH WIDTH FORK LENGTH THICKNESS PAIR (LB.)
F4-36� 4" 4¾" 36" 2" 6
F4-42� 4" 4¾" 42" 2" 7
F4-48� 4" 4¾" 48" 2" 8
F4-60� 4" 4¾" 60" 2" 10
Forged Steel Forks
Change your current fork length or buy an extra pair of forks for an emergency with our Forged
Steel Forks. Forks are 4" wide each. Designed for class II carriage mounting. Meets I.T.A.
New standards. Available with and without carriage pin.
MODEL LENGTH THICKNESS UNIFORM WEIGHT
NUMBER (INCHES) (INCHES) CAPACITY PAIR (LB.)
CARRIAGE PIN CARRIAGE PIN INCLUDED
F4-1.25-36-CPL� 36 1¼ 3,000 lb. 201
F4-1.25-48-CPL� 48 1¼ 3,000 lb. 205
F4-1.50-36-CPL� 36 1½ 4,000 lb. 210
F4-1.50-42-CPL� 42 1½ 4,000 lb. 249
F4-1.50-48-CPL� 48 1½ 4,000 lb. 277
F4-1.50-60-CPL� 60 1½ 4,000 lb. 328
F4-1.75-36-CPL� 36 1¾ 5,000 lb. 251
model F4-1.50-60-CPL
F4-1.75-42-CPL� 42 1¾ 5,000 lb. 277
F4-1.75-48-CPL� 48 1¾ 5,000 lb. 309
F4-1.75-60-CPL� 60 1¾ 5,000 lb. 344
CARRIAGE PIN IS "NOT" INCLUDED
F4-1.25-36� 36 1¼ 3,000 lb. 201
F4-1.25-48� 48 1¼ 3,000 lb. 205
F4-1.50-36� 36 1½ 4,000 lb. 210
F4-1.50-42� 42 1½ 4,000 lb. 249
F4-1.50-48� 48 1½ 4,000 lb. 277
F4-1.50-60� 60 1½ 4,000 lb. 328
model F4-1.50-42 F4-1.75-36� 36 1¾ 5,000 lb. 251
F4-1.75-42� 42 1¾ 5,000 lb. 277
F4-1.75-48� 48 1¾ 5,000 lb. 309
F4-1.75-60� 60 1¾ 5,000 lb. 344
Fork Truck Fork Caddy

Transport fork truck forks easily and safely. This caddy allows the user to easily remove and install
forks onto a fork truck. This is usually a dangerous and time consuming process, but our fork
caddy makes this a breeze. Baked-in powder-coated toughness.
After transporting the fork to the fork truck, rotate the handle 90°. Slide the fork onto the mast.
The Fork Caddy has easy-grip handles and rolls smoothly on two swivel casters. A star knob
secures the fork into the caddy to keep it in place while transporting. The comfort-grip handle
pivots up to 180° to allow for easier mobility. The Fork Caddy is lightweight and small enough
for easy storage as well.

MODEL USABLE SIZE UNIFORM WEIGHT
NUMBER (W x H) CASTERS CAPACITY (POUND)
5
9
FC-29� 6 /8" x 2 /16" 3" x 1¼" SWIVEL 300 lb. 31
