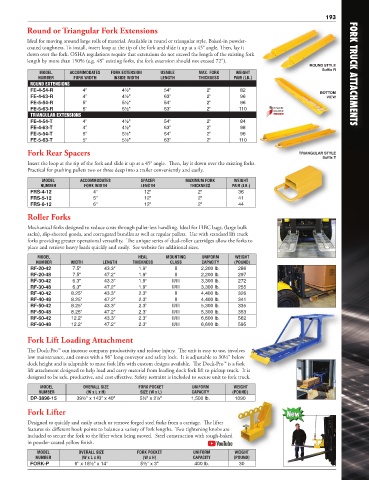

Page 187 - Vestil Catalog 112

193
Round or Triangular Fork Extensions

Ideal for moving around large rolls of material. Available in round or triangular style. Baked-in powder-
coated toughness. To install, insert loop at the tip of the fork and slide it up at a 45° angle. Then, lay it
down over the fork. OSHA regulations require that extensions do not exceed the length of the existing fork
length by more than 150% (e.g. 48" existing forks, the fork extension should not exceed 72").
ROUND STYLE
Suffix R
MODEL ACCOMMODATES FORK EXTENSION USABLE MAX. FORK WEIGHT FORK TRUCK ATTACHMENTS
NUMBER FORK WIDTH INSIDE WIDTH LENGTH THICKNESS PAIR (LB.)
ROUND EXTENSIONS
FE-4-54-R 4" 4½" 54" 2" 82 BOTTOM
FE-4-63-R 4" 4½" 63" 2" 96 VIEW
FE-5-54-R 5" 5½" 54" 2" 96
FE-5-63-R 5" 5½" 63" 2" 110
TRIANGULAR EXTENSIONS
FE-4-54-T 4" 4½" 54" 2" 84
FE-4-63-T 4" 4½" 63" 2" 98
FE-5-54-T 5" 5½" 54" 2" 96
FE-5-63-T 5" 5½" 63" 2" 110
Fork Rear Spacers TRIANGULAR STYLE
Suffix T
Insert the loop at the tip of the fork and slide it up at a 45° angle. Then, lay it down over the existing forks.
Practical for pushing pallets two or three deep into a trailer conveniently and easily.
MODEL ACCOMMODATES SPACER MAXIMUM FORK WEIGHT
NUMBER FORK WIDTH LENGTH THICKNESS PAIR (LB.)
FRS-4-12 4" 12" 2" 36
FRS-5-12 5" 12" 2" 41
FRS-6-12 6" 12" 2" 44
Roller Forks

Mechanical forks designed to reduce costs through pallet-less handling. Ideal for FIBC bags, (large bulk
sacks), slip-sheeted goods, and corrugated bundles as well as regular pallets. Use with standard lift truck
forks providing greater operational versatility. The unique series of dual-roller cartridges allow the forks to
place and retrieve heavy loads quickly and easily. See website for additional sizes.
MODEL HEAL MOUNTING UNIFORM WEIGHT
NUMBER WIDTH LENGTH THICKNESS CLASS CAPACITY (POUND)
RF-20-42 7.5" 43.3" 1.9" II 2,200 lb. 286
RF-20-48 7.5" 47.2" 1.9" II 2,200 lb. 297
RF-30-42 6.3" 43.3" 1.9" II/III 3,300 lb. 272
RF-30-48 6.3" 47.2" 1.9" II/III 3,300 lb. 255
RF-40-42 8.25" 43.3" 2.3" II 4,400 lb. 326
RF-40-48 8.25" 47.2" 2.3" II 4,400 lb. 341
RF-50-42 8.25" 43.3" 2.3" II/III 5,300 lb. 335
RF-50-48 8.25" 47.2" 2.3" II/III 5,300 lb. 353
RF-60-42 12.2" 43.3" 2.3" II/III 6,600 lb. 562
RF-60-48 12.2" 47.2" 2.3" II/III 6,600 lb. 595
Fork Lift Loading Attachment

The Dock-Pro™ can increase company productivity and reduce injury. The unit is easy to use, involves
low maintenance, and comes with a 96" long conveyor and safety lock. It is adjustable to 30½" below
dock height and is adaptable to most fork lifts with custom designs available. The Dock-Pro™ is a fork
lift attachment designed to help load and carry material from loading dock fork lift to pickup truck. It is
designed to be safe, productive, and cost effective. Safety restraint is included to secure unit to fork truck.
MODEL OVERALL SIZE FORK POCKET UNIFORM WEIGHT
NUMBER (W x L x H) SIZE (W x L) CAPACITY (POUND)
DP-3896-15 39½" x 143" x 40" 5½" x 2½" 1,500 lb. 1090
Fork Lifter New

Designed to quickly and easily attach or remove forged steel forks from a carriage. The lifter
features six different hook points to balance a variety of fork lengths. Two tightening knobs are
included to secure the fork to the lifter when being moved. Steel construction with tough-baked
in powder-coated yellow finish.
MODEL OVERALL SIZE FORK POCKET UNIFORM WEIGHT
NUMBER (W x L x H) (W x H) CAPACITY (POUND)
FORK-P 6" x 18½" x 14" 5½" x 3" 400 lb. 30
