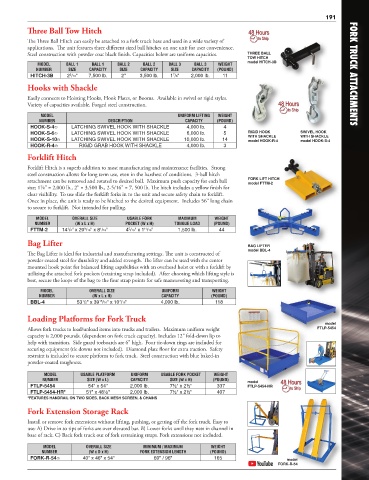

Page 185 - Vestil Catalog 112

191
Three Ball Tow Hitch

The Three Ball Hitch can easily be attached to a fork truck base and used in a wide variety of
applications. The unit features three different sized ball hitches on one unit for user convenience.
Steel construction with powder coat black finish. Capacities below are uniform capacities. THREE BALL
TOW HITCH
MODEL BALL 1 BALL 1 BALL 2 BALL 2 BALL 3 BALL 3 WEIGHT model HITCH-3B
NUMBER SIZE CAPACITY SIZE CAPACITY SIZE CAPACITY (POUND)
5
7
HITCH-3B 2 /16" 7,500 lb. 2" 3,500 lb. 1 /8" 2,000 lb. 11 FORK TRUCK ATTACHMENTS
Hooks with Shackle
Easily connects to Hoisting Hooks, Hook Plates, or Booms. Available in swivel or rigid styles.
Variety of capacities available. Forged steel construction.
MODEL UNIFORM LIFTING WEIGHT
NUMBER DESCRIPTION CAPACITY (POUND)
HOOK-S-4� LATCHING SWIVEL HOOK WITH SHACKLE 4,000 lb. 4
HOOK-S-6� LATCHING SWIVEL HOOK WITH SHACKLE 6,000 lb. 5 RIGID HOOK SWIVEL HOOK
WITH SHACKLE WITH SHACKLE
HOOK-S-10� LATCHING SWIVEL HOOK WITH SHACKLE 10,000 lb. 14 model HOOK-R-4 model HOOK-S-4
HOOK-R-4� RIGID GRAB HOOK WITH SHACKLE 4,000 lb. 3
Forklift Hitch

Forklift Hitch is a superb addition to most manufacturing and maintenance facilities. Strong
steel construction allows for long term use, even in the harshest of conditions. 3-ball hitch
attachment can be removed and rotated to desired ball. Maximum push capacity for each ball FORK LIFT HITCH
model FTTM-2
size; 1⅞" = 2,000 lb., 2" = 3,500 lb., 2-5/16" = 7, 500 lb. The hitch includes a yellow finish for
clear visibility. To use slide the forklift forks in to the unit and secure safety chain to forklift.
Once in place, the unit is ready to be hitched to the desired equipment. Includes 56" long chain
to secure to forklift. Not intended for pulling.
MODEL OVERALL SIZE USABLE FORK MAXIMUM WEIGHT
NUMBER (W x L x H) POCKET (W x H) TONGUE LOAD (POUND)
FTTM-2 14 /2" x 20 /16" x 8 /16" 4 /16" x 1 /16" 1,500 lb. 44
11
5
9
1
1
Bag Lifter BAG LIFTER
model BBL-4
The Bag Lifter is ideal for industrial and manufacturing settings. The unit is constructed of
powder coated steel for durability and added strength. The lifter can be used with the center
mounted hook point for balanced lifting capabilities with an overhead hoist or with a forklift by
utilizing the attached fork pockets (retaining strap included). After choosing which lifting style is
best, secure the loops of the bag to the four strap points for safe maneuvering and transporting.
MODEL OVERALL SIZE UNIFORM WEIGHT
NUMBER (W x L x H) CAPACITY (POUND)
BBL-4 53 /2" x 39 /16" x 10 /16" 4,000 lb. 118
1
15
7
Loading Platforms for Fork Truck
model
Allows fork trucks to load/unload items into trucks and trailers. Maximum uniform weight FTLP-5454
capacity is 2,000 pounds. (dependent on fork truck capacity). Includes 12" fold-down lip to
help with transition. Side guard toeboards are 6" high. Four tie-down rings are included for
securing equipment (tie downs not included). Diamond plate floor for extra traction. Safety
restraint is included to secure platform to fork truck. Steel construction with blue baked-in
powder-coated toughness.

MODEL USABLE PLATFORM UNIFORM USABLE FORK POCKET WEIGHT
NUMBER SIZE (W x L) CAPACITY SIZE (W x H) (POUND) model
FTLP-5454 54" x 54" 2,000 lb. 7½" x 2½" 337 FTLP-5454-HR
FTLP-5454-HR* 51" x 48½" 2,000 lb. 7½" x 2½" 407
*FEATURES HANDRAIL ON TWO SIDES, BACK MESH SCREEN, & CHAINS
Fork Extension Storage Rack
Install or remove fork extensions without lifting, pushing, or getting off the fork truck. Easy to
use: A) Drive in so tips of forks are over elevated bar. B) Lower forks until they nest in channel in
base of rack. C) Back fork truck out of fork restraining straps. Fork extensions not included.
MODEL OVERALL SIZE MINIMUM / MAXIMUM WEIGHT
NUMBER (W x D x H) FORK EXTENSION LENGTH (POUND)
FORK-R-54� 40" x 46" x 54" 60" / 96" 165 model
FORK-R-54
