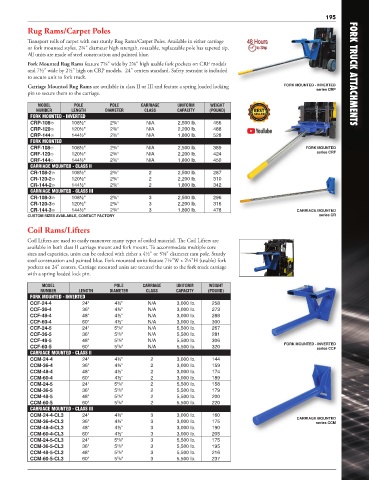

Page 189 - Vestil Catalog 112

195
Rug Rams/Carpet Poles

Transport rolls of carpet with our sturdy Rug Rams/Carpet Poles. Available in either carriage
or fork mounted styles. 2¾" diameter high strength, rotatable, replaceable pole has tapered tip.
All units are made of steel construction and painted blue.
Fork Mounted Rug Rams feature 7⅝" wide by 2⅝" high usable fork pockets on CRF models
and 7½" wide by 2½" high on CRP models. 24" centers standard. Safety restraint is included
to secure unit to fork truck. FORK TRUCK ATTACHMENTS
Carriage Mounted Rug Rams are available in class II or III and feature a spring loaded locking FORK MOUNTED - INVERTED
series CRP
pin to secure them to the carriage.
MODEL POLE POLE CARRIAGE UNIFORM WEIGHT
NUMBER LENGTH DIAMETER CLASS CAPACITY (POUND)
FORK MOUNTED - INVERTED
CRP-108� 108½" 2¾" N/A 2,500 lb. 466
CRP-120� 120½" 2¾" N/A 2,200 lb. 488
CRP-144� 144½" 2¾" N/A 1,800 lb. 528
FORK MOUNTED
CRF-108� 108½" 2¾" N/A 2,500 lb. 389 FORK MOUNTED
series CRF
CRF-120� 120½" 2¾" N/A 2,200 lb. 424
CRF-144� 144½" 2¾" N/A 1,800 lb. 450
CARRIAGE MOUNTED - CLASS II
CR-108-2� 108½" 2¾" 2 2,500 lb. 287
CR-120-2� 120½" 2¾" 2 2,200 lb. 310
CR-144-2� 144½" 2¾" 2 1,800 lb. 342
CARRIAGE MOUNTED - CLASS III
CR-108-3� 108½" 2¾" 3 2,500 lb. 296
CR-120-3� 120½" 2¾" 3 2,200 lb. 316
CR-144-3� 144½" 2¾" 3 1,800 lb. 478 CARRIAGE MOUNTED
CUSTOM SIZES AVAILABLE, CONTACT FACTORY series CR
Coil Rams/Lifters
Coil Lifters are used to easily maneuver many types of coiled material. The Coil Lifters are
available in both class II carriage mount and fork mount. To accommodate multiple core
sizes and capacities, units can be ordered with either a 4½" or 5⅝" diameter ram pole. Sturdy
steel construction and painted blue. Fork mounted units feature 7½"W x 2½"H (usable) fork
pockets on 24" centers. Carriage mounted units are secured the unit to the fork truck carriage
with a spring loaded lock pin.

MODEL POLE CARRIAGE UNIFORM WEIGHT
NUMBER LENGTH DIAMETER CLASS CAPACITY (POUND)
FORK MOUNTED - INVERTED
CCF-24-4 24" 4½" N/A 3,000 lb. 258
CCF-36-4 36" 4½" N/A 3,000 lb. 273
CCF-48-4 48" 4½" N/A 3,000 lb. 288
CCF-60-4 60" 4½" N/A 3,000 lb. 300
CCF-24-5 24" 5 /8" N/A 5,500 lb. 267
5
CCF-36-5 36" 5 /8" N/A 5,500 lb. 281
5
CCF-48-5 48" 5 /8" N/A 5,500 lb. 306 FORK MOUNTED - INVERTED
5
CCF-60-5 60" 5 /8" N/A 5,500 lb. 320 series CCF
5
CARRIAGE MOUNTED - CLASS II
CCM-24-4 24" 4½" 2 3,000 lb. 144
CCM-36-4 36" 4½" 2 3,000 lb. 159
CCM-48-4 48" 4½" 2 3,000 lb. 174
CCM-60-4 60" 4½" 2 3,000 lb. 189
CCM-24-5 24" 5 /8" 2 5,500 lb. 158
5
CCM-36-5 36" 5 /8" 2 5,500 lb. 179
5
CCM-48-5 48" 5 /8" 2 5,500 lb. 200
5
CCM-60-5 60" 5 /8" 2 5,500 lb. 220
5
CARRIAGE MOUNTED - CLASS III
CCM-24-4-CL3 24" 4½" 3 3,000 lb. 160 CARRIAGE MOUNTED
CCM-36-4-CL3 36" 4½" 3 3,000 lb. 175 series CCM
CCM-48-4-CL3 48" 4½" 3 3,000 lb. 190
CCM-60-4-CL3 60" 4½" 3 3,000 lb. 205
CCM-24-5-CL3 24" 5 /8" 3 5,500 lb. 175
5
CCM-36-5-CL3 36" 5 /8" 3 5,500 lb. 195
5
CCM-48-5-CL3 48" 5 /8" 3 5,500 lb. 216
5
CCM-60-5-CL3 60" 5 /8" 3 5,500 lb. 237
5
