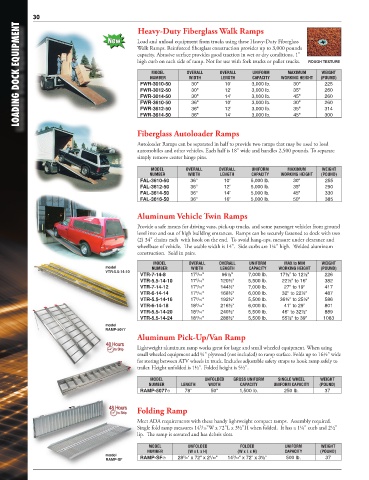

Page 24 - Vestil Catalog 112

30 New Load and unload equipment from trucks using these Heavy-Duty Fiberglass
LOADING DOCK EQUIPMENT Walk Ramps. Reinforced fiberglass construction provides up to 3,000 pounds ROUGH TEXTURE
Heavy-Duty Fiberglass Walk Ramps

capacity. Abrasive surface provides good traction in wet or dry conditions. 1"
high curb on each side of ramp. Not for use with fork trucks or pallet trucks.
OVERALL
MAXIMUM
WEIGHT
MODEL
OVERALL
UNIFORM
(POUND)
CAPACITY
WORKING HEIGHT
WIDTH
NUMBER
LENGTH
FWR-3010-50
30"
225
3,000 lb.
10'
30"
FWR-3012-50
3,000 lb.
12'
30"
35"
260
FWR-3014-50
3,000 lb.
30"
14'
45"
260
FWR-3610-50
30"
260
36"
3,000 lb.
10'
FWR-3612-50
36"
12'
FWR-3614-50
300
3,000 lb.
36"
45"
14'
Fiberglass Autoloader Ramps 3,000 lb. 35" 314
Autoloader Ramps can be separated in half to provide two ramps that may be used to load
automobiles and other vehicles. Each half is 18" wide and handles 2,500 pounds. To separate
simply remove center hinge pins.
MODEL OVERALL OVERALL UNIFORM MAXIMUM WEIGHT
NUMBER WIDTH LENGTH CAPACITY WORKING HEIGHT (POUND)
FAL-3610-50 36" 10' 5,000 lb. 30" 255
FAL-3612-50 36" 12' 5,000 lb. 35" 290
FAL-3614-50 36" 14' 5,000 lb. 45" 330
FAL-3616-50 36" 16' 5,000 lb. 50" 385
Aluminum Vehicle Twin Ramps
Provide a safe means for driving vans, pick-up trucks, and some passenger vehicles from ground
level into and out of high building entrances. Ramps can be securely fastened to dock with two
(2) 34" chains each with hook on the end. To avoid hang-ups, measure under clearance and
wheelbase of vehicle. The usable width is 14". Side curbs are 1¼" high. Welded aluminum
construction. Sold in pairs.
MODEL OVERALL OVERALL UNIFORM MAX to MIN WEIGHT
model NUMBER WIDTH LENGTH CAPACITY WORKING HEIGHT (POUND)
VTR-5.5-14-10
VTR-7-14-8 17 /16" 96½" 7,000 lb. 17½" to 12½" 226
5
VTR-5.5-14-10 17 /16" 120½" 5,500 lb. 22½" to 16" 382
5
VTR-7-14-12 17 /16" 144½" 7,000 lb. 27" to 19" 417
5
VTR-6-14-14 17 /16" 168½" 6,000 lb. 32" to 22½" 487
5
VTR-5.5-14-16 17 /16" 192½" 5,500 lb. 36½" to 25½" 586
5
VTR-6-14-18 18 /16" 216½" 6,000 lb. 41" to 29" 801
9
VTR-5.5-14-20 18 /16" 240½" 5,500 lb. 46" to 32½" 889
9
VTR-5.5-14-24 18 /16" 288½" 5,500 lb. 55½" to 39" 1083
9
model
RAMP-5077
Aluminum Pick-Up/Van Ramp
Lightweight aluminum ramp works great for large and small wheeled equipment. When using
small wheeled equipment add ¼" plywood (not included) to ramp surface. Folds up to 16½" wide
for storing between ATV wheels in truck. Includes adjustable safety straps to hook ramp safely to
trailer. Height unfolded is 1½". Folded height is 5½".
MODEL UNFOLDED GROSS UNIFORM SINGLE WHEEL WEIGHT
NUMBER LENGTH WIDTH CAPACITY UNIFORM CAPACITY (POUND)
RAMP-5077 78" 50" 1,500 lb. 250 lb. 37
Folding Ramp
Meet ADA requirements with these handy lightweight compact ramps. Assembly required.
Single fold ramp measures 14 /16"W x 72"L x 3½"H when folded. It has a 1¼" curb and 2½"
3
lip. The ramp is serrated and has debris slots.
MODEL UNFOLDED FOLDED UNIFORM WEIGHT
NUMBER (W x L x H) (W x L x H) CAPACITY (POUND)
model
5
9
3
RAMP-SF RAMP-SF 28 /8" x 72" x 2 /16" 14 /16" x 72" x 3½" 500 lb. 37
