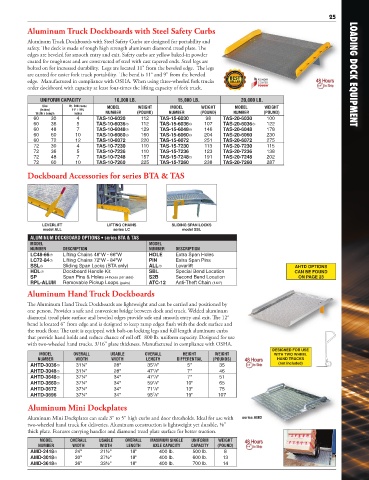

P. 19
25
Aluminum Truck Dockboards with Steel Safety Curbs
Aluminum Truck Dockboards with Steel Safety Curbs are designed for portability and
safety. The deck is made of tough high strength aluminum diamond tread plate. The
edges are beveled for smooth entry and exit. Safety curbs are yellow baked-in powder
coated for toughness and are constructed of steel with cast tapered ends. Steel legs are
bolted on for increased durability. Legs are located 11" from the beveled edge. The legs
are canted for easier fork truck portability. The bend is 11° and 9" from the beveled LOADING DOCK EQUIPMENT
edge. Manufactured in compliance with OSHA. When using three-wheeled fork trucks
order dockboard with capacity at least four-times the lifting capacity of fork truck.
UNIFORM CAPACITY 10,000 LB. 15,000 LB. 20,000 LB.
Size Ht. Difference MODEL WEIGHT MODEL WEIGHT MODEL WEIGHT
(Inches) 11° / 19%
Width x Length Inches NUMBER (POUND) NUMBER (POUND) NUMBER (POUND)
60 30 4 TAS-10-6030 112 TAS-15-6030 98 TAS-20-6030 100
60 36 5 TAS-10-6036 112 TAS-15-6036 107 TAS-20-6036 122
60 48 7 TAS-10-6048 129 TAS-15-6048 146 TAS-20-6048 178
60 60 10 TAS-10-6060 160 TAS-15-6060 204 TAS-20-6060 230
60 72 12 TAS-10-6072 220 TAS-15-6072 251 TAS-20-6072 275
72 30 4 TAS-10-7230 110 TAS-15-7230 113 TAS-20-7230 115
72 36 5 TAS-10-7236 110 TAS-15-7236 123 TAS-20-7236 138
72 48 7 TAS-10-7248 157 TAS-15-7248 191 TAS-20-7248 202
72 60 10 TAS-10-7260 225 TAS-15-7260 238 TAS-20-7260 287
Dockboard Accessories for series BTA & TAS
LEVERLIFT LIFTING CHAINS SLIDING SPAN LOCKS
model ALL series LC model SSL
ALUMINUM DOCKBOARD OPTIONS • series BTA & TAS
MODEL MODEL
NUMBER DESCRIPTION NUMBER DESCRIPTION
LC48-66 Lifting Chains 48"W - 66"W HOLE Extra Span Holes
LC72-84 Lifting Chains 72"W - 84"W PIN Extra Span Pins
SSL Sliding Span Locks (BTA only) ALL Leverlift AHTD OPTIONS
HDL Dockboard Handle Kit SBL Special Bend Location CAN BE FOUND
SP Span Pins & Holes (4 holes per side) S2B Second Bend Location ON PAGE 23
RPL-ALUM Removable Pickup Loops (pairs) ATC-12 Anti-Theft Chain (144")
Aluminum Hand Truck Dockboards
The Aluminum Hand Truck Dockboards are lightweight and can be carried and positioned by
one person. Provides a safe and convenient bridge between dock and truck. Welded aluminum
diamond tread plate surface and beveled edges provide safe and smooth entry and exit. The 12°
bend is located 6" from edge and is designed to keep ramp edges flush with the dock surface and
the truck floor. The unit is equipped with bolt-on locking legs and full length aluminum curbs
that provide hand holds and reduce chance of roll off. 800 lb. uniform capacity. Designed for use
with two-wheeled hand trucks. 3/16" plate thickness. Manufactured in compliance with OSHA.
DESIGNED FOR USE
MODEL OVERALL USABLE OVERALL HEIGHT WEIGHT WITH TWO WHEEL
NUMBER WIDTH WIDTH LENGTH DIFFERENTIAL (POUNDS) HAND TRUCKS
(not included)
7
AHTD-3036 31¼" 28" 35 /8" 5" 35
7
AHTD-3048 31¼" 28" 47 /8" 7" 46
7
AHTD-3648 37¼" 34" 47 /8" 7" 51
7
AHTD-3660 37¼" 34" 59 /8" 10" 65
AHTD-3672 37¼" 34" 71 /8" 13" 75
7
AHTD-3696 37¼" 34" 95 /8" 19" 107
7
Aluminum Mini Dockplates
Aluminum Mini Dockplates can scale 3" to 5" high curbs and door thresholds. Ideal for use with series AMD
two-wheeled hand truck for deliveries. Aluminum construction is lightweight yet durable, ⅛"
thick plate. Features carrying handles and diamond tread plate surface for better traction.
MODEL OVERALL USABLE OVERALL MAXIMUM SINGLE UNIFORM WEIGHT
NUMBER WIDTH WIDTH LENGTH AXLE CAPACITY CAPACITY (POUND)
AMD-2418 24" 21½" 18" 400 lb. 500 lb. 8
AMD-3018 30" 27½" 18" 400 lb. 600 lb. 13
AMD-3618 36" 33½" 18" 400 lb. 700 lb. 14
