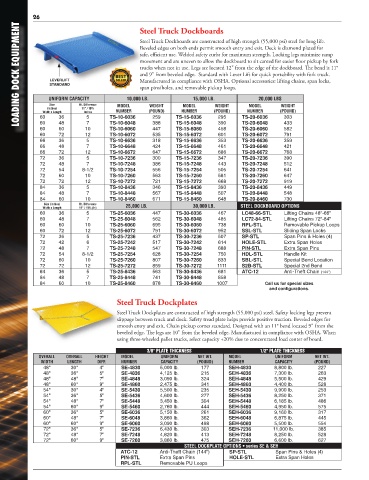

Page 20 - Vestil Catalog 112

26 Steel Truck Dockboards
LOADING DOCK EQUIPMENT UNIFORM CAPACITY 10,000 LB. 15,000 LB. 20,000 LBS

Steel Truck Dockboards are constructed of high strength (55,000 psi) steel for long life.
Beveled edges on both ends permit smooth entry and exit. Deck is diamond plated for
safe, efficient use. Welded safety curbs for maximum strength. Locking legs minimize ramp
movement and are uneven to allow the dockboard to sit canted for easier floor pickup by fork
trucks when not in use. Legs are located 12" from the edge of the dockboard. The bend is 11°
and 9" from beveled edge. Standard with Lever Lift for quick portability with fork truck.
LEVERLIFT
Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks,
STANDARD
span pins/holes, and removable pickup loops.
MODEL
Size
WEIGHT
MODEL
WEIGHT
MODEL
WEIGHT
11° / 19%
(Inches)
NUMBER
NUMBER
NUMBER
Inches
60
303
259
295
36
5
TS-10-6048
TS-20-6048
TS-15-6048
390
433
48
60
388
7
TS-20-6060
TS-15-6060
TS-10-6060
447
60
10
582
458
60 Width x Length Ht. Difference TS-10-6036 (POUND) TS-15-6036 (POUND) TS-20-6036 (POUND)
60 72 12 TS-10-6072 535 TS-15-6072 601 TS-20-6072 791
66 36 5 TS-10-6636 318 TS-15-6636 353 TS-20-6636 359
66 48 7 TS-10-6648 424 TS-15-6648 461 TS-20-6648 421
66 72 12 TS-10-6672 647 TS-15-6672 686 TS-20-6672 768
72 36 5 TS-10-7236 300 TS-15-7236 347 TS-20-7236 390
72 48 7 TS-10-7248 386 TS-15-7248 443 TS-20-7248 512
72 54 8-1/2 TS-10-7254 556 TS-15-7254 505 TS-20-7254 641
72 60 10 TS-10-7260 563 TS-15-7260 581 TS-20-7260 647
72 72 12 TS-10-7272 721 TS-15-7272 668 TS-20-7272 919
84 36 5 TS-10-8436 346 TS-15-8436 393 TS-20-8436 449
84 48 7 TS-10-8448 567 TS-15-8448 507 TS-20-8448 548
84 60 10 TS-10-8460 671 TS-15-8460 648 TS-20-8460 730
Size (inches) Ht. Difference
Width x Length 11° / 19% (In) 25,000 LB. 30,000 LB. STEEL DOCKBOARD OPTIONS
60 36 5 TS-25-6036 447 TS-30-6036 467 LC48-66-STL Lifting Chains 48"-66"
60 48 7 TS-25-6048 562 TS-30-6048 485 LC72-84-STL Lifting Chains 72"-84"
60 60 10 TS-25-6060 695 TS-30-6060 738 RPL-STL Removable Pickup Loops
60 72 12 TS-25-6072 791 TS-30-6072 952 SSL-STL Sliding Span Locks
72 36 5 TS-25-7236 437 TS-30-7236 507 SP-STL Span Pins & Holes (4)
72 42 6 TS-25-7242 517 TS-30-7242 614 HOLE-STL Extra Span Holes
72 48 7 TS-25-7248 547 TS-30-7248 688 PIN-STL Extra Span Pins
72 54 8-1/2 TS-25-7254 628 TS-30-7254 750 HDL-STL Handle Kit
72 60 10 TS-25-7260 807 TS-30-7260 833 SBL-STL Special Bend Location
72 72 12 TS-25-7272 859 TS-30-7272 1111 S2B-STL Special 2nd Bend
84 36 5 TS-25-8436 563 TS-30-8436 681 ATC-12 Anti-Theft Chain (144")
84 48 7 TS-25-8448 741 TS-30-8448 858
84 60 10 TS-25-8460 878 TS-30-8460 1007 Call us for special sizes
and configurations.
Steel Truck Dockplates
Steel Truck Dockplates are constructed of high strength (55,000 psi) steel. Safety locking legs prevent
slippage between truck and dock. Safety tread plate helps provide positive traction. Beveled edges for
smooth entry and exit. Chain pickup comes standard. Designed with an 11° bend located 9" from the
beveled edge. The legs are 10" from the beveled edge. Manufactured in compliance with OSHA. When
using three-wheeled pallet trucks, select capacity +20% due to concentrated load center of board.
3/8" PLATE THICKNESS 1/2" PLATE THICKNESS
OVERALL OVERALL HEIGHT MODEL UNIFORM NET WT. MODEL UNIFORM NET WT.
WIDTH LENGTH DIFF. NUMBER CAPACITY (POUND) NUMBER CAPACITY (POUND)
48" 30" 4" SE-4830 5,000 lb. 177 SEH-4830 8,800 lb. 227
48" 36" 5" SE-4836 4,125 lb. 215 SEH-4836 7,300 lb. 263
48" 48" 7" SE-4848 3,090 lb. 324 SEH-4848 5,500 lb. 429
48" 60" 9" SE-4860 2,475 lb. 341 SEH-4860 4,400 lb. 528
54" 30" 4" SE-5430 5,500 lb. 235 SEH-5430 9,900 lb. 253
54" 36" 5" SE-5436 4,600 lb. 277 SEH-5436 8,250 lb. 371
54" 48" 7" SE-5448 3,450 lb. 304 SEH-5448 6,185 lb. 486
54" 60" 9" SE-5460 2,760 lb. 444 SEH-5460 4,950 lb. 575
60" 36" 5" SE-6036 5,150 lb. 261 SEH-6036 9,160 lb. 317
60" 48" 7" SE-6048 3,860 lb. 362 SEH-6048 6,875 lb. 445
60" 60" 9" SE-6060 3,090 lb. 498 SEH-6060 5,500 lb. 554
72" 36" 5" SE-7236 6,430 lb. 303 SEH-7236 11,000 lb. 385
72" 48" 7" SE-7248 4,820 lb. 413 SEH-7248 8,250 lb. 528
72" 60" 9" SE-7260 3,860 lb. 475 SEH-7260 6,600 lb. 627
STEEL DOCKPLATE OPTIONS • series SE & SEH
ATC-12 Anti-Theft Chain (144") SP-STL Span Pins & Holes (4)
PIN-STL Extra Span Pins HOLE-STL Extra Span Holes
RPL-STL Removable PU Loops
