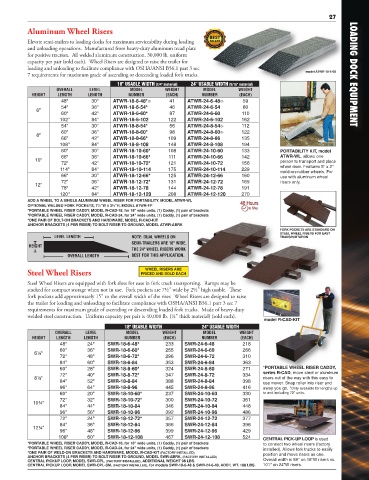

27
Aluminum Wheel Risers

Elevate semi-trailers to loading docks for maximum serviceability during loading
and unloading operations. Manufactured from heavy-duty aluminum tread plate
for positive traction. All welded aluminum construction. 30,000 lb. uniform
capacity per pair (sold each). Wheel Risers are designed to raise the trailer for
loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec
7 requirements for maximum grade of ascending or descending loaded fork trucks. model ATWR-18-6-60 LOADING DOCK EQUIPMENT
18" USABLE WIDTH (1/4" material) 24" USABLE WIDTH (5/16" material)
OVERALL LEVEL MODEL WEIGHT MODEL WEIGHT
HEIGHT LENGTH LENGTH NUMBER (EACH) NUMBER (EACH)
48" 30" ATWR-18-6-48* 41 ATWR-24-6-48 59
54" 36" ATWR-18-6-54* 46 ATWR-24-6-54 60
6"
60" 42" ATWR-18-6-60* 87 ATWR-24-6-60 110
102" 84" ATWR-18-6-102 122 ATWR-24-6-102 162
54" 30" ATWR-18-8-54* 56 ATWR-24-8-54 112
60" 36" ATWR-18-8-60* 98 ATWR-24-8-60 122
8"
66" 42" ATWR-18-8-66* 109 ATWR-24-8-66 135
108" 84" ATWR-18-8-108 148 ATWR-24-8-108 194
60" 30" ATWR-18-10-60* 108 ATWR-24-10-60 133 PORTABILITY KIT, model
66" 36" ATWR-18-10-66* 111 ATWR-24-10-66 142 ATWR-WL, allows one
10" person to transport and place
72" 42" ATWR-18-10-72* 121 ATWR-24-10-72 156
114" 84" ATWR-18-10-114 175 ATWR-24-10-114 229 wheel riser. Features 5" x 2"
mold-on-rubber wheels. For
66" 30" ATWR-18-12-66* 125 ATWR-24-12-66 160 use with aluminum wheel
72" 36" ATWR-18-12-72* 131 ATWR-24-12-72 169 risers only.
12"
78" 42" ATWR-18-12-78 144 ATWR-24-12-78 191
120" 84" ATWR-18-12-120 208 ATWR-24-12-120 270
ADD A WHEEL TO A SINGLE ALUMINUM WHEEL RISER FOR PORTABILITY. MODEL ATWR-WL
OPTIONAL WELDED FORK POCKETS, 7½"W x 2½"H, MODEL ATWR-FP
*PORTABLE WHEEL RISER CADDY, MODEL R-CAD-18, for 18" wide units, (1) Caddy, (1) pair of brackets
*PORTABLE WHEEL RISER CADDY, MODEL R-CAD-24, for 24" wide units, (1) Caddy, (1) pair of brackets
*ONE PAIR OF BOLT-ON BRACKETS AND HARDWARE, MODEL R-CAD-KIT
ANCHOR BRACKETS (4 PER RISER) TO BOLT RISER TO GROUND, MODEL ATWR-ABRK
FORK POCKETS ARE STANDARD ON
STEEL WHEEL RISERS FOR EASY
LEVEL LENGTH NOTE: DUAL WHEELS ON TRANSPORTATION
SEMI-TRAILERS ARE 18" WIDE.
HEIGHT
THE 24" WHEEL RISERS WORK
OVERALL LENGTH BEST FOR THIS APPLICATION.
WHEEL RISERS ARE
Steel Wheel Risers PRICED AND SOLD EACH
Steel Wheel Risers are equipped with fork slots for ease in fork truck transporting. Ramps may be
stacked for compact storage when not in use. Fork pockets are 7½" wide by 2½" high usable. These
fork pockets add approximately 15" to the overall width of the riser. Wheel Risers are designed to raise
the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7
requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty
welded steel construction. Uniform capacity per pair is 40,000 lb. (¼" thick material) (sold each).
model R-CAD-KIT
18" USABLE WIDTH 24" USABLE WIDTH
OVERALL LEVEL MODEL WEIGHT MODEL WEIGHT
HEIGHT LENGTH LENGTH NUMBER (EACH) NUMBER (EACH)
48" 24" SWR-18-6-48* 233 SWR-24-6-48 218
60" 36" SWR-18-6-60* 255 SWR-24-6-60 266
6¼"
72" 48" SWR-18-6-72* 296 SWR-24-6-72 310
84" 60" SWR-18-6-84 353 SWR-24-6-84 363
60" 28" SWR-18-8-60* 324 SWR-24-8-60 271 *PORTABLE WHEEL RISER CADDY,
72" 40" SWR-18-8-72* 347 SWR-24-8-72 334 series R-CAD, move steel or aluminum
8¼" risers out of the way with this easy to
84" 52" SWR-18-8-84 388 SWR-24-8-84 398 use mover. Snap roller into riser and
96" 64" SWR-18-8-96 445 SWR-24-8-96 416 away you go. *Only available for lengths up
60" 20" SWR-18-10-60* 237 SWR-24-10-60 330 to and including 72" units.
72" 32" SWR-18-10-72* 300 SWR-24-10-72 361
10¼"
84" 44" SWR-18-10-84 346 SWR-24-10-84 448
96" 56" SWR-18-10-96 392 SWR-24-10-96 486
72" 24" SWR-18-12-72* 357 SWR-24-12-72 377
84" 36" SWR-18-12-84 366 SWR-24-12-84 396
12¼"
96" 48" SWR-18-12-96 399 SWR-24-12-96 429
108" 60" SWR-18-12-108 467 SWR-24-12-108 524 CENTRAL PICK-UP LOOP is used
*PORTABLE WHEEL RISER CADDY, MODEL R-CAD-18, for 18" wide units, (1) Caddy, (1) pair of brackets to connect two wheel risers (factory
*PORTABLE WHEEL RISER CADDY, MODEL R-CAD-24, for 24" wide units, (1) Caddy, (1) pair of brackets installed). Allows fork trucks to easily
*ONE PAIR OF WELD-ON BRACKETS AND HARDWARE, MODEL R-CAD-KIT (FACTORY INSTALLED)
ANCHOR BRACKETS (4 PER RISER) TO BOLT RISER TO GROUND, MODEL SWR-ABRK, (FACTORY INSTALLED) position and move risers as one.
CENTRAL PICKUP LOOP, MODEL SWR-CPL, (FACTORY INSTALLED), ADDITIONAL WEIGHT 98 LBS. Overall width is 89" on 18"W risers vs.
CENTRAL PICKUP LOOP, MODEL SWR-CPL-SM, (FACTORY INSTALLED), for models SWR-18-6-48 & SWR-24-6-48, ADD'L WT. 108 LBS. 101" on 24"W risers.
